Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Ceiling types | Drop or suspended ceilings (standard 2 ft x 2 ft / 61 x 61 cm or 2 ft x 4 ft / 61 x 122 cm grid systems) |
| Included mount | QG-PRO-PM-50-W |
| Included adapter | QG-PRO-PM-SCA2-W suspended ceiling adapter |
| Adapter size | 2 x 2 ft / 61 x 61 cm, flush ceiling tile design; in a 2 ft x 4 ft / 61 x 122 cm grid opening it fills one half, and a 2 ft x 2 ft / 61 x 61 cm ceiling tile (not included) fills the other |
| Included pipe | 3 in / 7.6 cm, 1.5 in NPT |
| Thread standard | 1.5 in NPT |
| Performance / Capacity | |
| Load capacity | 50 lb / 22.7 kg |
| Pitch | ±20° |
| Roll | ±8° |
| Rotation | ±180° |
| Adjustment points | 12 |
| Adapter lateral adjustment | 17.24 in / 43.8 cm (sliding collar) |
| Materials & Finish | |
| Color | White |
| Care / Installation | |
| In the box | Projector mount, ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
| Support | US-based phone support, +1-972-423-5015 |
Flush 2x2 tile adapter drops a projector from a standard grid ceiling

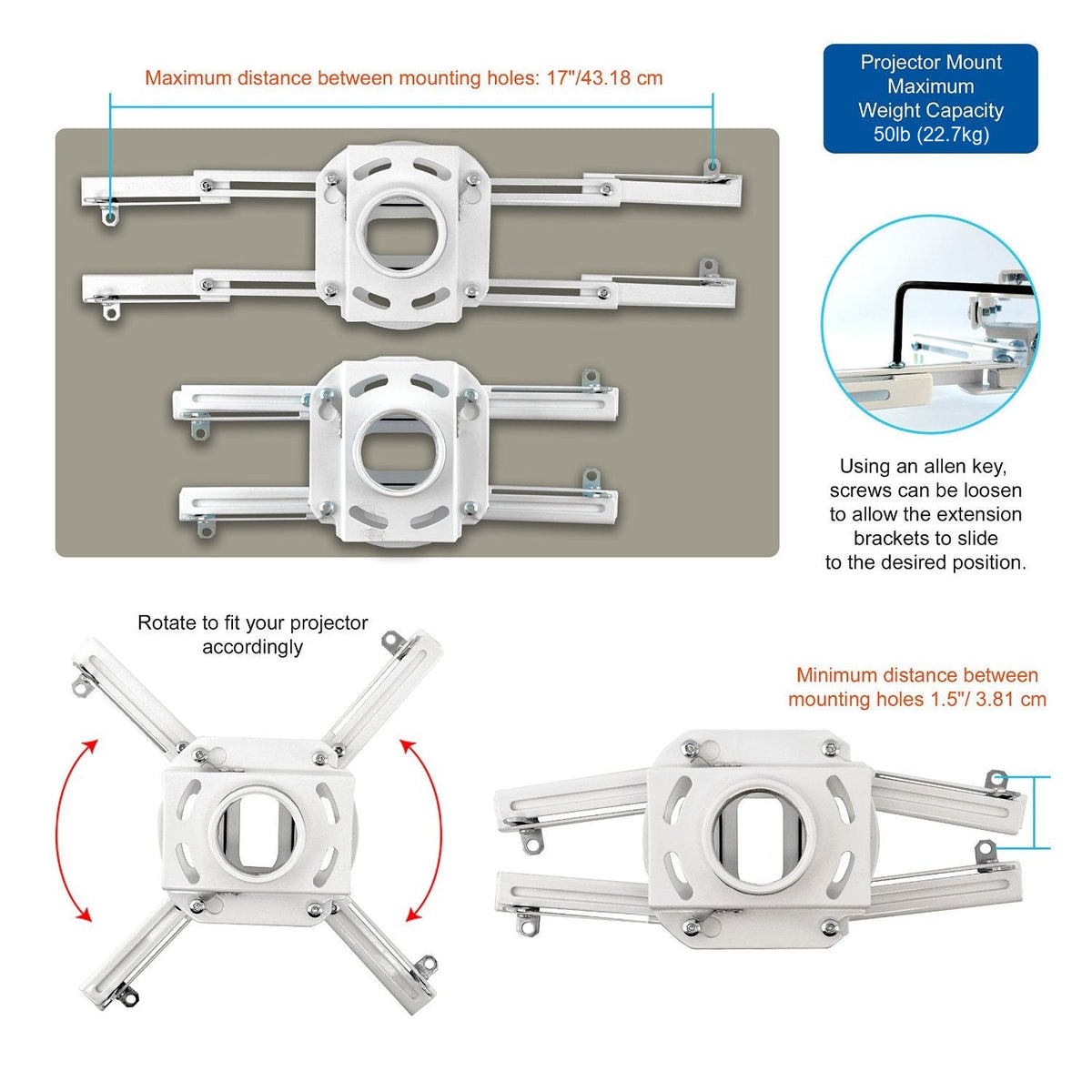

Finish a suspended-ceiling projector install so it looks built in. This QualGear Pro-AV kit combines the QG-PRO-PM-50-W projector mount, the QG-PRO-PM-SCA2-W suspended ceiling adapter — a flush 2 x 2 ft / 61 x 61 cm ceiling tile design — and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in white, for drop or suspended ceilings on standard grid systems.
The adapter sits flush in place of a tile, its collar slides 17.24 in / 43.8 cm, the pipe threads in, and the kit carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image. In the box: projector mount, suspended ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.
The 1.5 in NPT thread is the QualGear Pro-AV system standard — for a lower drop, swap the included pipe for a longer QualGear extension pipe or join lengths with a QualGear NPT pipe connector. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Complete drop ceiling kit in one box
Projector mount, flush tile ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.
Flush 2 ft x 2 ft tile design
The SCA2 adapter is a flush 2 x 2 ft / 61 x 61 cm tile that also fits 2 ft x 4 ft / 61 x 122 cm grids.
Holds projectors up to 50 lb
The kit is rated for projectors up to 50 lb / 22.7 kg, the rating of its QG-PRO-PM-50-W projector mount.

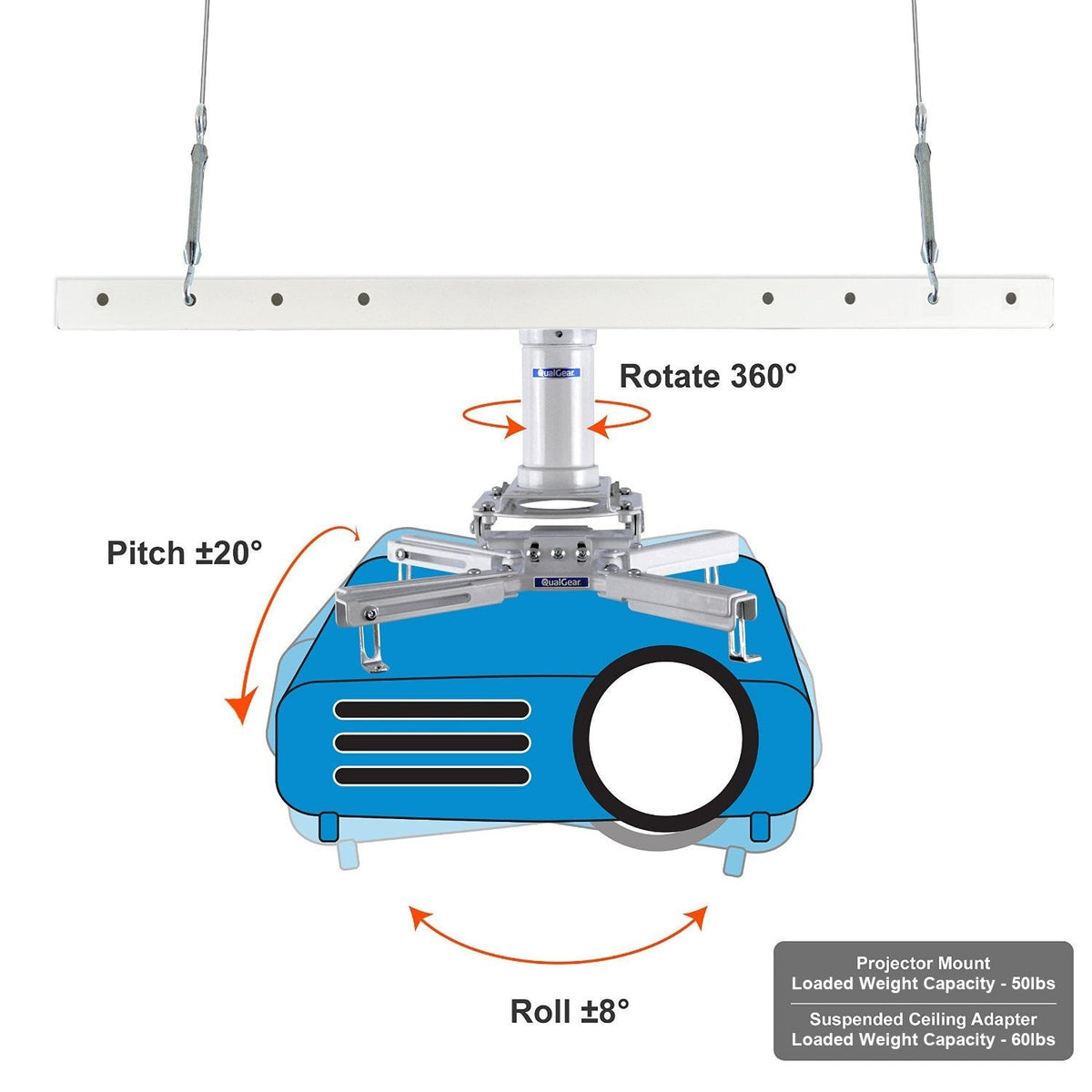

Aims the image after installation
Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.
Extends to lower drops
The standard 1.5 in NPT thread accepts longer QualGear pipes when the projector needs to hang farther below the grid.
Presorted hardware, manuals on this page
Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
