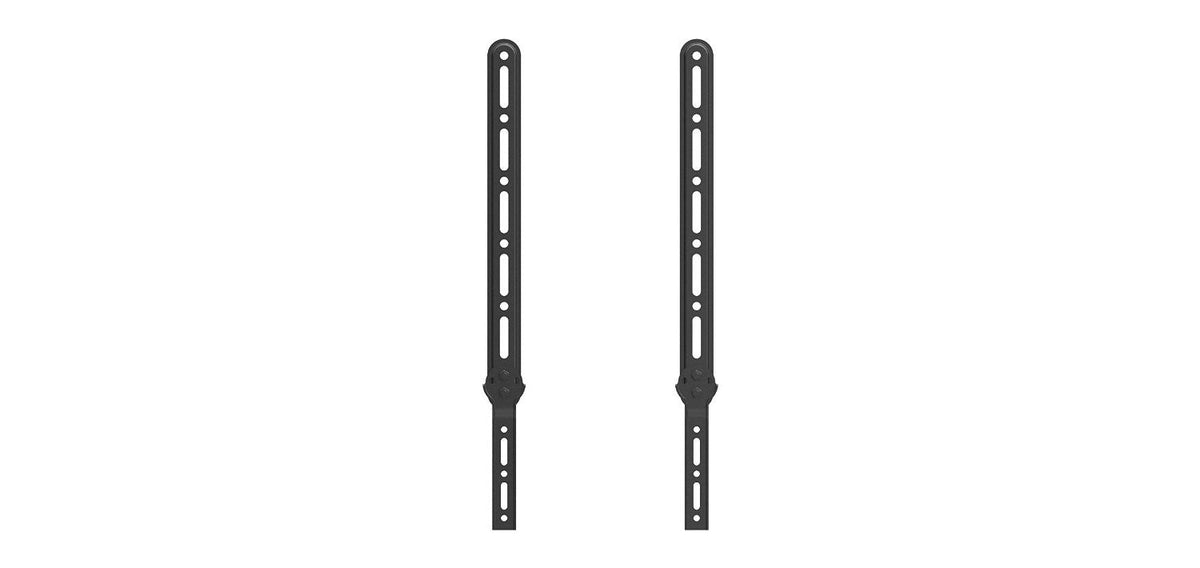

QualGear Universal Sound Bar Bracket, 33 lb / 15 kg, Black, QG-SB-001-BLK

SKU: QG-SB-001-BLK

Regular price $23.95
Sale price $23.95 Regular price

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
1-year limited manufacturer's warranty, parts only
Installation manual PDF Will it fit? Check before you buy
QualGear Universal Sound Bar Bracket, 33 lb / 15 kg, Black, QG-SB-001-BLK
Regular price $23.95
Sale price $23.95 Regular price

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

33 lb / 15 kg TV (without stand) plus sound bar must be at or under the TV wall mount's rated load 23-65 in / 58.4-165.1 cm 75x75-600x400 mm
Supported VESA hole patterns (W×H mm) — complete list, max highlighted
75×75
100×100
200×100
200×200
300×300
400×200
400×400
600×400 MAX
Full technical specifications
Performance / Capacity
Max load33 lb / 15 kg
Weight checkTV (without stand) plus sound bar must be at or under the TV wall mount's rated load
Compatibility / Requirements
TV size range23-65 in / 58.4-165.1 cm
Mounts toTV or existing TV wall mount bracket
Dimensions & Weight

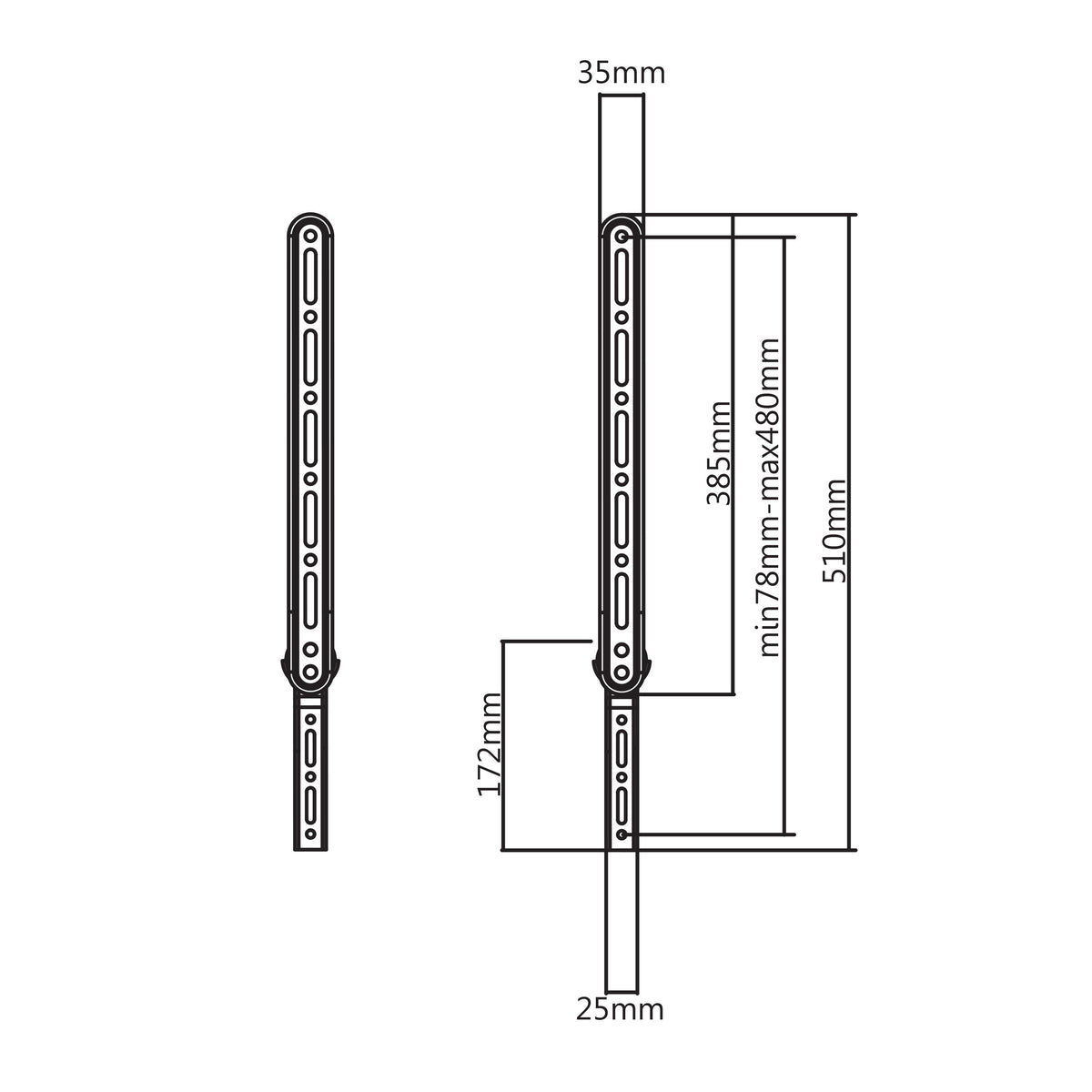

Bracket dimensions15.5 x 2.2 x 1.6 in / 39.4 x 5.6 x 4.1 cm
Bracket weight1.65 lb / 0.75 kg
Materials & Finish
MaterialSteel
ColorBlack
Care / Installation
HardwarePresorted mounting hardware included
ManualColor installation manual
In the boxSound bar brackets, presorted mounting hardware, color installation manual
Warranty & Support
Warranty1-year limited manufacturer's warranty, parts only

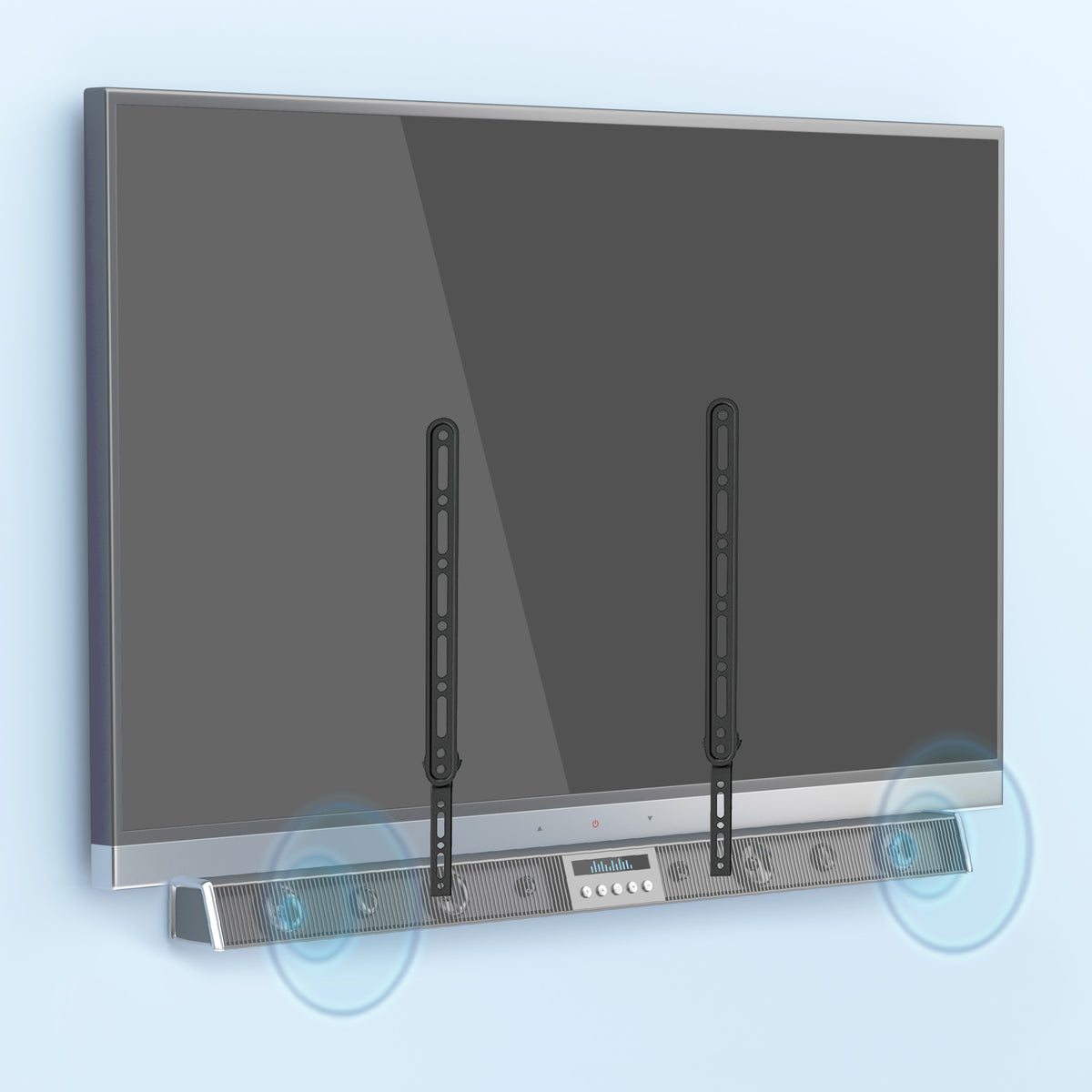

Hangs the sound bar from the TV or its wall mount, right below the screen.

Keep the sound bar directly below the screen, hung from the TV rather than the wall. The QualGear QG-SB-001-BLK is a steel sound bar bracket set that holds sound bars up to 33 lb / 15 kg and works with most 23-65 in / 58.4-165.1 cm flat screen TVs. The TV (without stand) plus the sound bar must be at or under your TV wall mount's rated load.

The brackets attach to the TV's VESA mounting points — patterns from 75x75 to 600x400 mm — or to an existing TV wall mount bracket, positioning the sound bar right below the TV. Presorted hardware speeds up installation, and a color installation manual walks through each step. In the box: sound bar brackets, presorted mounting hardware, and the color installation manual.

Pairs with a QualGear TV wall mount — fixed (QG-TM-F-014), tilting (QG-TM-T-015), or articulating (QG-TM-A-012) — for a complete under-TV audio install. Backed by a 1-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Sound bar hangs right below the TV

Attaches to the TV or an existing TV wall mount bracket, so the sound bar sits directly under the screen.

Steel brackets hold 33 lb

Steel construction carries sound bars up to 33 lb / 15 kg.

Fits most 23-65 in flat screens

Works with most 23-65 in / 58.4-165.1 cm flat screen TVs with VESA patterns from 75x75 to 600x400 mm.

Presorted hardware speeds installation

Mounting hardware arrives presorted, so each fastener is at hand when the step calls for it.

Color manual walks through each step

A color installation manual covers the install step by step, with US-based phone support if a question comes up.
