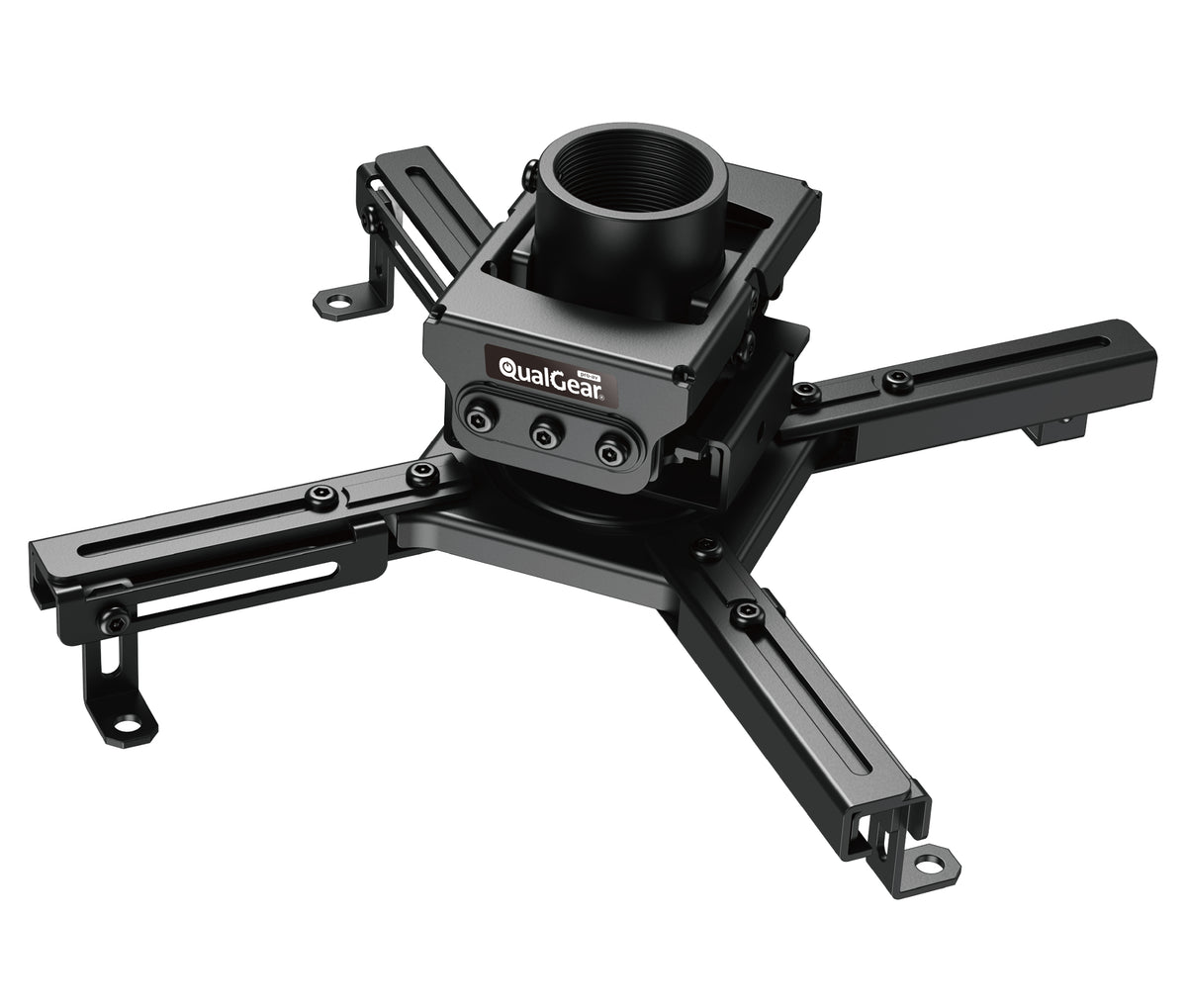

QualGear Pro-AV Projector Bracket, Black, QG-PRO-PM-50-B

SKU: QG-PRO-PM-50-B

Regular price $49.95
Sale price $49.95 Regular price $99.95

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
5-year limited manufacturer's warranty, parts only
Installation manual PDF Will it fit my projector? Check before you buy
QualGear Pro-AV Projector Bracket, Black, QG-PRO-PM-50-B
Regular price $49.95
Sale price $49.95 Regular price $99.95

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

50 lb / 22.7 kg +/-20 degrees (6 adjustment points) +/-8 degrees (6 adjustment points) -180 to +180 degrees
Full technical specifications
Performance / Capacity
Max load50 lb / 22.7 kg
Pitch+/-20 degrees (6 adjustment points)
Roll+/-8 degrees (6 adjustment points)
Rotation-180 to +180 degrees
Compatibility / Requirements

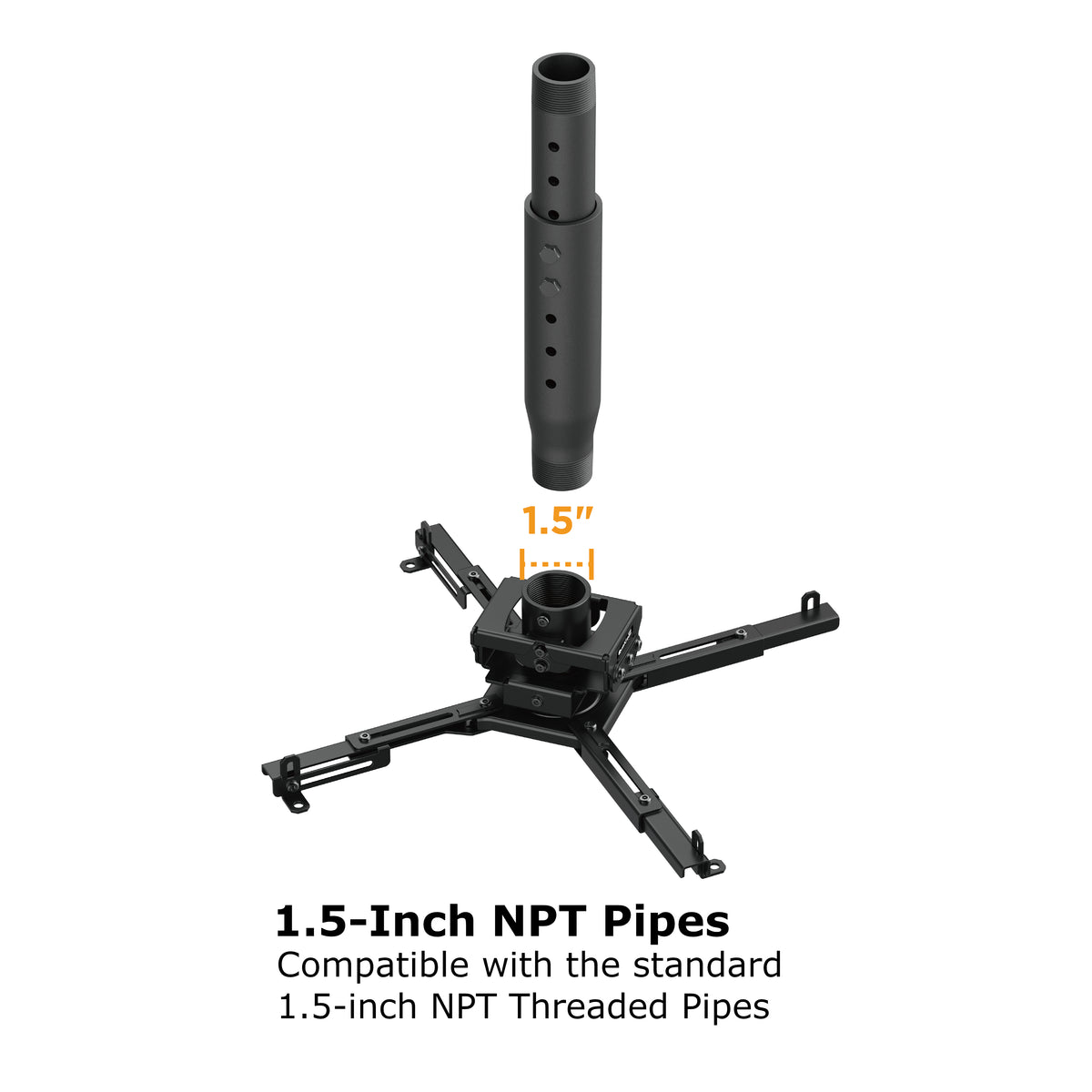

Interface1.5-in NPT threaded pipe
Completes with1.5-in NPT extension pipe and ceiling adapter, sold separately
Dimensions & Weight

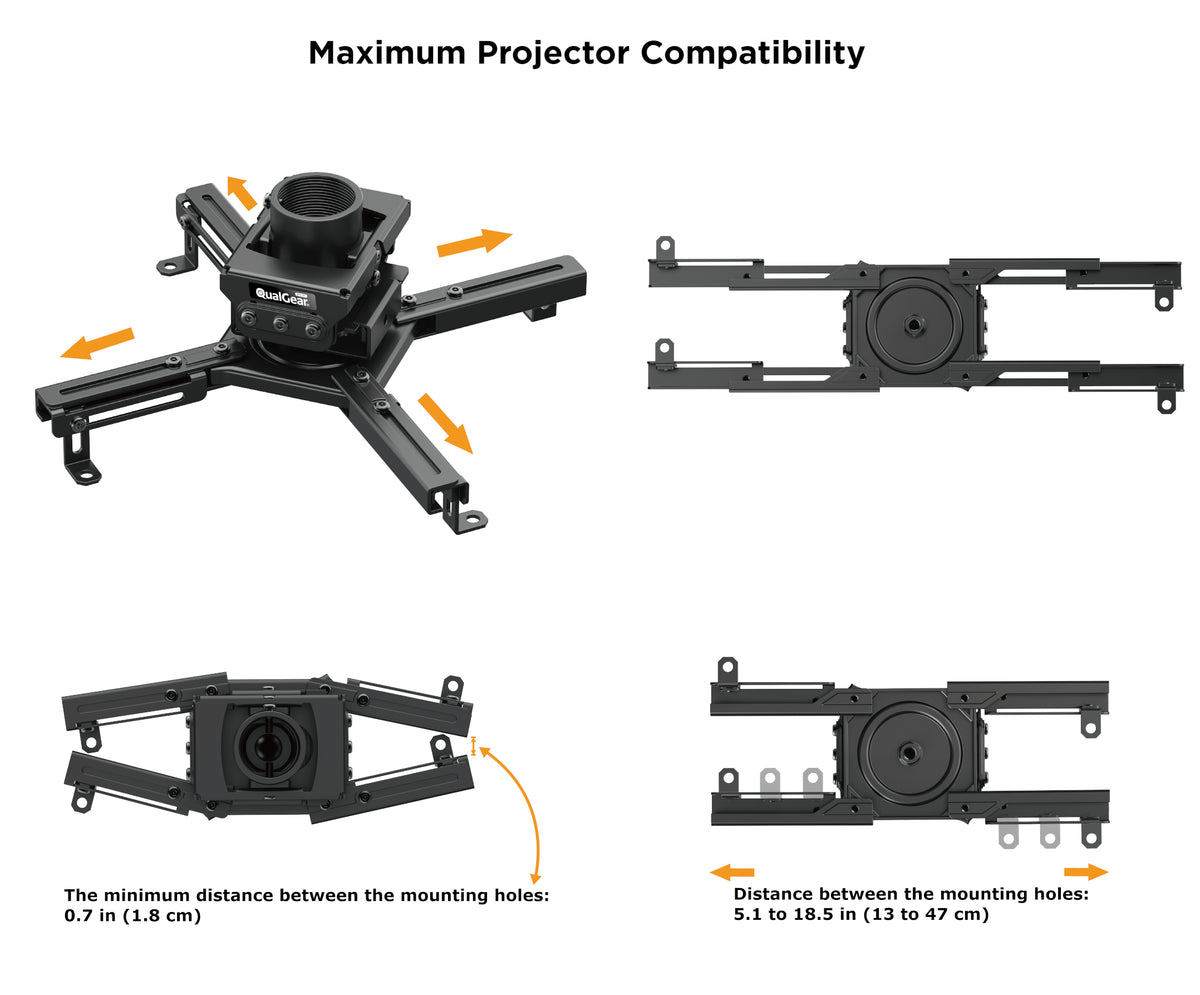

Mounting range5.1-18.5 in / 130-470 mm
Profile (ceiling to projector)3.46 in / 88 mm
Materials & Finish
MaterialAluminum / high-grade cold rolled steel, scratch-resistant epoxy powder coat
ColorBlack
Care / Installation
In the boxTwo-piece projector mount with pre-assembled mounting interface, pre-sorted hardware pack
Installation manualAvailable (PDF)
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only
SupportUS-based phone support, +1-972-423-5015

Threads onto 1.5-in NPT pipe; 12 points lock pitch and roll after setup.

Spec first: 50 lb / 22.7 kg rated load, standard 1.5-in NPT interface, and a 3.46 in / 88 mm ceiling-to-projector profile. This two-piece Pro-AV projector bracket threads onto standard 1.5-in NPT pipe and anchors installs in boardrooms, classrooms, entertainment venues, and home theaters.

Twelve adjustment points — six for pitch, six for roll — hold the aim after setup, so the picture stays where the installer left it. Pitch adjusts +/-20 degrees, roll +/-8 degrees, and rotation spans -180 to +180 degrees. A quick-release feature speeds projector attachment and removal, and the pre-assembled mounting interface with pre-sorted hardware pack shortens the install.

Aluminum and high-grade cold rolled steel carry a scratch-resistant epoxy powder coat in black. Complete the drop with a QualGear 1.5-in NPT extension pipe and the ceiling adapter for your surface — or step up to the complete QualGear projector mount kit in black (QG-KIT-CA series). Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Holds projectors up to 50 lb

Rated for projectors up to 50 lb / 22.7 kg on a standard 1.5-in NPT threaded pipe.

12 points lock the aim

Six pitch and six roll adjustment points keep the projector from slipping after setup.

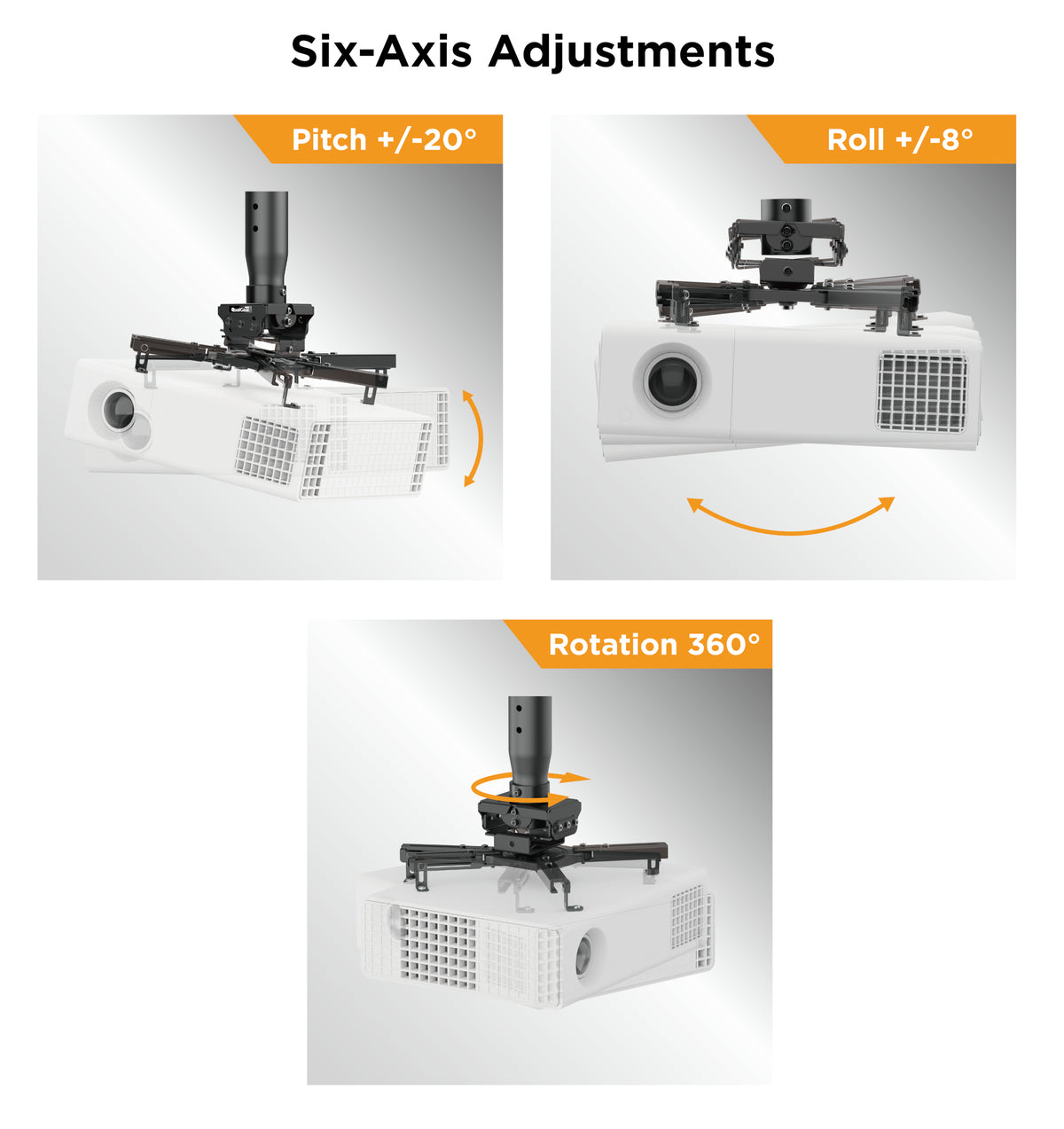

Adjusts on three axes

Pitch adjusts +/-20 degrees, roll +/-8 degrees, and rotation spans -180 to +180 degrees.

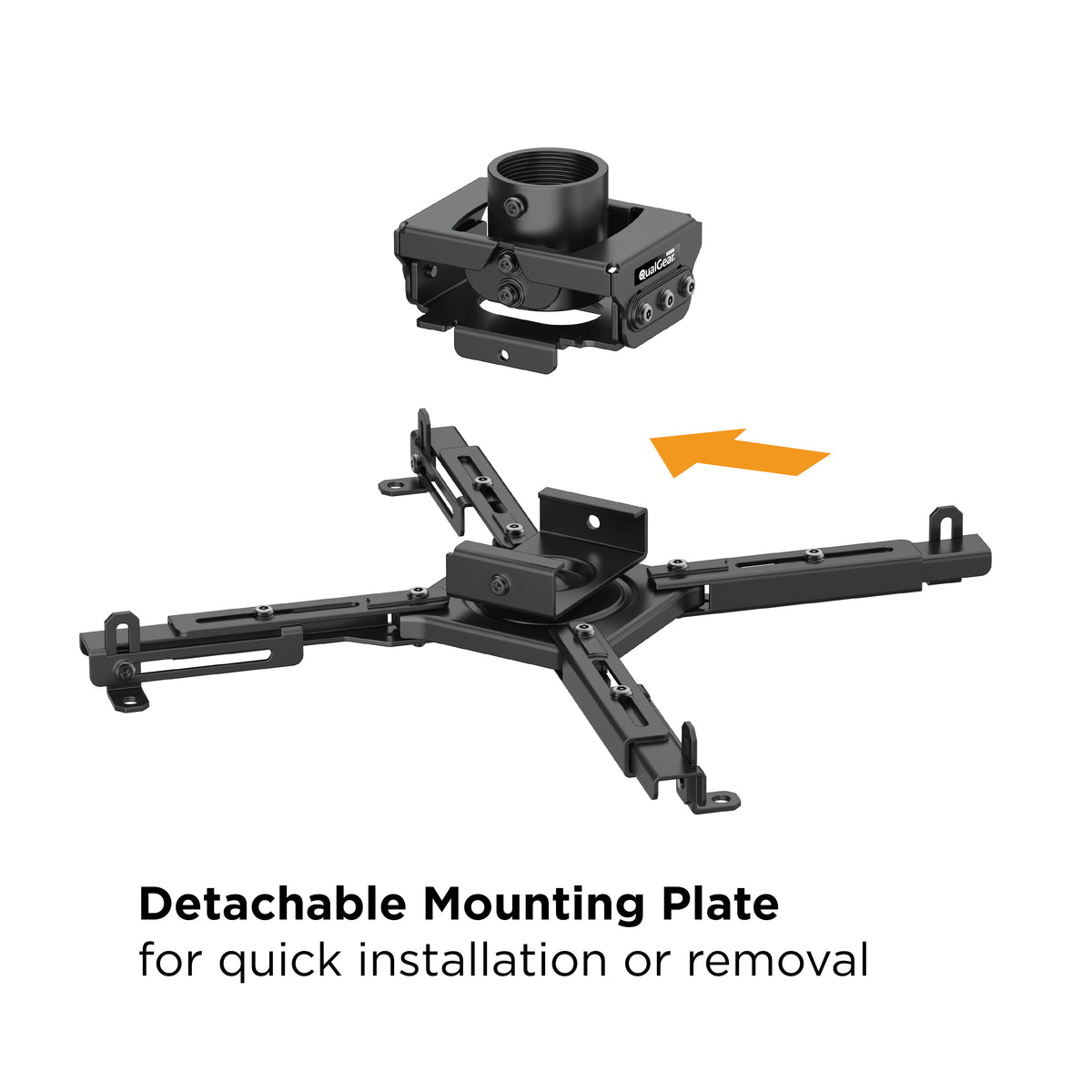

Quick-release attachment and removal

The quick-release feature speeds projector attachment and removal.

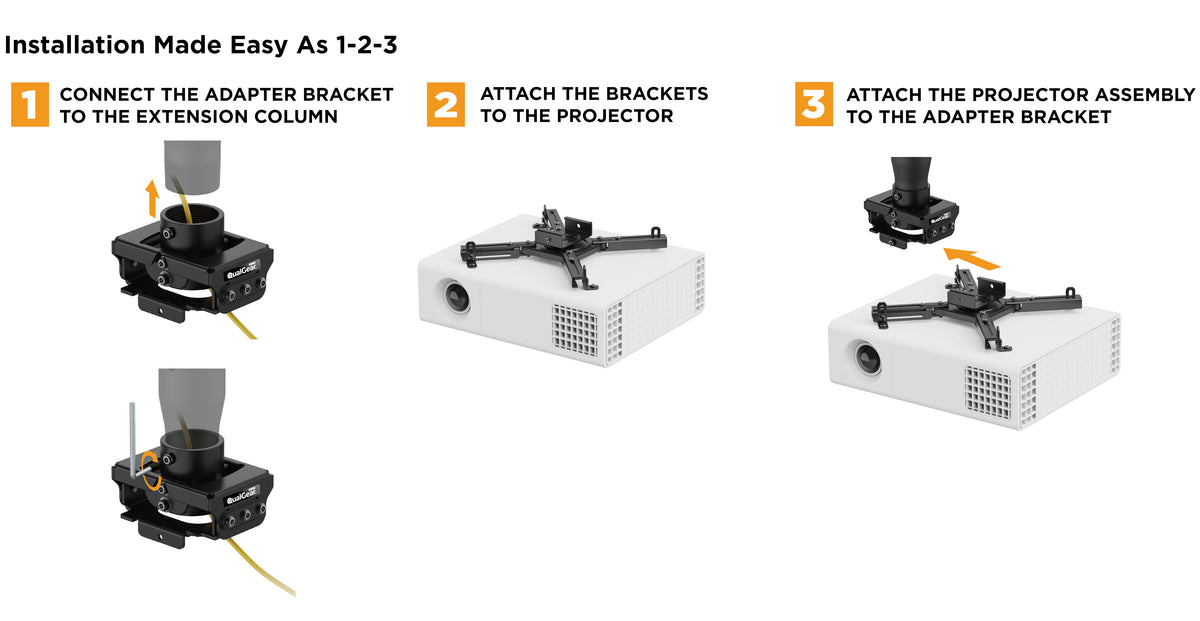

Arrives ready to install

Pre-assembled mounting interface and pre-sorted hardware pack shorten installation.

Low 3.46 in profile

Holds the projector 3.46 in / 88 mm from the ceiling, with a 5.1-18.5 in / 130-470 mm mounting range.
