QualGear Projector Mount Kit, Black, QG-KIT-CA-3IN-B

SKU: QG-KIT-CA-3IN-B

Regular price $107.95
Sale price $107.95 Regular price

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
5-year limited manufacturer's warranty, parts only
QG-KIT-CA-3IN-B installation manual PDF Will it fit my projector? Check before you buy
QualGear Projector Mount Kit, Black, QG-KIT-CA-3IN-B
Regular price $107.95
Sale price $107.95 Regular price

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

QG-PRO-PM-50-B QG-PRO-PM-CA-B single joist ceiling adapter 3 in / 7.6 cm, 1.5 in NPT Single wood joist, wood beam, wood stud, and concrete ceilings
Full technical specifications
Compatibility / Requirements

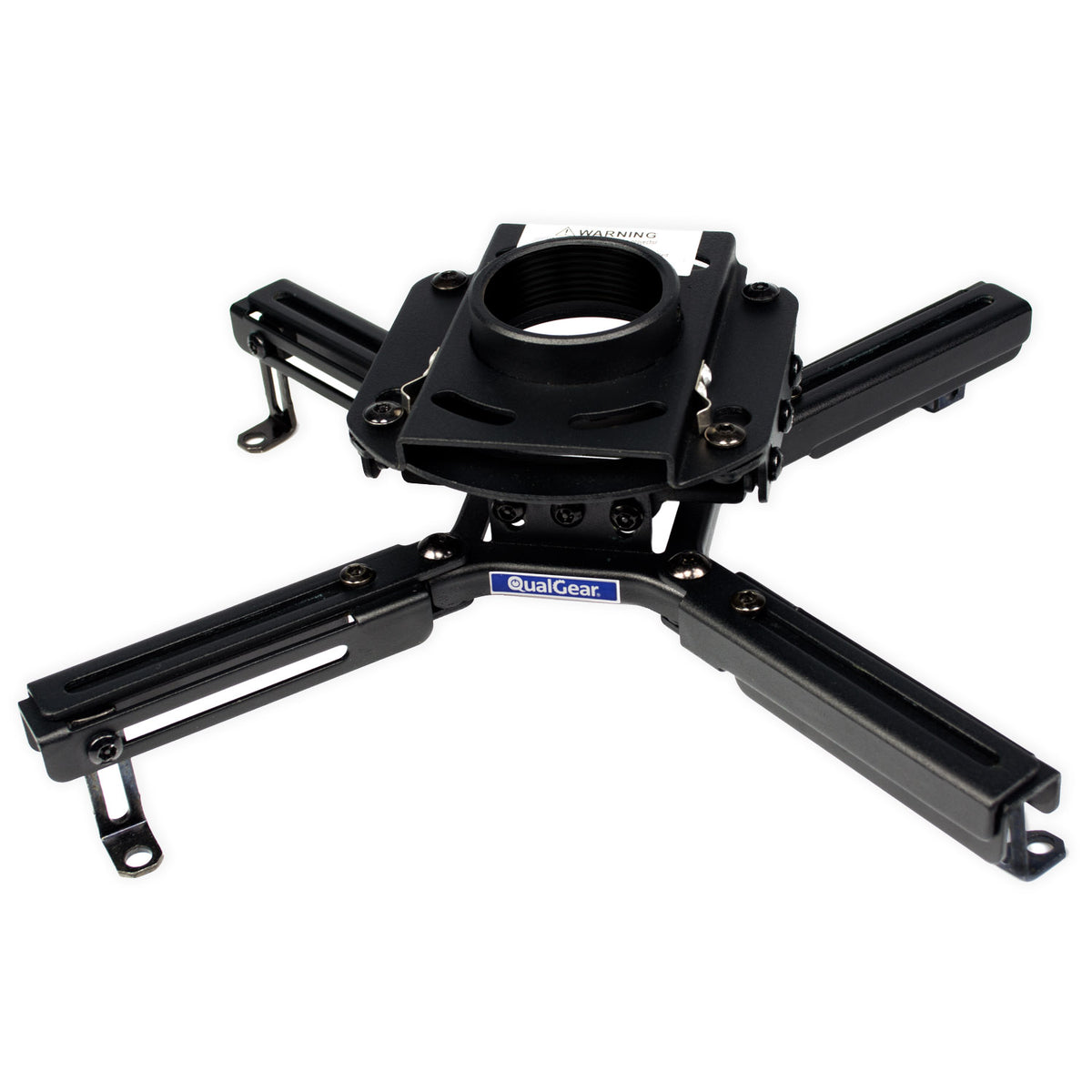

Included mountQG-PRO-PM-50-B

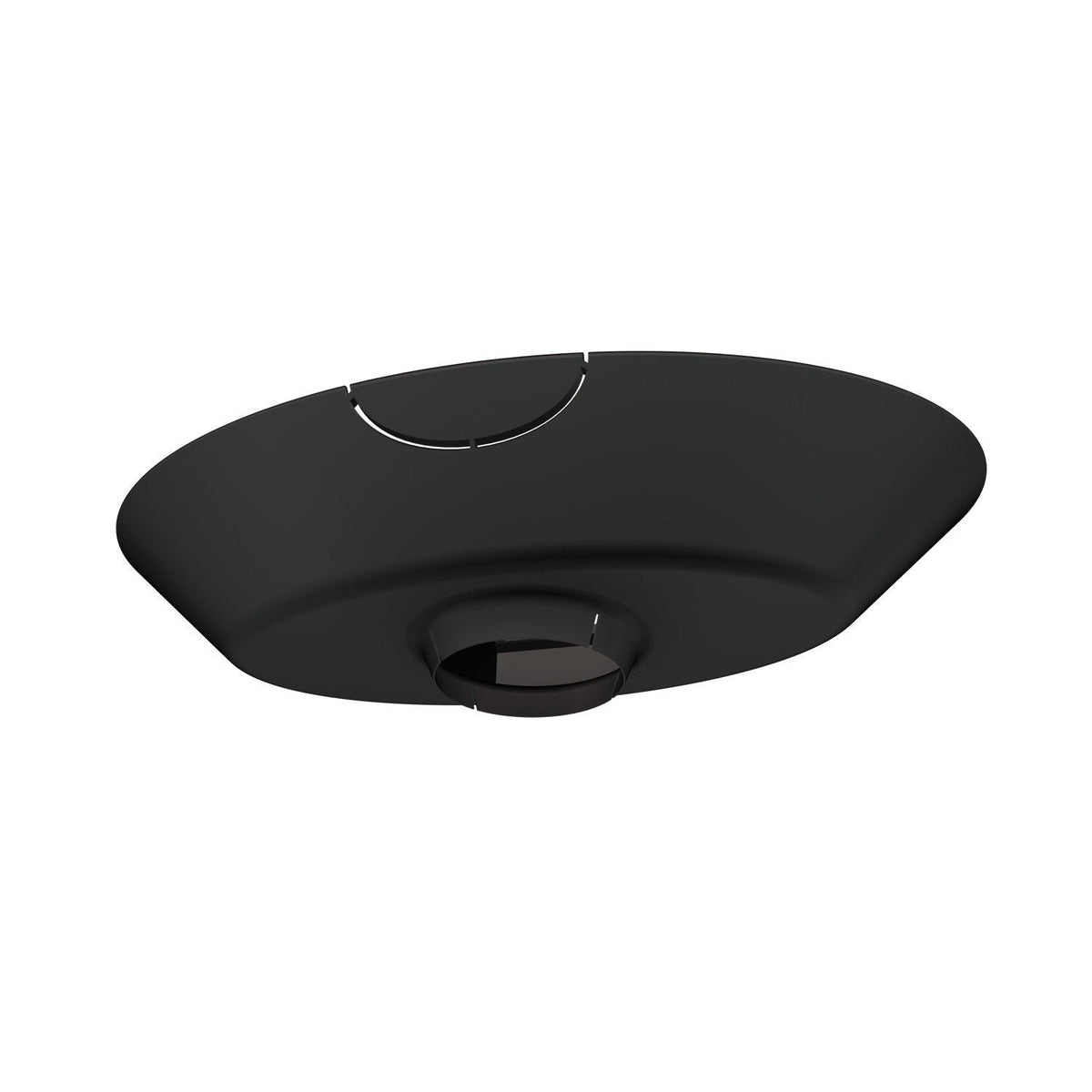

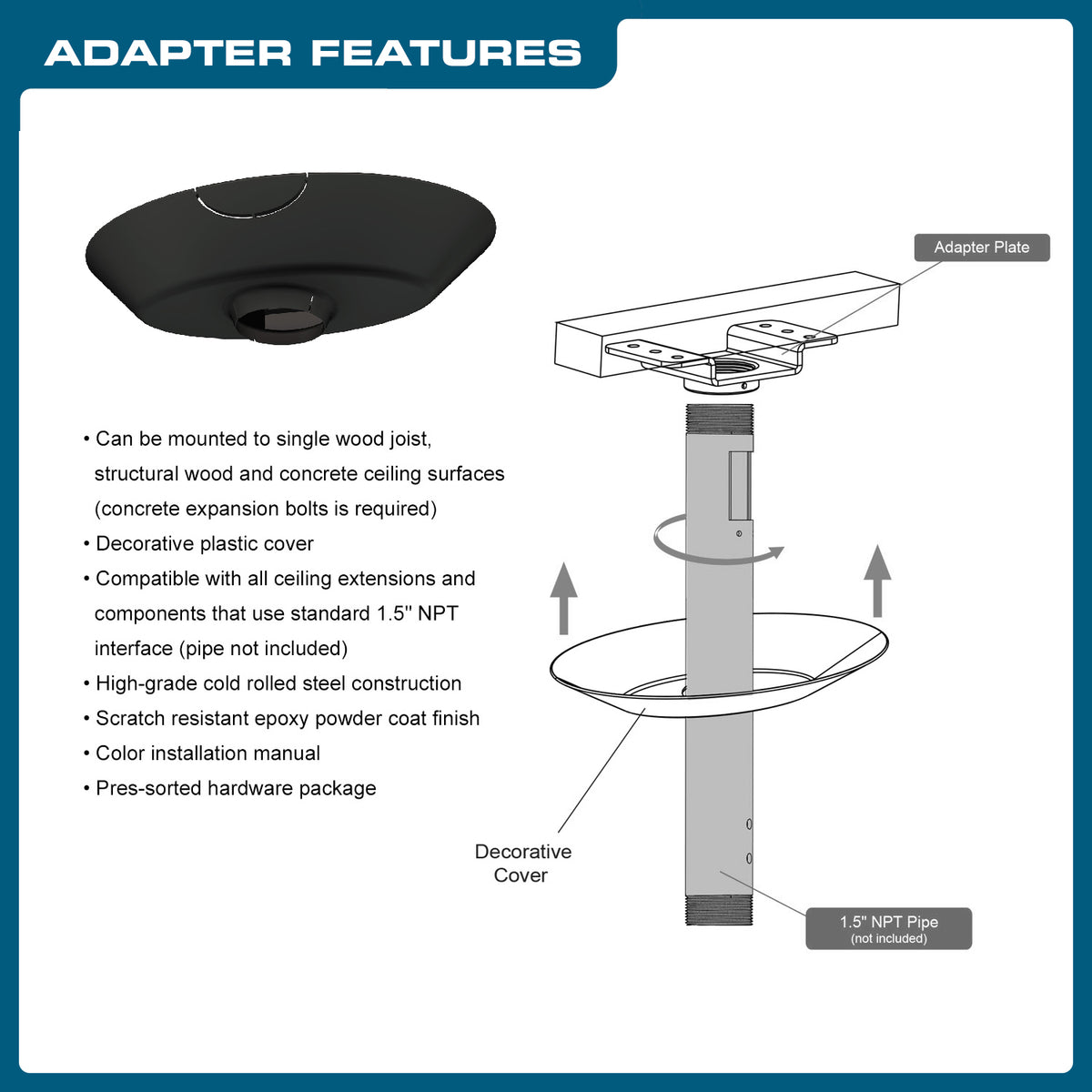

Included adapterQG-PRO-PM-CA-B single joist ceiling adapter

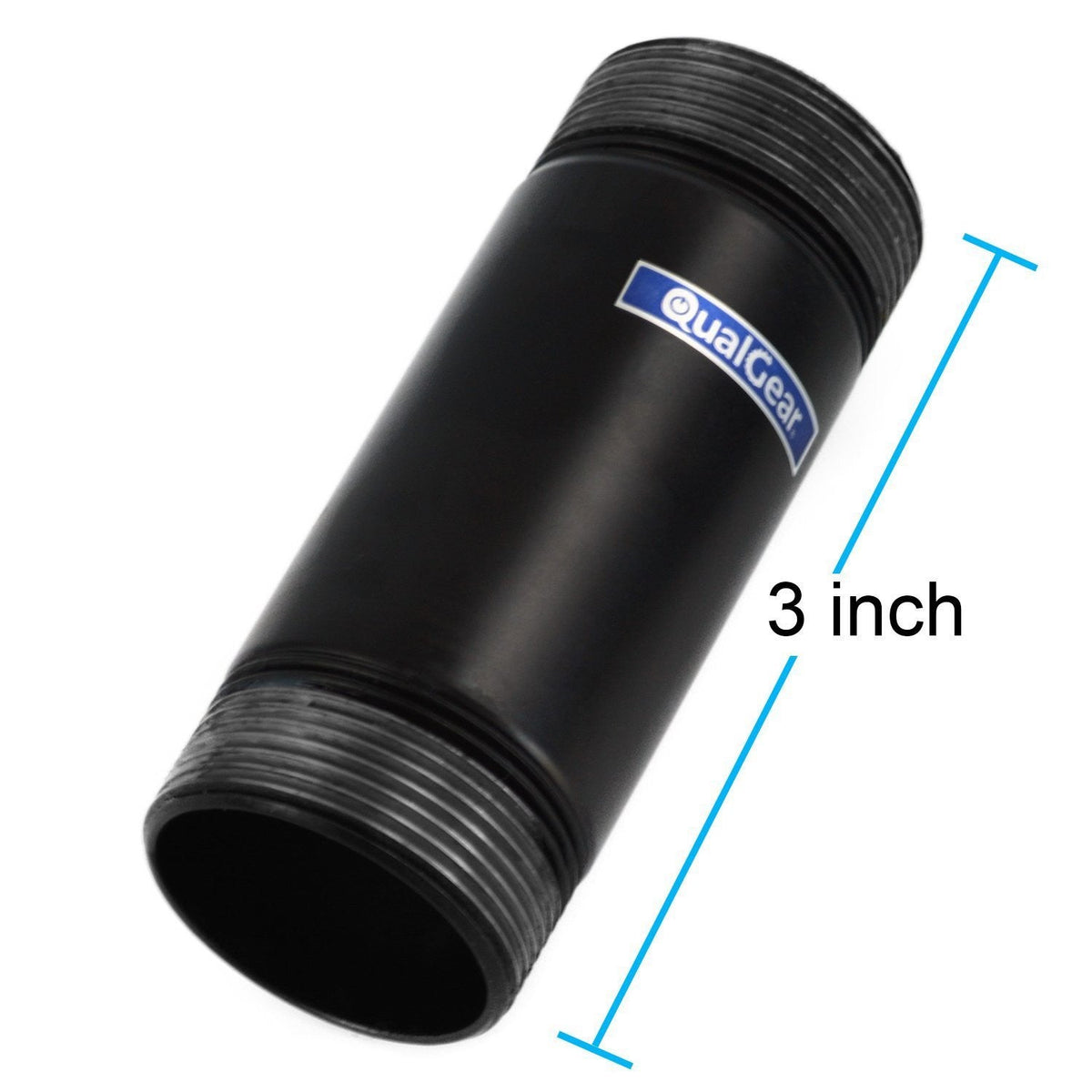

Included pipe3 in / 7.6 cm, 1.5 in NPT
Ceiling typesSingle wood joist, wood beam, wood stud, and concrete ceilings
Performance / Capacity
Load capacity (included mount)Up to 50 lb / 22.7 kg
Pitch+/- 20 degrees

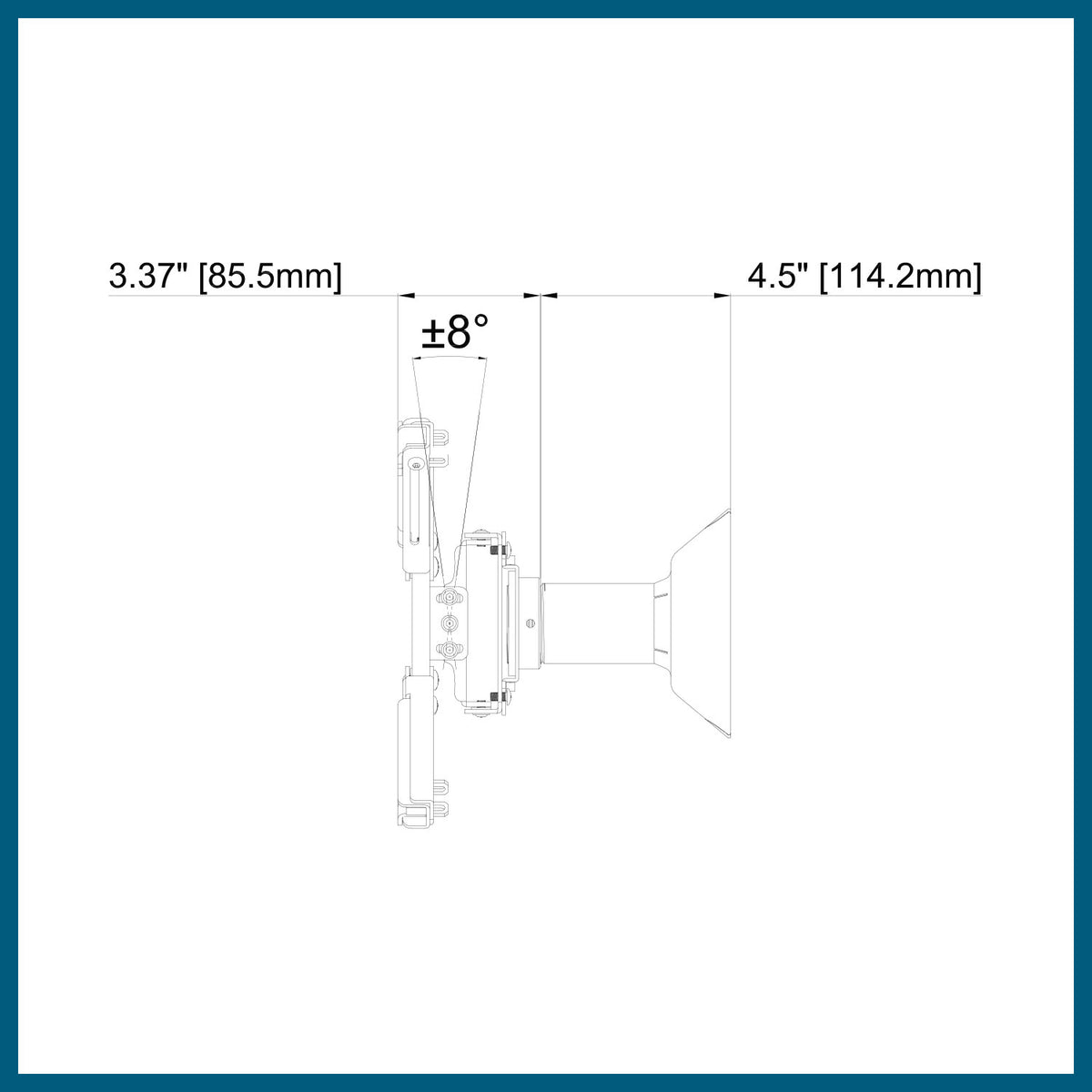

Roll+/- 8 degrees
Rotation+/- 180 degrees
Materials & Finish
ColorBlack
Care / Installation
In the boxProjector mount, ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only

Mount, single joist ceiling adapter, and 3 in / 7.6 cm NPT pipe in one box.

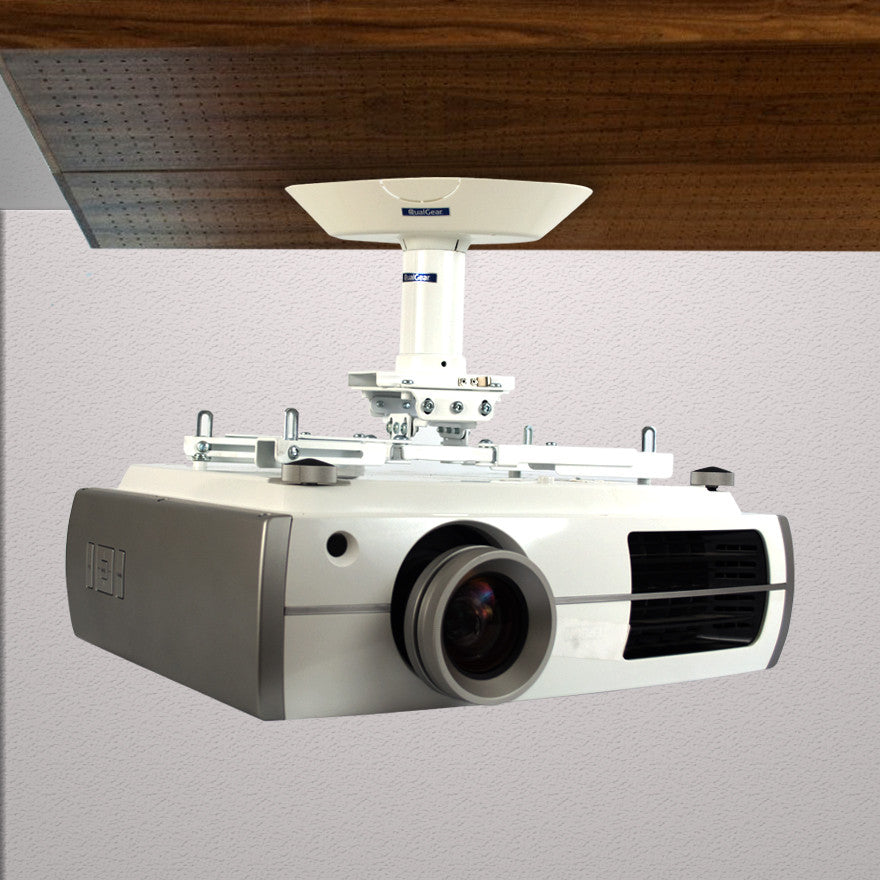

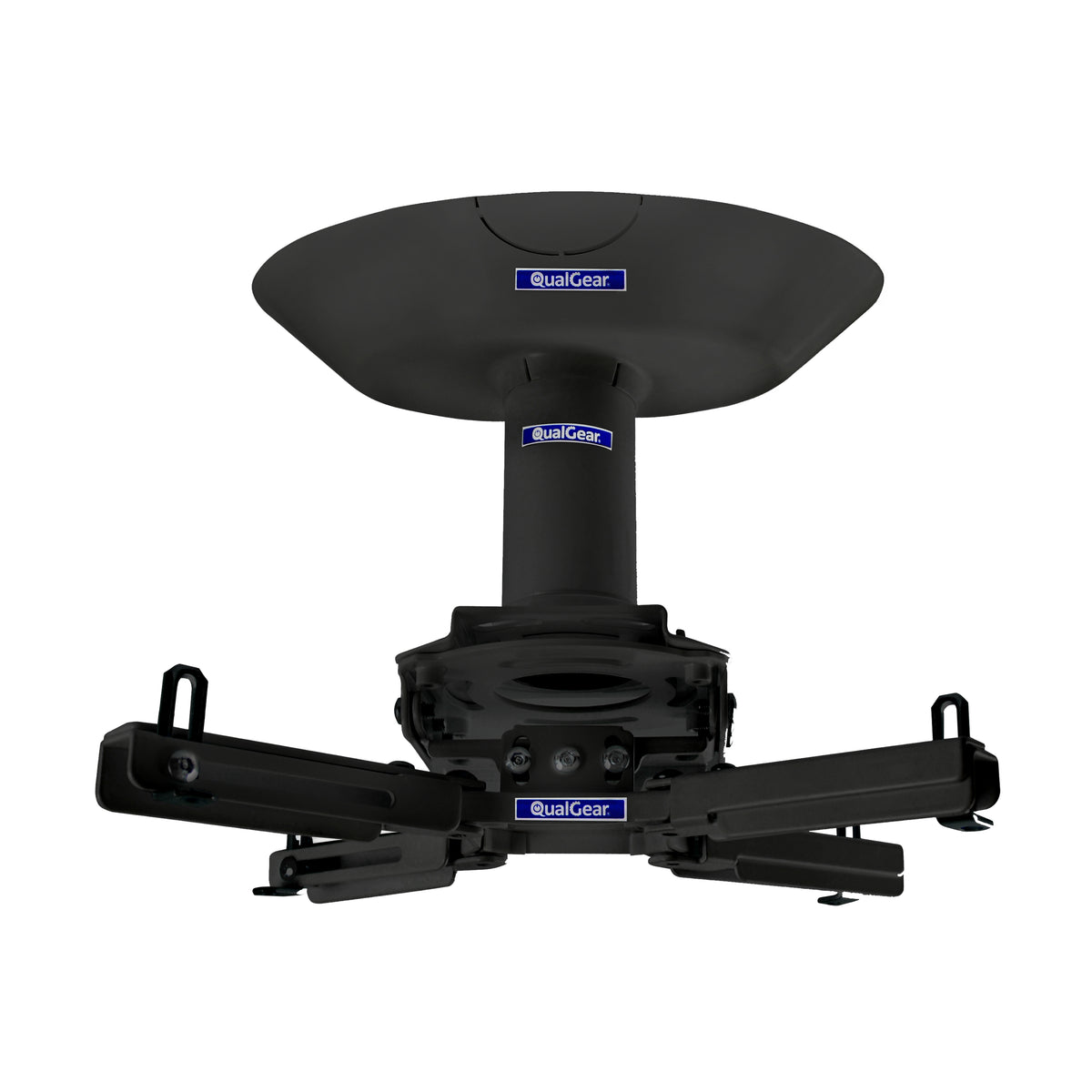

One box, one complete ceiling drop. This Pro-AV projector mounting kit combines the QG-PRO-PM-50-B projector mount, the QG-PRO-PM-CA-B single joist ceiling adapter, and a 3 in / 7.6 cm 1.5 in NPT threaded pipe — covering single wood joist, wood beam, wood stud, and concrete ceilings.

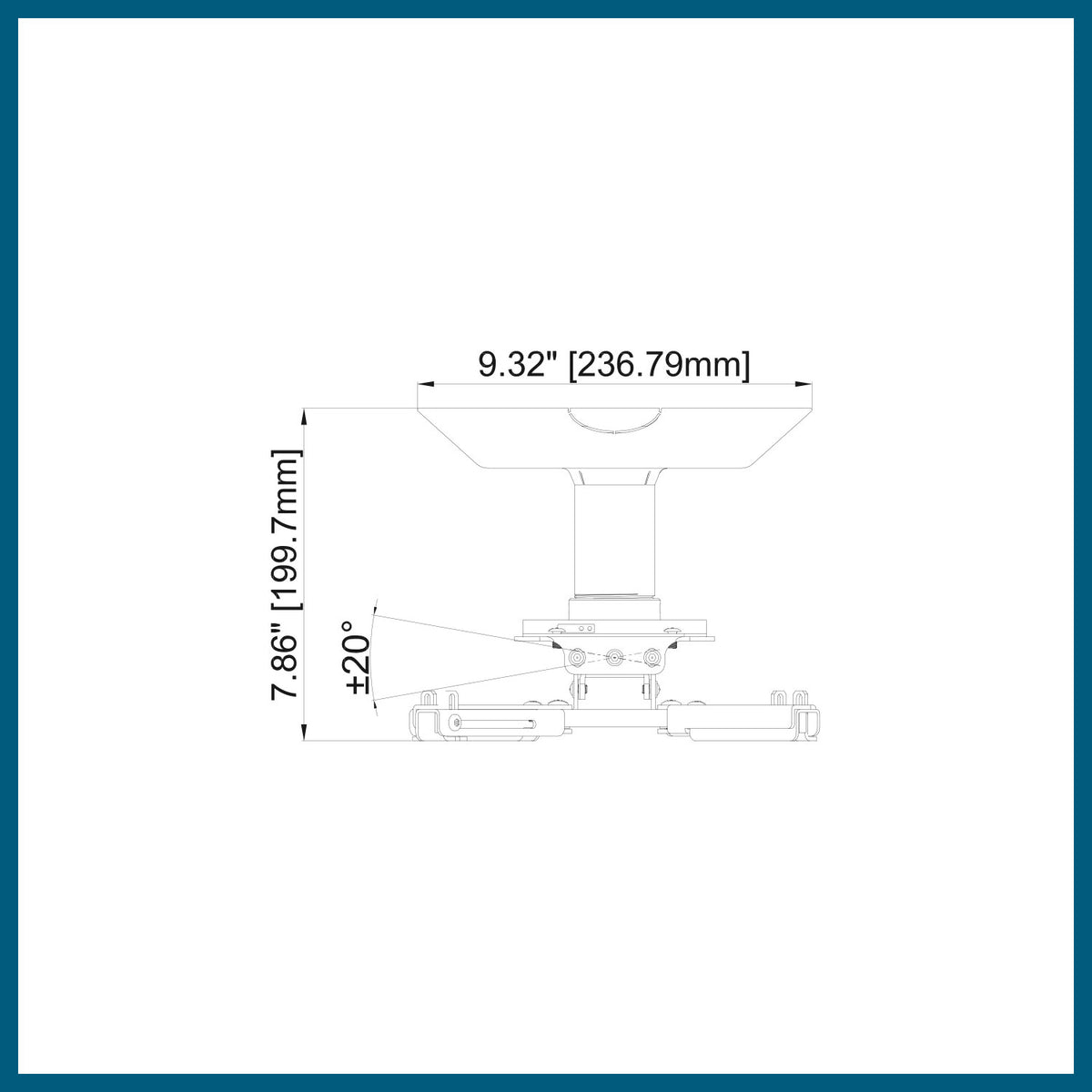

The included mount carries projectors up to 50 lb / 22.7 kg and aligns the image with pitch of +/- 20 degrees, roll of +/- 8 degrees, and rotation of +/- 180 degrees. Presorted hardware is in the box, and the kit's combined manual is on this page; printed copies will be included in future production.

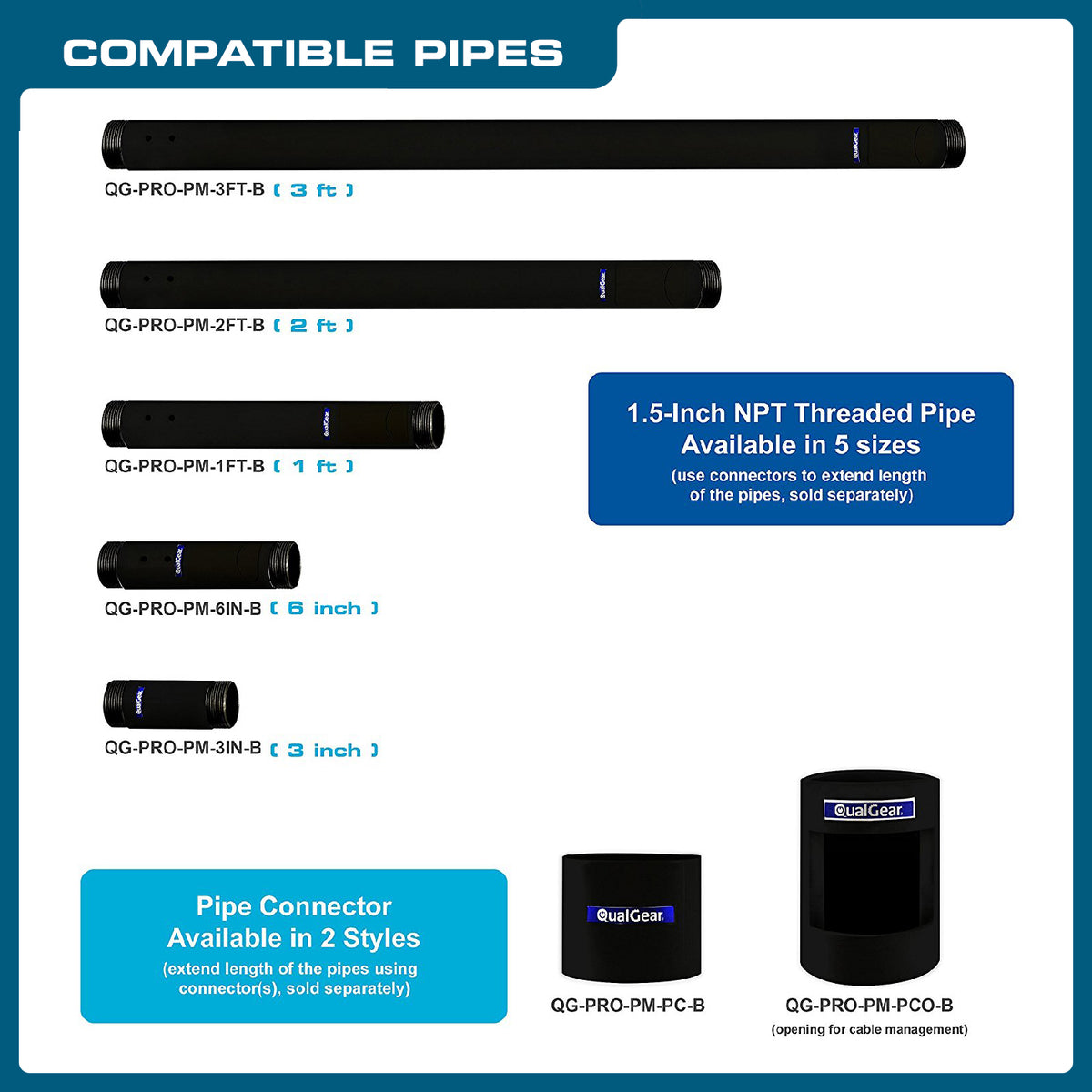

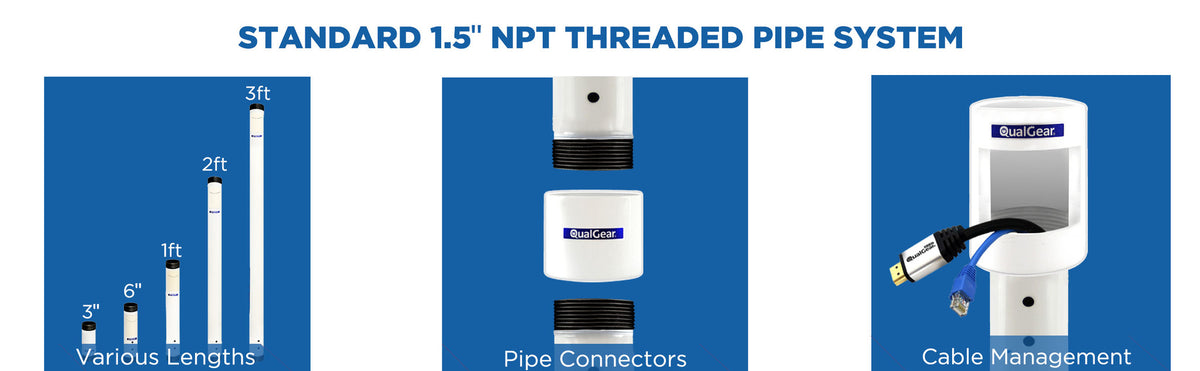

Because the kit runs on the standard 1.5 in NPT thread, the drop length is not fixed: swap the included 3 in / 7.6 cm pipe for a QualGear NPT extension pipe — joined with a pipe connector — when the projector needs to hang lower. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Complete ceiling drop in one box

Combines the QG-PRO-PM-50-B mount, QG-PRO-PM-CA-B single joist ceiling adapter, and a 3 in / 7.6 cm NPT pipe.

Carries projectors up to 50 lb

The included mount is rated for projectors up to 50 lb / 22.7 kg.

Pitch, roll, and rotation adjustment

Aligns the image with +/- 20 degrees of pitch, +/- 8 degrees of roll, and +/- 180 degrees of rotation.

Installs on four ceiling types

Suits single wood joist, wood beam, wood stud, and concrete ceilings.

Standard thread for longer drops

The 1.5 in NPT thread accepts longer QualGear pipes when the install calls for a deeper drop.

Presorted hardware, manuals on this page

Ships with presorted hardware; the kit's combined manual is on this page; printed copies will be included in future production.
