QualGear Pro-AV 1.5 in NPT Pipe Connector, With or Without Cable Opening, QG-PRO-PM

SKU: QG-PRO-PM-PC-B

Regular price $10.95
Sale price $10.95 Regular price

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

Style
Color
30-day returns — send it back within 30 days of the date of purchase.
5-year limited manufacturer's warranty, parts only
QualGear Pro-AV 1.5 in NPT Pipe Connector, With or Without Cable Opening, QG-PRO-PM
Regular price $10.95
Sale price $10.95 Regular price

Key Specifications

Joins two or more pipes to extend drop length 300 lb / 136 kg With cable opening (PCO), without opening (PC) 1.5-in NPT
Full technical specifications
Performance / Capacity
FunctionJoins two or more pipes to extend drop length
Max weight capacity300 lb / 136 kg
StylesWith cable opening (PCO), without opening (PC)
Compatibility / Requirements
Thread standard1.5-in NPT
Fits1.5-in NPT threaded pipes, including all QualGear Pro-AV pipe lengths
Materials & Finish
Material (PC)Heavy-duty steel, epoxy powder coated
Material (PCO)Aluminum
ColorsBlack, white
Dimensions & Weight
Dimensions (PC)2.12 in / 5.4 cm outer diameter x 1.77 in / 4.5 cm high
Dimensions (PCO)2.13 in / 5.4 cm outer diameter x 2.99 in / 7.6 cm high; opening 1.49 x 1.49 in / 3.8 x 3.8 cm
Weight (PC)0.45 lb / 0.2 kg
Weight (PCO)0.35 lb / 0.16 kg
Care / Installation
What's includedOne pipe connector in the selected style and color; 4 standard and 4 security screws (M5 × 4 mm for PC, M5 × 5 mm for PCO); Allen key (M2.5 for PC); installation manual
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only

Connects two 1.5-in NPT pipes into a longer drop, rated 300 lb / 136 kg.

When one pipe does not reach, the drop grows by threading on another. This QualGear Pro-AV pipe connector joins two or more 1.5-in NPT threaded pipes to extend the drop length of a projector mount installation — heavy-duty steel with an epoxy powder coat on the no-opening connector (PC), aluminum on the with-opening connector (PCO), each rated to a maximum weight capacity of 300 lb / 136 kg.

Choose the style the column needs: cables run inside the 1.5 in / 3.8 cm inside-diameter pipe column with either style, the with-opening connector (PCO) adds an optional side opening where cables can exit, and the no-opening connector (PC) keeps a closed column profile. Both styles come in black or white to match Pro-AV pipes, mounts, and adapters. In the box: one pipe connector in the selected style and color, four standard and four security screws (M5 × 4 mm for PC, M5 × 5 mm for PCO), an Allen key (M2.5 for PC), and an installation manual.

Because the threading is standard 1.5-in NPT, the connector works across the QualGear Pro-AV mounting system — it fits all QualGear Pro-AV pipe lengths and pairs with the QG-PRO-PM-50 series projector brackets. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Extends the drop pipe by pipe

Joins two or more 1.5-in NPT threaded pipes to extend the drop length of a projector mount installation.

Steel PC, aluminum PCO

The no-opening connector (PC) is epoxy-coated heavy-duty steel; the with-opening connector (PCO) is aluminum. Both are rated to 300 lb / 136 kg.

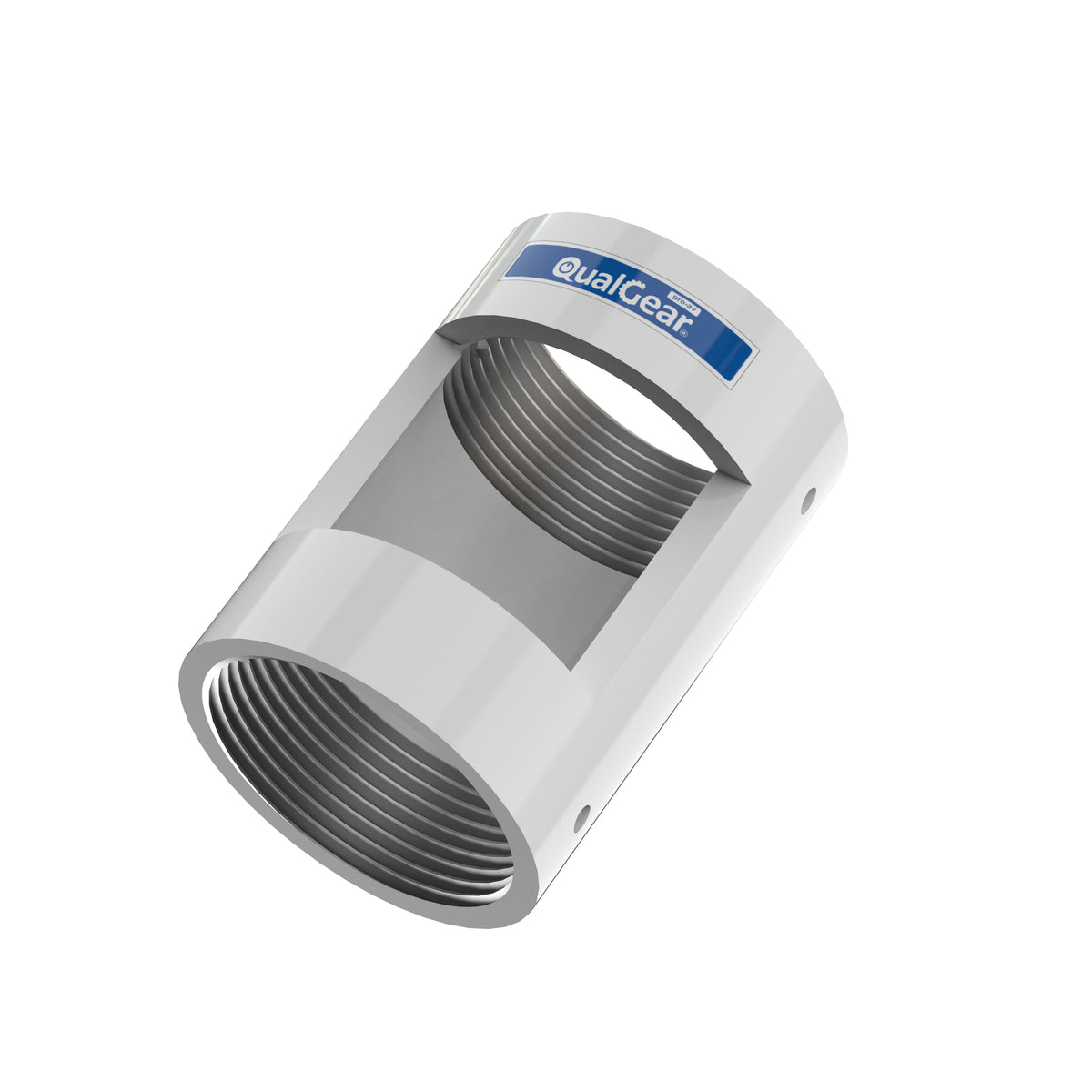

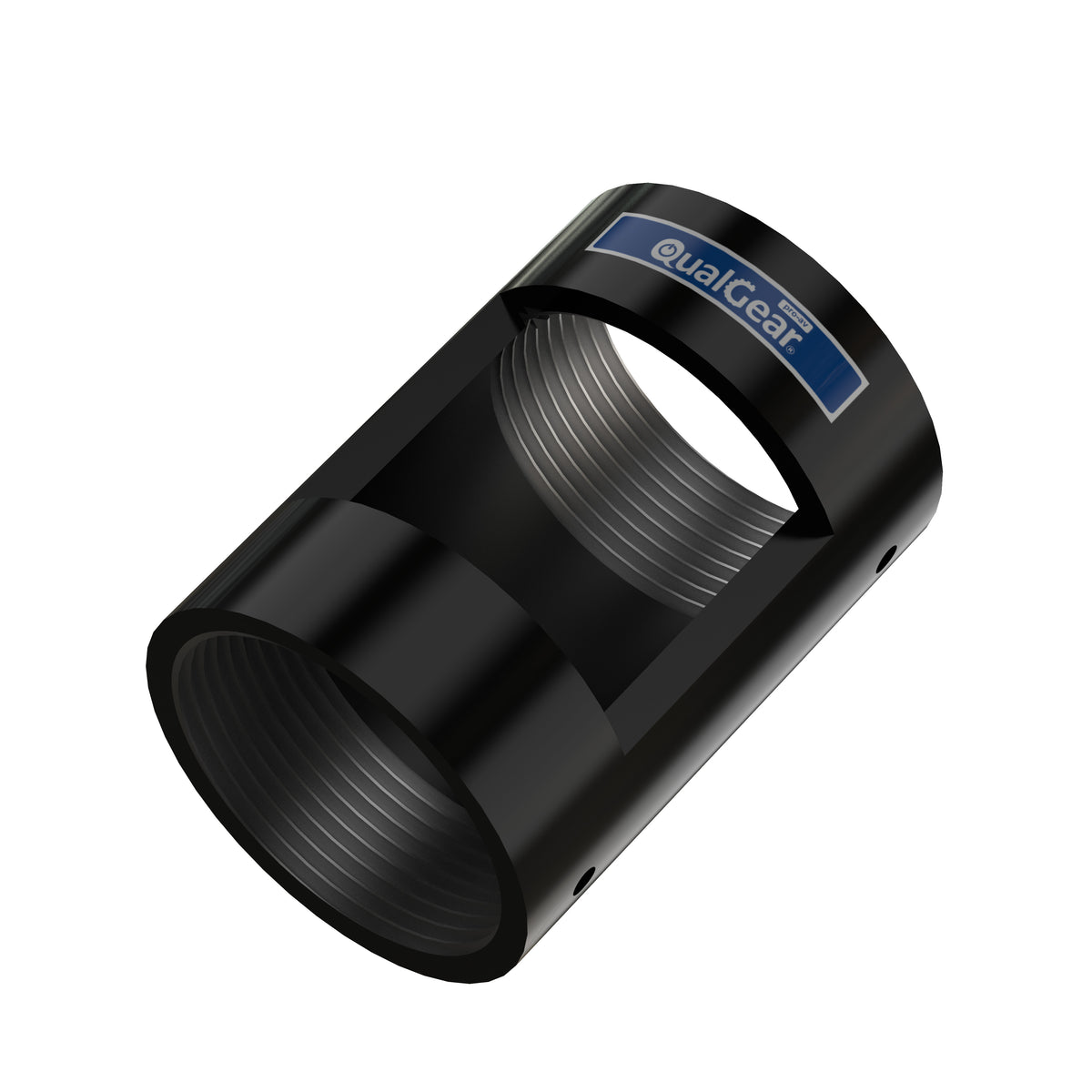

Cable-opening style adds a side exit

The with-opening connector (PCO) adds an optional side opening for cables to exit; cables run inside the 1.5 in / 3.8 cm inside-diameter pipes with either style.

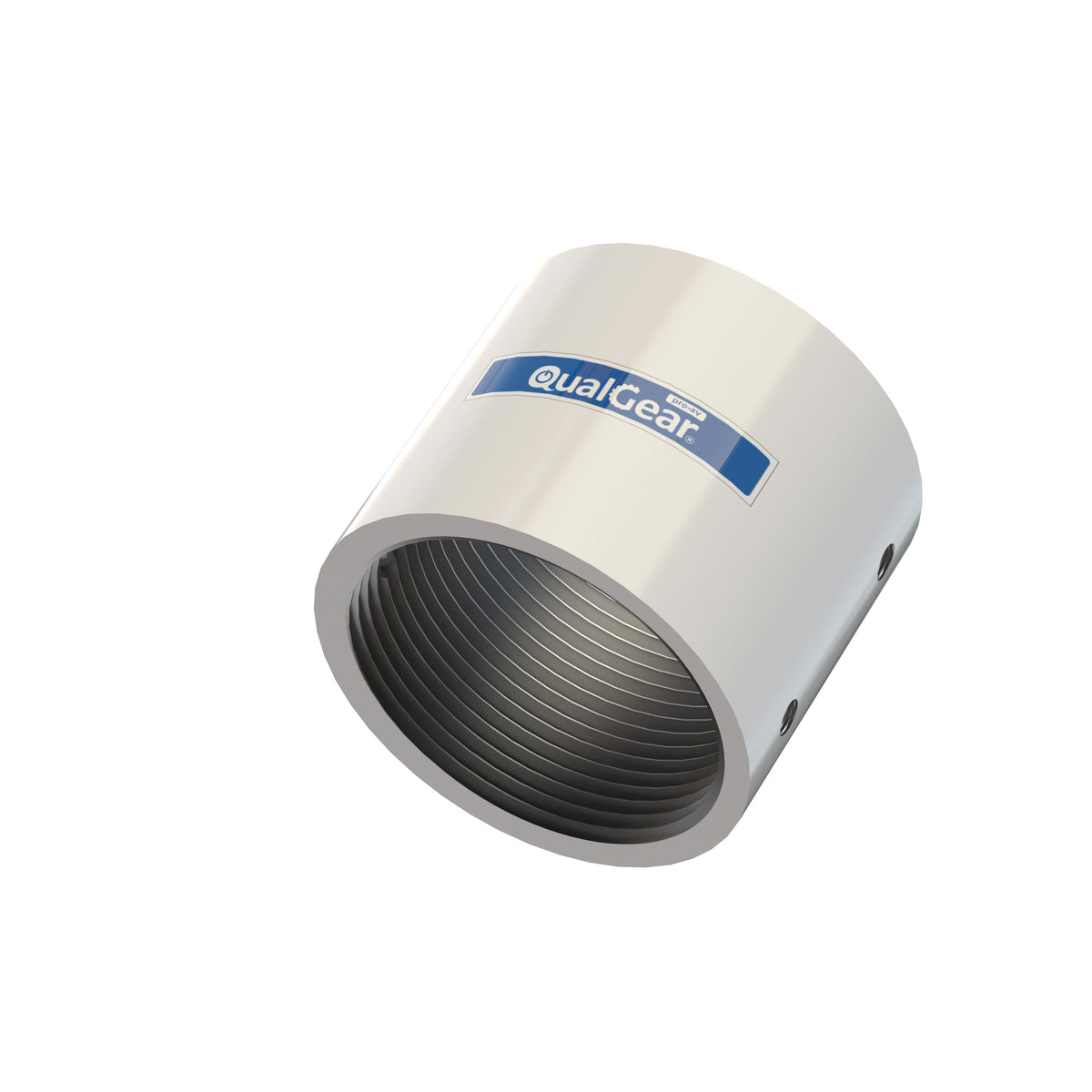

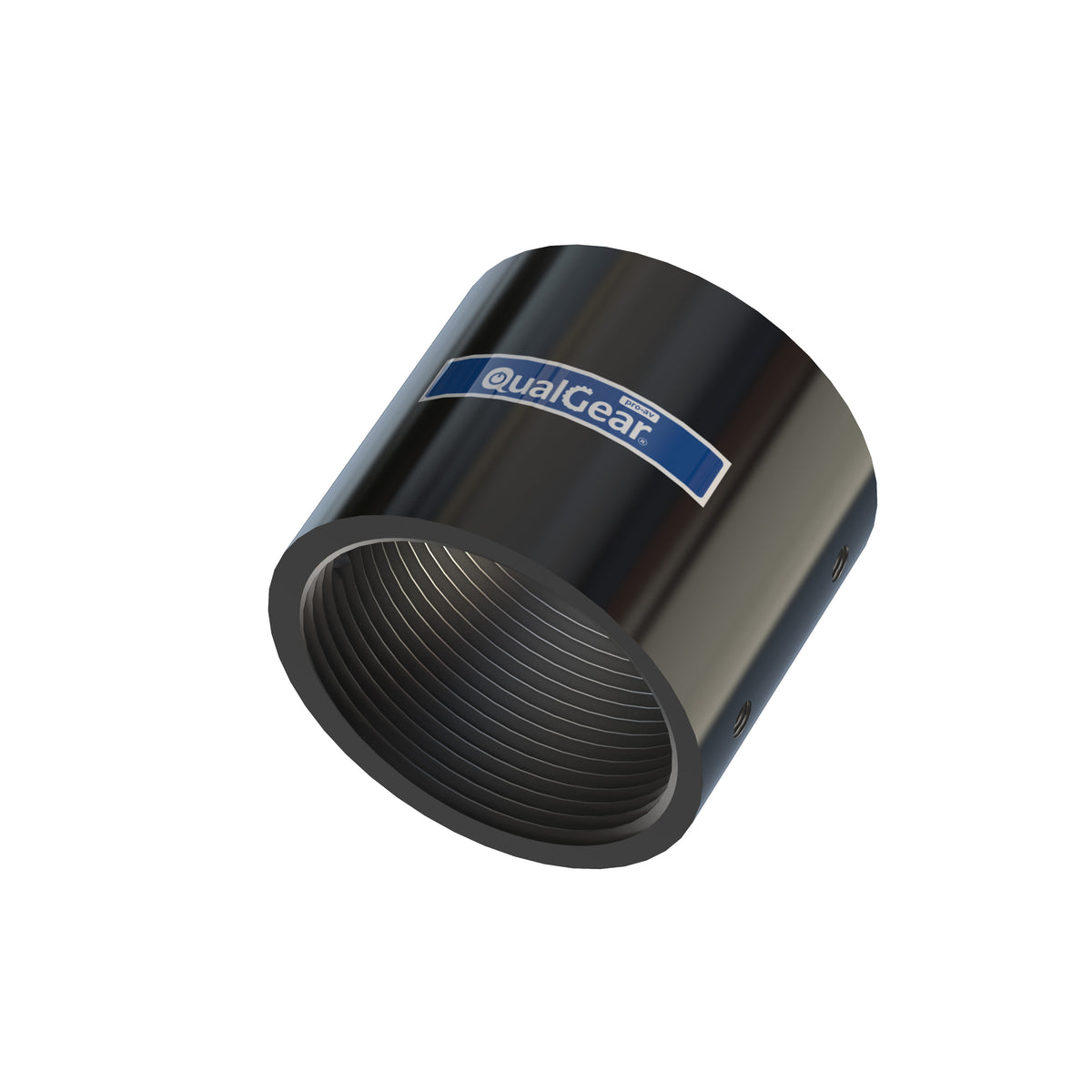

No-opening style keeps a closed profile

The no-opening connector (PC) keeps a closed column profile at the joint.

Fits every Pro-AV pipe length

Works with 1.5-in NPT threaded pipes, including all QualGear Pro-AV pipe lengths, in matching black or white.
