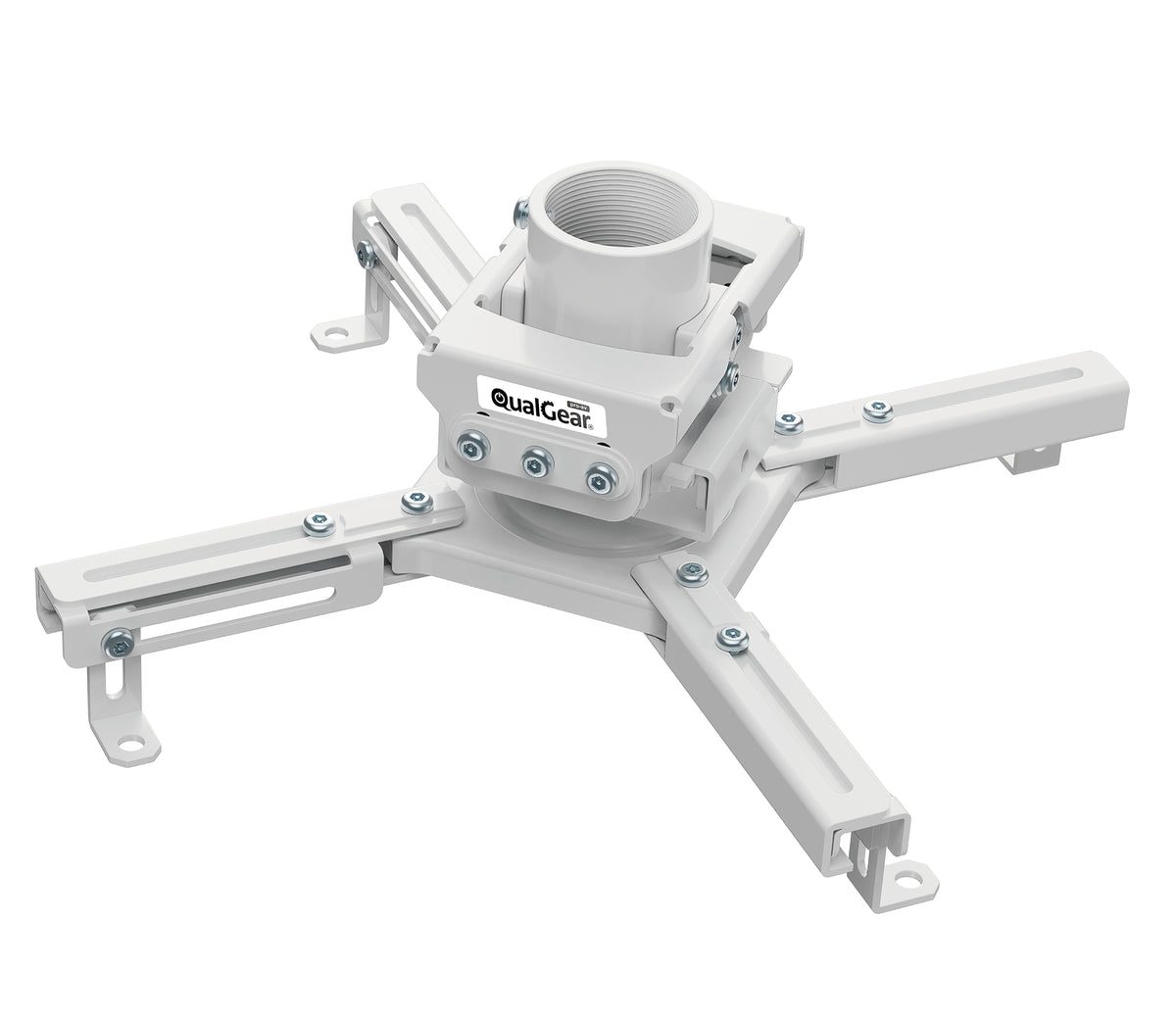

QualGear Pro-AV Projector Bracket, White, QG-PRO-PM-50-W

SKU: QG-PRO-PM-50-W

Regular price $49.95
Sale price $49.95 Regular price $99.95

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
5-year limited manufacturer's warranty, parts only
Installation manual PDF Will it fit my projector? Check before you buy
QualGear Pro-AV Projector Bracket, White, QG-PRO-PM-50-W
Regular price $49.95
Sale price $49.95 Regular price $99.95

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

50 lb / 22.7 kg +/-20 degrees (6 adjustment points) +/-8 degrees (6 adjustment points) -180 to +180 degrees
Full technical specifications
Performance / Capacity
Max load50 lb / 22.7 kg
Pitch+/-20 degrees (6 adjustment points)
Roll+/-8 degrees (6 adjustment points)
Rotation-180 to +180 degrees
Compatibility / Requirements
Interface1.5-in NPT threaded pipe
Completes with1.5-in NPT extension pipe and ceiling adapter, sold separately
Dimensions & Weight
Mounting range5.1-18.5 in / 130-470 mm
Profile (ceiling to projector)3.46 in / 88 mm
Materials & Finish
MaterialAluminum / high-grade cold rolled steel, scratch-resistant epoxy powder coat
ColorWhite
Care / Installation
In the boxTwo-piece projector mount with pre-assembled mounting interface, pre-sorted hardware pack
Installation manualAvailable (PDF)
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only
SupportUS-based phone support, +1-972-423-5015

Locks pitch and roll at 12 points on a standard 1.5-in NPT pipe drop.

The numbers an installer checks first: 50 lb / 22.7 kg rated load, standard 1.5-in NPT interface, 3.46 in / 88 mm ceiling-to-projector profile. This two-piece Pro-AV projector bracket in white threads onto standard 1.5-in NPT pipe for boardrooms, classrooms, entertainment venues, and home theaters.

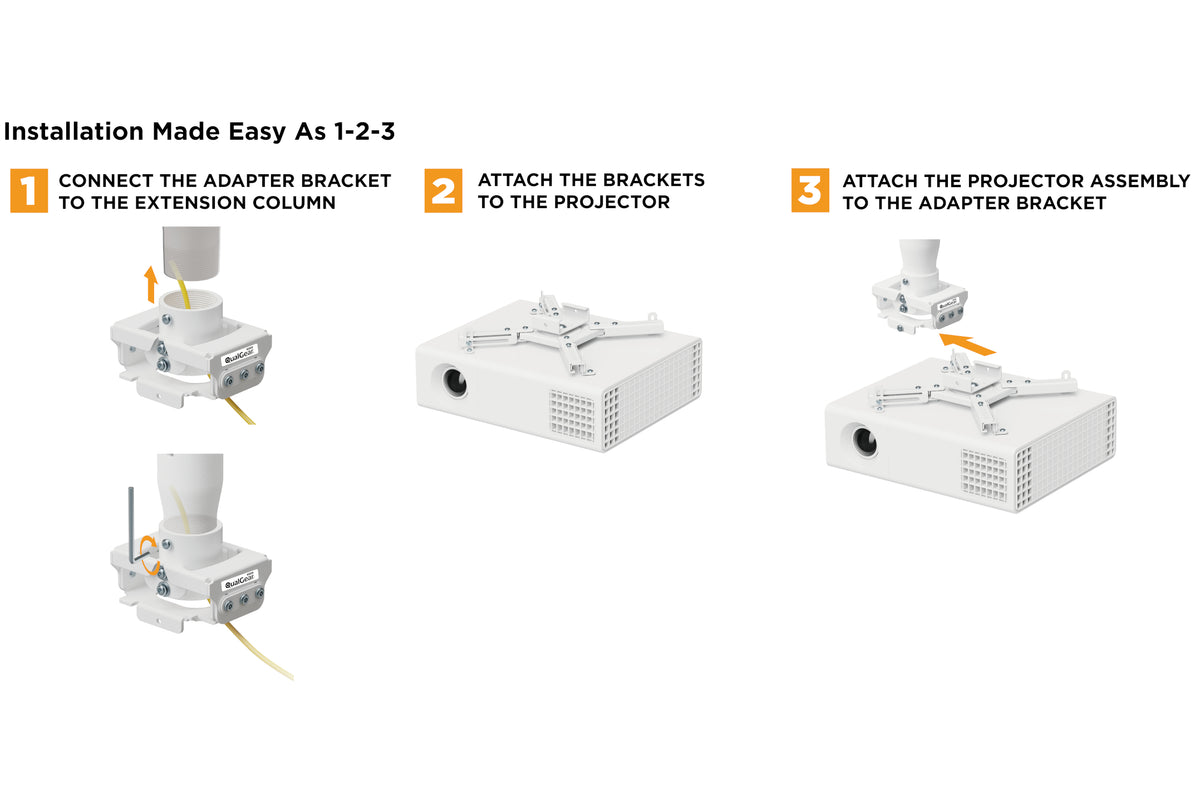

Twelve adjustment points — six for pitch, six for roll — hold the aim after setup, so the picture stays where it was dialed in. Pitch adjusts +/-20 degrees, roll +/-8 degrees, and rotation spans -180 to +180 degrees. A quick-release feature speeds projector attachment and removal, and the pre-assembled mounting interface with pre-sorted hardware pack shortens the install.

Aluminum and high-grade cold rolled steel carry a scratch-resistant epoxy powder coat in white. Complete the drop with a QualGear 1.5-in NPT extension pipe and a flat, drop, or sloped ceiling adapter for your surface — or step up to the complete QualGear projector mount kit in white (QG-KIT-CA series). Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Holds projectors up to 50 lb

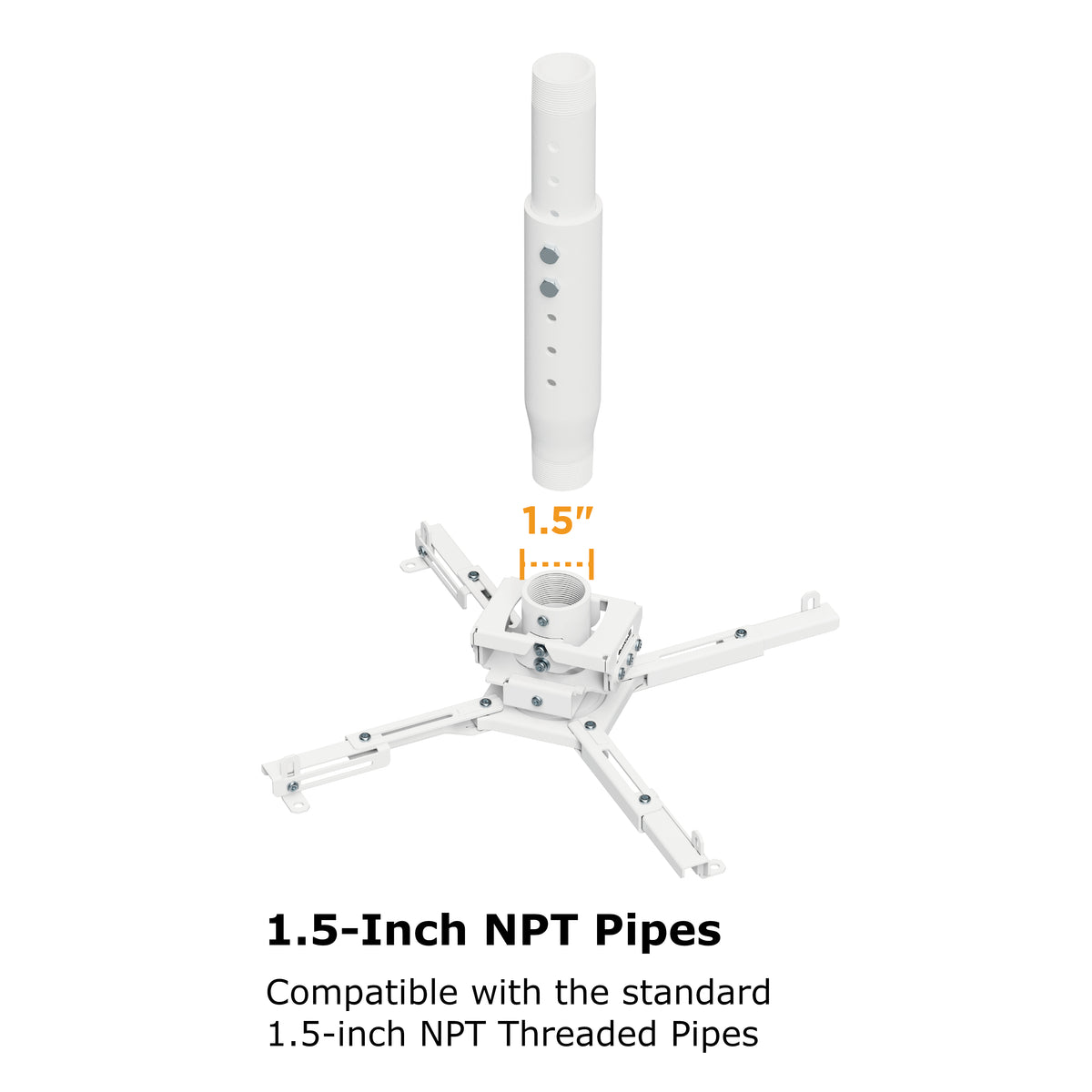

Rated for projectors up to 50 lb / 22.7 kg on a standard 1.5-in NPT threaded pipe.

12 points lock the aim

Six pitch and six roll adjustment points keep the projector from slipping after setup.

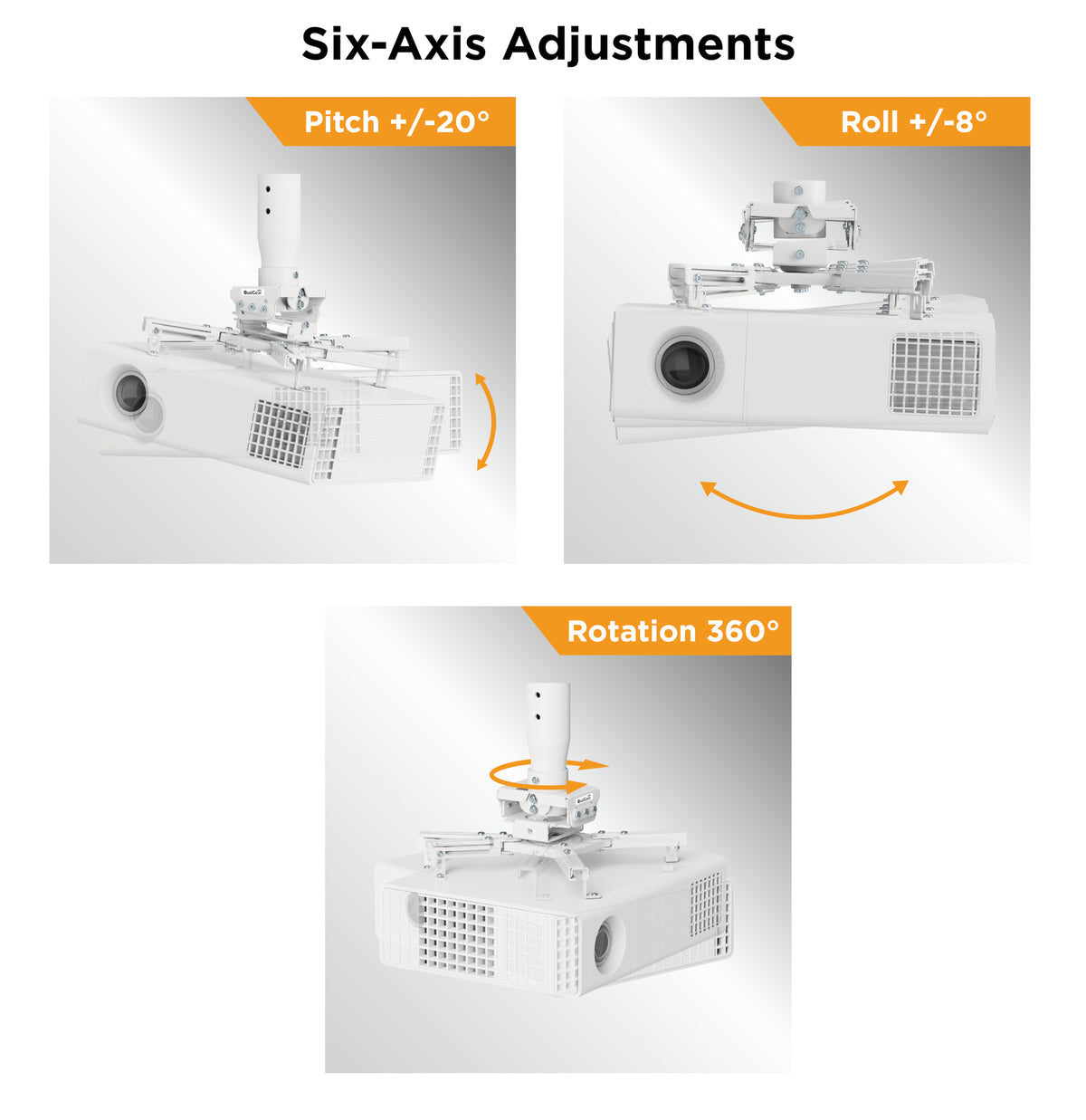

Adjusts on three axes

Pitch adjusts +/-20 degrees, roll +/-8 degrees, and rotation spans -180 to +180 degrees.

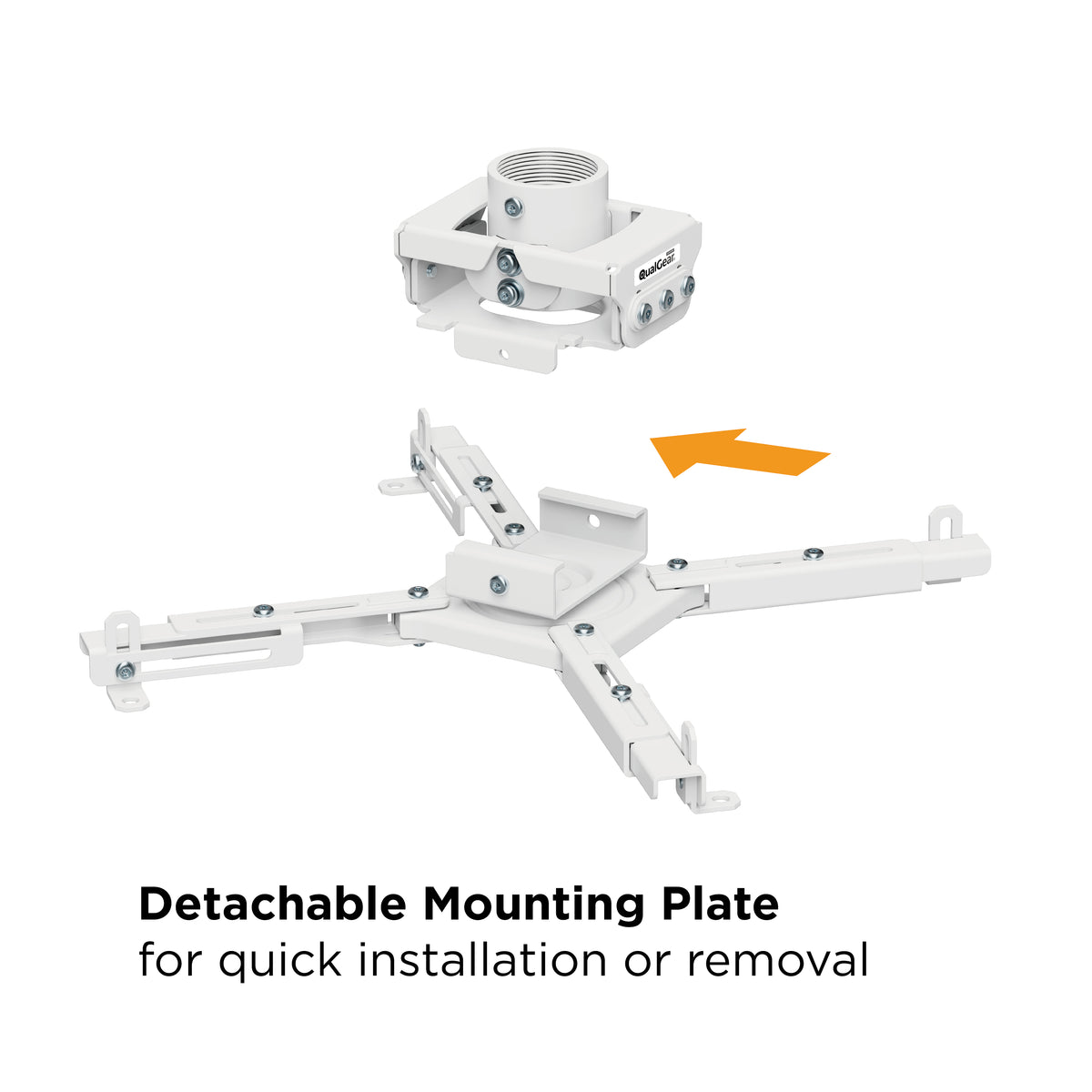

Quick-release attachment and removal

The quick-release feature speeds projector attachment and removal.

Arrives ready to install

Pre-assembled mounting interface and pre-sorted hardware pack shorten installation.

Low 3.46 in profile

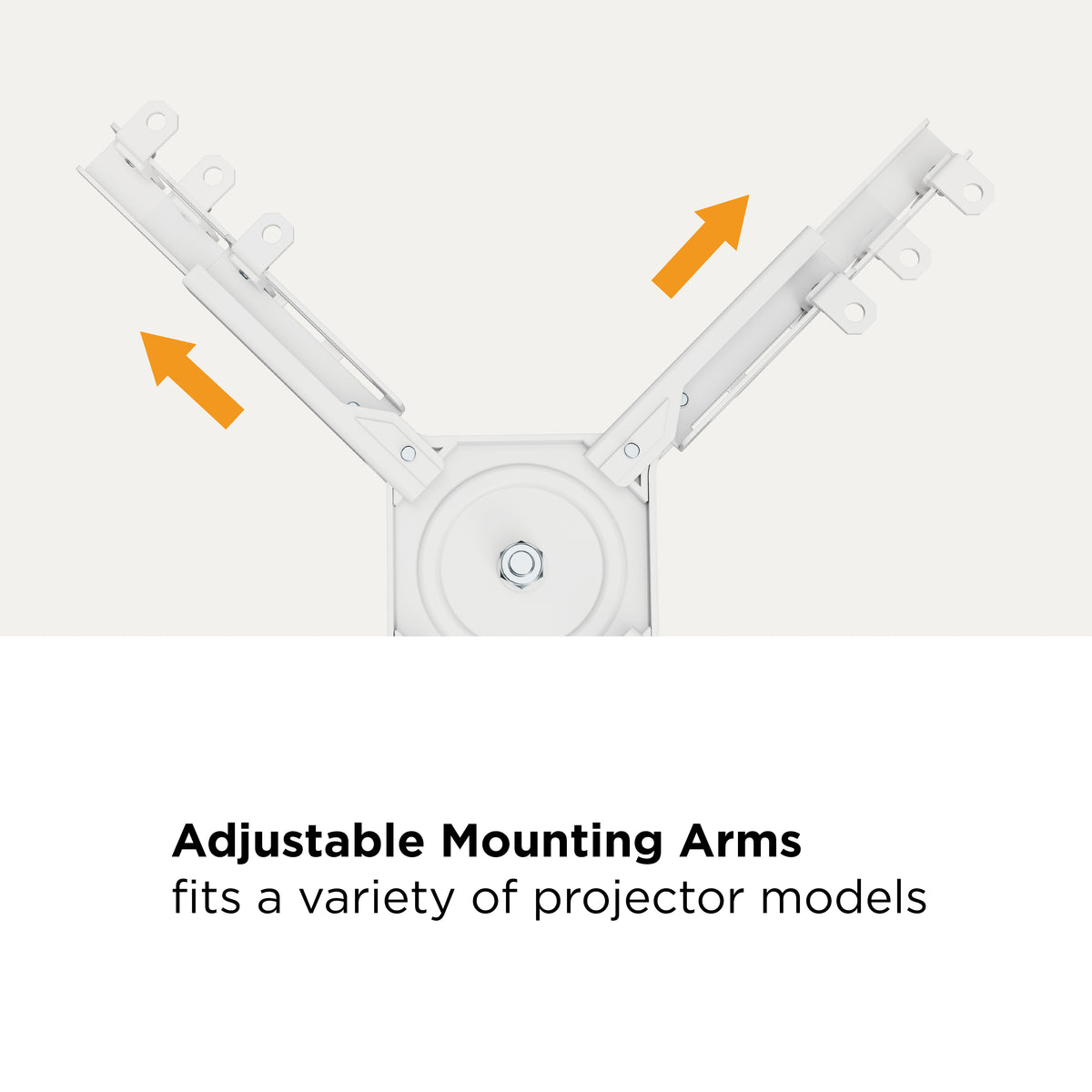

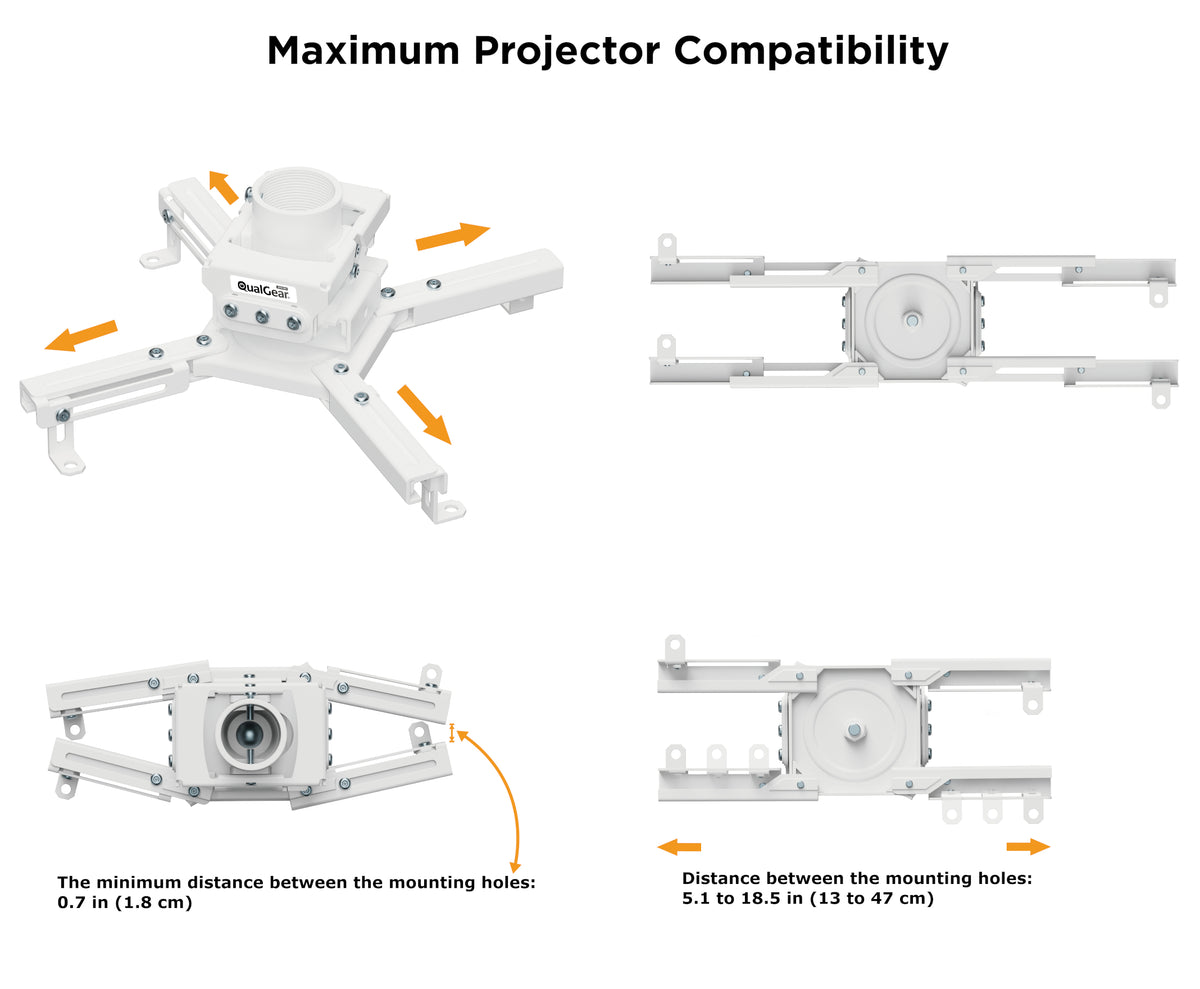

Holds the projector 3.46 in / 88 mm from the ceiling, with a 5.1-18.5 in / 130-470 mm mounting range.
