QualGear Pro-AV Flat Ceiling Adapter, White, QG-PRO-PM-CA-W
SKU: QG-PRO-PM-CA-W
Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day processing
Most in-stock orders placed by the cutoff on business days are processed the same day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day processing on most in-stock orders
- Transit set by the carrier
Weekend and holiday orders are processed the next business day. Need it urgently? Call 972-423-5015 before you order so we can confirm stock and same-day shipping.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Performance / Capacity | |
| Load rating | Up to 120 lb / 54.4 kg |
| Compatibility / Requirements | |
| Interface | 1.5-in NPT threaded pipe |
| Mounting surface | Wood joist, structural wood, structural concrete |
| Works with | QualGear projector mounts, including the QG-PRO-PM-50 series |
| Dimensions & Weight | |
| Product dimensions | 10.3 in / 26.2 cm x 5.7 in / 14.5 cm x 2.3 in / 5.8 cm |
| Product weight | 1.6 lb / 0.7 kg |
| Materials & Finish | |
| Material | High-grade cold rolled steel, scratch-resistant epoxy powder coat |
| Color | White |
| Care / Installation | |
| In the box | Ceiling adapter with decorative plastic cover |
| Installation manual | Available (PDF) |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
| Support | US-based phone support, +1-972-423-5015 |

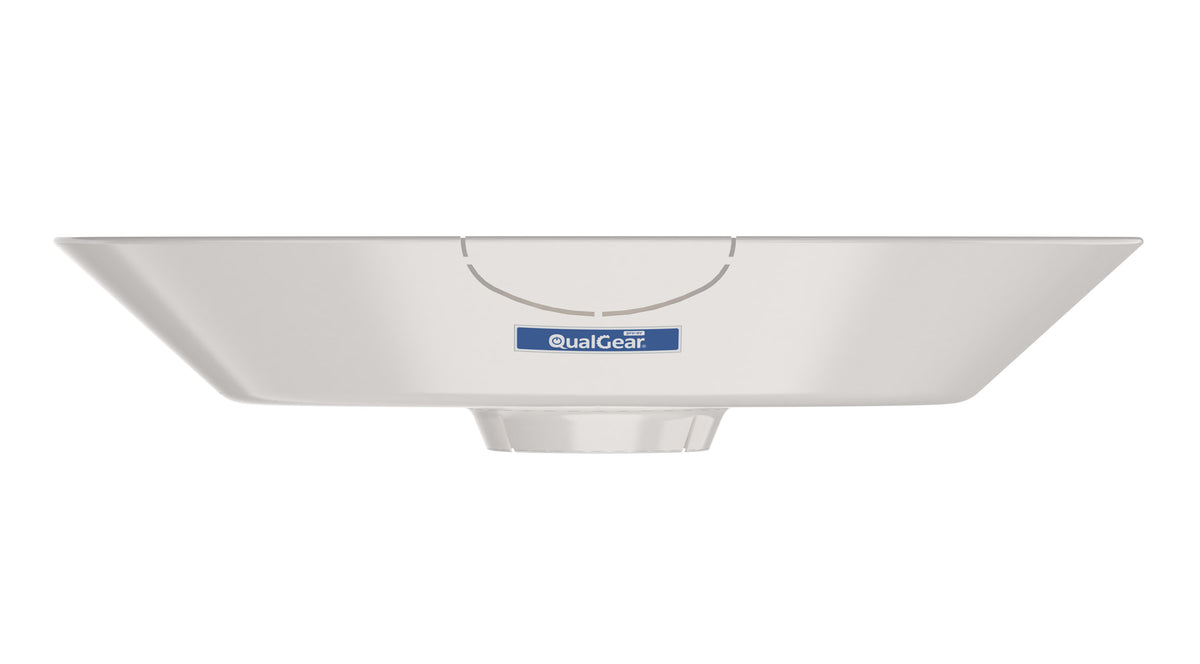

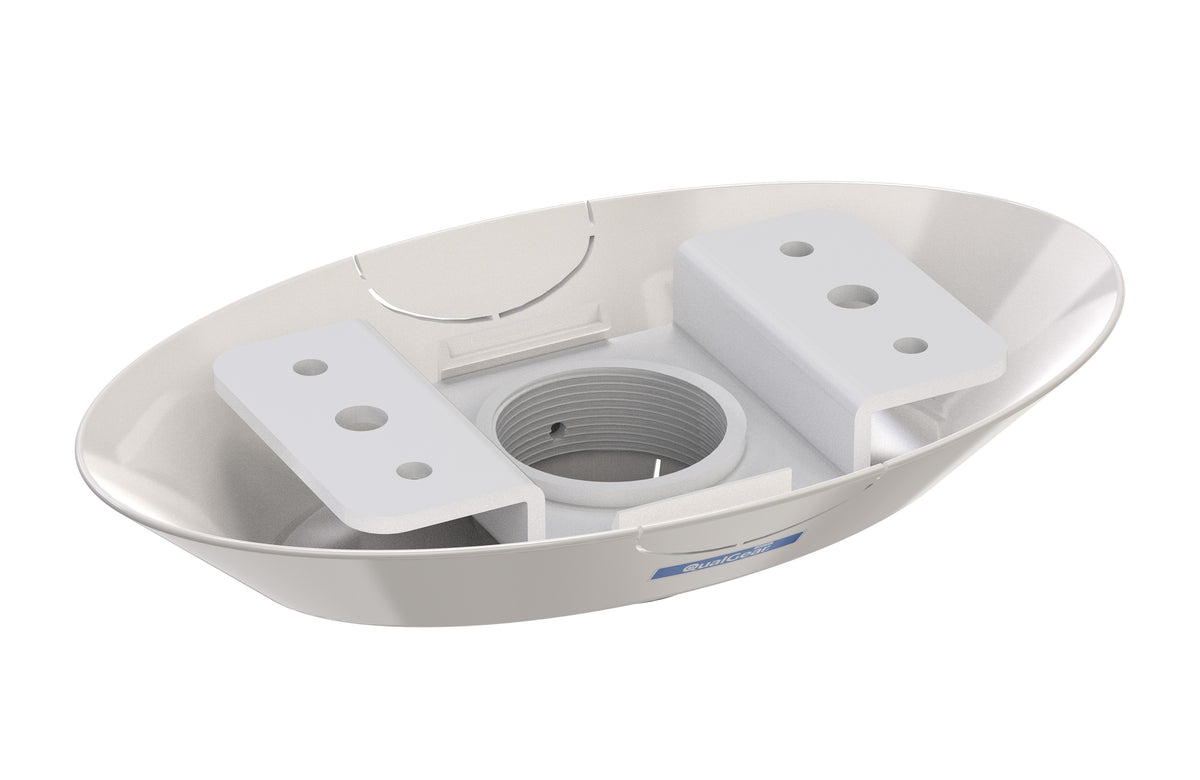

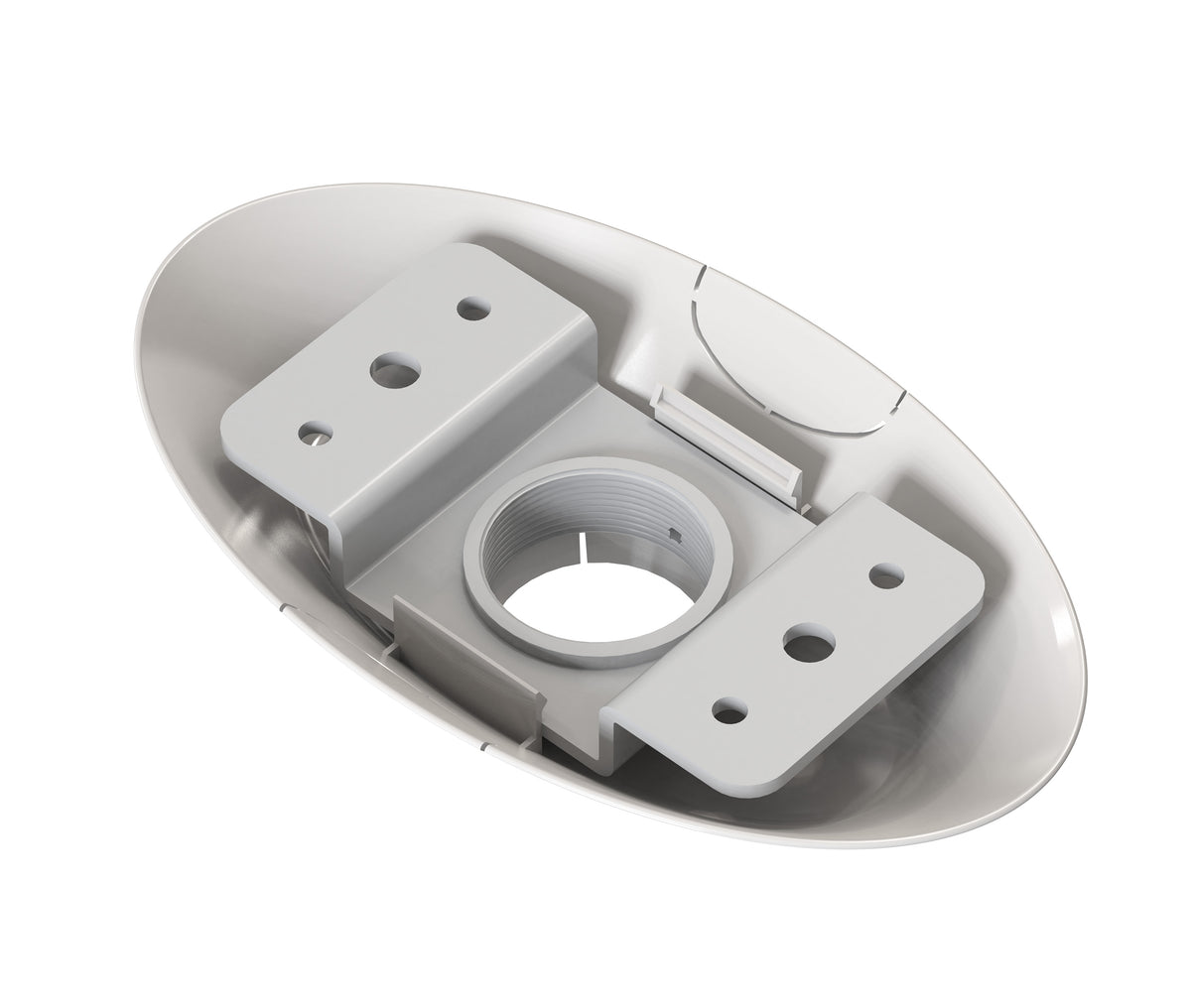

Mounts a 1.5-in NPT projector drop to a single joist, wood, or concrete.
A projector drop is only as solid as its anchor. This flat ceiling adapter in white ties a Pro-AV projector drop into a single wood joist, structural wood, or structural concrete, accepts all standard 1.5-in NPT threaded pipes, and is rated for installations up to 120 lb / 54.4 kg.
High-grade cold rolled steel with a scratch-resistant epoxy powder coat carries the load, and the included decorative plastic cover finishes the ceiling plate. At 1.6 lb / 0.7 kg, the adapter is the fixed anchor point the rest of the drop threads into.
The white finish matches QualGear Pro-AV pipes, connectors, and mounts, so the finished drop reads as one system. Pairs with the QG-PRO-PM-50-W projector bracket, a 1.5-in NPT extension pipe, and the NPT pipe connector; the QualGear projector mount kit in white (QG-KIT-CA series) is the complete-package step up. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Anchors the drop to structure
Mounts to a single wood joist, structural wood, or structural concrete.

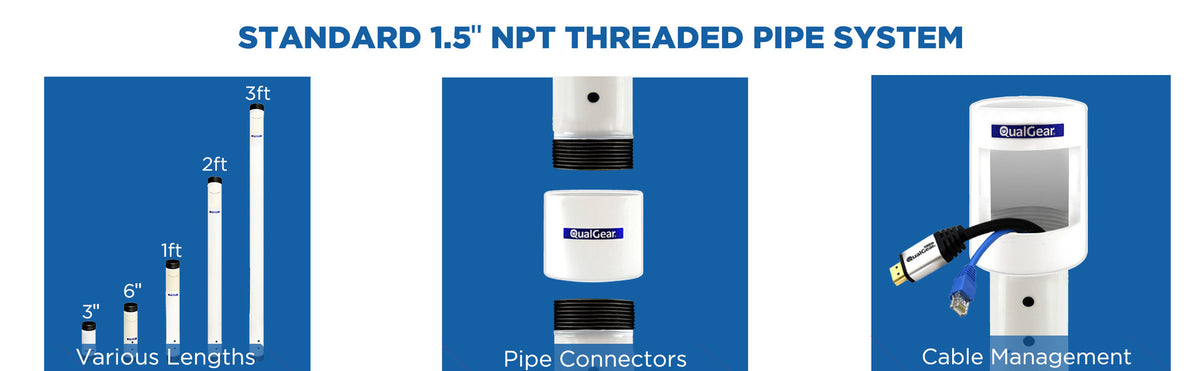

Takes any standard NPT pipe
Accepts all standard 1.5-in NPT threaded pipes, for loads up to 120 lb / 54.4 kg.
Steel build, scratch-resistant coat
High-grade cold rolled steel finished in a scratch-resistant epoxy powder coat.

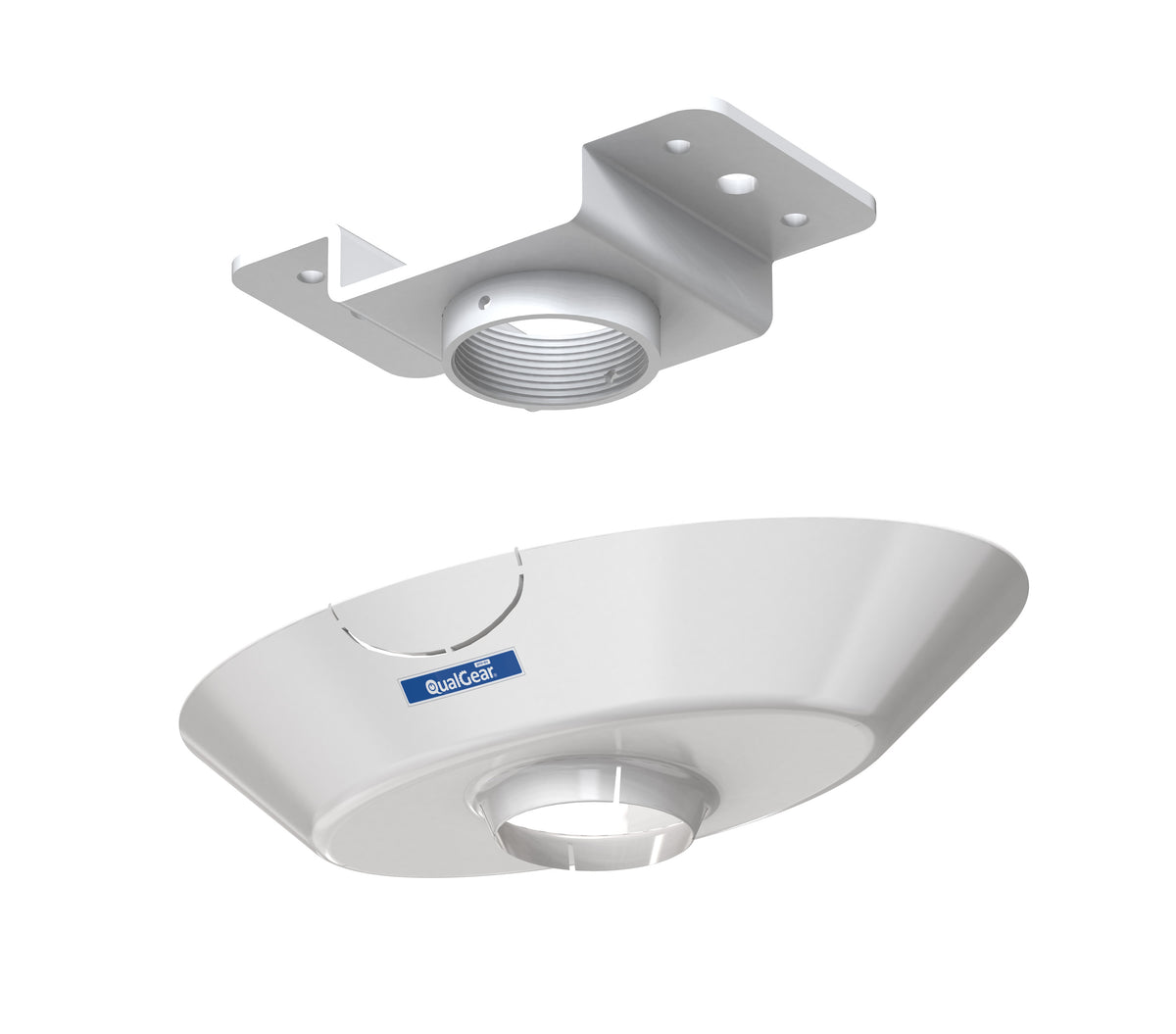

Cover finishes the ceiling plate
Ships with a decorative plastic cover that dresses the adapter at the ceiling.
Matches the Pro-AV system
White finish matches QualGear Pro-AV pipes, connectors, and mounts, including the QG-PRO-PM-50 series.
Reviews
No reviews yet.
Write a review
Reviews are open to verified purchasers. We match your email or order number to a past order before publishing.
Complete your setup
QualGear Pro-AV Projector Bracket, White, QG-PRO-PM-50-W
- Max load 50 lb / 22.7 kg
- Pitch +/-20 degrees (6 adjustment points)
- Roll +/-8 degrees (6 adjustment points)

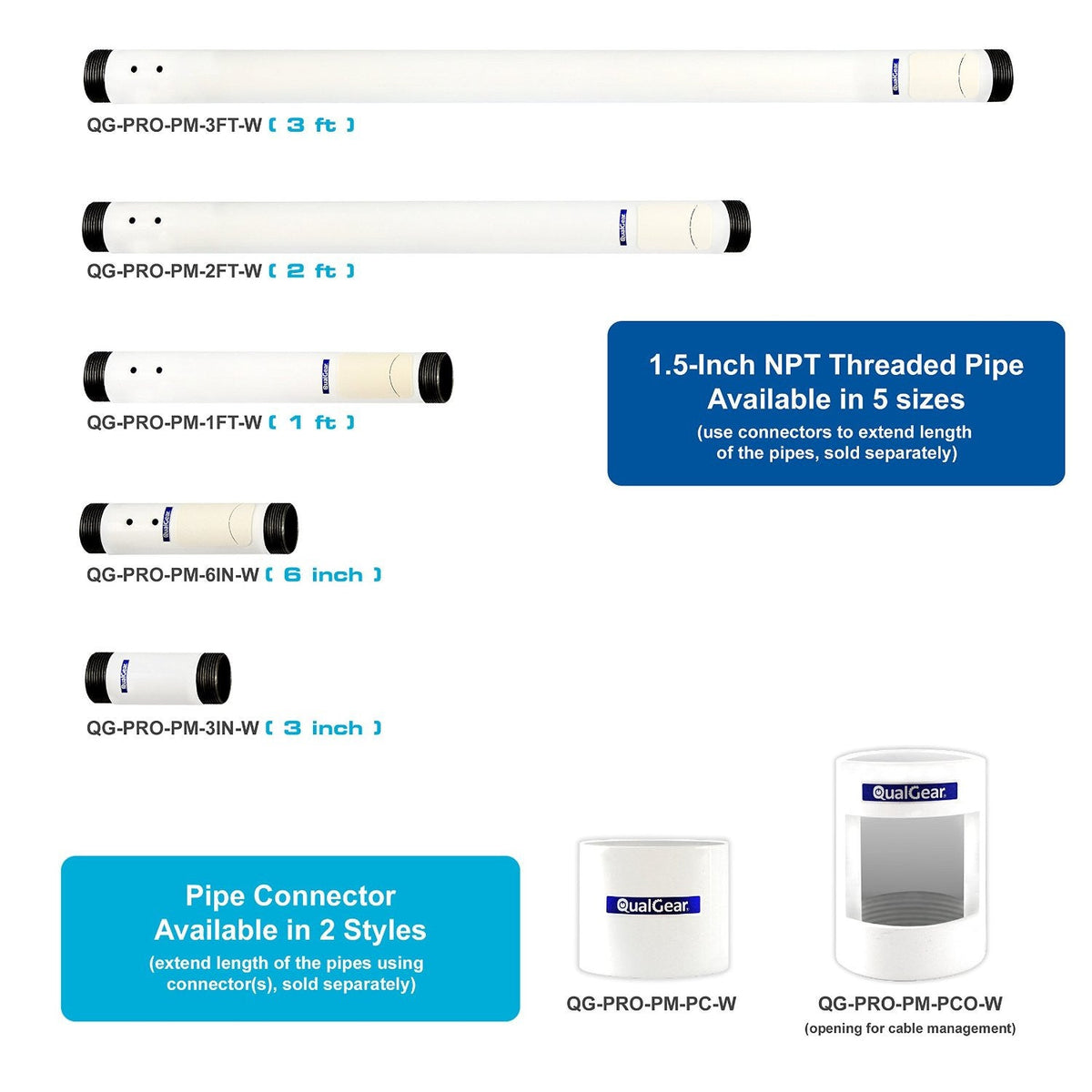

QualGear Pro-AV 1.5 in NPT Projector Mount Extension Pipe, QG-PRO-PM
- Length options 1.5 in / 3.8 cm, 3 in / 7.6 cm, 6 in / 15.2 cm, 12 in / 30.5 cm, 24 in / 61 cm, 36 in / 91.4 cm
- Max weight capacity 800 lb / 363 kg
- Thread standard 1.5-in NPT
QualGear Pro-AV 1.5 in NPT Pipe Connector, With or Without Cable Opening, QG-PRO-PM
- Function Joins two or more pipes to extend drop length
- Max weight capacity 300 lb / 136 kg
- Styles With cable opening (PCO), without opening (PC)
Compare other options
QualGear Projector Ceiling Mount Kit, Single Joist, White, QG-KIT-CA-3IN-W
- Ceiling types Single wood joist, wood beam, wood stud, and concrete ceilings
- Included mount QG-PRO-PM-50-W
- Included adapter QG-PRO-PM-CA-W single joist ceiling adapter
