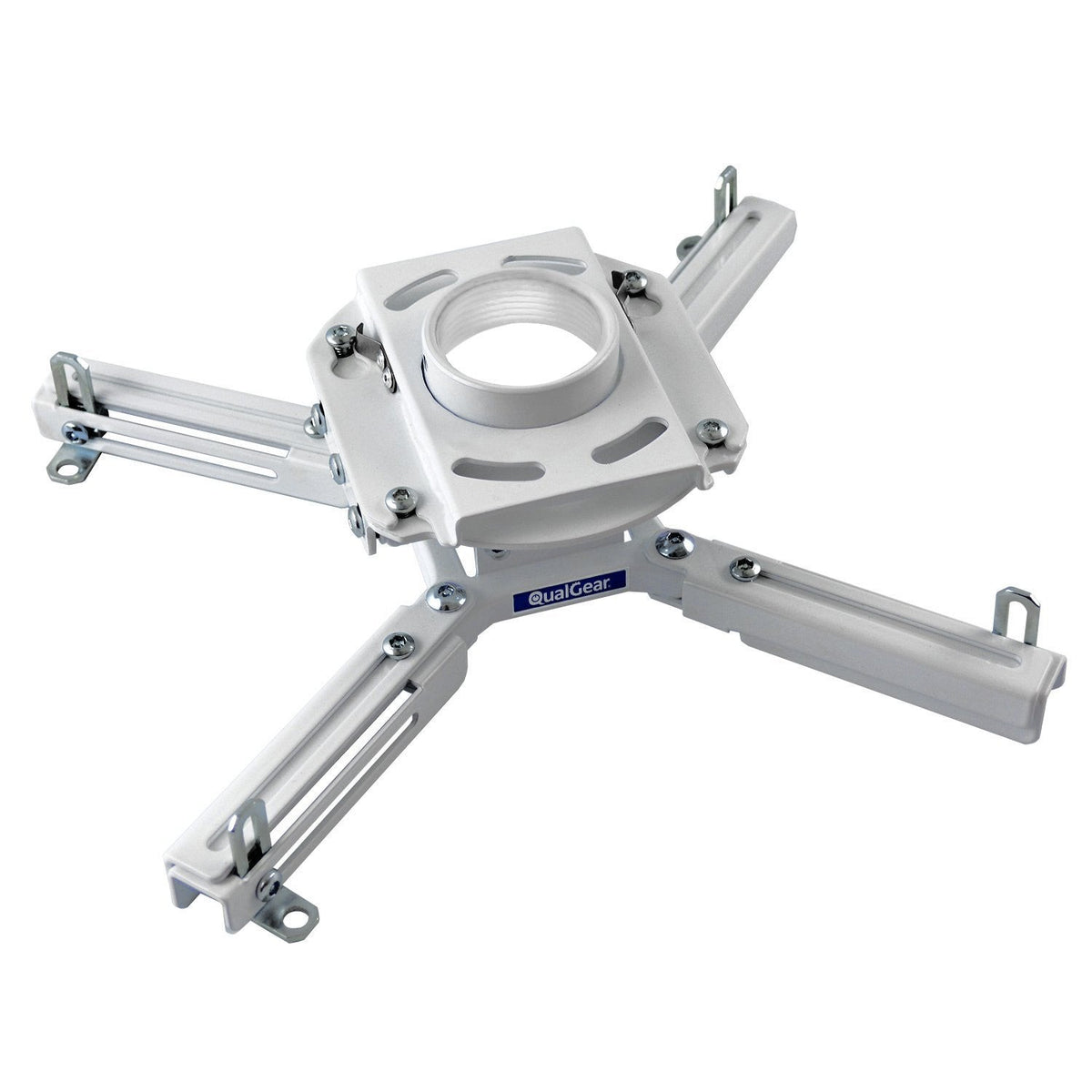

QualGear Projector Ceiling Mount Kit, Single Joist, White, QG-KIT-CA-3IN-W

SKU: QG-KIT-CA-3IN-W

Regular price $107.95
Sale price $107.95 Regular price

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
5-year limited manufacturer's warranty, parts only
QG-KIT-CA-3IN-W installation manual PDF Will it fit my projector? Check before you buy
QualGear Projector Ceiling Mount Kit, Single Joist, White, QG-KIT-CA-3IN-W
Regular price $107.95
Sale price $107.95 Regular price

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

Single wood joist, wood beam, wood stud, and concrete ceilings QG-PRO-PM-50-W QG-PRO-PM-CA-W single joist ceiling adapter 3 in / 7.6 cm, 1.5 in NPT
Full technical specifications
Compatibility / Requirements
Ceiling typesSingle wood joist, wood beam, wood stud, and concrete ceilings
Included mountQG-PRO-PM-50-W
Included adapterQG-PRO-PM-CA-W single joist ceiling adapter

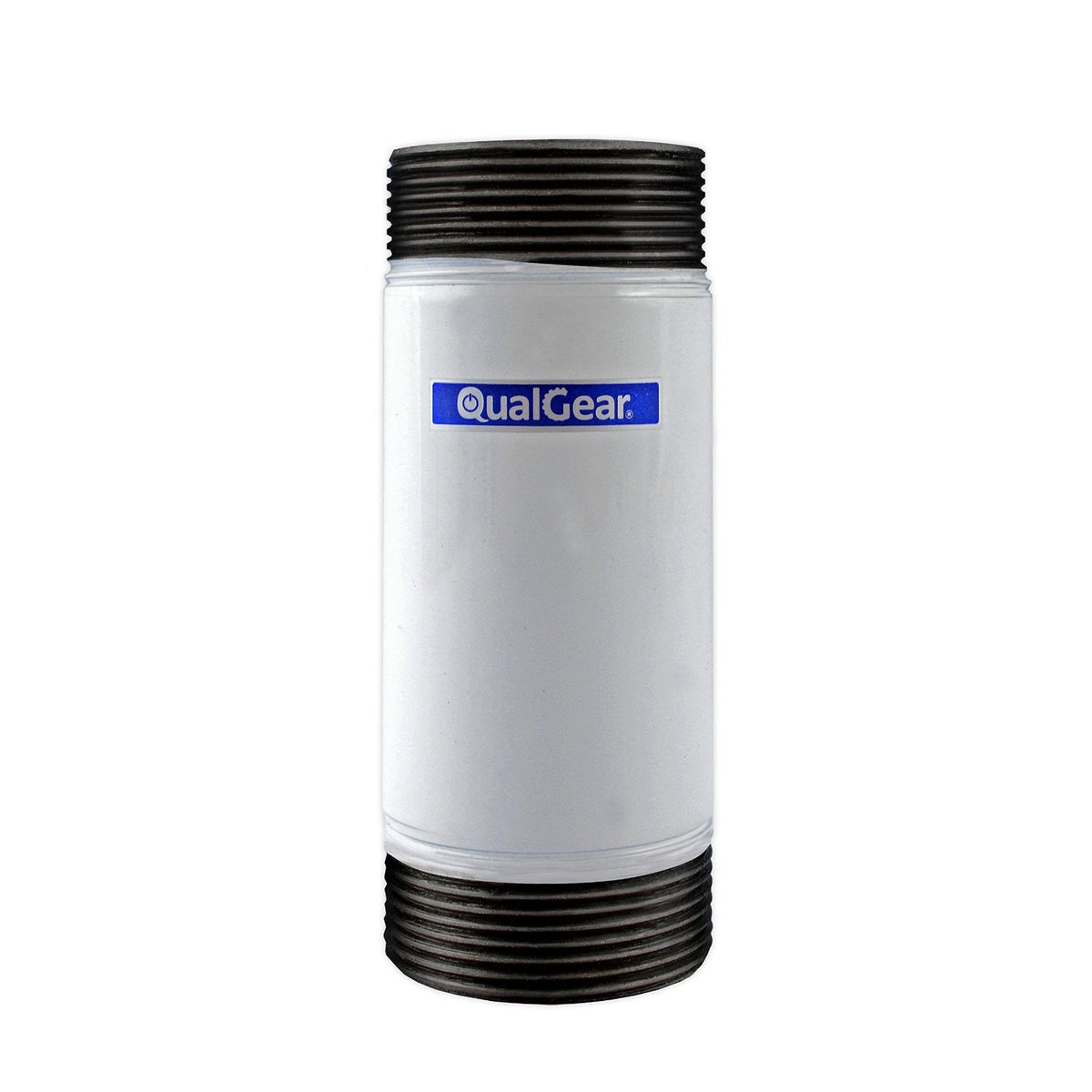

Included pipe3 in / 7.6 cm, 1.5 in NPT
Thread standard1.5 in NPT
Performance / Capacity
Load capacity50 lb / 22.7 kg

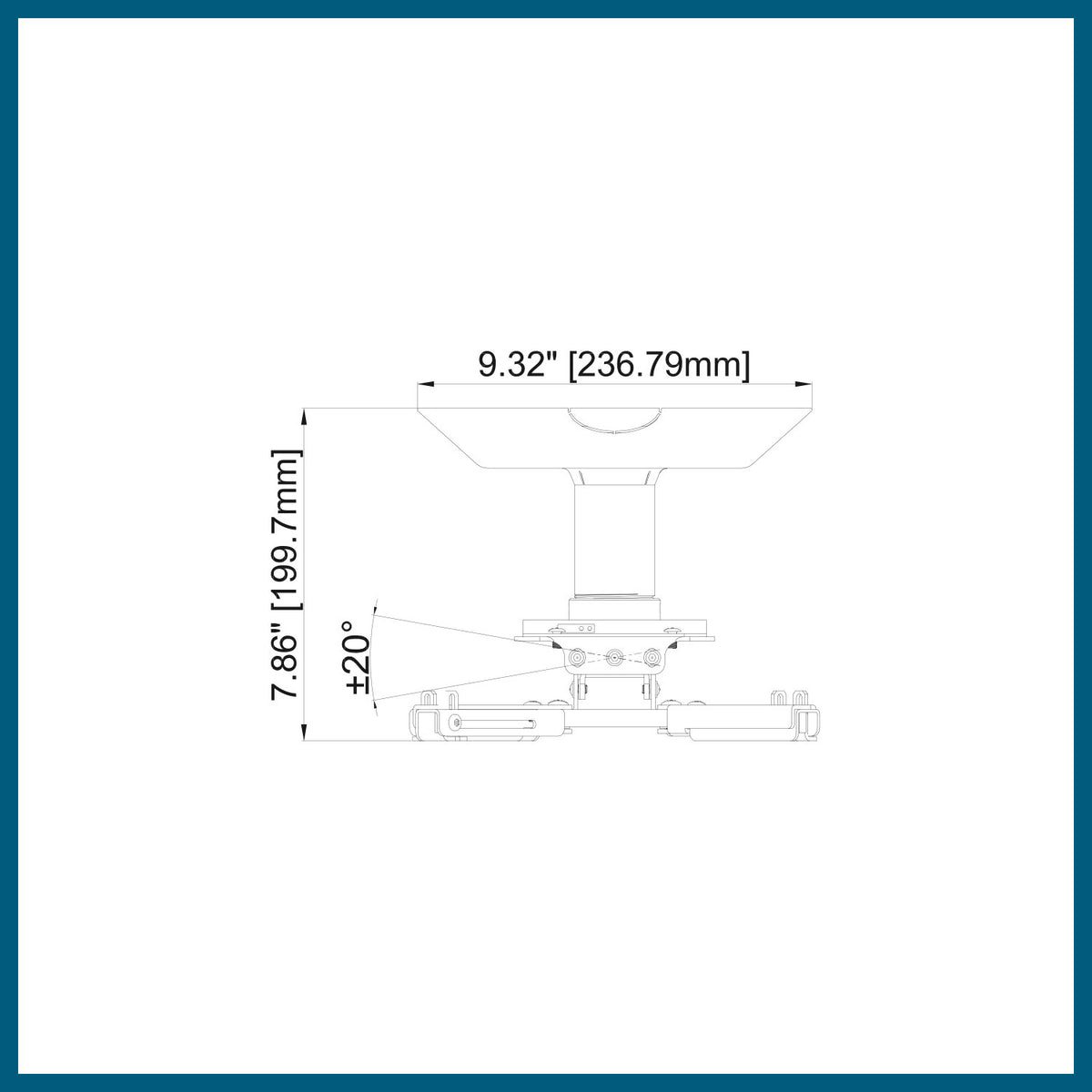

Pitch±20°

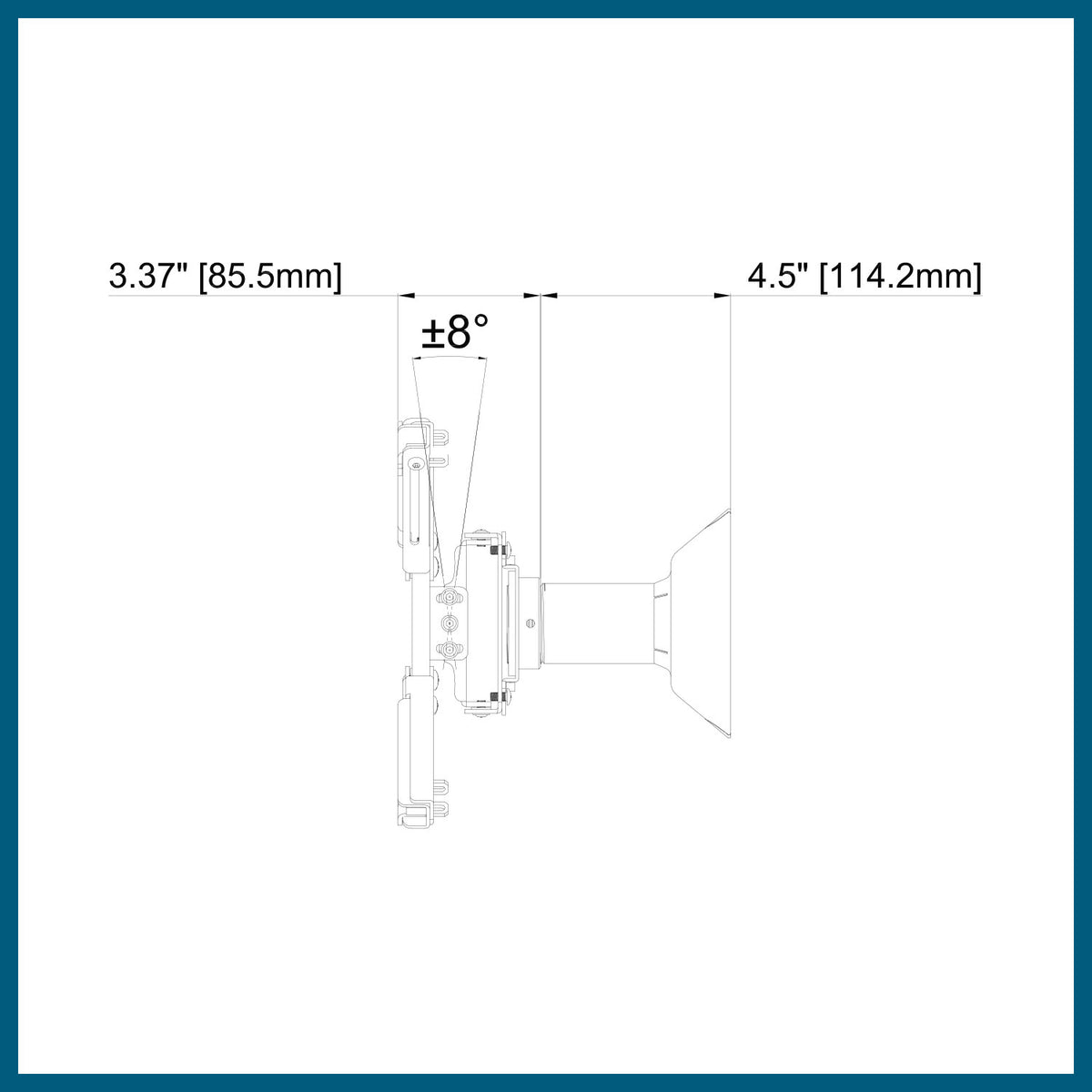

Roll±8°
Rotation±180°
Adjustment points12
Materials & Finish
ColorWhite
Care / Installation
In the boxProjector mount, ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only
SupportUS-based phone support, +1-972-423-5015

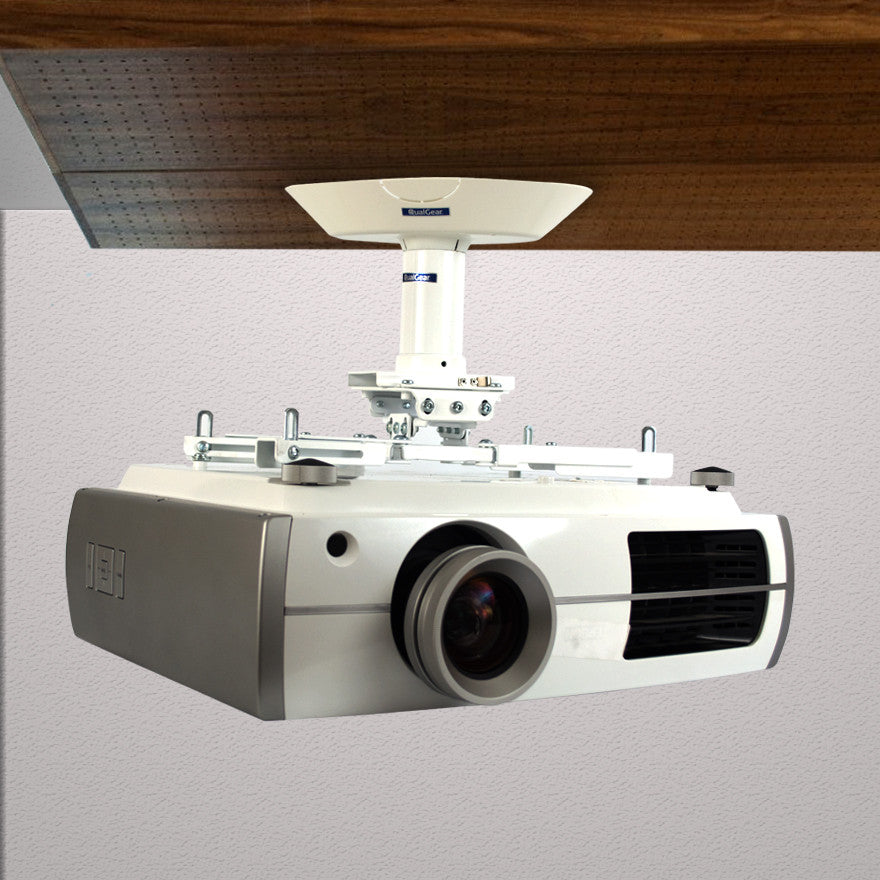

Mounts a projector to wood joist, beam, stud, and concrete ceilings

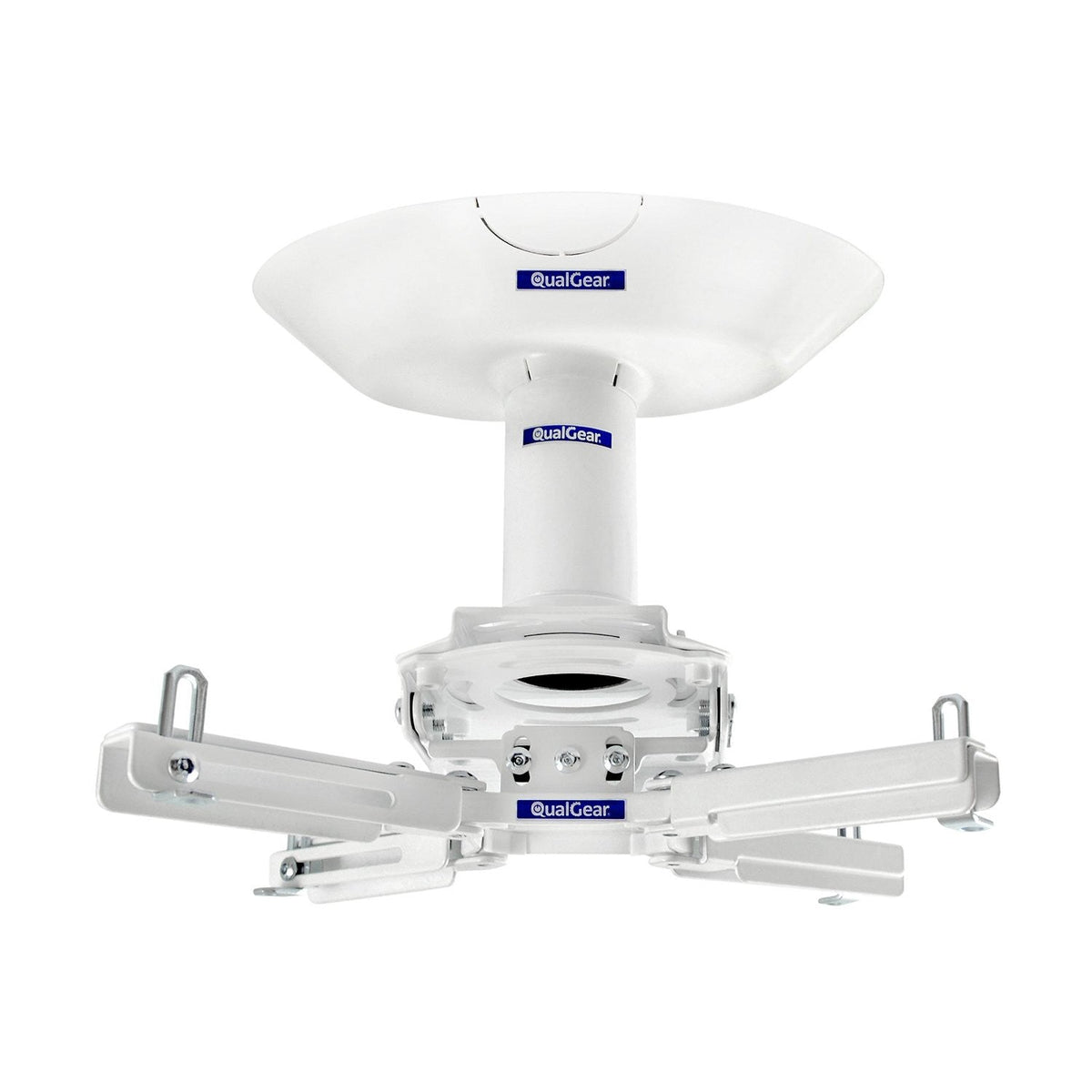

Hang a projector from a solid ceiling with everything sourced in one box. This QualGear Pro-AV kit pairs the QG-PRO-PM-50-W projector mount with the QG-PRO-PM-CA-W single joist ceiling adapter and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in white — a complete ceiling drop for single wood joist, wood beam, wood stud, and concrete ceilings, in home theaters and commercial rooms alike.

The adapter fastens to the ceiling structure, the pipe threads in, and the mount carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image after installation. In the box: projector mount, single joist ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.

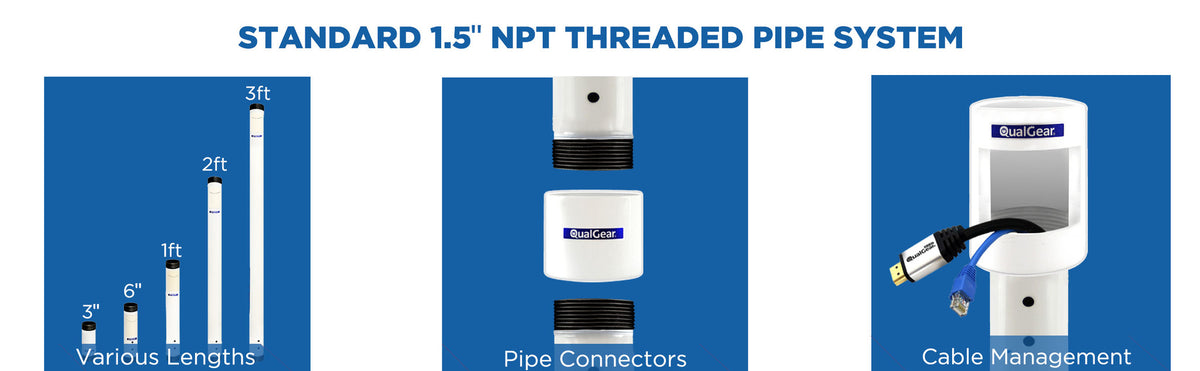

The 1.5 in NPT thread is the QualGear Pro-AV system standard — swap the included pipe for a longer QualGear extension pipe, or join lengths with a QualGear NPT pipe connector, when the projector needs a lower drop. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Complete ceiling drop in one box

Projector mount, single joist ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.

Anchors to solid ceiling structure

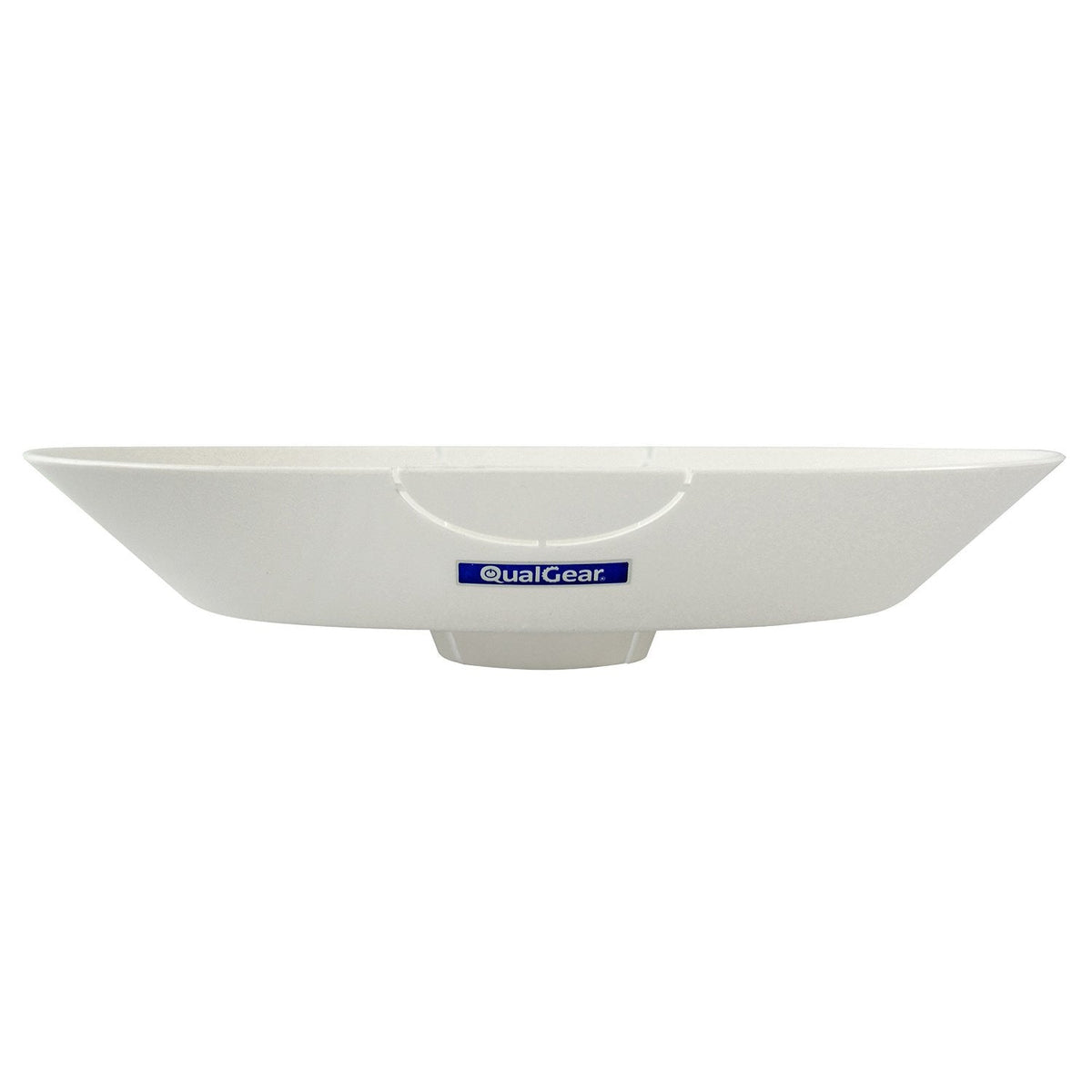

The QG-PRO-PM-CA-W adapter installs on single wood joist, wood beam, wood stud, and concrete ceilings.

Holds projectors up to 50 lb

The QG-PRO-PM-50-W mount is rated for projectors up to 50 lb / 22.7 kg.

Aims the image after installation

Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.

Extends to lower drops

The standard 1.5 in NPT thread accepts longer QualGear pipes when the projector needs to hang farther below the ceiling.

Presorted hardware, manuals on this page

Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
