QualGear Pro-AV Drop Ceiling Adapter, 2'x6", QG-PRO-PM-SCA-W
SKU: QG-PRO-PM-SCA-W
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day processing
Most in-stock orders placed by the cutoff on business days are processed the same day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day processing on most in-stock orders
- Transit set by the carrier
Weekend and holiday orders are processed the next business day. Need it urgently? Call 972-423-5015 before you order so we can confirm stock and same-day shipping.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Interface | 1.5 in NPT threaded pipe |
| Mounting surface | Standard 2 ft x 2 ft / 61 x 61 cm or 2 ft x 4 ft / 61 x 122 cm grid systems (mounts above the false ceiling tile) |
| Performance / Capacity | |
| Load rating | Up to 60 lb / 27.2 kg |
| Dimensions & Weight | |
| Product dimensions | 24.6 x 6 x 1.93 in / 62.5 x 15.2 x 4.9 cm |
| Product weight | 9.75 lb / 4.4 kg |
| Materials & Finish | |
| Material | High-grade cold rolled steel, scratch-resistant fused epoxy finish |
| Color | White |
| Care / Installation | |

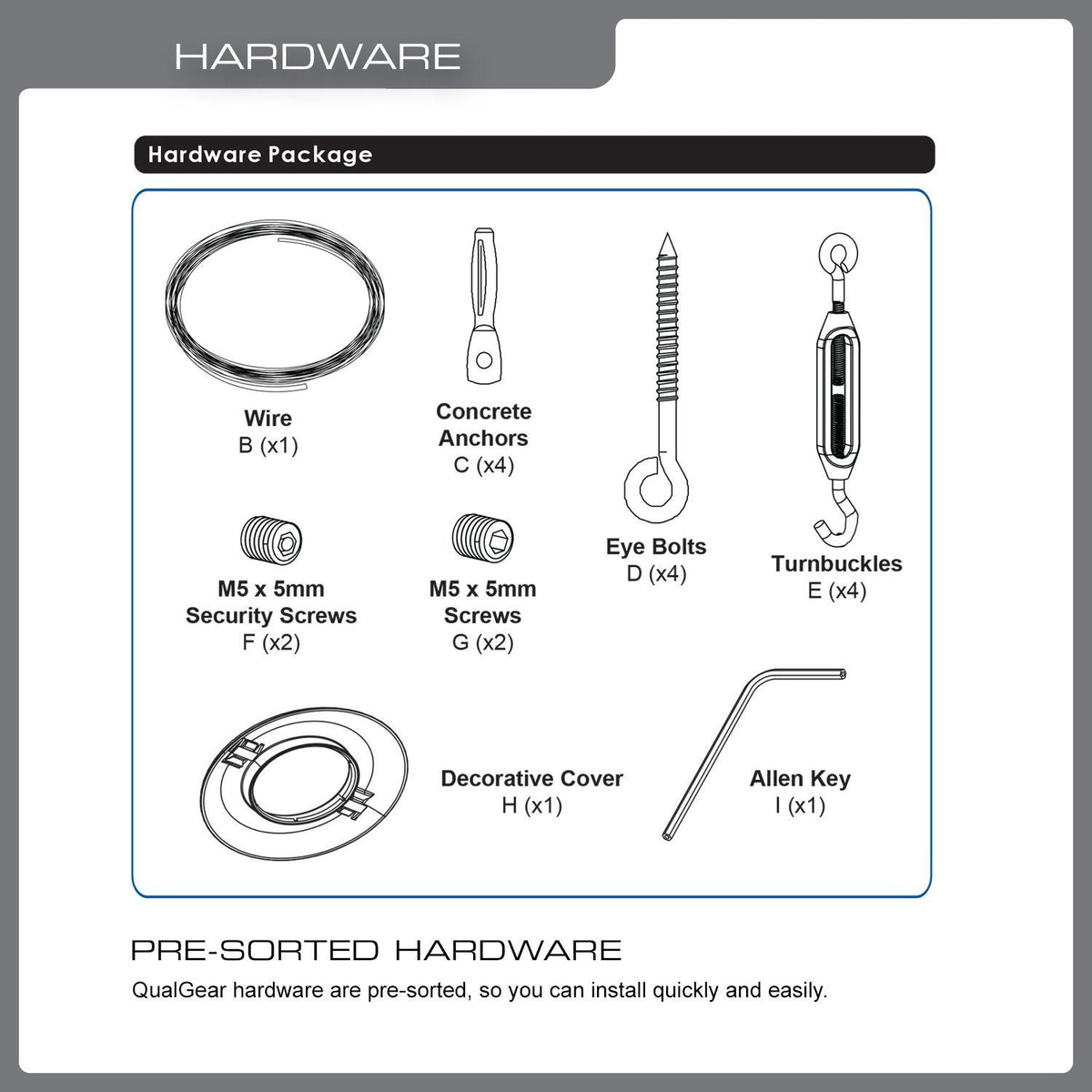

| In the box | Ceiling adapter with suspension wire, four turnbuckles, and anchors for wood or concrete structures |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
Anchors a projector drop above the grid tile — rated to 60 lb / 27.2 kg.

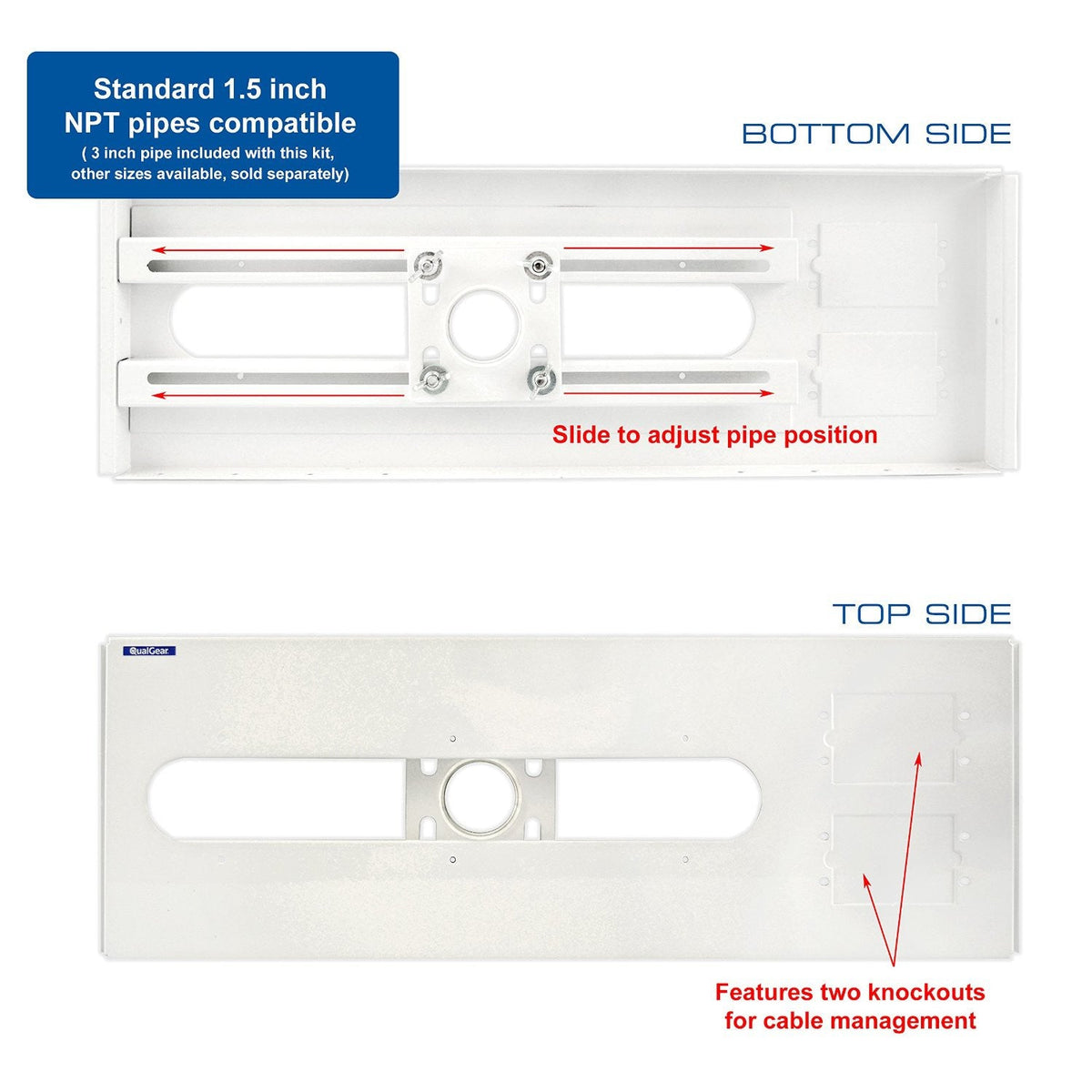

Hang a projector from a suspended ceiling without giving up the grid. This drop ceiling adapter mounts above a standard 2 ft x 2 ft / 61 x 61 cm or 2 ft x 4 ft / 61 x 122 cm grid system and accepts any standard 1.5 in NPT threaded pipe, carrying projector drops up to 60 lb / 27.2 kg.

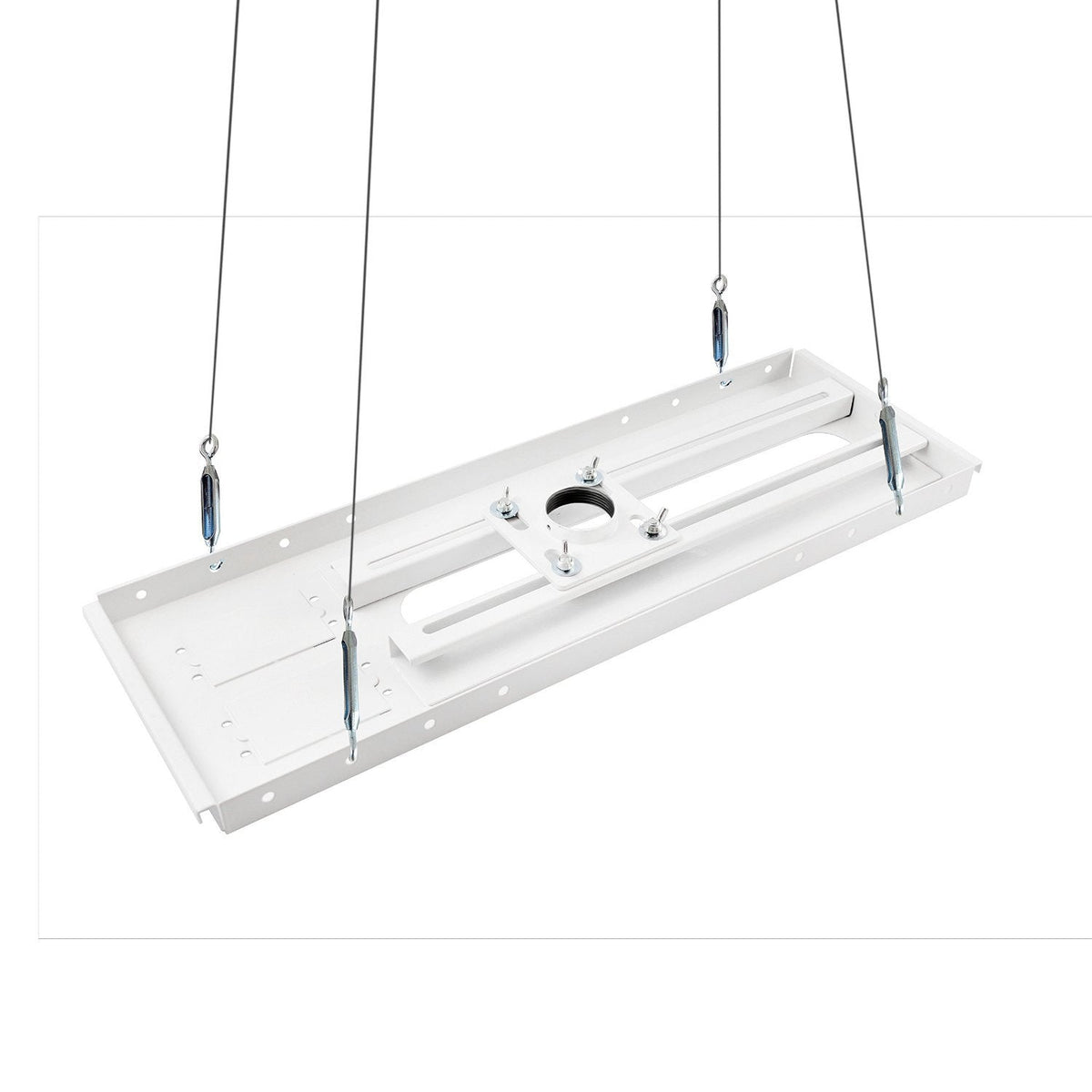

The plate installs above the false ceiling tile and suspends from the structure overhead — suspension wire, four turnbuckles, and anchors for wood or concrete are in the box. Cold rolled steel with a scratch-resistant fused epoxy finish, in white, 24.6 x 6 x 1.93 in / 62.5 x 15.2 x 4.9 cm and 9.75 lb / 4.4 kg.
It is one piece of the QualGear Pro-AV 1.5 in NPT system: pair it with the QG-PRO-PM-50-W projector bracket, an NPT extension pipe, and a pipe connector to set the exact drop, or step up to the QG-KIT-S-3IN-W drop ceiling kit. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Keeps the ceiling grid intact
Installs above the false ceiling tile on standard 2 ft x 2 ft and 2 ft x 4 ft (61 x 61 / 61 x 122 cm) grids.
Accepts standard 1.5 in NPT pipe
Accepts any standard 1.5 in NPT threaded pipe — the interface shared across QualGear Pro-AV pipes, connectors, and mounts.
Carries drops up to 60 lb
Rated for projector installations up to 60 lb / 27.2 kg, stated as the maximum load for the drop.
Hardware for wood or concrete included
Ships with suspension wire, four turnbuckles, and anchors for wood or concrete structures — no separate suspension hardware to source.
Steel plate, fused epoxy finish
Cold rolled steel with a scratch-resistant fused epoxy finish in white, matching QualGear Pro-AV pipes, connectors, and mounts.
