QualGear Drop Ceiling Projector Mount Kit, 6"x2', White, QG-KIT-S-3IN-W

SKU: QG-KIT-S-3IN-W

Regular price $162.95
Sale price $162.95 Regular price

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
5-year limited manufacturer's warranty, parts only
QG-KIT-S-3IN-W installation manual PDF Will it fit my projector? Check before you buy
QualGear Drop Ceiling Projector Mount Kit, 6"x2', White, QG-KIT-S-3IN-W
Regular price $162.95
Sale price $162.95 Regular price

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

Drop or suspended ceilings (standard grid systems) QG-PRO-PM-50-W QG-PRO-PM-SCA-W suspended ceiling adapter 6 x 24 in / 15.2 x 61 cm
Full technical specifications
Compatibility / Requirements
Ceiling typesDrop or suspended ceilings (standard grid systems)
Included mountQG-PRO-PM-50-W
Included adapterQG-PRO-PM-SCA-W suspended ceiling adapter
Adapter size6 x 24 in / 15.2 x 61 cm
Included pipe3 in / 7.6 cm, 1.5 in NPT
Thread standard1.5 in NPT
Performance / Capacity
Load capacity50 lb / 22.7 kg
Pitch±20°
Roll±8°
Rotation±180°
Adjustment points12
Materials & Finish
ColorWhite
Care / Installation

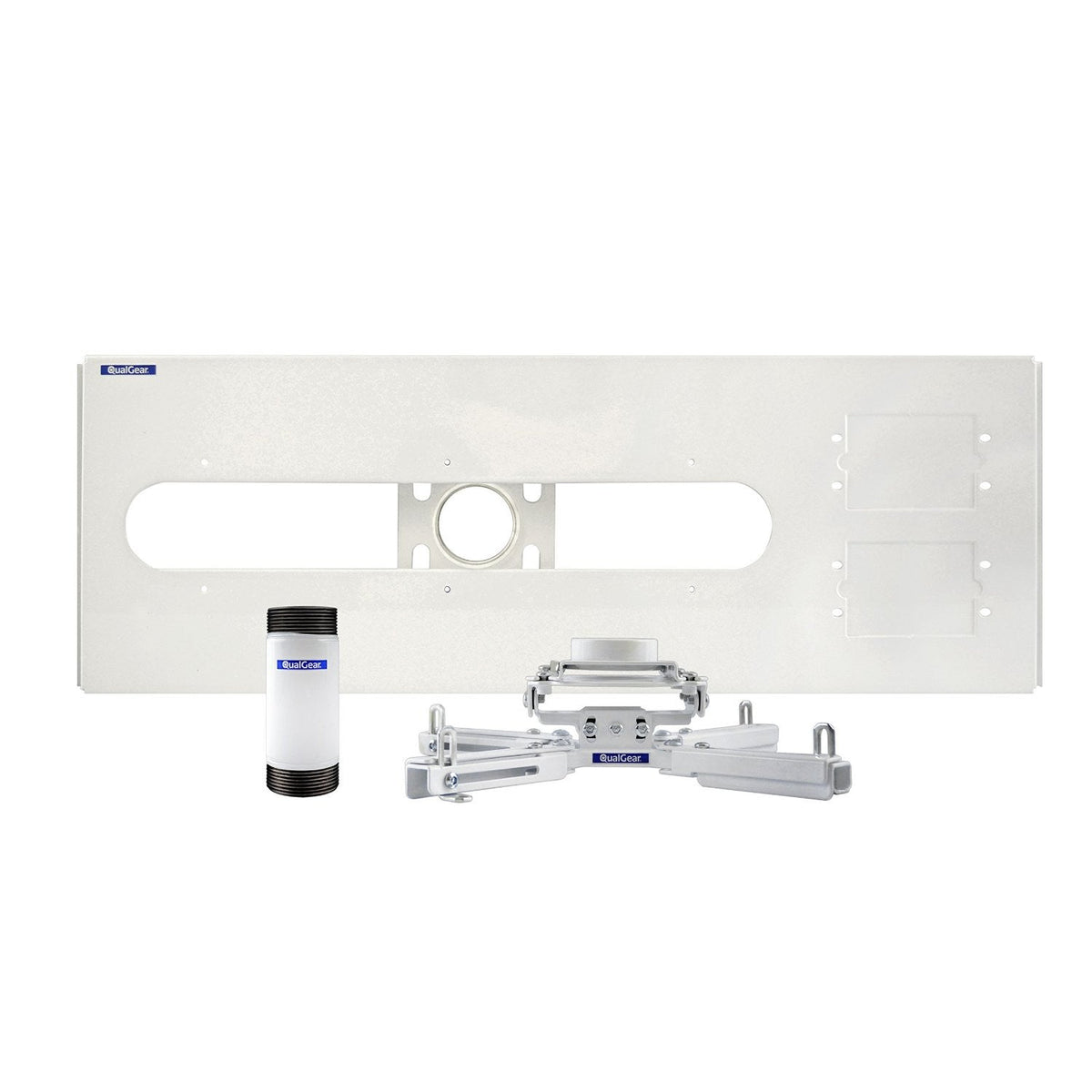

In the boxProjector mount, ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only
SupportUS-based phone support, +1-972-423-5015

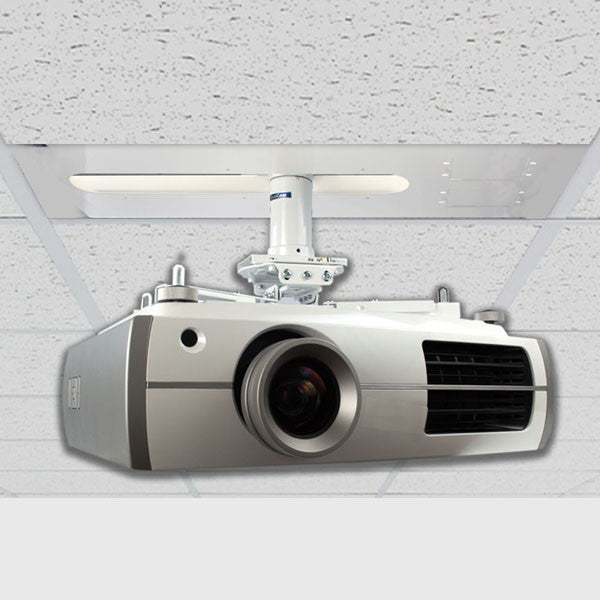

Puts a projector below a suspended grid — adapter, mount, and pipe in one box

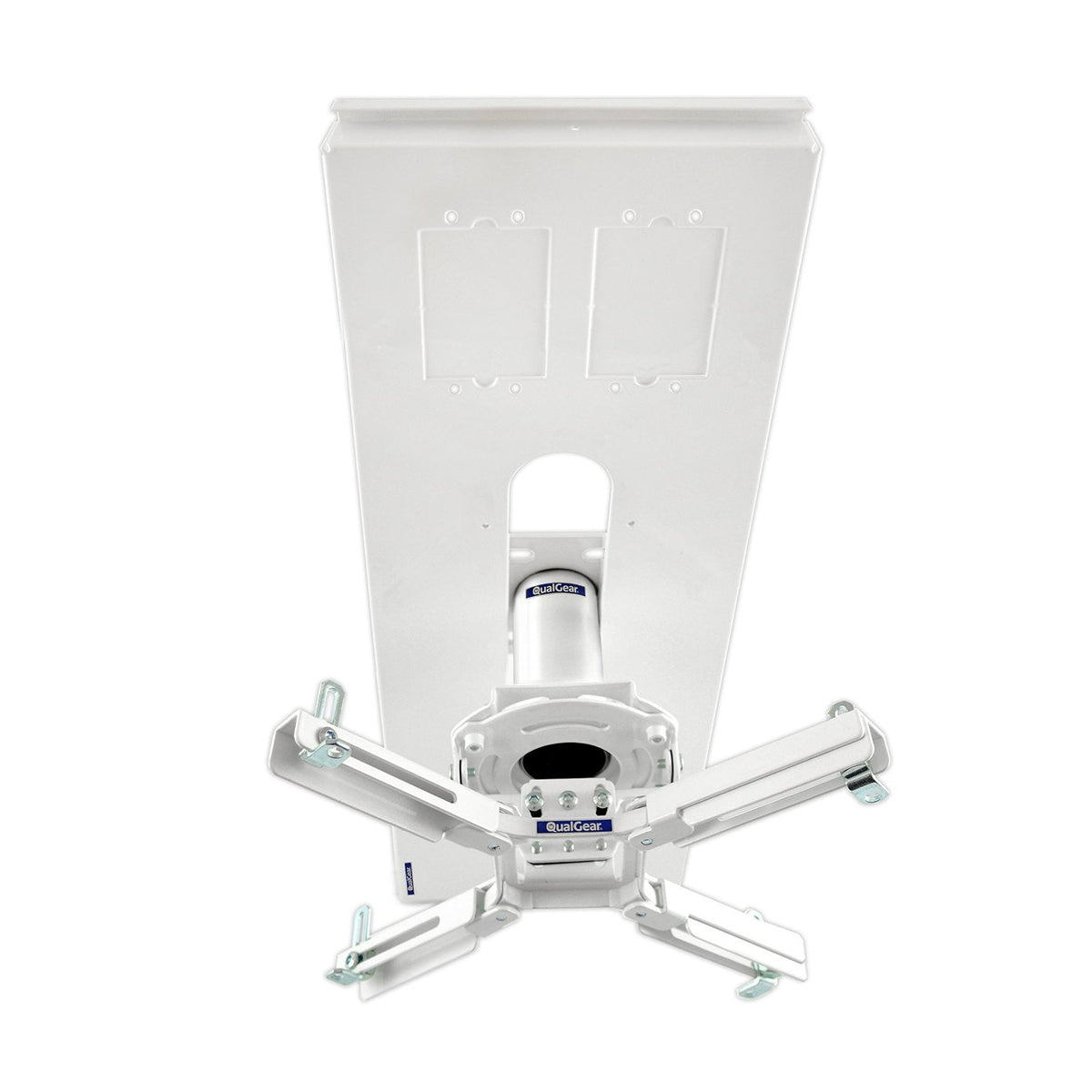

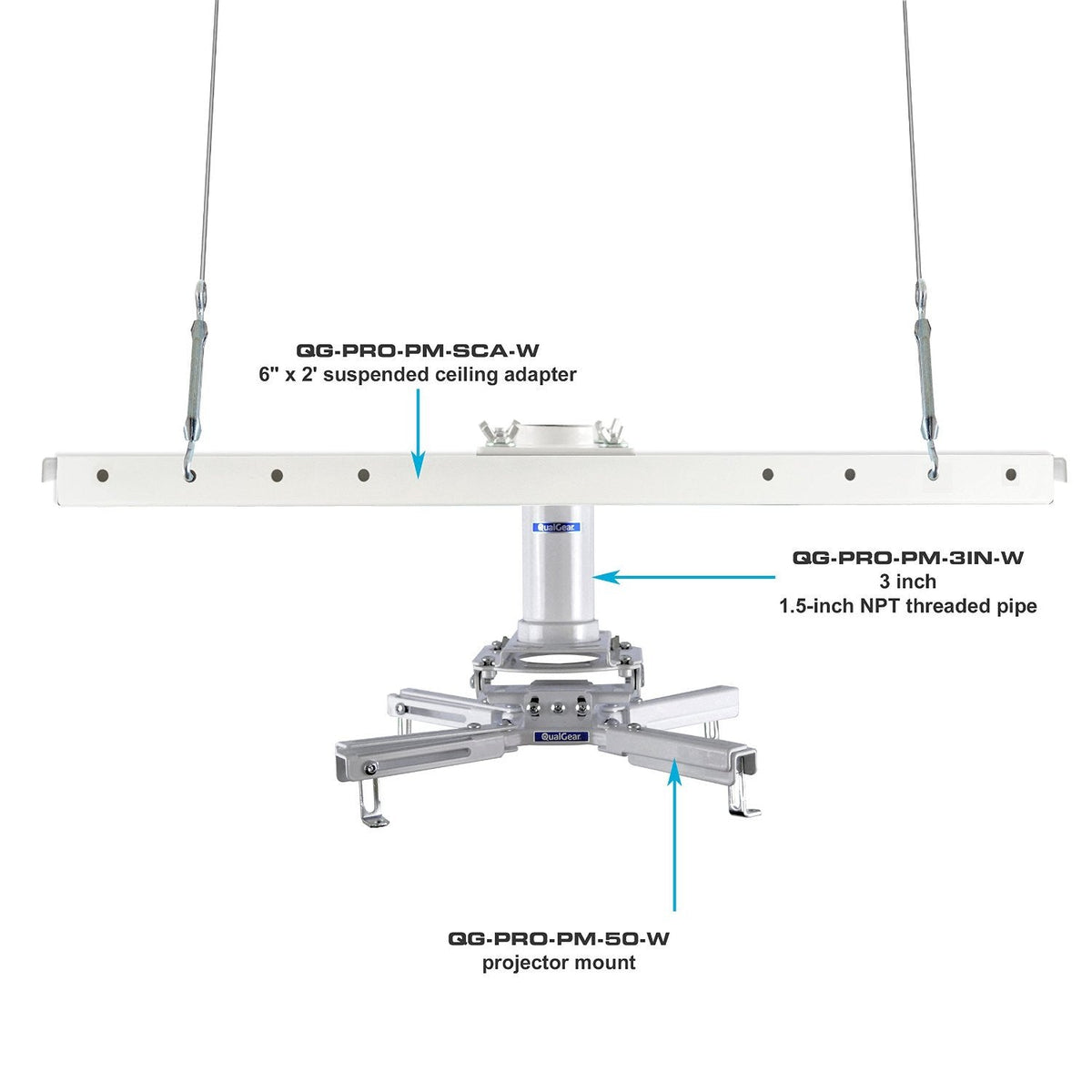

Put a projector below a drop ceiling without improvising above the grid. This QualGear Pro-AV kit combines the QG-PRO-PM-50-W projector mount, the QG-PRO-PM-SCA-W suspended ceiling adapter, and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in white — a complete ceiling drop for drop or suspended ceilings on standard grid systems.

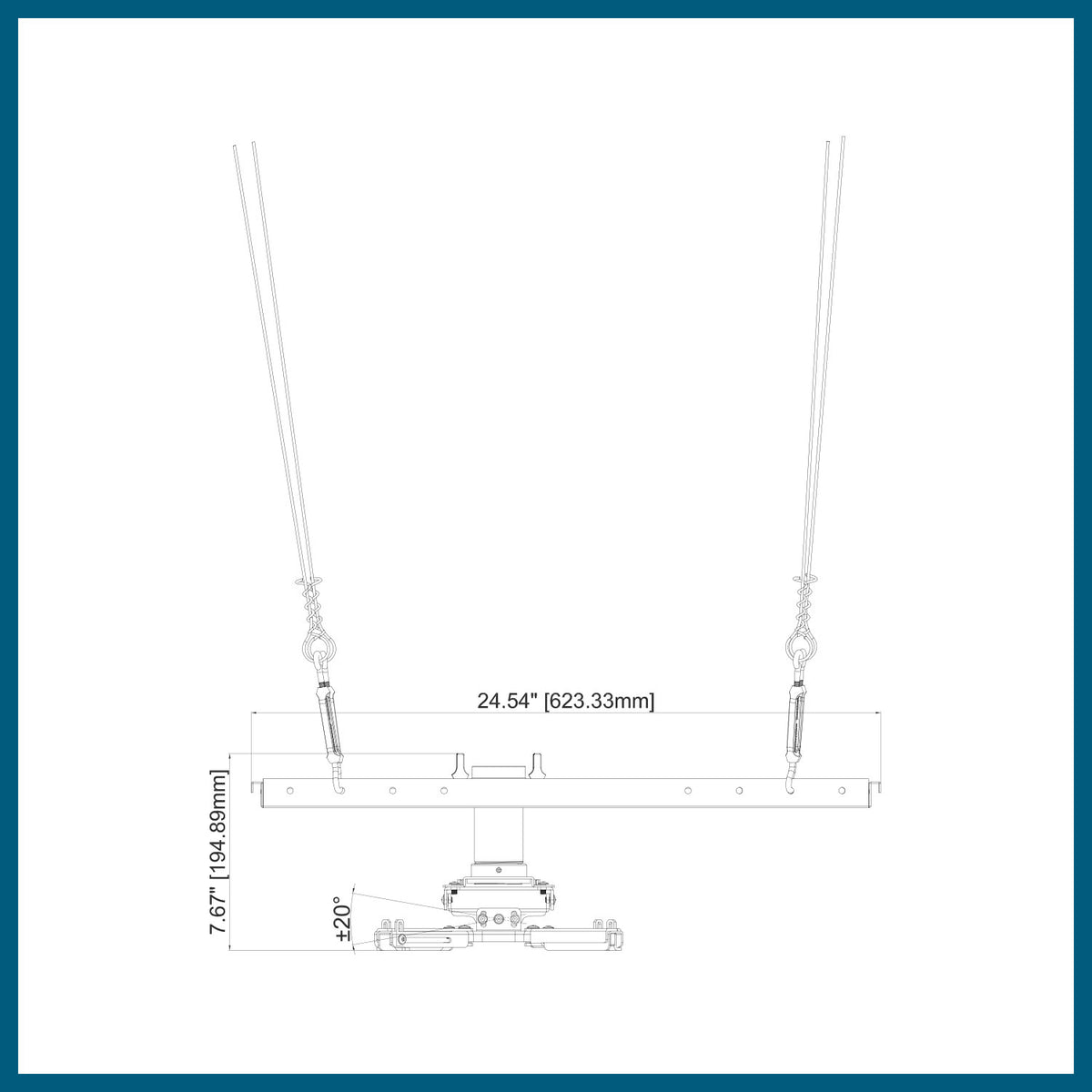

The 6 x 24 in / 15.2 x 61 cm adapter mounts above the grid tile, the pipe threads in, and the kit carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image after installation. In the box: projector mount, suspended ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.

The 1.5 in NPT thread is the QualGear Pro-AV system standard — when the projector needs a lower drop below the grid, swap the included pipe for a longer QualGear extension pipe or join lengths with a QualGear NPT pipe connector. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Complete drop ceiling kit in one box

Projector mount, suspended ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.

Mounts above the grid tile

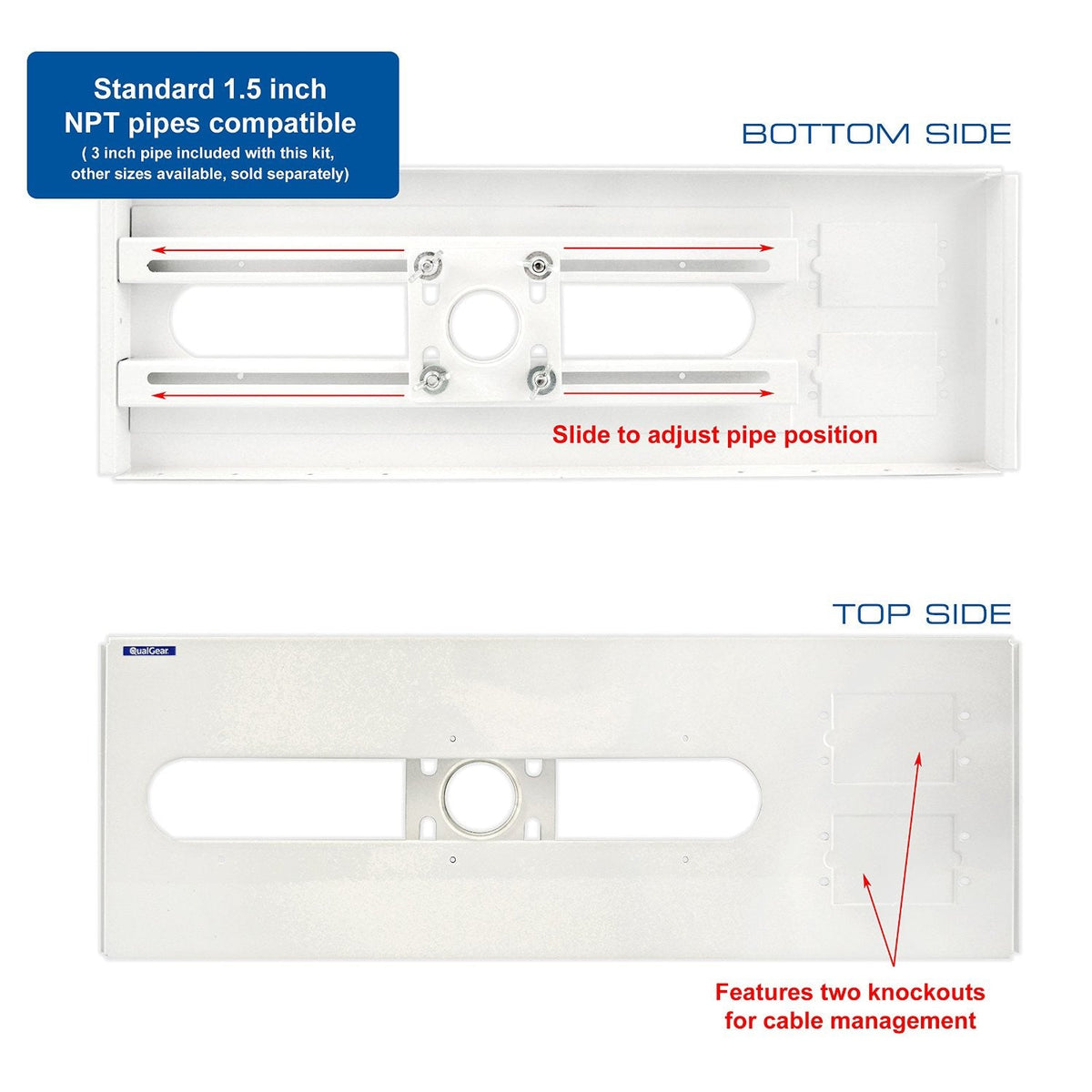

The 6 x 24 in / 15.2 x 61 cm QG-PRO-PM-SCA-W adapter installs above the tile of a standard grid system.

Holds projectors up to 50 lb

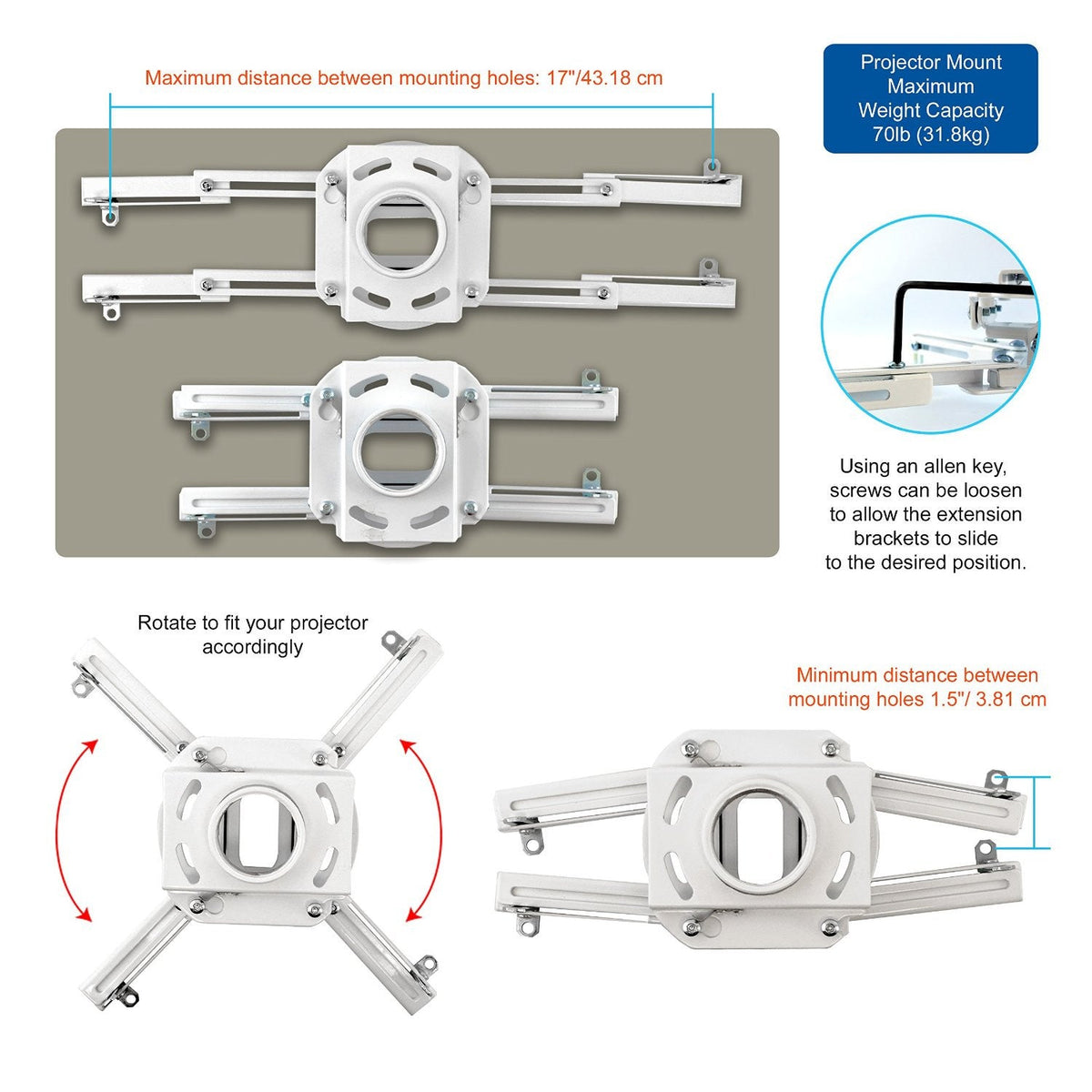

The kit is rated for projectors up to 50 lb / 22.7 kg, the rating of its QG-PRO-PM-50-W projector mount.

Aims the image after installation

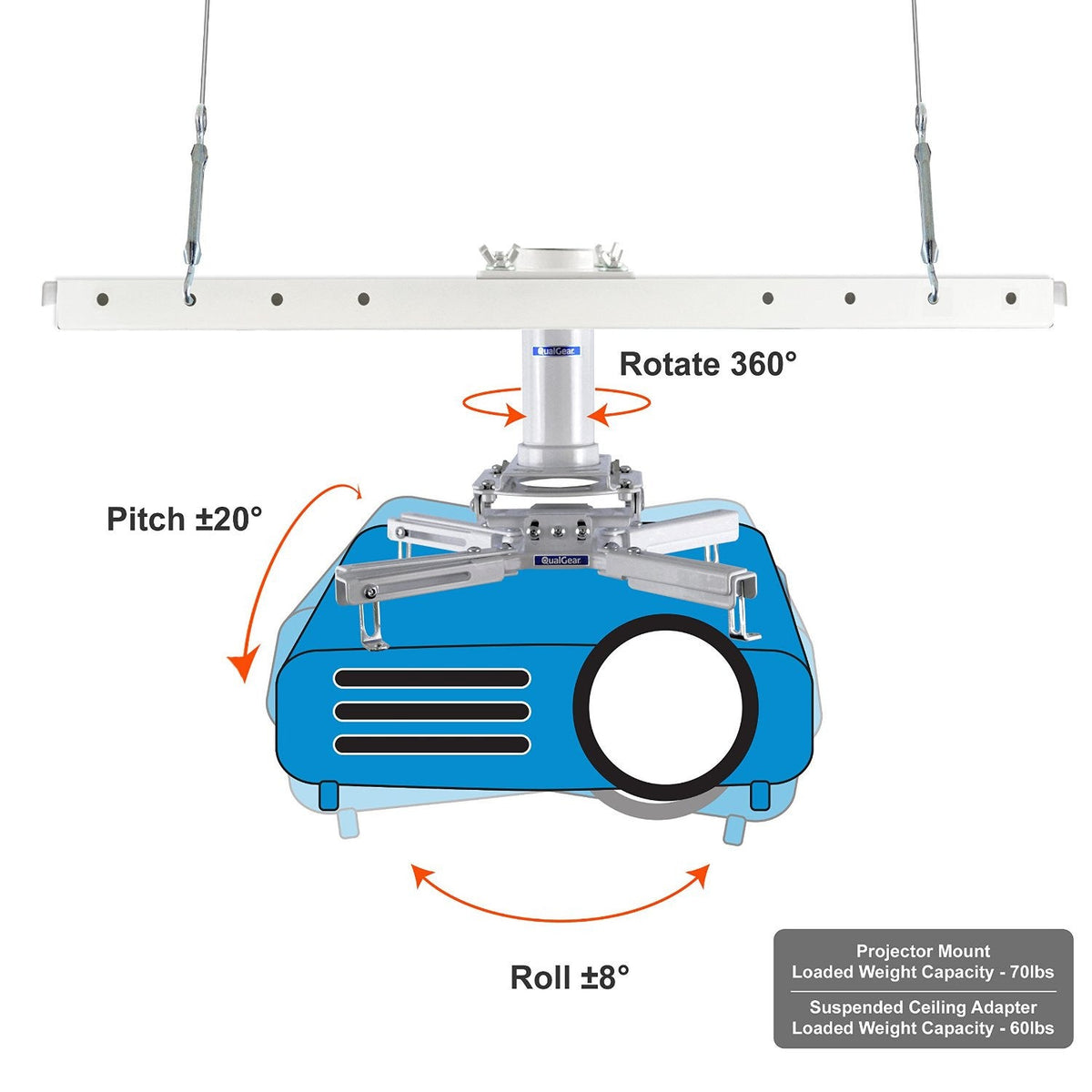

Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.

Extends to lower drops

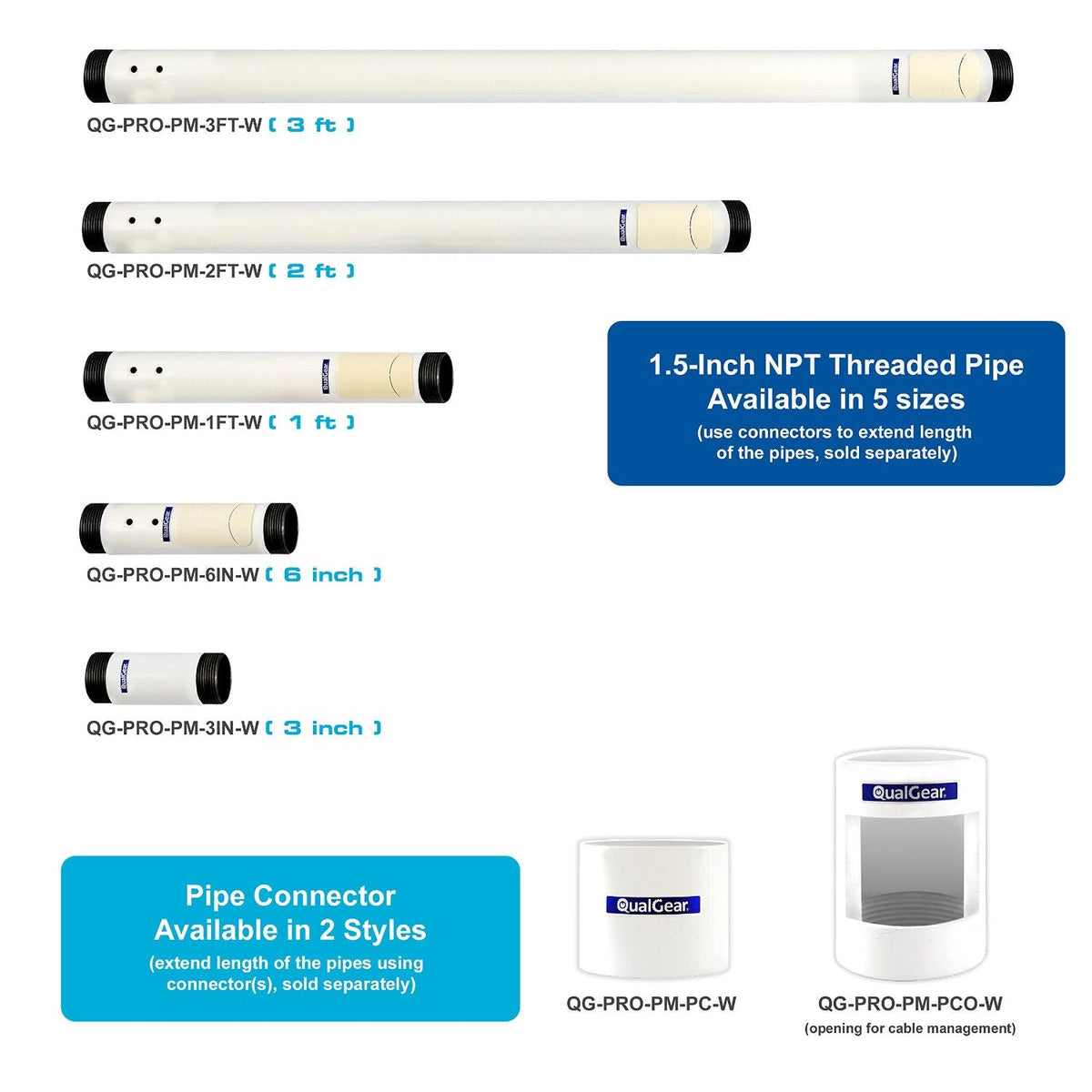

The standard 1.5 in NPT thread accepts longer QualGear pipes when the projector needs to hang farther below the grid.

Presorted hardware, manuals on this page

Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
