QualGear Pro-AV Drop Ceiling Adapter, 2'x2', QG-PRO-PM-SCA2-W

SKU: QG-PRO-PM-SCA2-W

Regular price $115.95
Sale price $115.95 Regular price

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
5-year limited manufacturer's warranty, parts only
Installation manual PDF Will it fit my projector? Check before you buy
QualGear Pro-AV Drop Ceiling Adapter, 2'x2', QG-PRO-PM-SCA2-W
Regular price $115.95
Sale price $115.95 Regular price

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

1.5 in NPT threaded pipe Standard 2 ft x 2 ft / 61 x 61 cm or 2 ft x 4 ft / 61 x 122 cm grid systems (fits flush in place of a ceiling tile) Replaces one 2 ft x 2 ft / 61 x 61 cm tile; in a 2 ft x 4 ft / 61 x 122 cm grid opening it fills one half, and a 2 ft x 2 ft / 61 x 61 cm ceiling tile (not included) fills the other Up to 60 lb / 27.2 kg
Full technical specifications
Compatibility / Requirements
Interface1.5 in NPT threaded pipe
Mounting surfaceStandard 2 ft x 2 ft / 61 x 61 cm or 2 ft x 4 ft / 61 x 122 cm grid systems (fits flush in place of a ceiling tile)
Tile fitReplaces one 2 ft x 2 ft / 61 x 61 cm tile; in a 2 ft x 4 ft / 61 x 122 cm grid opening it fills one half, and a 2 ft x 2 ft / 61 x 61 cm ceiling tile (not included) fills the other
Performance / Capacity
Load ratingUp to 60 lb / 27.2 kg
Lateral adjustment17.24 in / 43.8 cm (sliding collar)
Dimensions & Weight
Product dimensions24 x 24 x 3 in / 61 x 61 x 7.6 cm
Product weight13.05 lb / 5.9 kg
Materials & Finish
MaterialHigh-grade cold rolled steel, scratch-resistant fused epoxy finish
ColorWhite
Care / Installation
In the boxCeiling adapter with suspension wire, four turnbuckles, and anchors for wood or concrete structures
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only

Fits flush inside the ceiling tile — carries drops up to 60 lb / 27.2 kg.

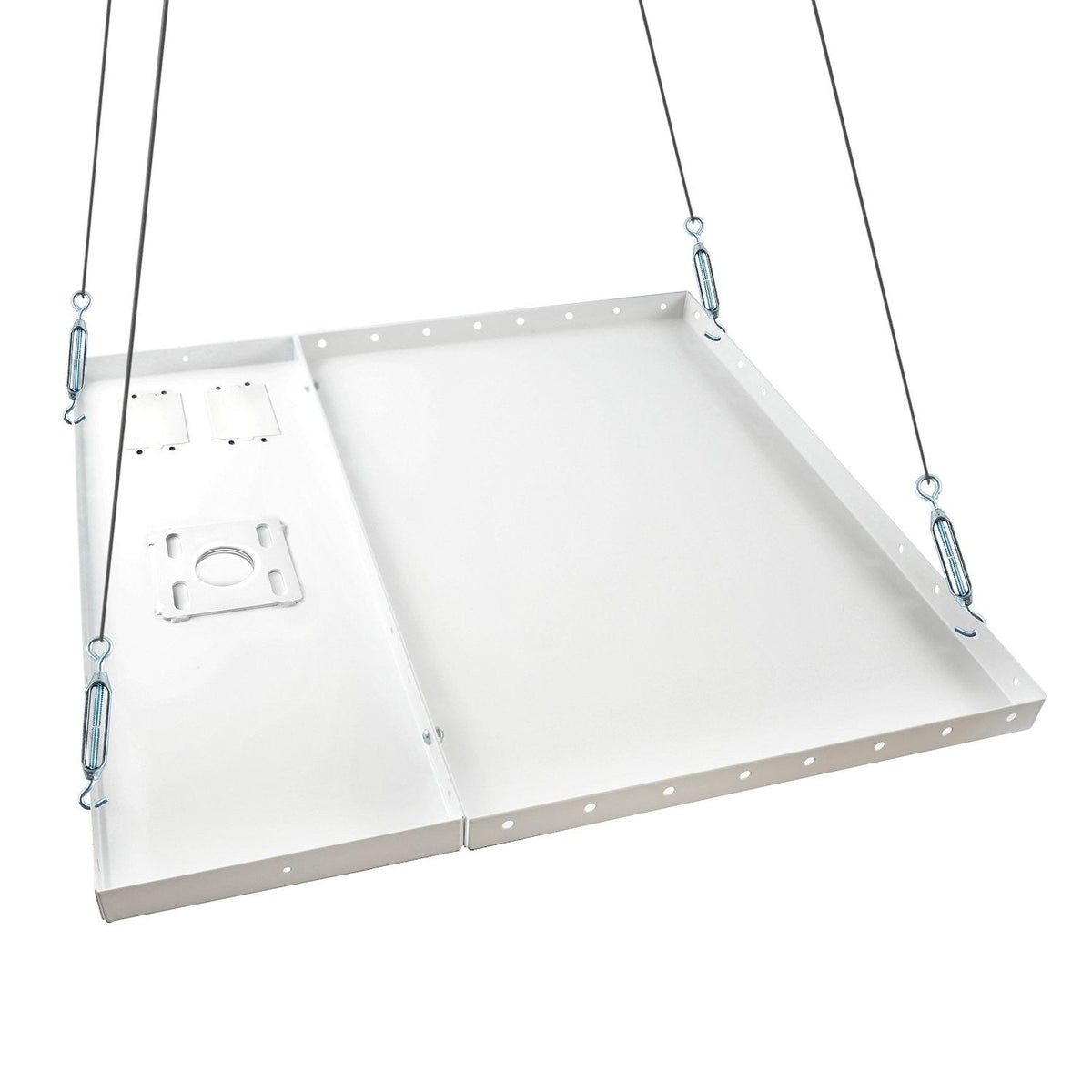

Put a projector on a suspended ceiling and keep the grid looking finished. This drop ceiling adapter fits flush inside standard 2 ft x 2 ft / 61 x 61 cm or 2 ft x 4 ft / 61 x 122 cm grid systems — replacing a full smaller tile, or filling half of a larger opening with a tile in the other half — and accepts any standard 1.5 in NPT threaded pipe for projector drops up to 60 lb / 27.2 kg.

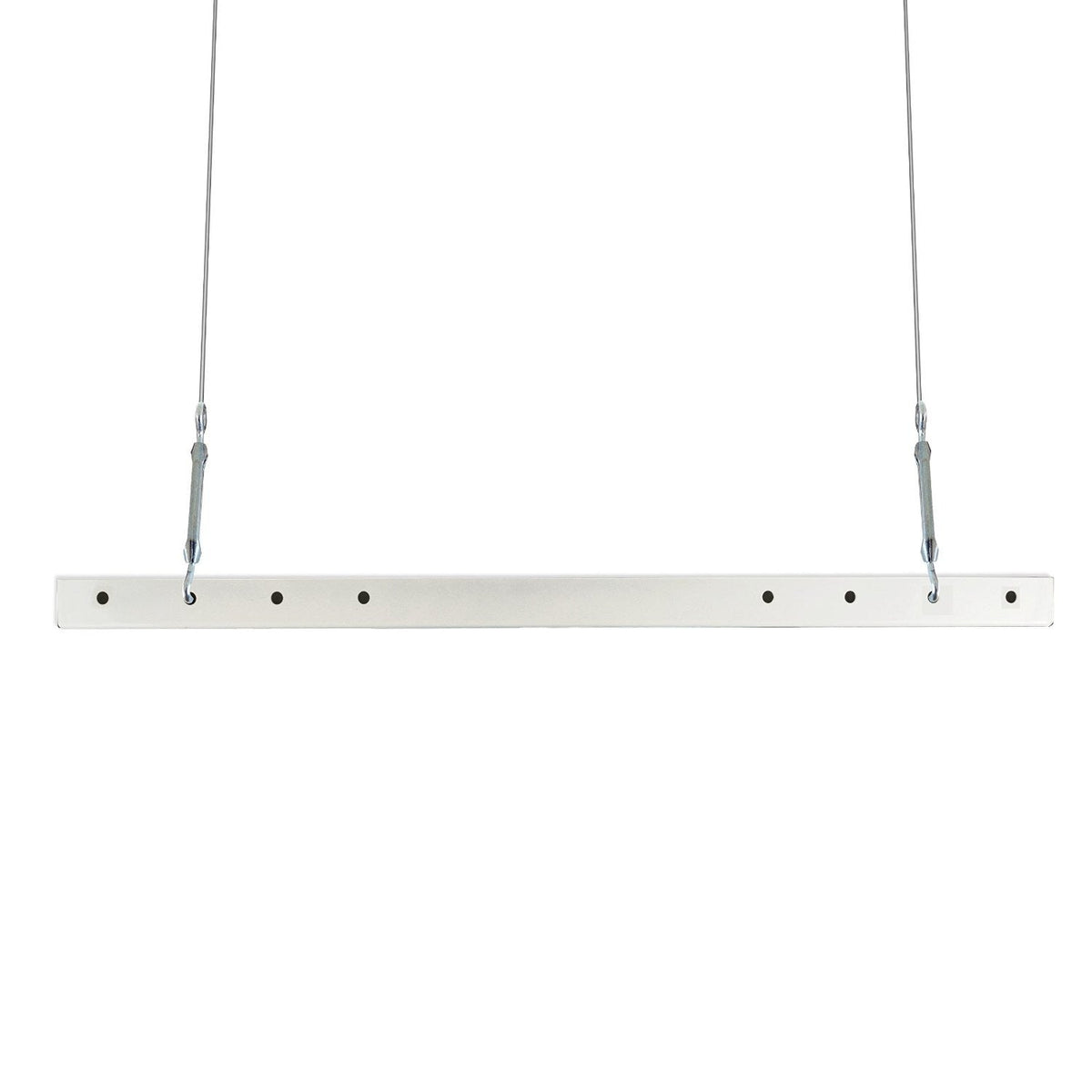

The panel suspends from the structure above the grid, with 17.24 in / 43.8 cm collar travel; suspension wire, four turnbuckles, and anchors for wood or concrete are in the box. Cold rolled steel with a scratch-resistant fused epoxy finish, in white, 24 x 24 x 3 in / 61 x 61 x 7.6 cm and 13.05 lb / 5.9 kg.

It joins the QualGear Pro-AV 1.5 in NPT system: pair it with the QG-PRO-PM-50-W projector bracket, an NPT extension pipe, and a pipe connector to set the drop, or step up to the QG-KIT-S2-3IN-W drop ceiling kit. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

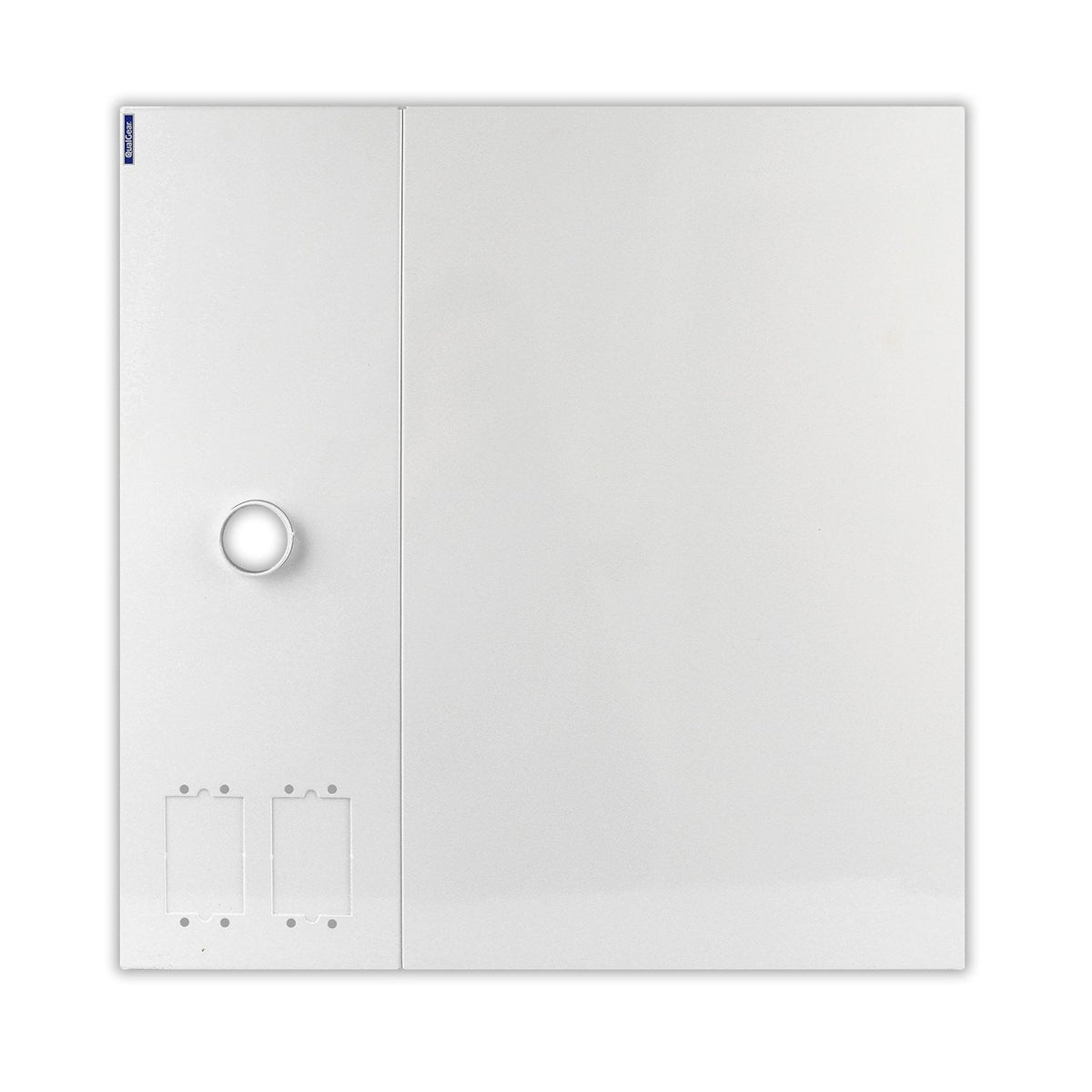

Fits flush inside the tile

Replaces one 2 ft x 2 ft / 61 x 61 cm tile, or half of a 2 ft x 4 ft / 61 x 122 cm opening.

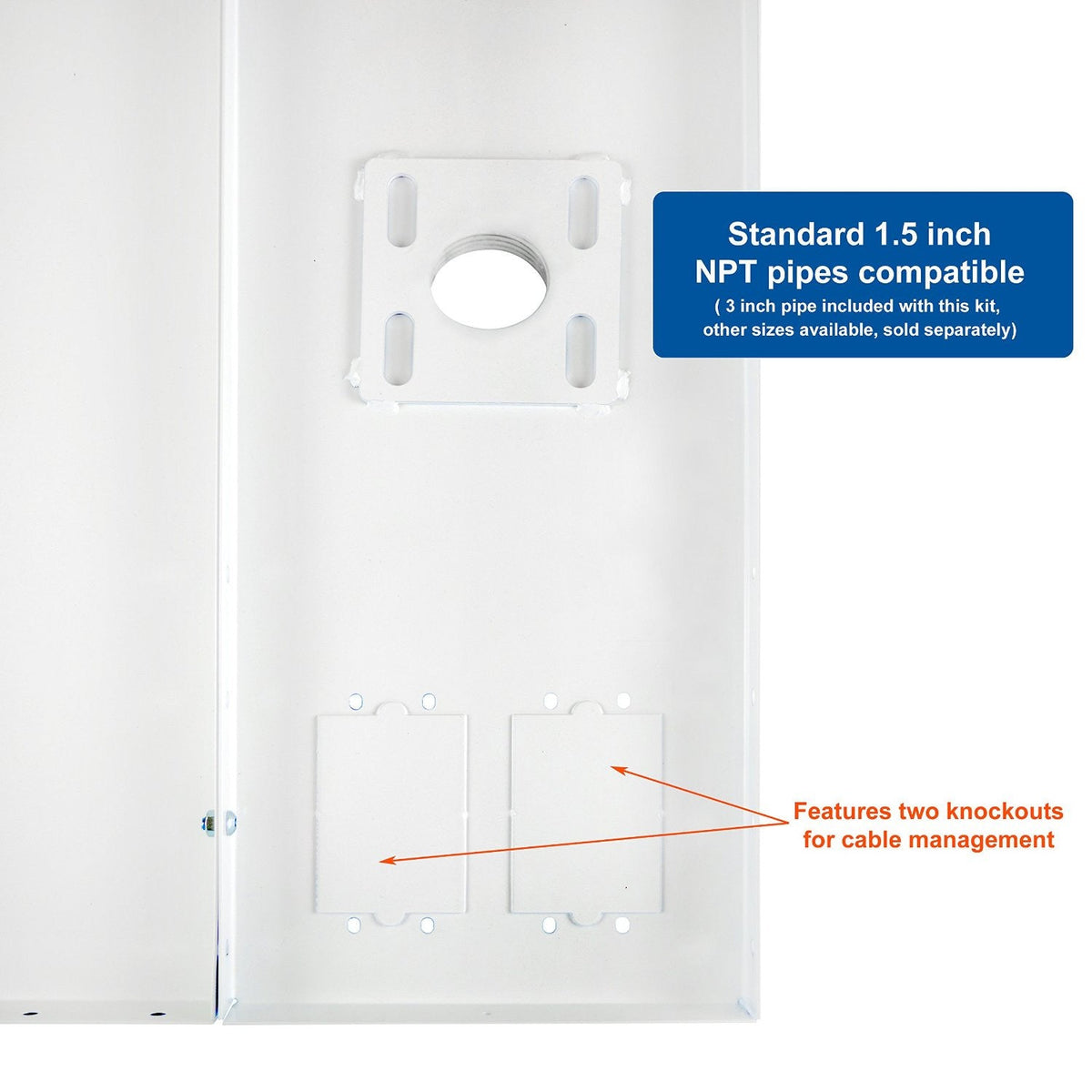

Accepts standard 1.5 in NPT pipe

Accepts any standard 1.5 in NPT threaded pipe — the interface shared across QualGear Pro-AV pipes, connectors, and mounts.

Sliding collar sets the drop point

The pipe collar slides along the plate for 17.24 in / 43.8 cm of lateral adjustment, so the projector lines up with the screen.

Carries drops up to 60 lb

Rated for projector installations up to 60 lb / 27.2 kg, stated as the maximum load for the drop.

Hardware for wood or concrete included

Ships with suspension wire, four turnbuckles, and anchors for wood or concrete structures above the grid.

Steel panel, fused epoxy finish

Cold rolled steel with a scratch-resistant fused epoxy finish in white, matching QualGear Pro-AV pipes, connectors, and mounts.
