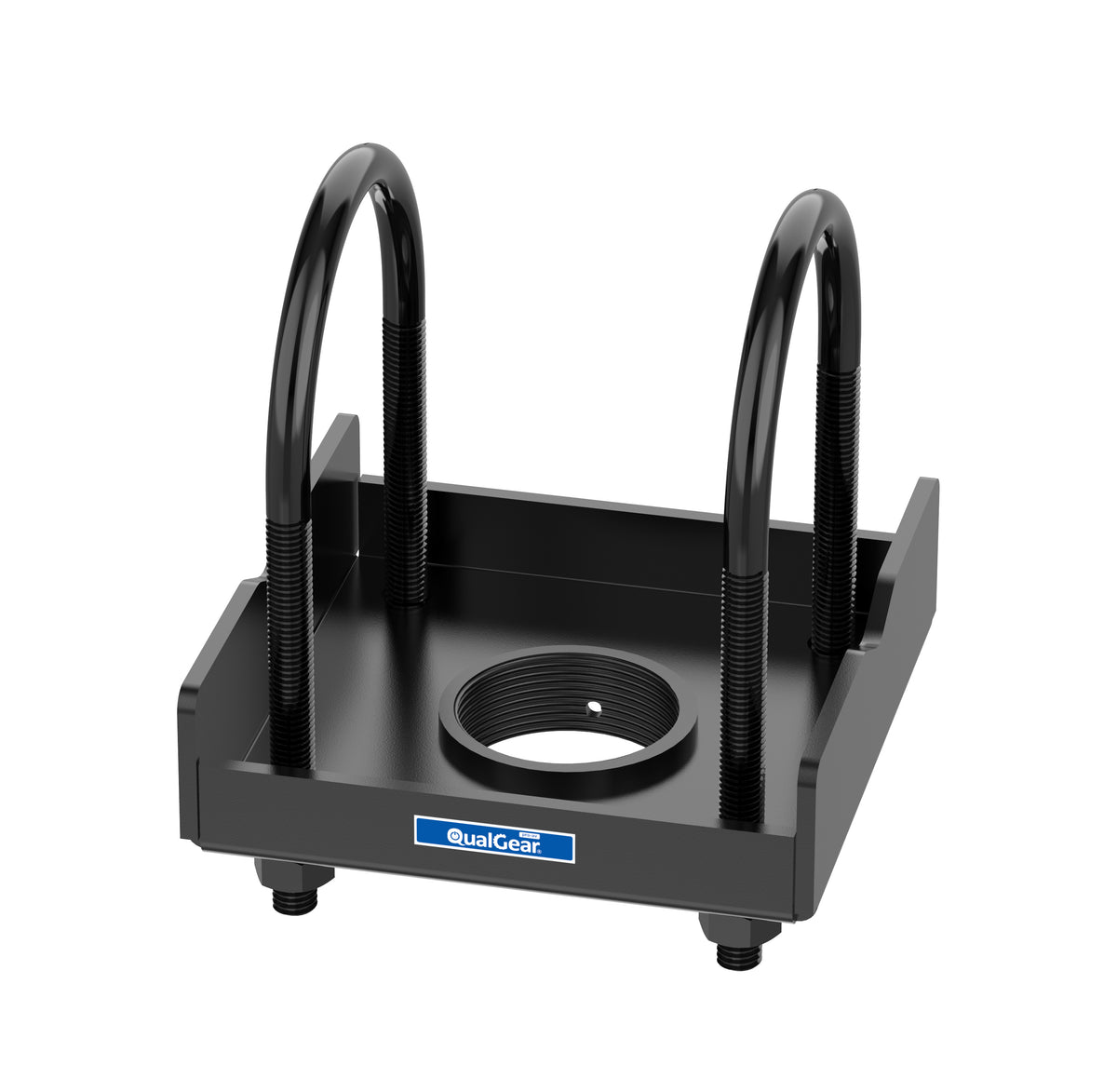

QualGear Pro-AV Truss Ceiling Adapter, QG-PRO-PM-TCA-B
SKU: QG-PRO-PM-TCA-B
Orders placed by 2:00 pm CT ship the same business day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day shipping
In-stock orders placed by the cutoff ship the same business day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day dispatch on in-stock items
- Carrier transit time not guaranteed
Weekend and holiday orders ship the next business day; out-of-stock items are excluded.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
Open the full fit checkerCheck the Key Specifications above for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Interface | 1.5 in NPT threaded pipe |
| Mounting surface | Round, square, or rectangular truss and I-beams up to 3 in / 76 mm wide by 3.5 in / 89 mm high |
| Performance / Capacity | |
| Load rating | Up to 400 lb / 181 kg |
| Dimensions & Weight | |
| Product dimensions | 7.2 x 6.1 x 2.4 in / 18.3 x 15.5 x 6.1 cm |
| Materials & Finish | |
| Material | High-grade cold rolled steel, scratch-resistant epoxy powder coat |
| Color | Black |
| Care / Installation | |

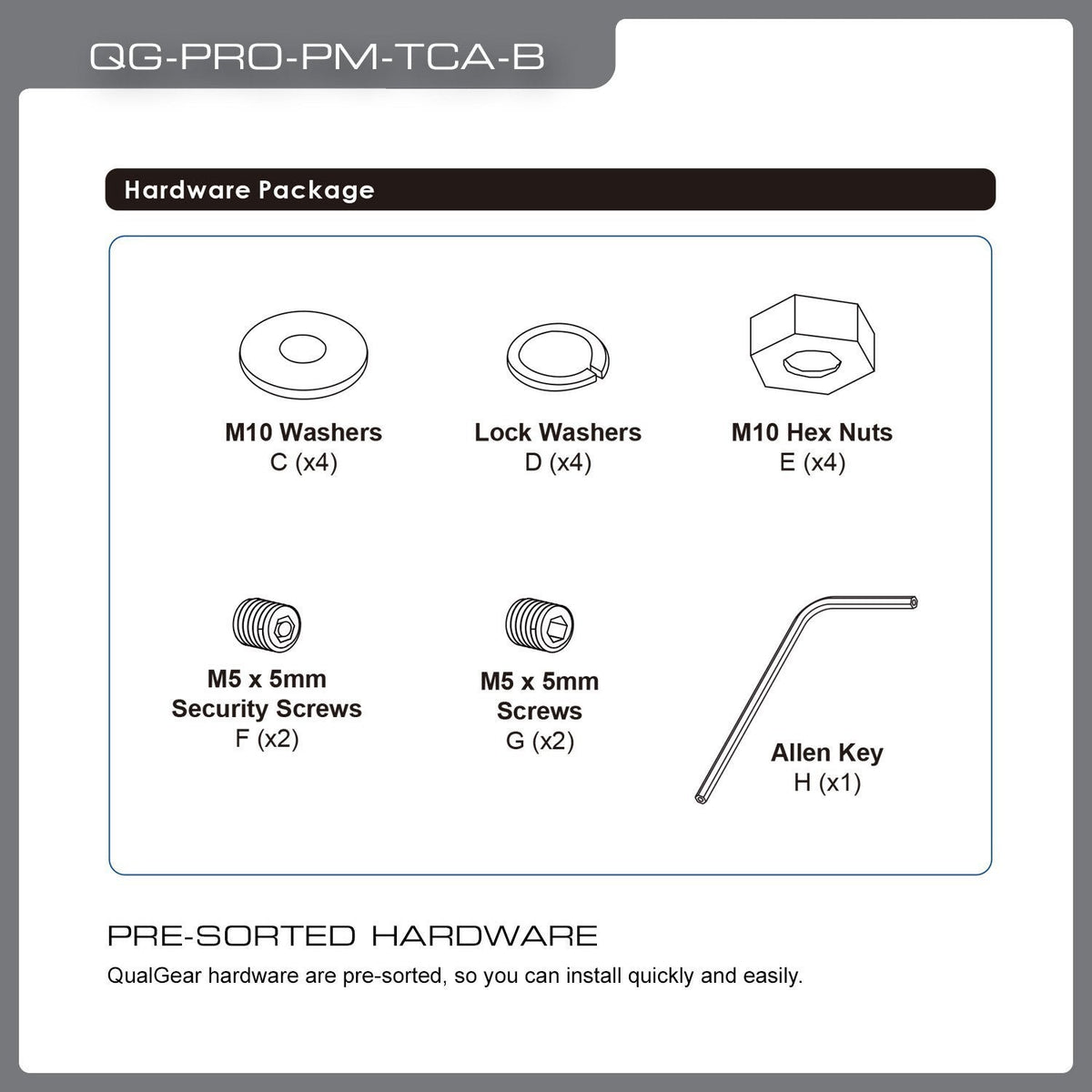

| Attachment | 10 mm / 0.39 in U-bolts |
| In the box | Ceiling adapter |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |

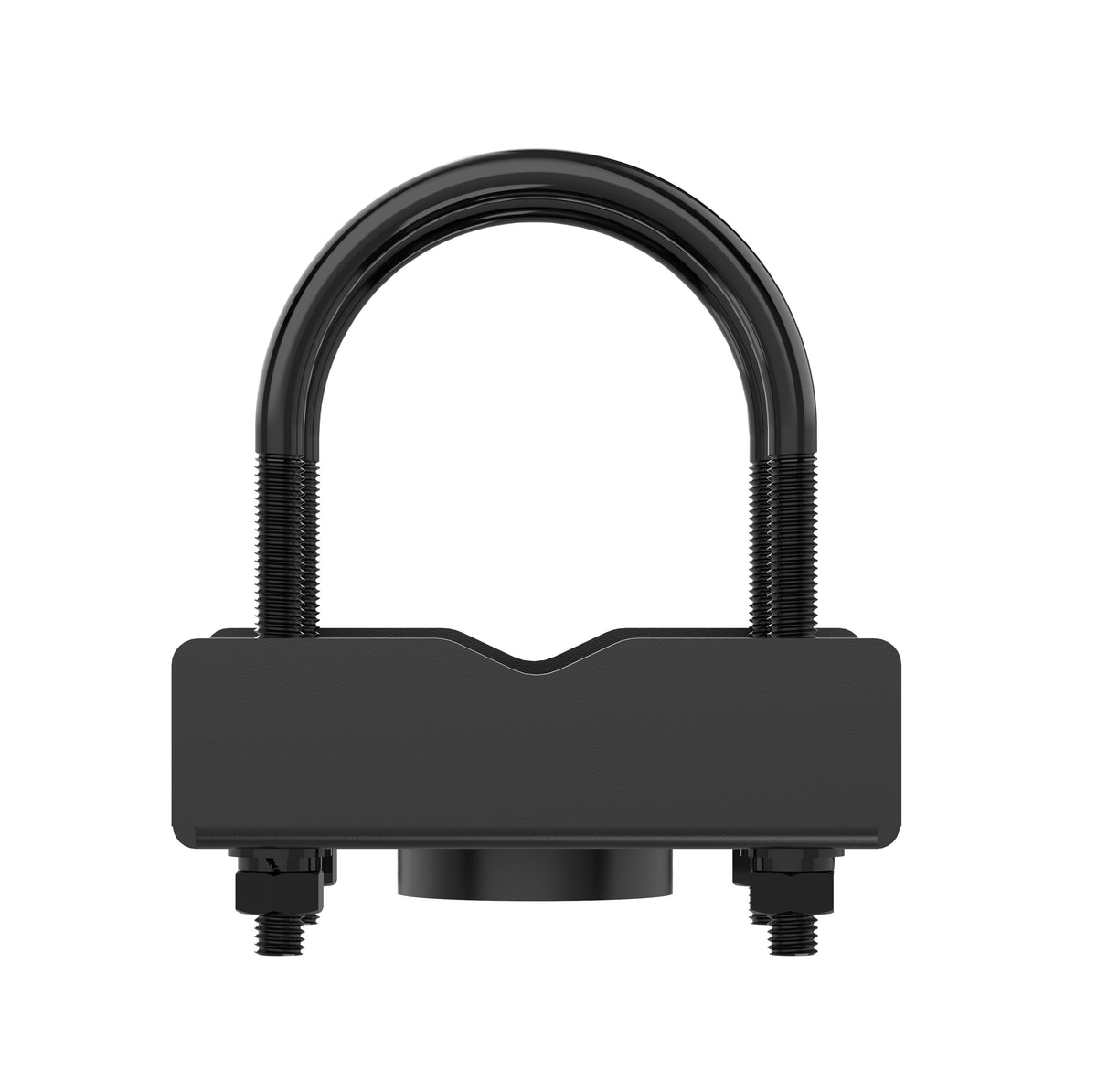

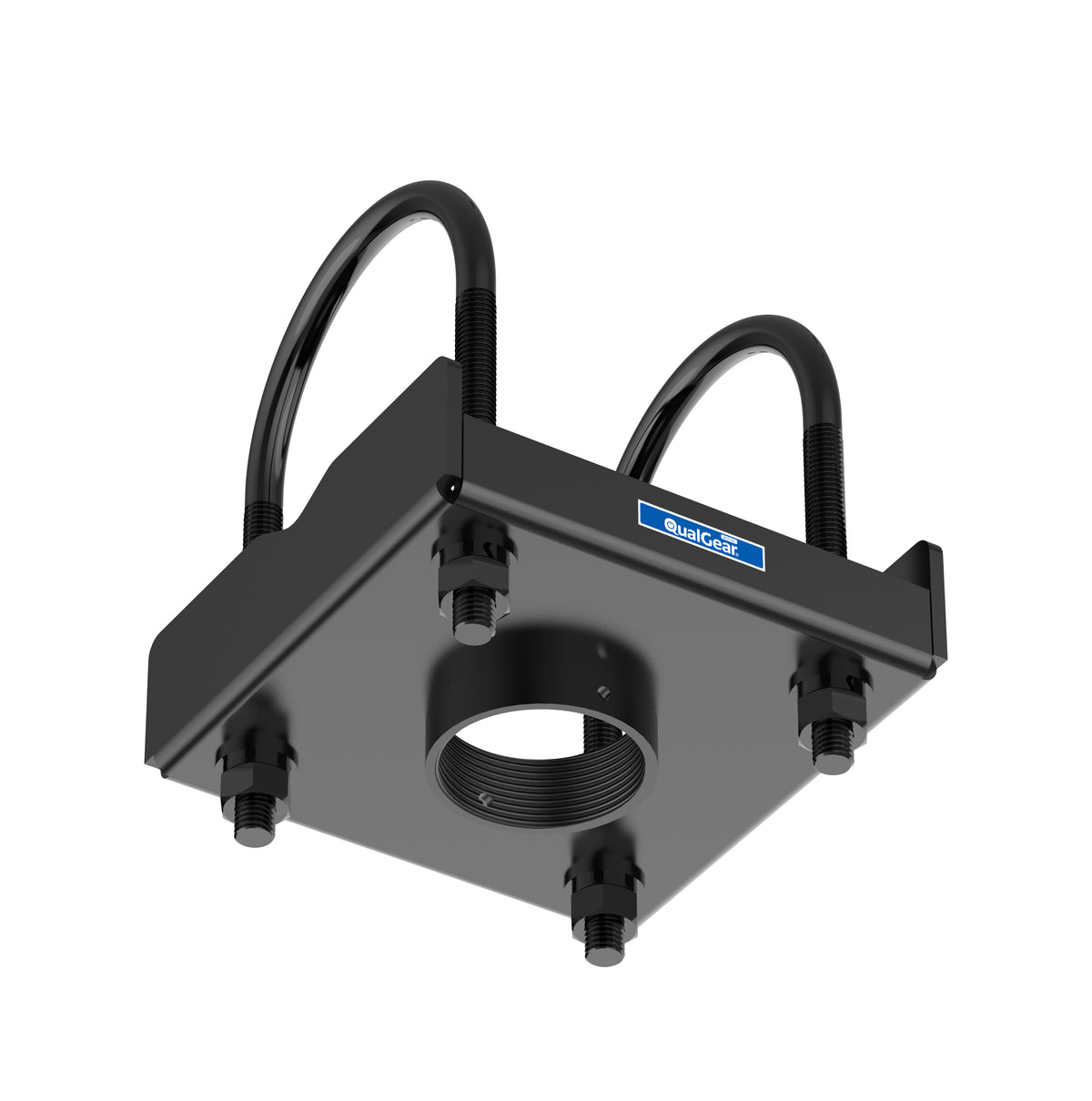

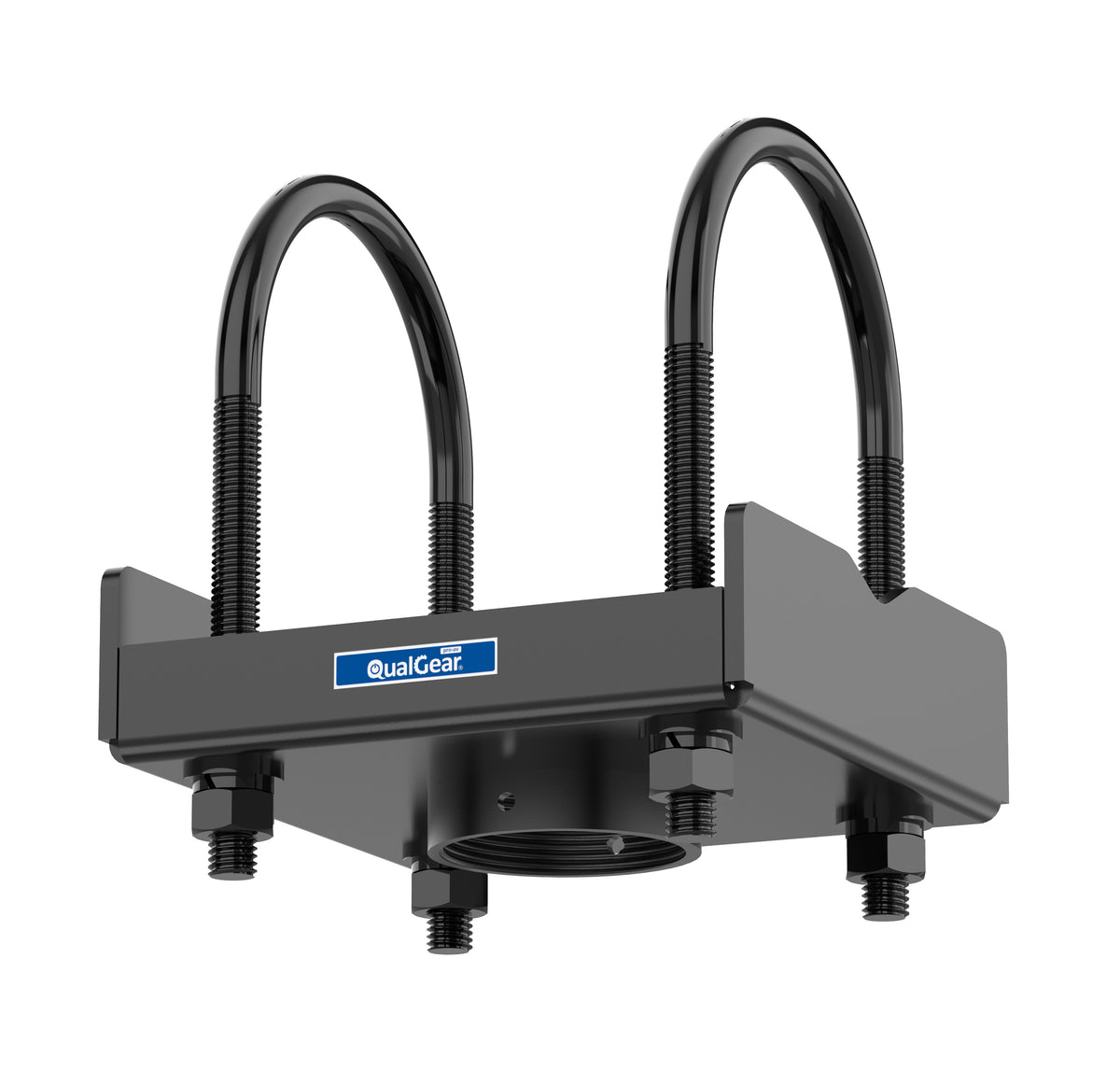

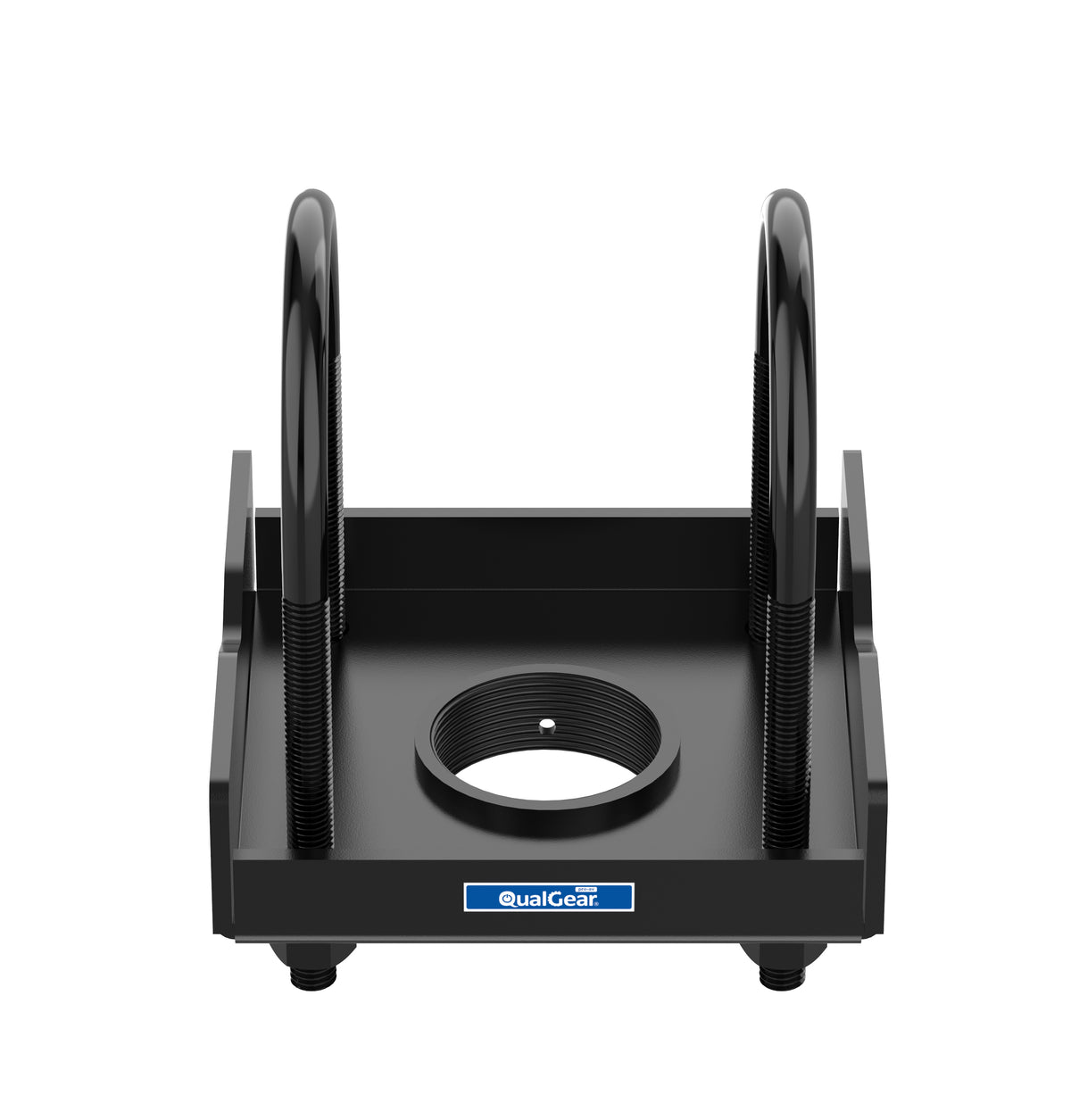

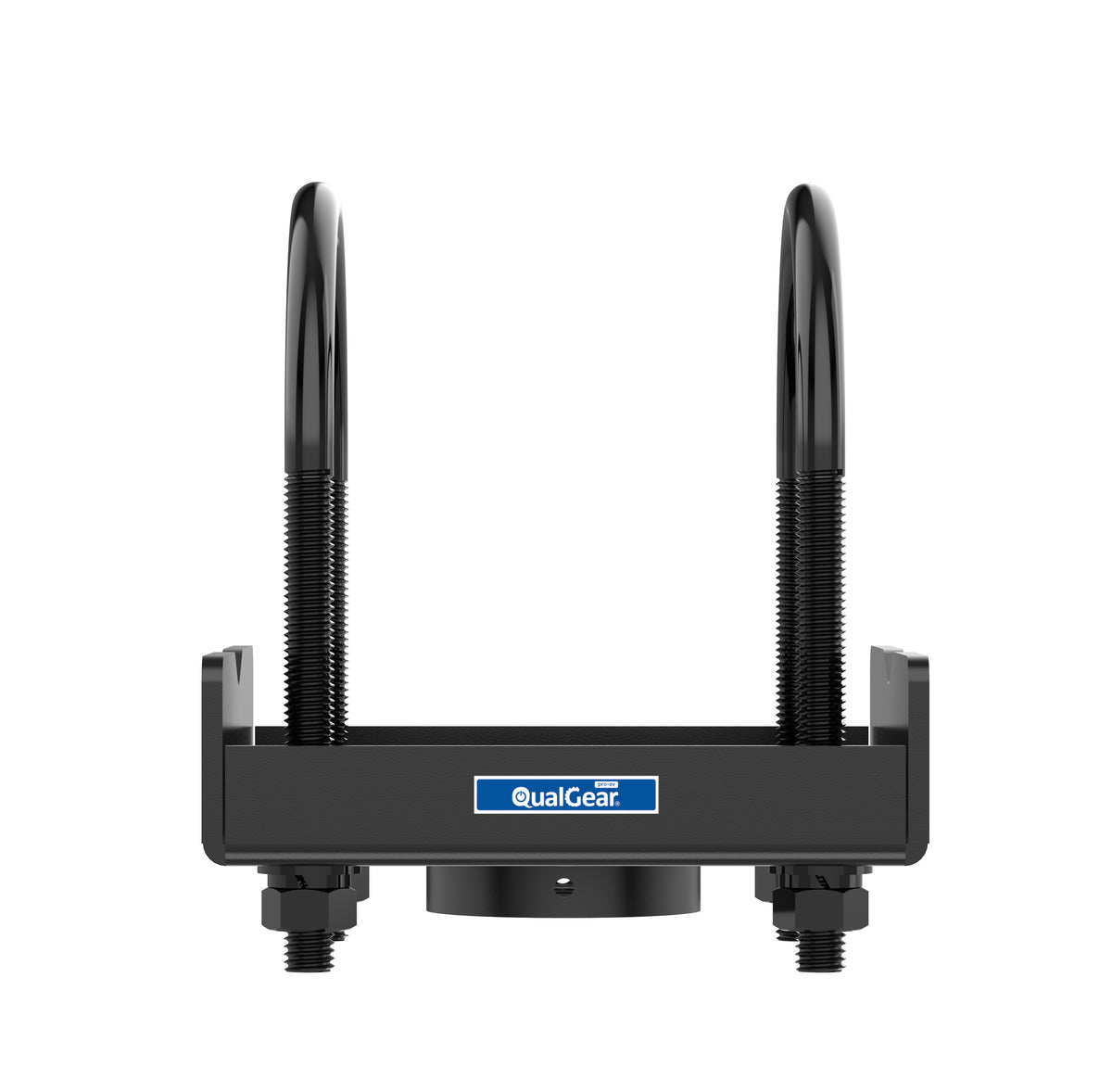

Clamps a projector drop to truss or I-beams — rated to 400 lb / 181 kg.
Hang a projector drop from stage truss or an exposed beam. This truss ceiling adapter clamps with 10 mm / 0.39 in U-bolts to round, square, or rectangular truss and I-beams up to 3 in / 76 mm wide by 3.5 in / 89 mm high, accepts any standard 1.5 in NPT threaded pipe, and is rated for installations up to 400 lb / 181 kg.
The clamp covers the sections installers actually meet — round, square, and rectangular truss and I-beams within the 3 in / 76 mm by 3.5 in / 89 mm envelope. Cold rolled steel with a scratch-resistant epoxy powder coat, in black, 7.2 x 6.1 x 2.4 in / 18.3 x 15.5 x 6.1 cm. In the box: the ceiling adapter.
It anchors the QualGear Pro-AV 1.5 in NPT system to structure: pair it with the QG-PRO-PM-50-B projector bracket, an NPT extension pipe, and a pipe connector to set the drop, or take the QG-KIT-TA-3IN-B truss ceiling mount kit. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

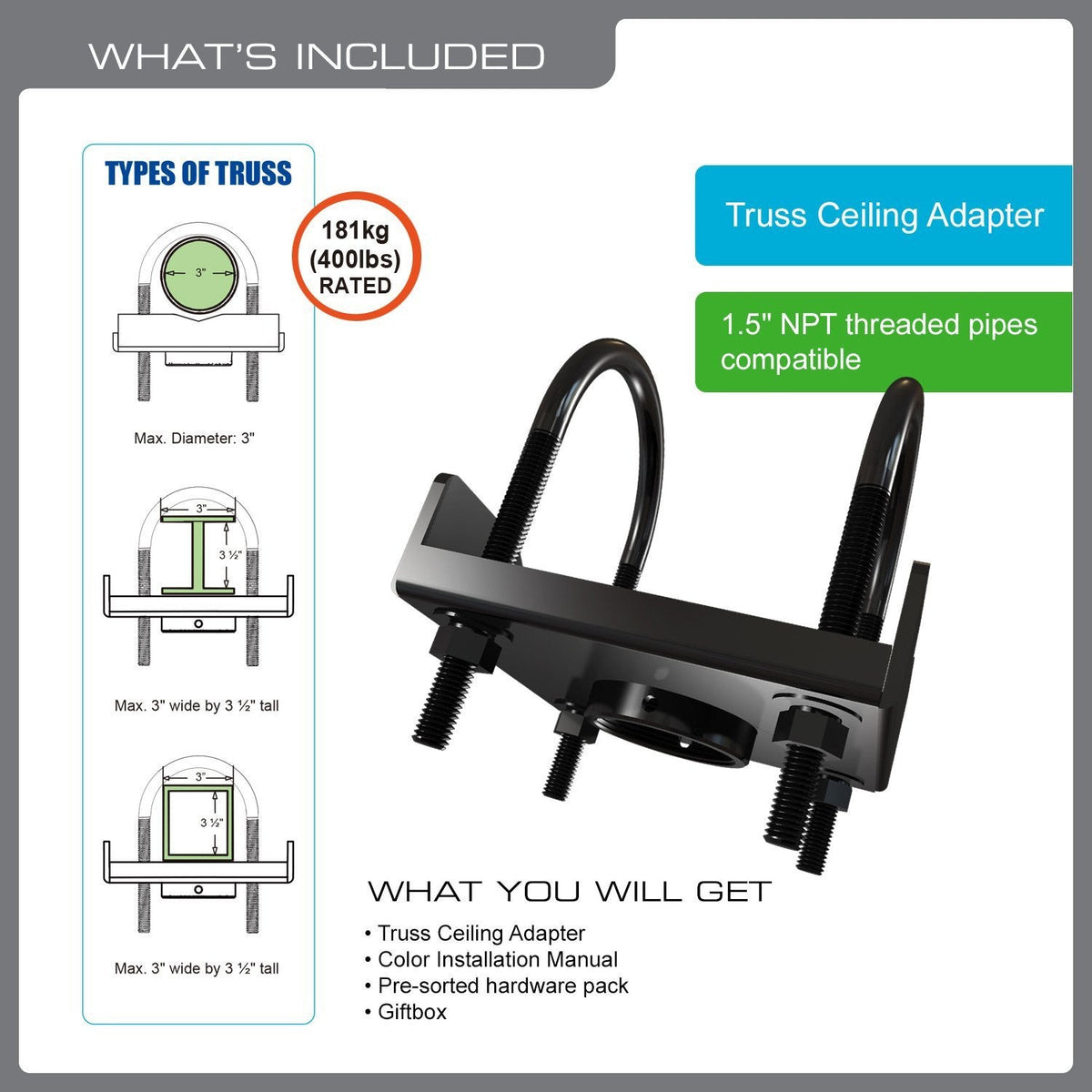

Clamps to truss and I-beams
Fits round, square, or rectangular truss and I-beams up to 3 in / 76 mm wide by 3.5 in / 89 mm high.
Rated to 400 lb / 181 kg
Rated for installations up to 400 lb / 181 kg, stated as the maximum load for the drop.
U-bolt attachment, 10 mm / 0.39 in
Attaches with 10 mm / 0.39 in U-bolts, clamping the adapter to the truss or beam section.
Accepts standard 1.5 in NPT pipe

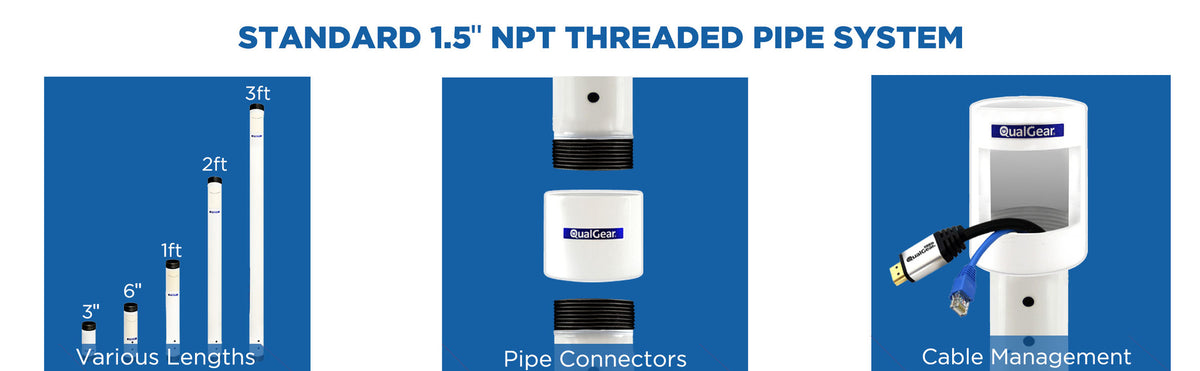

Accepts any standard 1.5 in NPT threaded pipe — the interface shared across QualGear Pro-AV pipes, connectors, and mounts.
Steel build, powder-coat finish
Cold rolled steel with a scratch-resistant epoxy powder coat in black, matching QualGear Pro-AV pipes, connectors, and mounts.
Documentation
Reviews
Ratings from where we sell
These ratings were collected directly from the marketplaces linked below, not from QualGear's own review pipeline.
4.8 out of 5 across 64 marketplace ratings
-
Amazon.ca32 ratingsLast checked 2026-07-26View listing on Amazon.ca (opens in a new tab)
-
Amazon.com32 ratingsLast checked 2026-07-29View listing on Amazon.com (opens in a new tab)
Complete your setup
QualGear Pro-AV Projector Bracket, Black, QG-PRO-PM-50-B
- Max load 70 lb / 31.8 kg
- Tilt +/-20 degrees (6 adjustment points)
- Swivel +/-8 degrees (6 adjustment points)

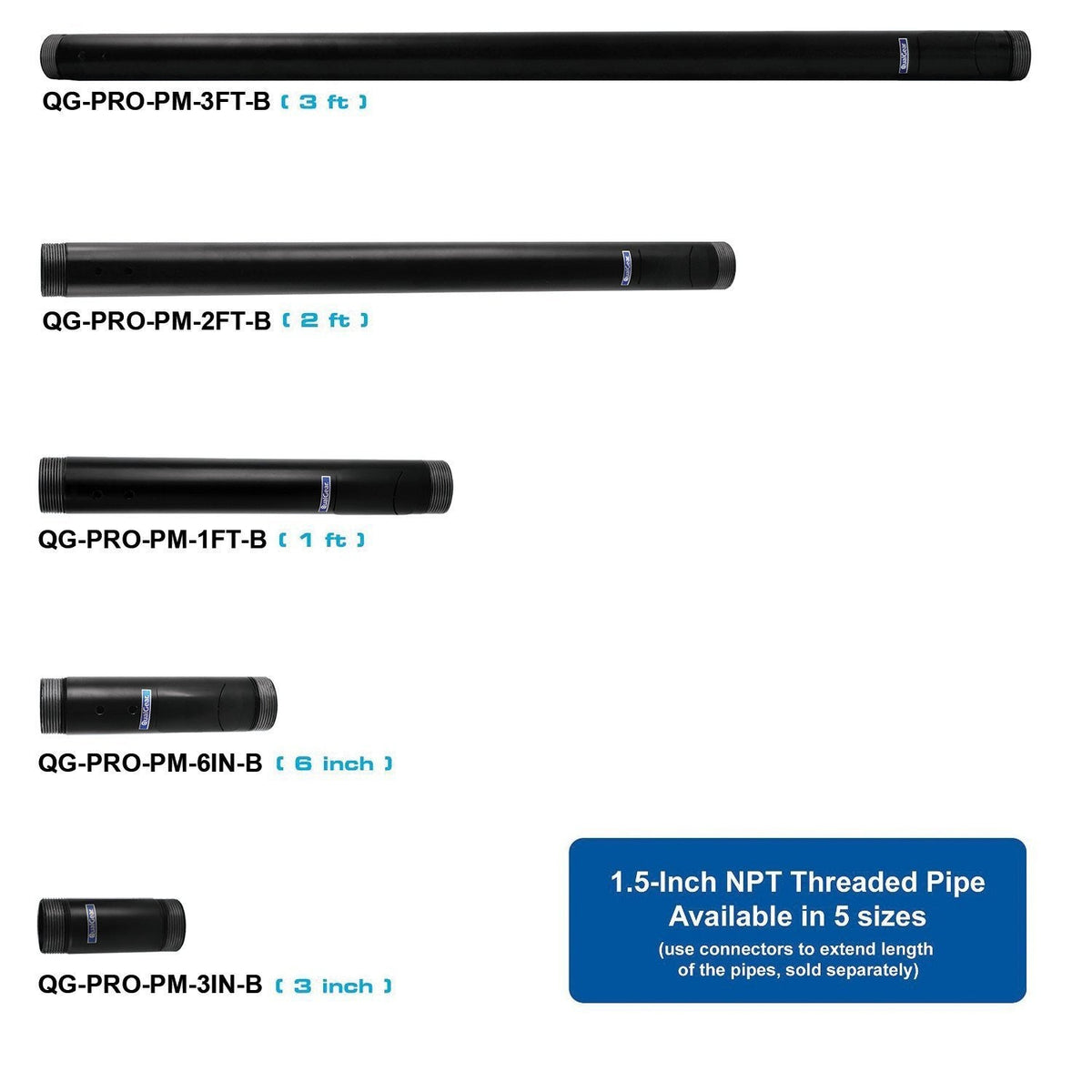

QualGear Pro-AV 1.5 in NPT Projector Mount Extension Pipe, QG-PRO-PM
- Length options 1.5 in / 3.8 cm, 3 in / 7.6 cm, 6 in / 15.2 cm, 12 in / 30.5 cm, 24 in / 61 cm, 36 in / 91.4 cm
- Max weight capacity 800 lb / 363 kg
- Thread standard 1.5-in NPT

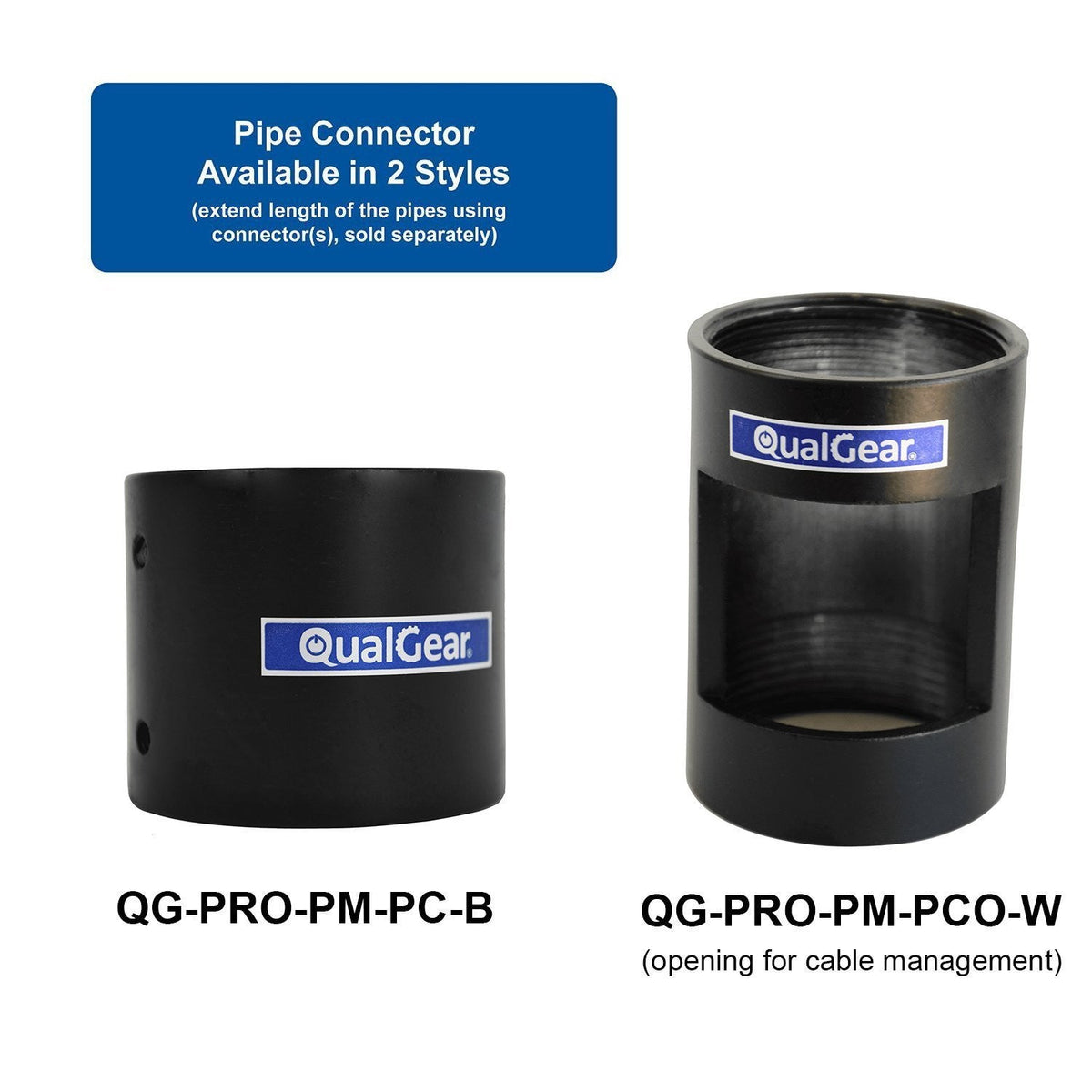

QualGear Pro-AV 1.5 in NPT Pipe Connector, With or Without Cable Opening, QG-PRO-PM
