QualGear Truss Projector Mount Kit, Black, QG-KIT-TA-3IN-B
SKU: QG-KIT-TA-3IN-B
Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day processing
Most in-stock orders placed by the cutoff on business days are processed the same day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day processing on most in-stock orders
- Transit set by the carrier
Weekend and holiday orders are processed the next business day. Need it urgently? Call 972-423-5015 before you order so we can confirm stock and same-day shipping.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Truss types | Round, square, or rectangular trusses |

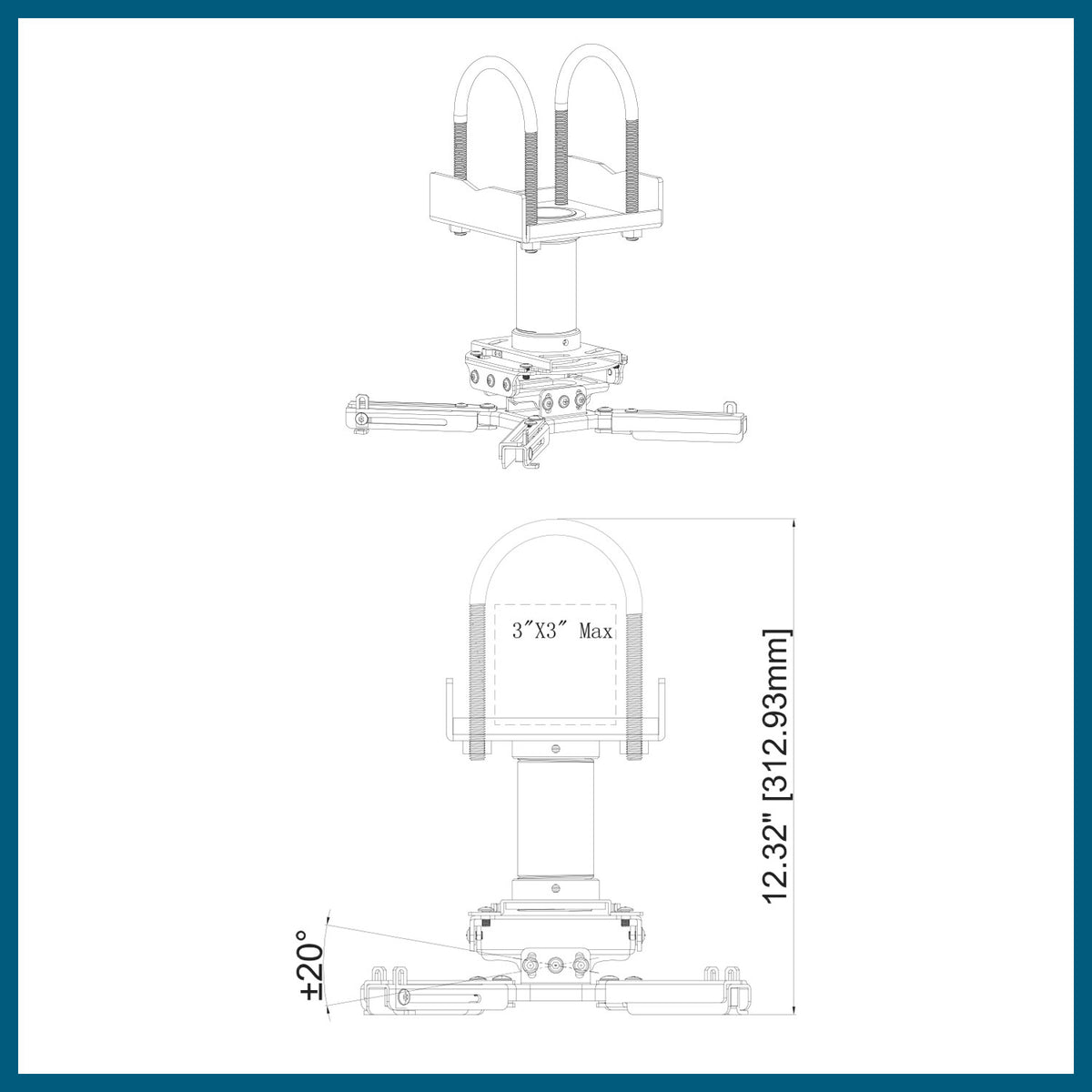

| Max truss size | 3 in / 76 mm wide, 3.5 in / 89 mm high |
| Included mount | QG-PRO-PM-50-B |
| Included adapter | QG-PRO-PM-TCA-B truss ceiling adapter |
| Included pipe | 3 in / 7.6 cm, 1.5 in NPT |
| Thread standard | 1.5 in NPT |
| Performance / Capacity | |
| Load capacity | 50 lb / 22.7 kg |
| Pitch | ±20° |
| Roll | ±8° |
| Rotation | ±180° |
| Adjustment points | 12 |
| Materials & Finish | |
| Color | Black |
| Care / Installation | |

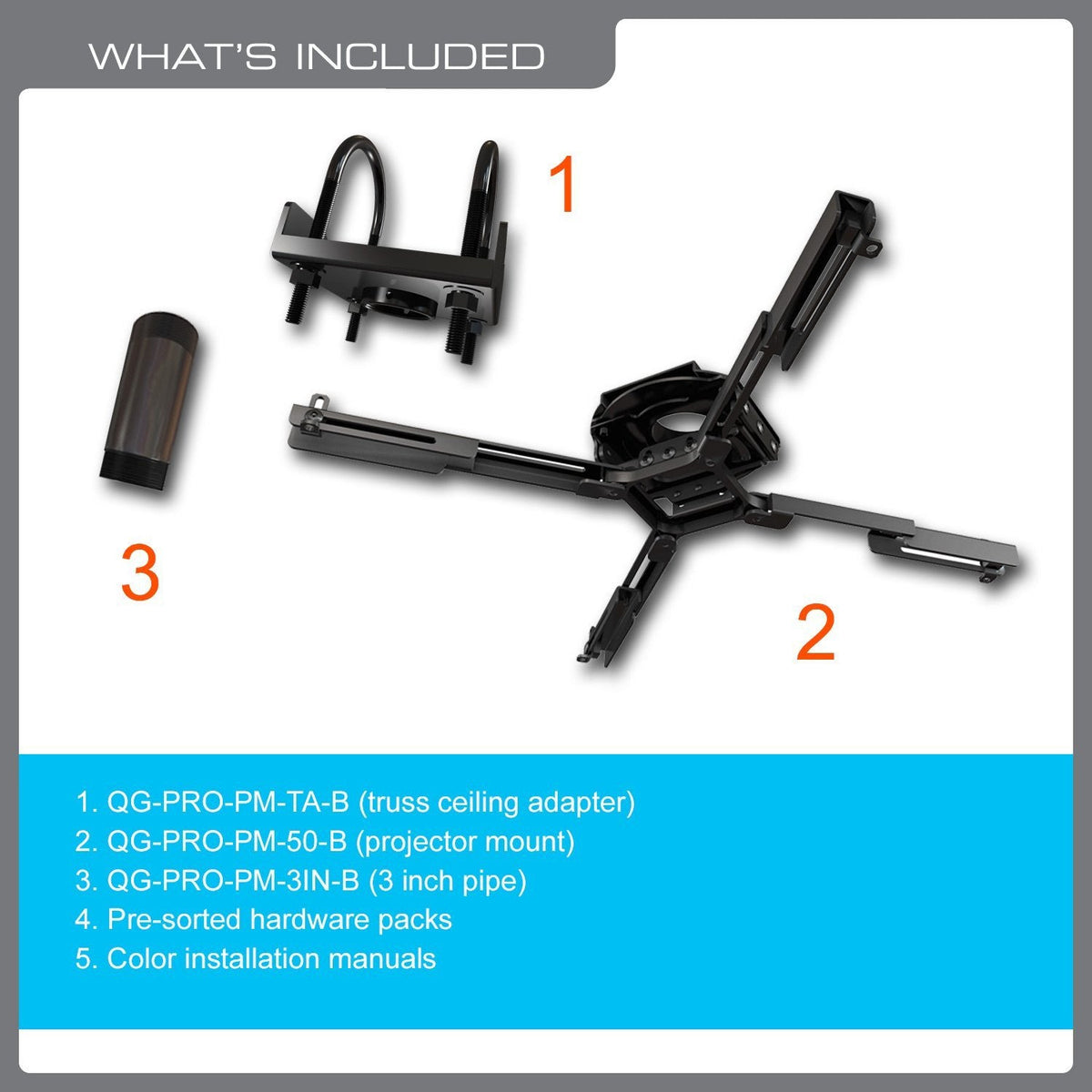

| In the box | Projector mount, truss ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
| Support | US-based phone support, +1-972-423-5015 |

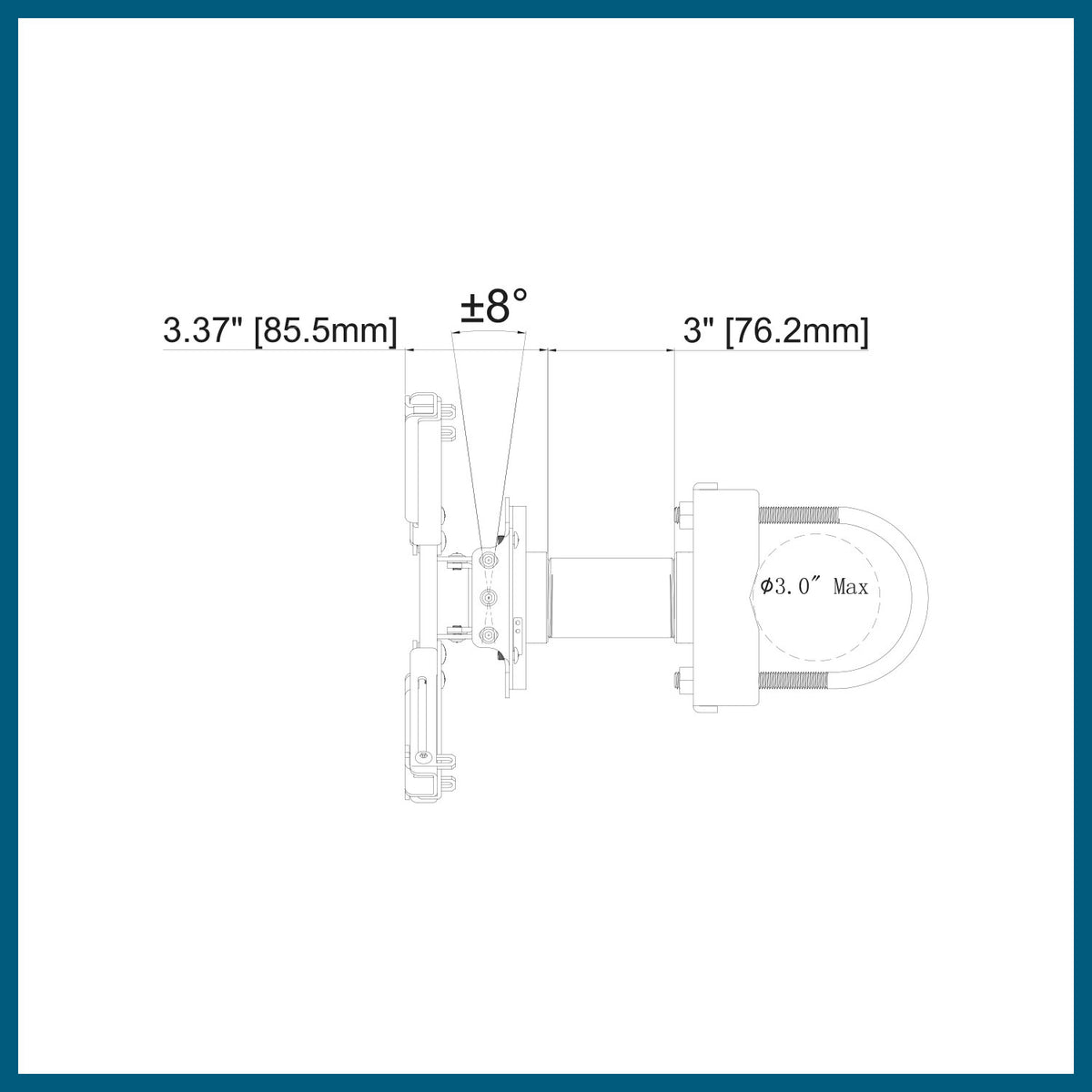

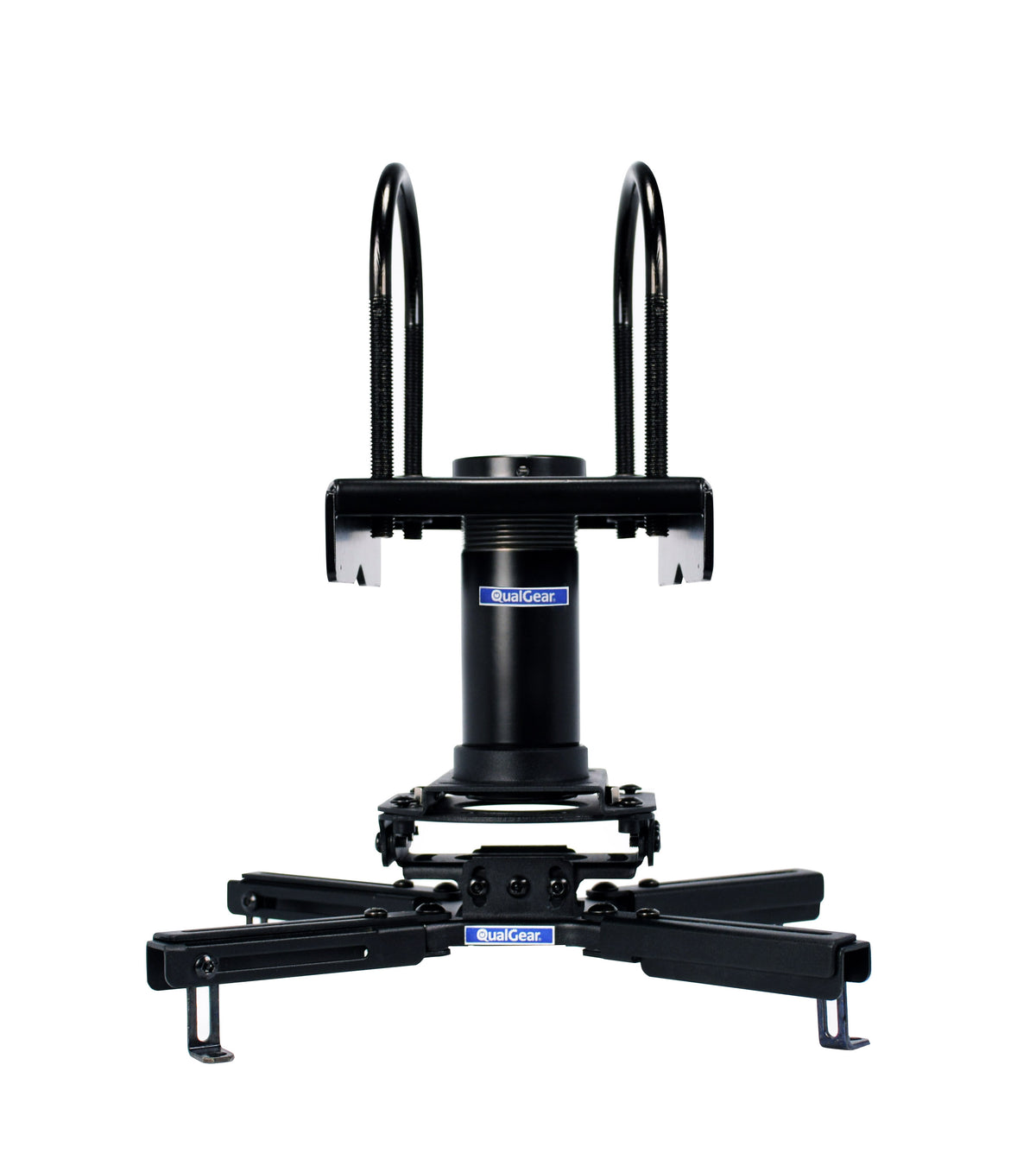

Mounts a projector below round, square, or rectangular stage trusses
Put a projector on a truss without fabricating a bracket. This QualGear Pro-AV kit combines the QG-PRO-PM-50-B projector mount, the QG-PRO-PM-TCA-B truss ceiling adapter, and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in black — a complete drop for round, square, or rectangular trusses up to 3 in / 76 mm wide and 3.5 in / 89 mm high, in entertainment venues and stage rigs.
The adapter fits the truss, the pipe threads in, and the mount carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image after installation. In the box: projector mount, truss ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.
The 1.5 in NPT thread is the QualGear Pro-AV system standard — when the projector needs a lower drop below the truss, swap the included pipe for a longer QualGear extension pipe or join lengths with a QualGear NPT pipe connector. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

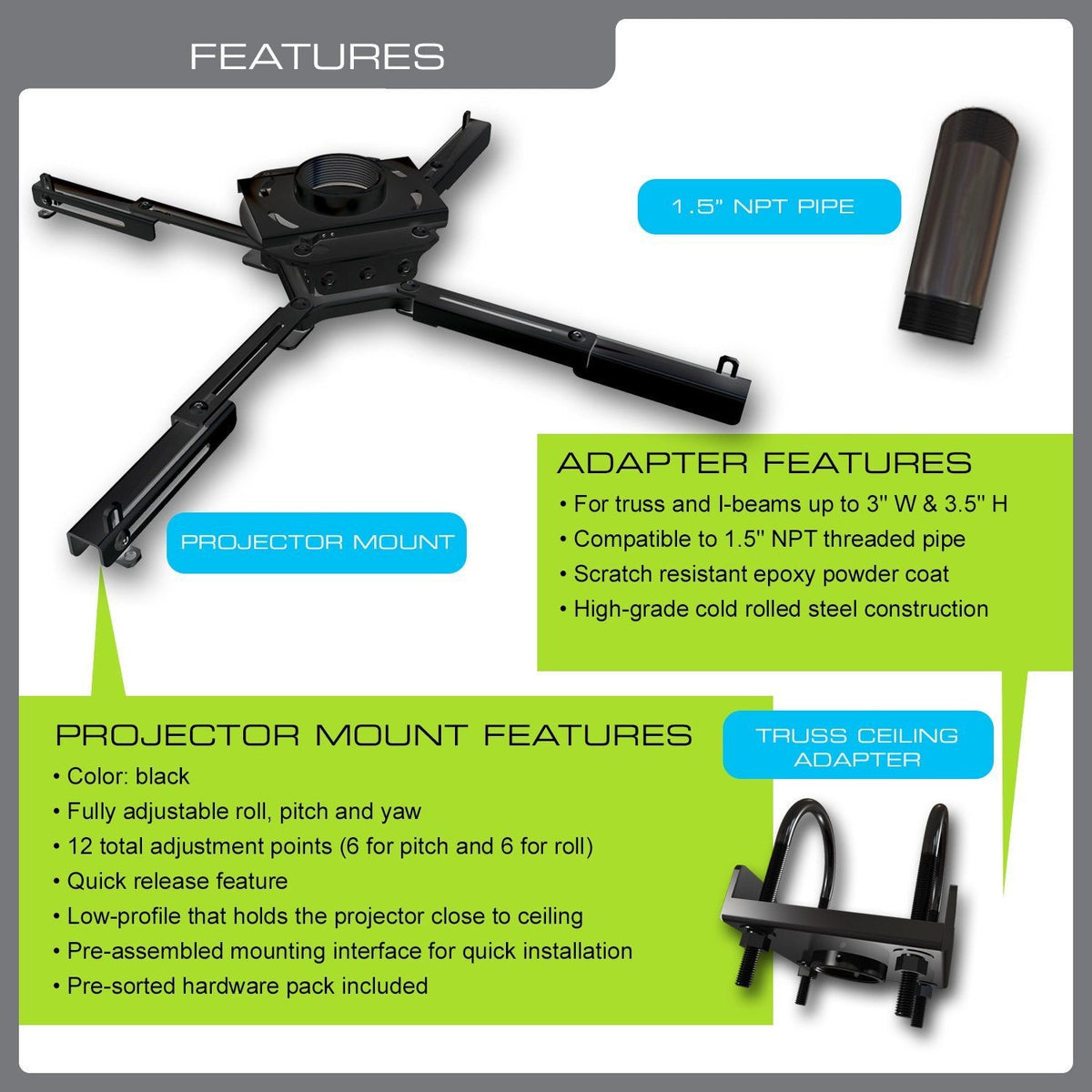

Complete truss drop in one box
Projector mount, truss ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.

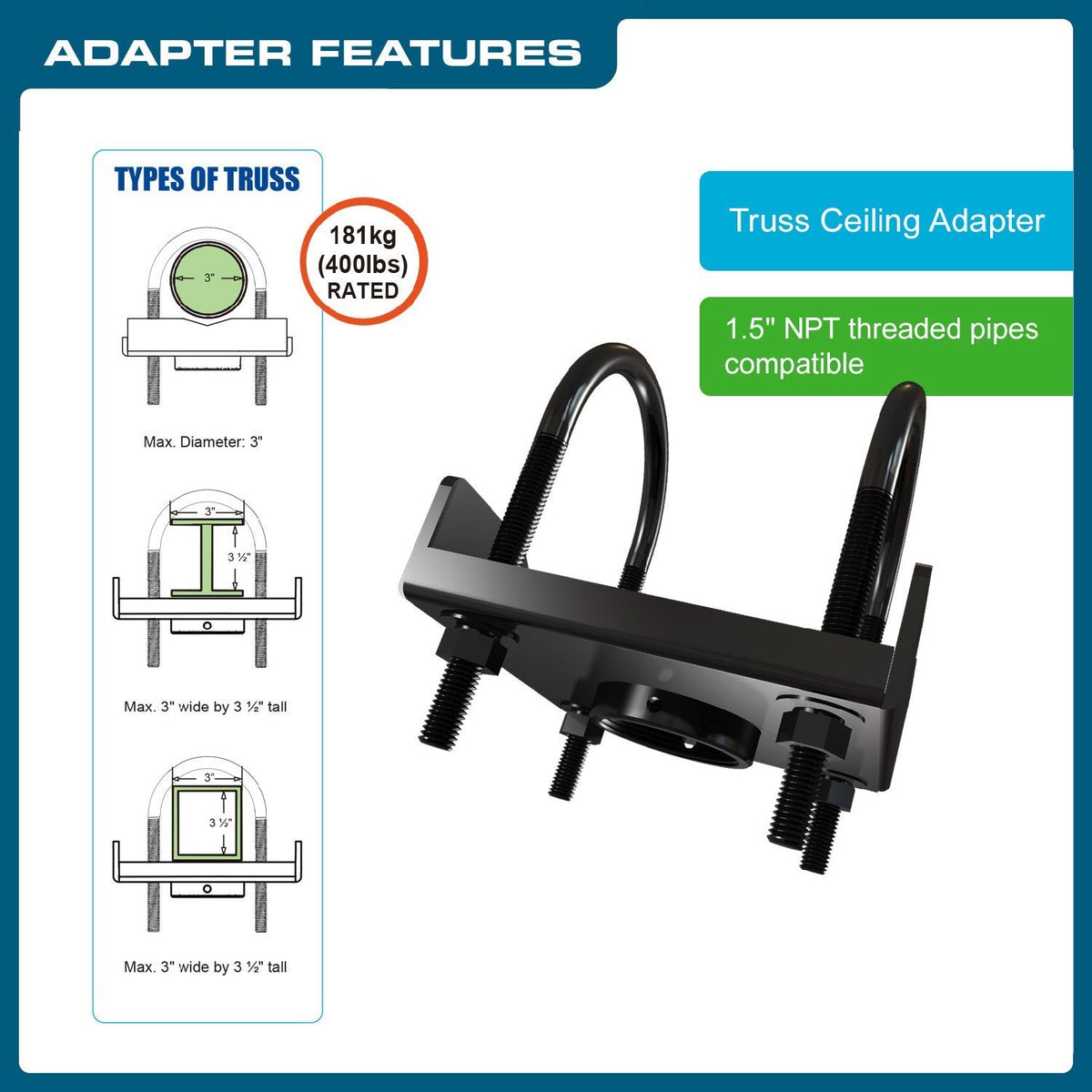

Fits round, square, and rectangular trusses
The QG-PRO-PM-TCA-B truss ceiling adapter fits trusses up to 3 in / 76 mm wide and 3.5 in / 89 mm high.

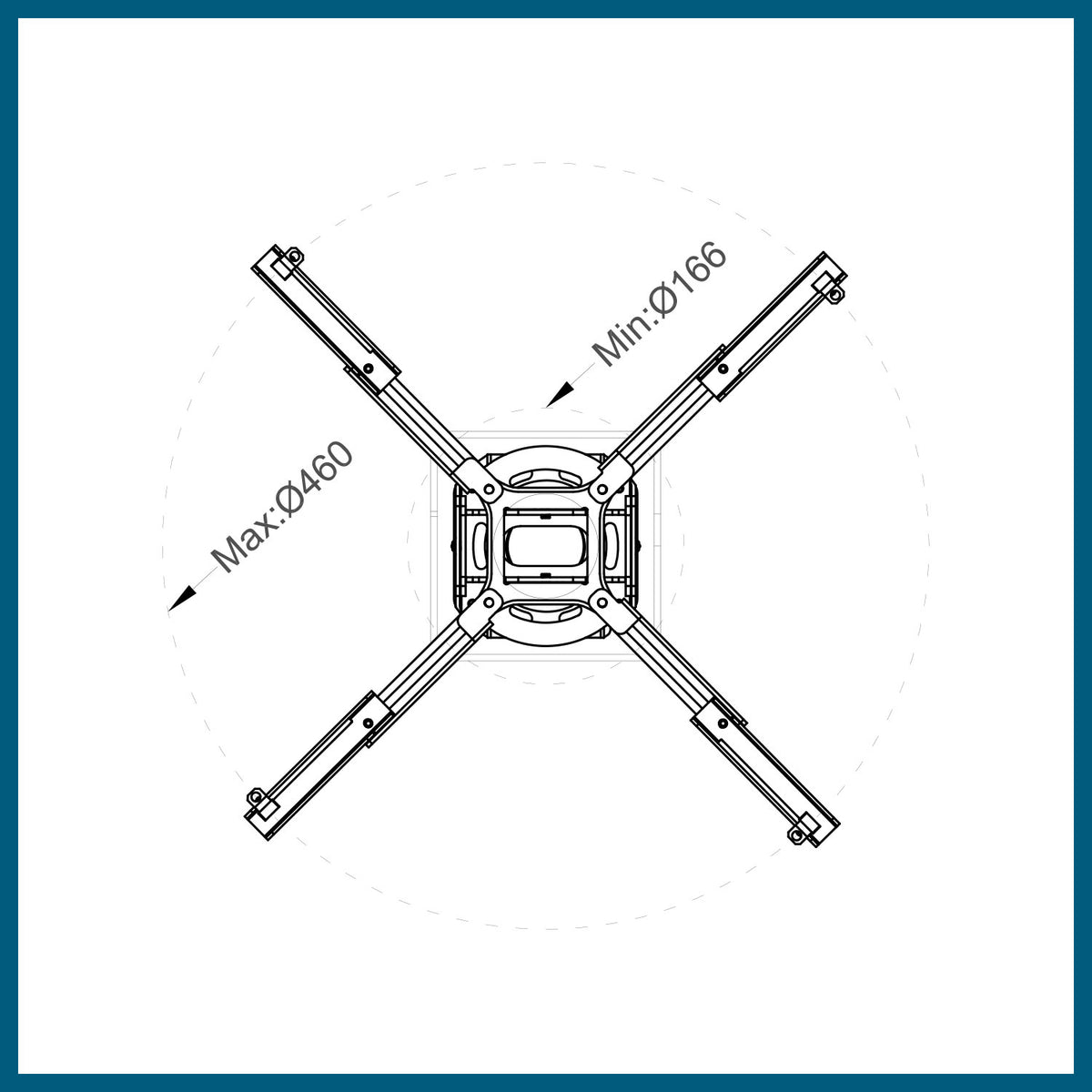

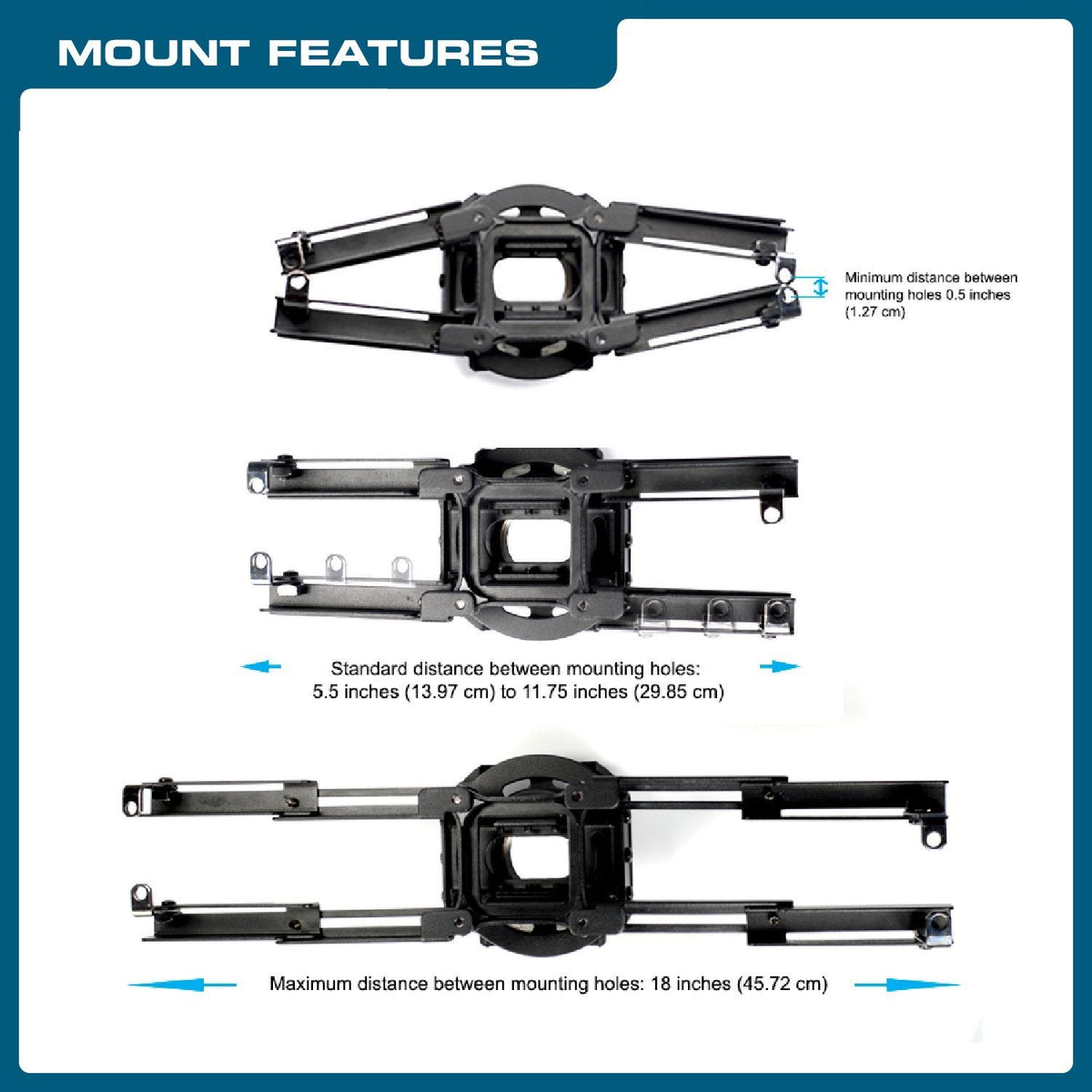

Holds projectors up to 50 lb
The QG-PRO-PM-50-B mount is rated for projectors up to 50 lb / 22.7 kg.

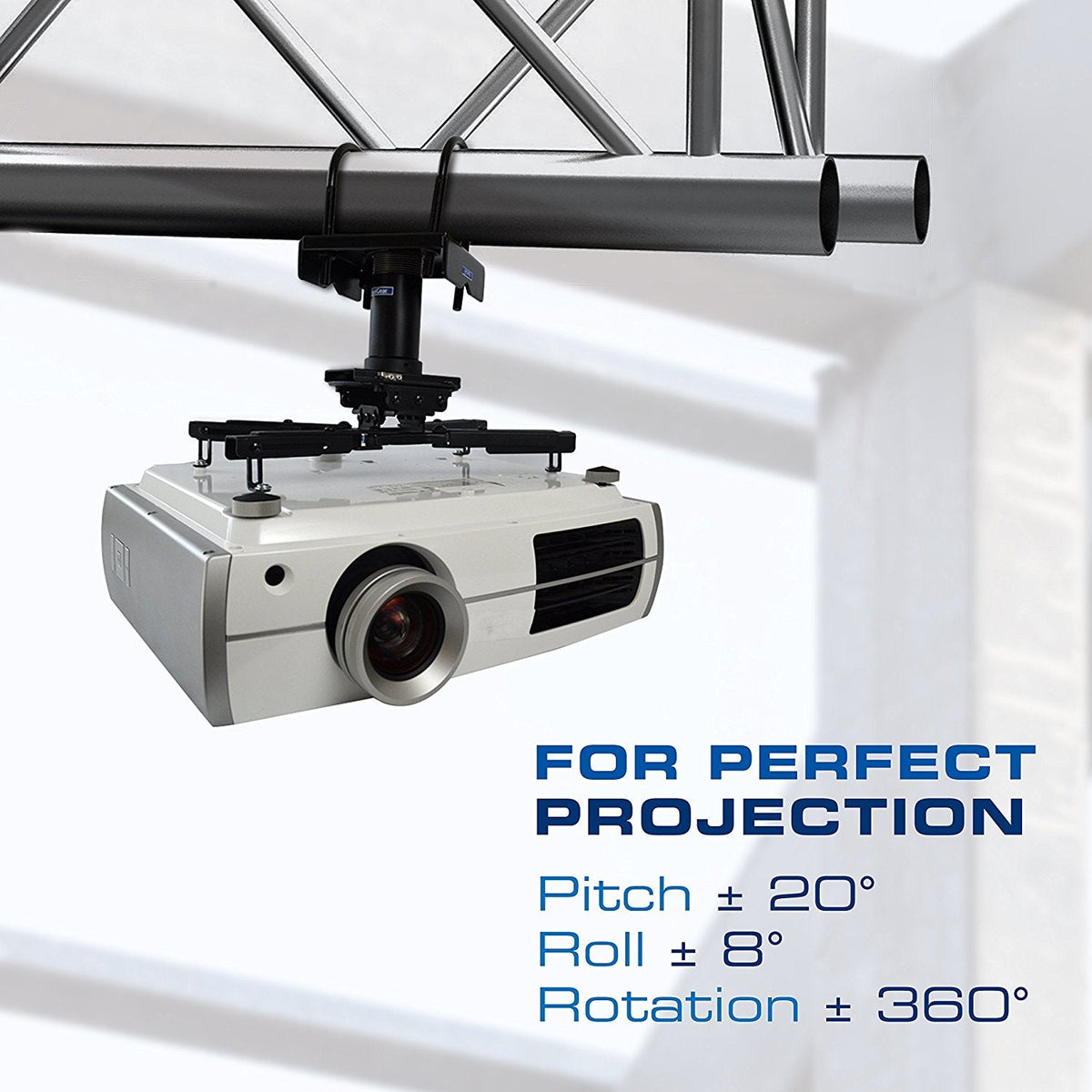

Aims the image after installation
Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.

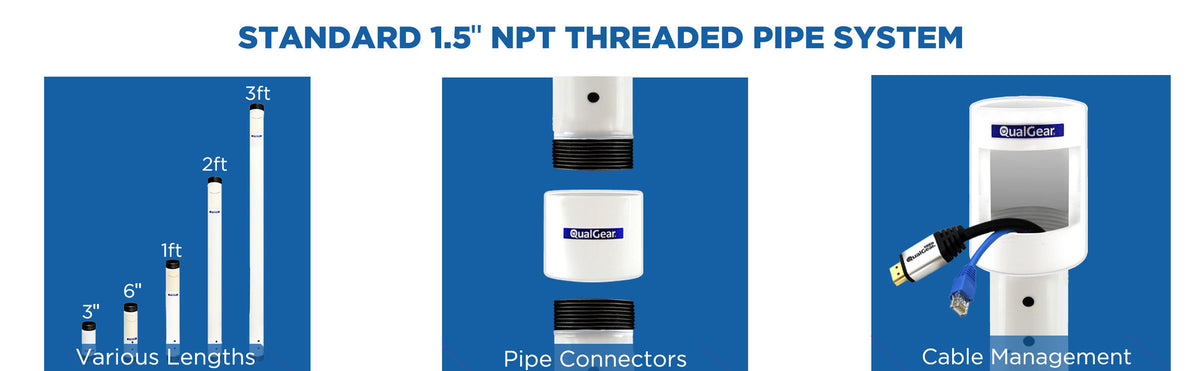

Extends to lower drops
The standard 1.5 in NPT thread accepts longer QualGear pipes when the projector needs to hang farther below the truss.
Presorted hardware, manuals on this page
Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
