QualGear Drop Ceiling Projector Mount Kit, 6"x2', White, QG-KIT-S-3IN-W
SKU QG-KIT-S-3IN-W
Los pedidos realizados antes de 2:00 pm CT se envían el mismo día laborable.
No se pudo cargar la disponibilidad de retiro
Asistencia en EE. UU.
Personas reales en Anna, Texas — no un centro de llamadas en el extranjero. Nos hacemos cargo del problema hasta resolverlo.
- Correo electrónico: support@qualgear.com
- Horario: Mon–Fri, 9am–5pm CT
- Teléfono: +1-972-423-5015
Envío el mismo día
Los pedidos de artículos en stock realizados antes de la hora límite se envían el mismo día laborable.
- Hora límite: 2:00 pm CT, Mon–Fri
- Despacho el mismo día para artículos en stock
- El tiempo de tránsito del transportista no está garantizado
Los pedidos de fin de semana y festivos se envían el siguiente día laborable; se excluyen los artículos agotados.
Detalles de envíoPago seguro
El pago está cifrado de extremo a extremo. Nunca vemos ni almacenamos tu número de tarjeta completo.
- Conexión cifrada con TLS
- Procesamiento PCI-DSS
- Datos de tarjeta tokenizados, nunca en nuestros servidores
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Ceiling types | Drop or suspended ceilings (standard grid systems) |
| Included mount | QG-PRO-PM-50-W |
| Included adapter | QG-PRO-PM-SCA-W suspended ceiling adapter |
| Adapter size | 6 x 24 in / 15.2 x 61 cm |
| Included pipe | 3 in / 7.6 cm, 1.5 in NPT |
| Thread standard | 1.5 in NPT |
| Performance / Capacity | |
| Load capacity | 50 lb / 22.7 kg |
| Pitch | ±20° |
| Roll | ±8° |
| Rotation | ±180° |
| Adjustment points | 12 |
| Materials & Finish | |
| Color | White |
| Care / Installation | |
| In the box | Projector mount, ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
| Support | US-based phone support, +1-972-423-5015 |
Puts a projector below a suspended grid — adapter, mount, and pipe in one box

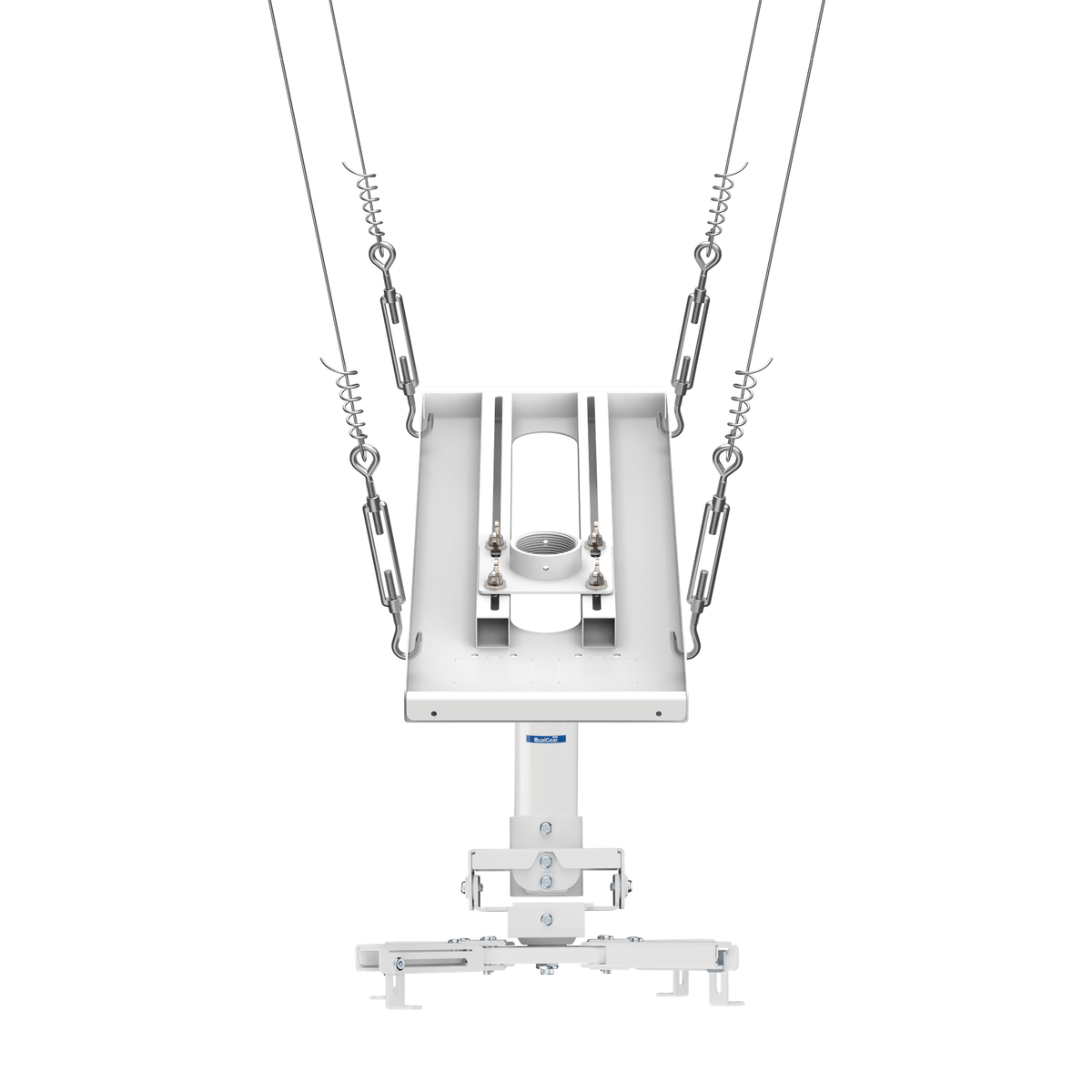

Put a projector below a drop ceiling without improvising above the grid. This QualGear Pro-AV kit combines the QG-PRO-PM-50-W projector mount, the QG-PRO-PM-SCA-W suspended ceiling adapter, and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in white — a complete ceiling drop for drop or suspended ceilings on standard grid systems.
The 6 x 24 in / 15.2 x 61 cm adapter mounts above the grid tile, the pipe threads in, and the kit carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image after installation. In the box: projector mount, suspended ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.
The 1.5 in NPT thread is the QualGear Pro-AV system standard — when the projector needs a lower drop below the grid, swap the included pipe for a longer QualGear extension pipe or join lengths with a QualGear NPT pipe connector. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Complete drop ceiling kit in one box
Projector mount, suspended ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.
Mounts above the grid tile
The 6 x 24 in / 15.2 x 61 cm QG-PRO-PM-SCA-W adapter installs above the tile of a standard grid system.

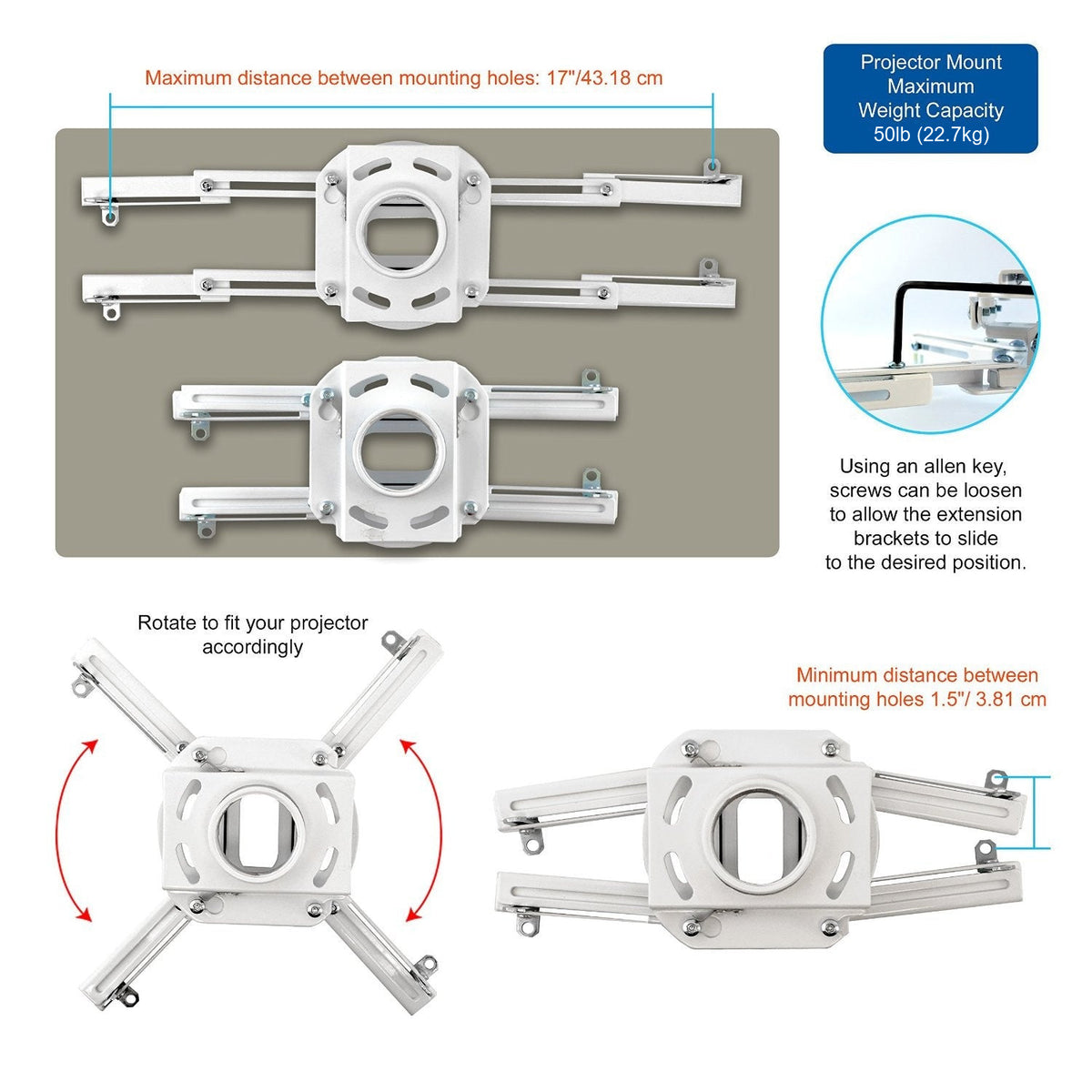

Holds projectors up to 50 lb
The kit is rated for projectors up to 50 lb / 22.7 kg, the rating of its QG-PRO-PM-50-W projector mount.
Aims the image after installation

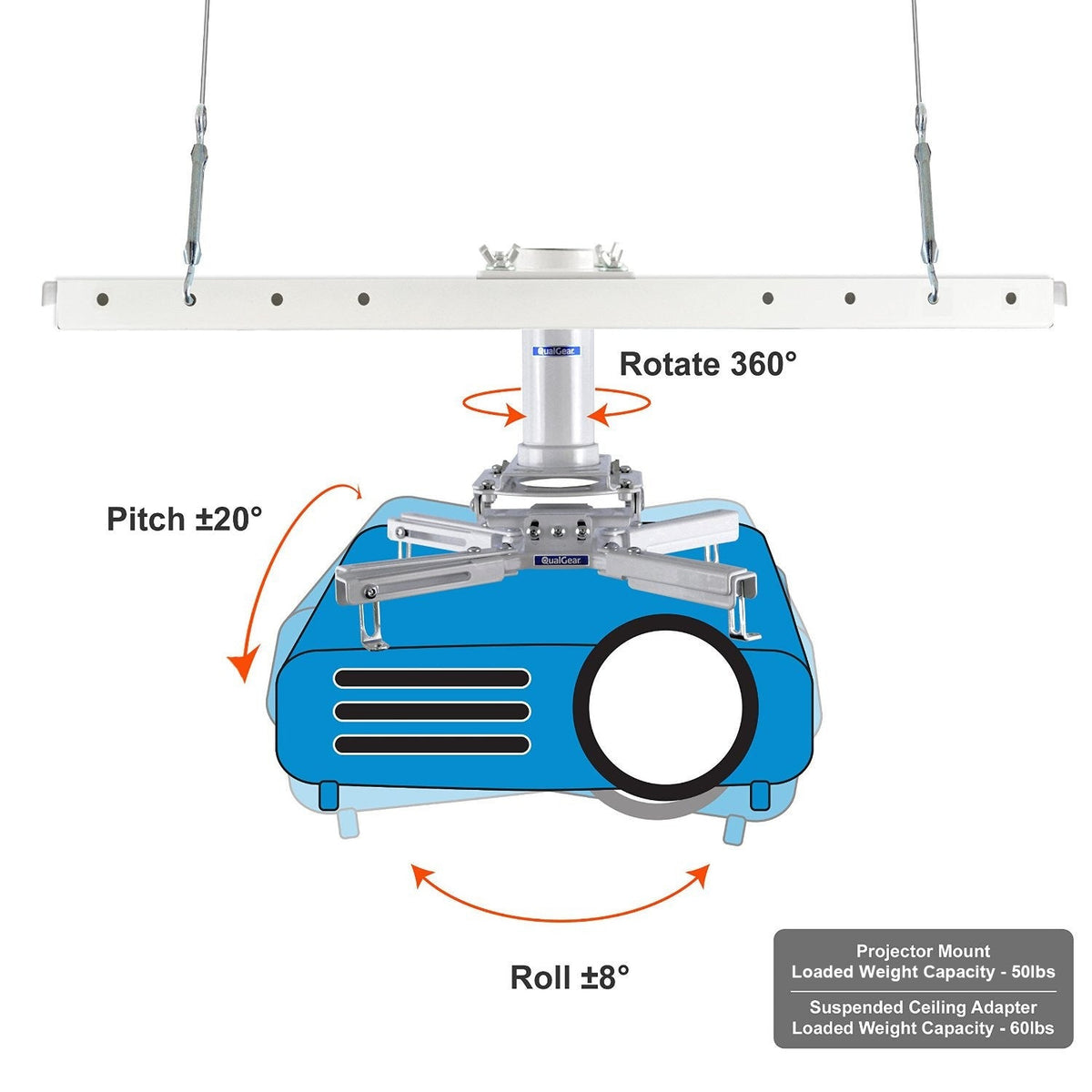

Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.
Extends to lower drops
The standard 1.5 in NPT thread accepts longer QualGear pipes when the projector needs to hang farther below the grid.
Presorted hardware, manuals on this page
Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
