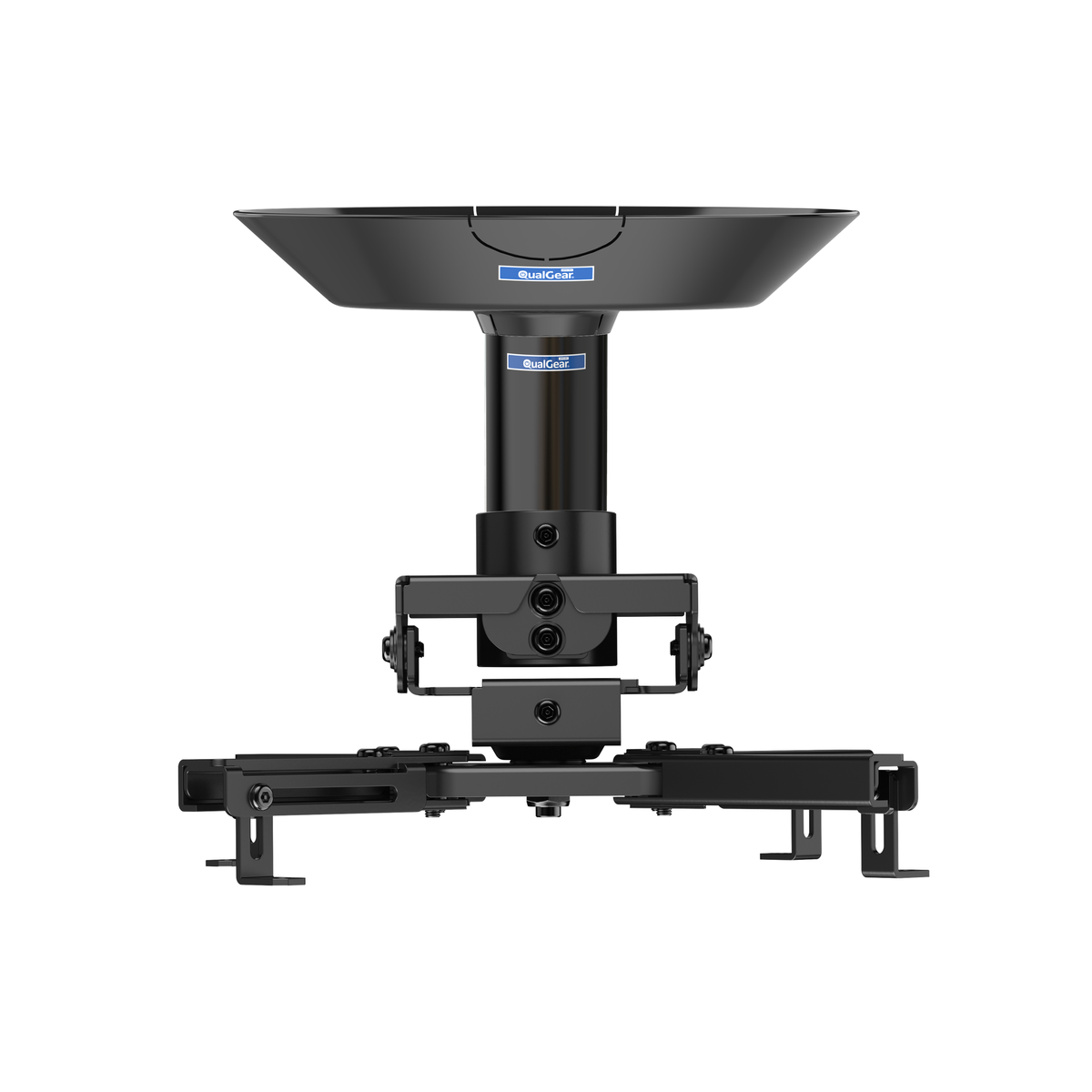

QualGear Projector Mount Kit, Black, QG-KIT-CA-3IN-B
SKU QG-KIT-CA-3IN-B
Los pedidos realizados antes de 2:00 pm CT se envían el mismo día laborable.
No se pudo cargar la disponibilidad de retiro
Asistencia en EE. UU.
Personas reales en Anna, Texas — no un centro de llamadas en el extranjero. Nos hacemos cargo del problema hasta resolverlo.
- Correo electrónico: support@qualgear.com
- Horario: Mon–Fri, 9am–5pm CT
- Teléfono: +1-972-423-5015
Envío el mismo día
Los pedidos de artículos en stock realizados antes de la hora límite se envían el mismo día laborable.
- Hora límite: 2:00 pm CT, Mon–Fri
- Despacho el mismo día para artículos en stock
- El tiempo de tránsito del transportista no está garantizado
Los pedidos de fin de semana y festivos se envían el siguiente día laborable; se excluyen los artículos agotados.
Detalles de envíoPago seguro
El pago está cifrado de extremo a extremo. Nunca vemos ni almacenamos tu número de tarjeta completo.
- Conexión cifrada con TLS
- Procesamiento PCI-DSS
- Datos de tarjeta tokenizados, nunca en nuestros servidores
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Included mount | QG-PRO-PM-50-B |
| Included adapter | QG-PRO-PM-CA-B single joist ceiling adapter |
| Included pipe | 3 in / 7.6 cm, 1.5 in NPT |
| Ceiling types | Single wood joist, wood beam, wood stud, and concrete ceilings |
| Performance / Capacity | |
| Load capacity (included mount) | Up to 50 lb / 22.7 kg |
| Pitch | +/- 20 degrees |
| Roll | +/- 8 degrees |
| Rotation | +/- 180 degrees |
| Materials & Finish | |
| Color | Black |
| Care / Installation | |
| In the box | Projector mount, ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
Mount, single joist ceiling adapter, and 3 in / 7.6 cm NPT pipe in one box.
One box, one complete ceiling drop. This Pro-AV projector mounting kit combines the QG-PRO-PM-50-B projector mount, the QG-PRO-PM-CA-B single joist ceiling adapter, and a 3 in / 7.6 cm 1.5 in NPT threaded pipe — covering single wood joist, wood beam, wood stud, and concrete ceilings.
The included mount carries projectors up to 50 lb / 22.7 kg and aligns the image with pitch of +/- 20 degrees, roll of +/- 8 degrees, and rotation of +/- 180 degrees. Presorted hardware is in the box, and the kit's combined manual is on this page; printed copies will be included in future production.
Because the kit runs on the standard 1.5 in NPT thread, the drop length is not fixed: swap the included 3 in / 7.6 cm pipe for a QualGear NPT extension pipe — joined with a pipe connector — when the projector needs to hang lower. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Complete ceiling drop in one box
Combines the QG-PRO-PM-50-B mount, QG-PRO-PM-CA-B single joist ceiling adapter, and a 3 in / 7.6 cm NPT pipe.
Carries projectors up to 50 lb
The included mount is rated for projectors up to 50 lb / 22.7 kg.
Pitch, roll, and rotation adjustment
Aligns the image with +/- 20 degrees of pitch, +/- 8 degrees of roll, and +/- 180 degrees of rotation.
Installs on four ceiling types
Suits single wood joist, wood beam, wood stud, and concrete ceilings.
Standard thread for longer drops
The 1.5 in NPT thread accepts longer QualGear pipes when the install calls for a deeper drop.
Presorted hardware, manuals on this page
Ships with presorted hardware; the kit's combined manual is on this page; printed copies will be included in future production.
Reviews
Ratings from where we sell
Estas valoraciones se recopilaron directamente de los marketplaces enlazados a continuación, no del sistema de reseñas propio de QualGear.
4.5 de 5 según 616 valoraciones de marketplaces
-
Amazon.ca303 valoracionesa fecha de 2026-10-06Ver el anuncio en Amazon.ca (se abre en una pestaña nueva)
-
Amazon.com311 valoracionesa fecha de 2026-10-06Ver el anuncio en Amazon.com (se abre en una pestaña nueva)
-
Amazon.com2 valoracionesa fecha de 2026-10-06Ver el anuncio en Amazon.com (se abre en una pestaña nueva)
Write a review
Reviews are open to verified purchasers. We match your email or order number to a past order before publishing.
Complete your setup
QualGear Pro-AV 1.5 in NPT Projector Mount Extension Pipe, QG-PRO-PM
- Length options 1.5 in / 3.8 cm, 3 in / 7.6 cm, 6 in / 15.2 cm, 12 in / 30.5 cm, 24 in / 61 cm, 36 in / 91.4 cm
- Max weight capacity 800 lb / 363 kg
- Thread standard 1.5-in NPT
QualGear Pro-AV 1.5 in NPT Pipe Connector, With or Without Cable Opening, QG-PRO-PM
- Function Joins two or more pipes to extend drop length
- Max weight capacity 300 lb / 136 kg
- Styles With cable opening (PCO), without opening (PC)
