QualGear Projector Ceiling Mount Kit, Single Joist, White, QG-KIT-CA-3IN-W
SKU QG-KIT-CA-3IN-W
Los pedidos realizados antes de 2:00 pm CT se envían el mismo día laborable.
No se pudo cargar la disponibilidad de retiro
Asistencia en EE. UU.
Personas reales en Anna, Texas — no un centro de llamadas en el extranjero. Nos hacemos cargo del problema hasta resolverlo.
- Correo electrónico: support@qualgear.com
- Horario: Mon–Fri, 9am–5pm CT
- Teléfono: +1-972-423-5015
Envío el mismo día
Los pedidos de artículos en stock realizados antes de la hora límite se envían el mismo día laborable.
- Hora límite: 2:00 pm CT, Mon–Fri
- Despacho el mismo día para artículos en stock
- El tiempo de tránsito del transportista no está garantizado
Los pedidos de fin de semana y festivos se envían el siguiente día laborable; se excluyen los artículos agotados.
Detalles de envíoPago seguro
El pago está cifrado de extremo a extremo. Nunca vemos ni almacenamos tu número de tarjeta completo.
- Conexión cifrada con TLS
- Procesamiento PCI-DSS
- Datos de tarjeta tokenizados, nunca en nuestros servidores
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Ceiling types | Single wood joist, wood beam, wood stud, and concrete ceilings |
| Included mount | QG-PRO-PM-50-W |
| Included adapter | QG-PRO-PM-CA-W single joist ceiling adapter |
| Included pipe | 3 in / 7.6 cm, 1.5 in NPT |
| Thread standard | 1.5 in NPT |
| Performance / Capacity | |
| Load capacity | 50 lb / 22.7 kg |
| Pitch | ±20° |
| Roll | ±8° |
| Rotation | ±180° |
| Adjustment points | 12 |
| Materials & Finish | |
| Color | White |
| Care / Installation | |
| In the box | Projector mount, ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
| Support | US-based phone support, +1-972-423-5015 |

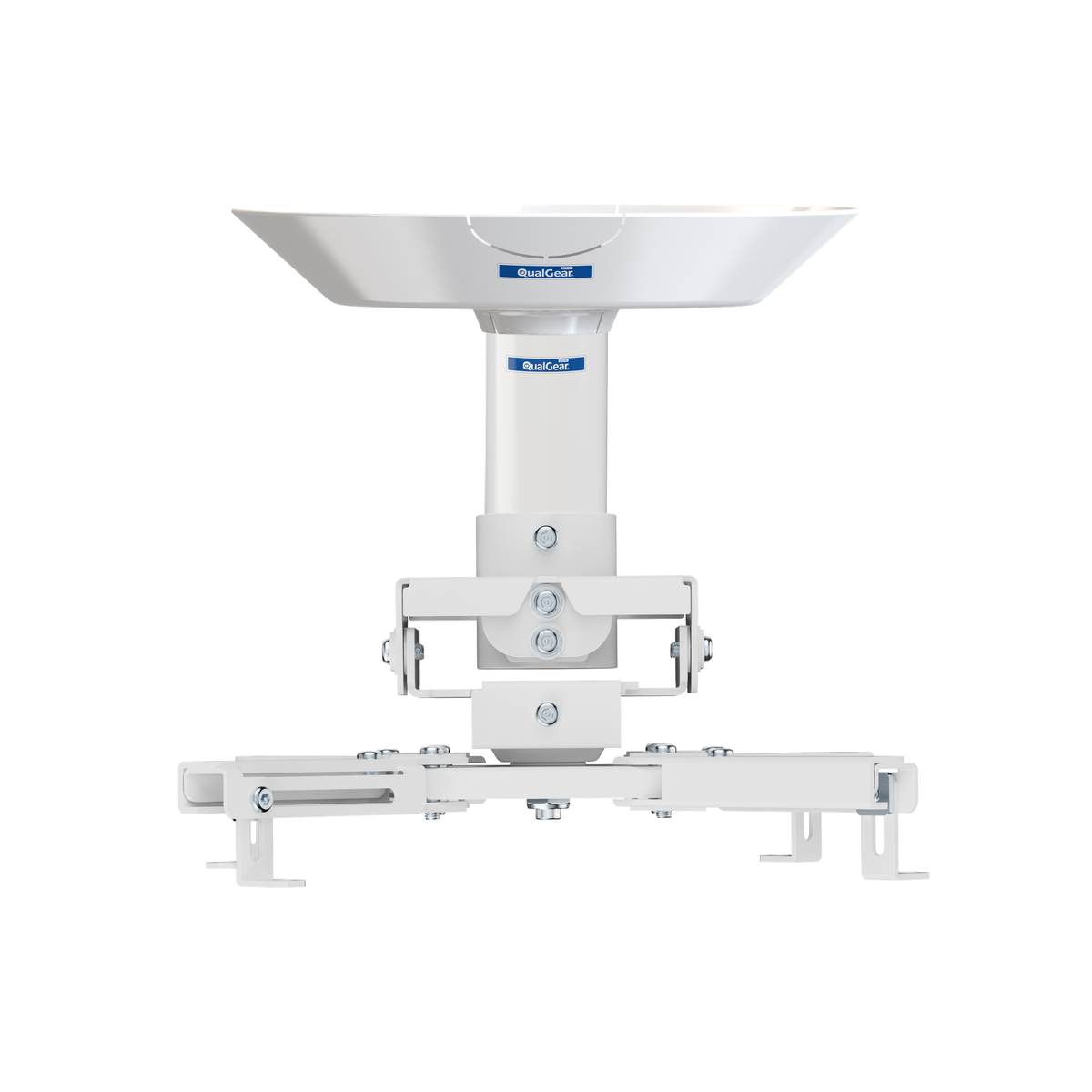

Mounts a projector to wood joist, beam, stud, and concrete ceilings
Hang a projector from a solid ceiling with everything sourced in one box. This QualGear Pro-AV kit pairs the QG-PRO-PM-50-W projector mount with the QG-PRO-PM-CA-W single joist ceiling adapter and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in white — a complete ceiling drop for single wood joist, wood beam, wood stud, and concrete ceilings, in home theaters and commercial rooms alike.
The adapter fastens to the ceiling structure, the pipe threads in, and the mount carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image after installation. In the box: projector mount, single joist ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.
The 1.5 in NPT thread is the QualGear Pro-AV system standard — swap the included pipe for a longer QualGear extension pipe, or join lengths with a QualGear NPT pipe connector, when the projector needs a lower drop. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Complete ceiling drop in one box
Projector mount, single joist ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.
Anchors to solid ceiling structure
The QG-PRO-PM-CA-W adapter installs on single wood joist, wood beam, wood stud, and concrete ceilings.
Holds projectors up to 50 lb
The QG-PRO-PM-50-W mount is rated for projectors up to 50 lb / 22.7 kg.
Aims the image after installation
Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.
Extends to lower drops
The standard 1.5 in NPT thread accepts longer QualGear pipes when the projector needs to hang farther below the ceiling.
Presorted hardware, manuals on this page
Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
