QualGear Sloped Ceiling Projector Mount Kit, White, QG-KIT-VA-3IN-W
SKU QG-KIT-VA-3IN-W
Los pedidos realizados antes de 2:00 pm CT se envían el mismo día laborable.
No se pudo cargar la disponibilidad de retiro
Asistencia en EE. UU.
Personas reales en Anna, Texas — no un centro de llamadas en el extranjero. Nos hacemos cargo del problema hasta resolverlo.
- Correo electrónico: support@qualgear.com
- Horario: Mon–Fri, 9am–5pm CT
- Teléfono: +1-972-423-5015
Envío el mismo día
Los pedidos de artículos en stock realizados antes de la hora límite se envían el mismo día laborable.
- Hora límite: 2:00 pm CT, Mon–Fri
- Despacho el mismo día para artículos en stock
- El tiempo de tránsito del transportista no está garantizado
Los pedidos de fin de semana y festivos se envían el siguiente día laborable; se excluyen los artículos agotados.
Detalles de envíoPago seguro
El pago está cifrado de extremo a extremo. Nunca vemos ni almacenamos tu número de tarjeta completo.
- Conexión cifrada con TLS
- Procesamiento PCI-DSS
- Datos de tarjeta tokenizados, nunca en nuestros servidores
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Ceiling types | Cathedral or vaulted ceilings |
| Included mount | QG-PRO-PM-50-W |
| Included adapter | QG-PRO-PM-VCA-W vaulted ceiling adapter |
| Adapter design | 0-90 degree sloped-ceiling adapter |
| Included pipe | 3 in / 7.6 cm, 1.5 in NPT |
| Thread standard | 1.5 in NPT |
| Performance / Capacity | |
| Load capacity | 50 lb / 22.7 kg |
| Pitch | ±20° |
| Roll | ±8° |
| Rotation | ±180° |
| Adjustment points | 12 |
| Materials & Finish | |
| Color | White |
| Care / Installation | |
| In the box | Projector mount, vaulted ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
| Support | US-based phone support, +1-972-423-5015 |

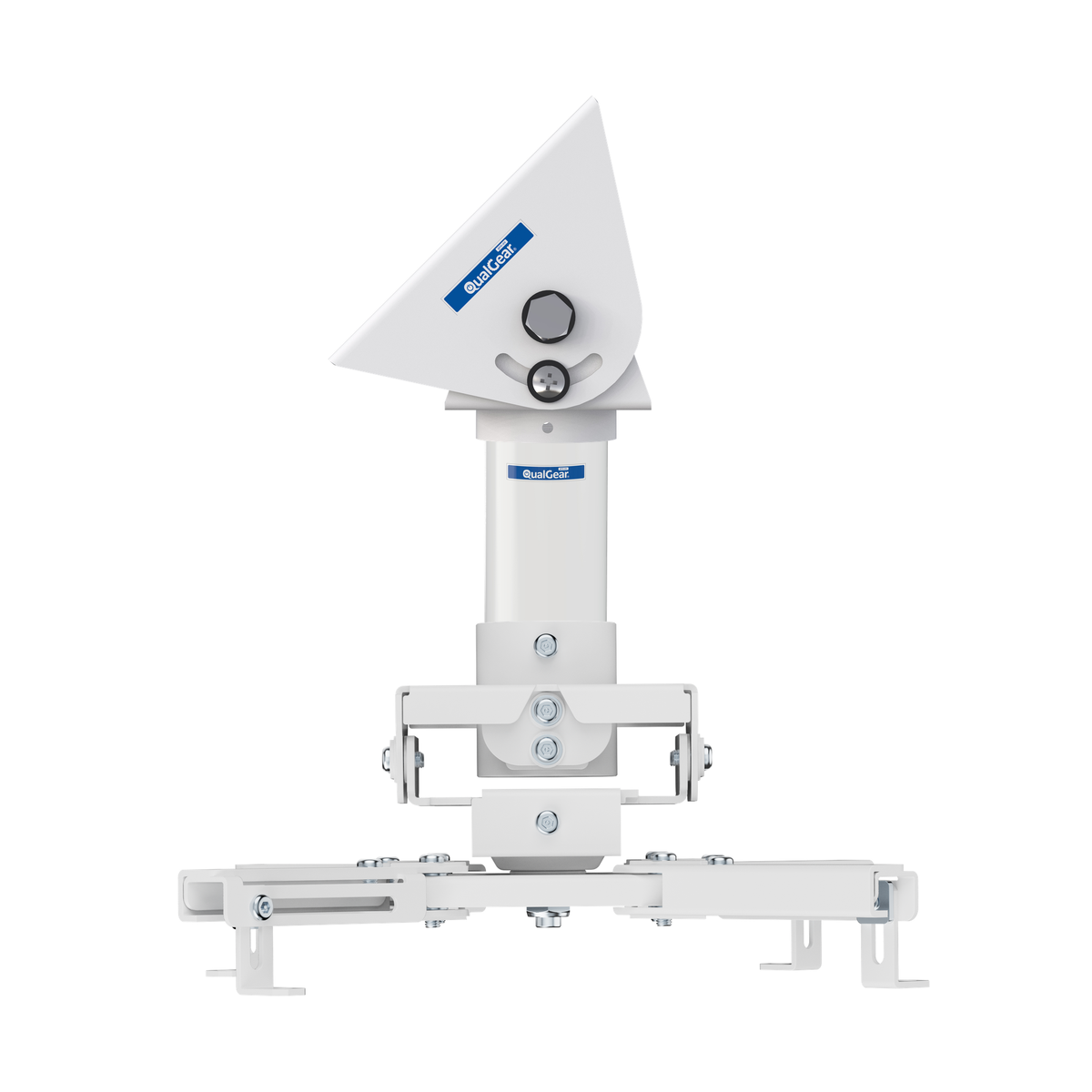

Mounts a projector on a cathedral or vaulted ceiling, in white
Keep the projector install clean on a ceiling that runs at an angle. This QualGear Pro-AV kit pairs the QG-PRO-PM-50-W projector mount with the QG-PRO-PM-VCA-W vaulted ceiling adapter — adjustable from 0 to 90 degrees for sloped ceilings — and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in white, a complete drop for cathedral or vaulted ceilings.
The adapter installs on the sloped surface, the pipe threads in, and the mount carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image after installation. In the box: projector mount, vaulted ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.
The 1.5 in NPT thread is the QualGear Pro-AV system standard — on a high vaulted ceiling, swap the included pipe for a longer QualGear extension pipe or join lengths with a QualGear NPT pipe connector to bring the projector down to throw height. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Complete sloped ceiling drop in one box
Projector mount, vaulted ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.
Made for angled ceilings

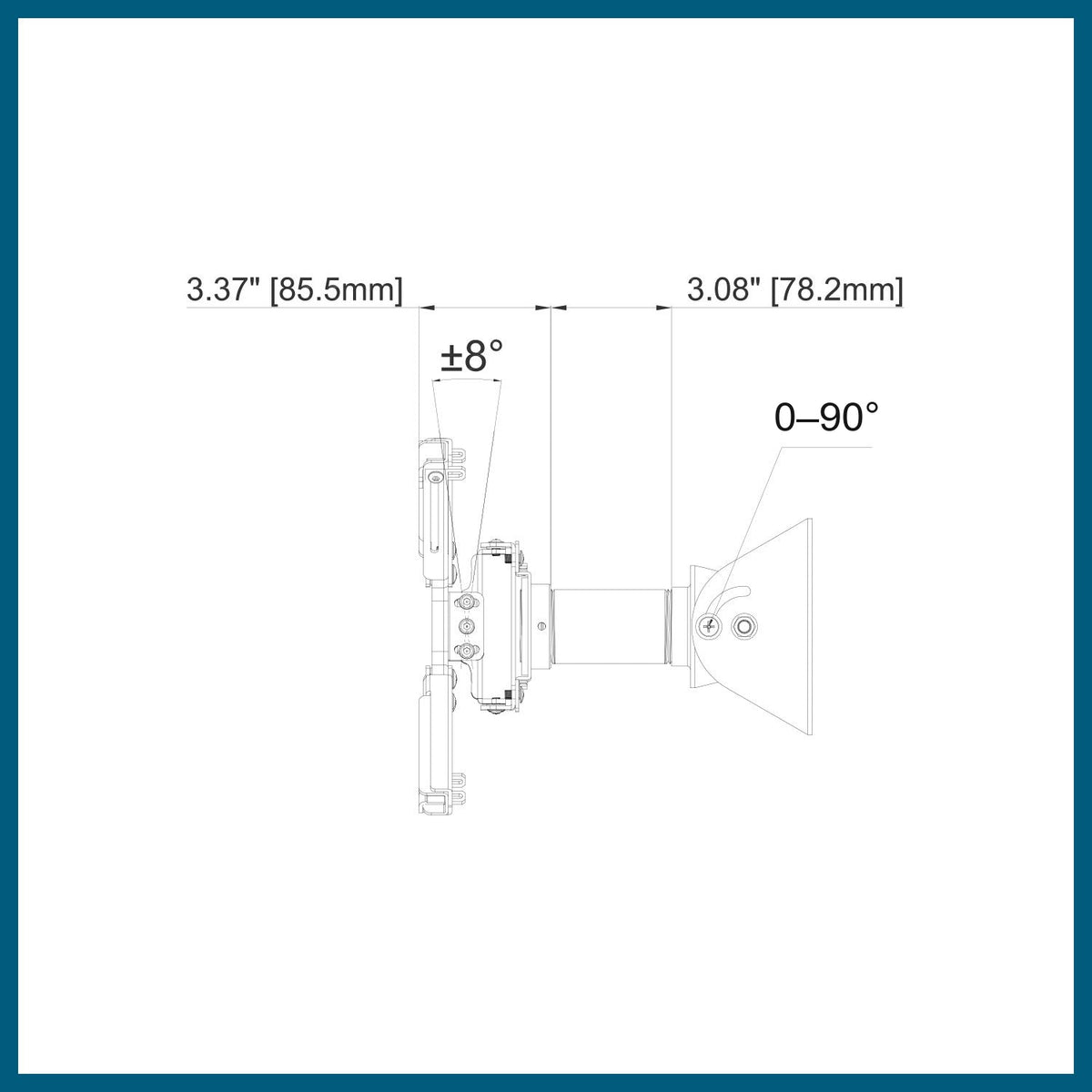

The QG-PRO-PM-VCA-W adapter is adjustable from 0 to 90 degrees for sloped ceilings for cathedral or vaulted ceilings.
Holds projectors up to 50 lb
The QG-PRO-PM-50-W mount is rated for projectors up to 50 lb / 22.7 kg.
Aims the image after installation
Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.
Extends to lower drops
The standard 1.5 in NPT thread accepts longer QualGear pipes when a tall vaulted ceiling calls for a longer drop.
Presorted hardware, manuals on this page
Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
Reviews
Ratings from where we sell
Estas valoraciones se recopilaron directamente de los marketplaces enlazados a continuación, no del sistema de reseñas propio de QualGear.
4.2 de 5 según 142 valoraciones de marketplaces
-
Amazon.ca70 valoracionesa fecha de 2026-10-06Ver el anuncio en Amazon.ca (se abre en una pestaña nueva)
-
Amazon.com72 valoracionesa fecha de 2026-10-06Ver el anuncio en Amazon.com (se abre en una pestaña nueva)
Write a review
Reviews are open to verified purchasers. We match your email or order number to a past order before publishing.
Complete your setup
QualGear Pro-AV 1.5 in NPT Projector Mount Extension Pipe, QG-PRO-PM
- Length options 1.5 in / 3.8 cm, 3 in / 7.6 cm, 6 in / 15.2 cm, 12 in / 30.5 cm, 24 in / 61 cm, 36 in / 91.4 cm
- Max weight capacity 800 lb / 363 kg
- Thread standard 1.5-in NPT
QualGear Pro-AV 1.5 in NPT Pipe Connector, With or Without Cable Opening, QG-PRO-PM
- Function Joins two or more pipes to extend drop length
- Max weight capacity 300 lb / 136 kg
- Styles With cable opening (PCO), without opening (PC)
