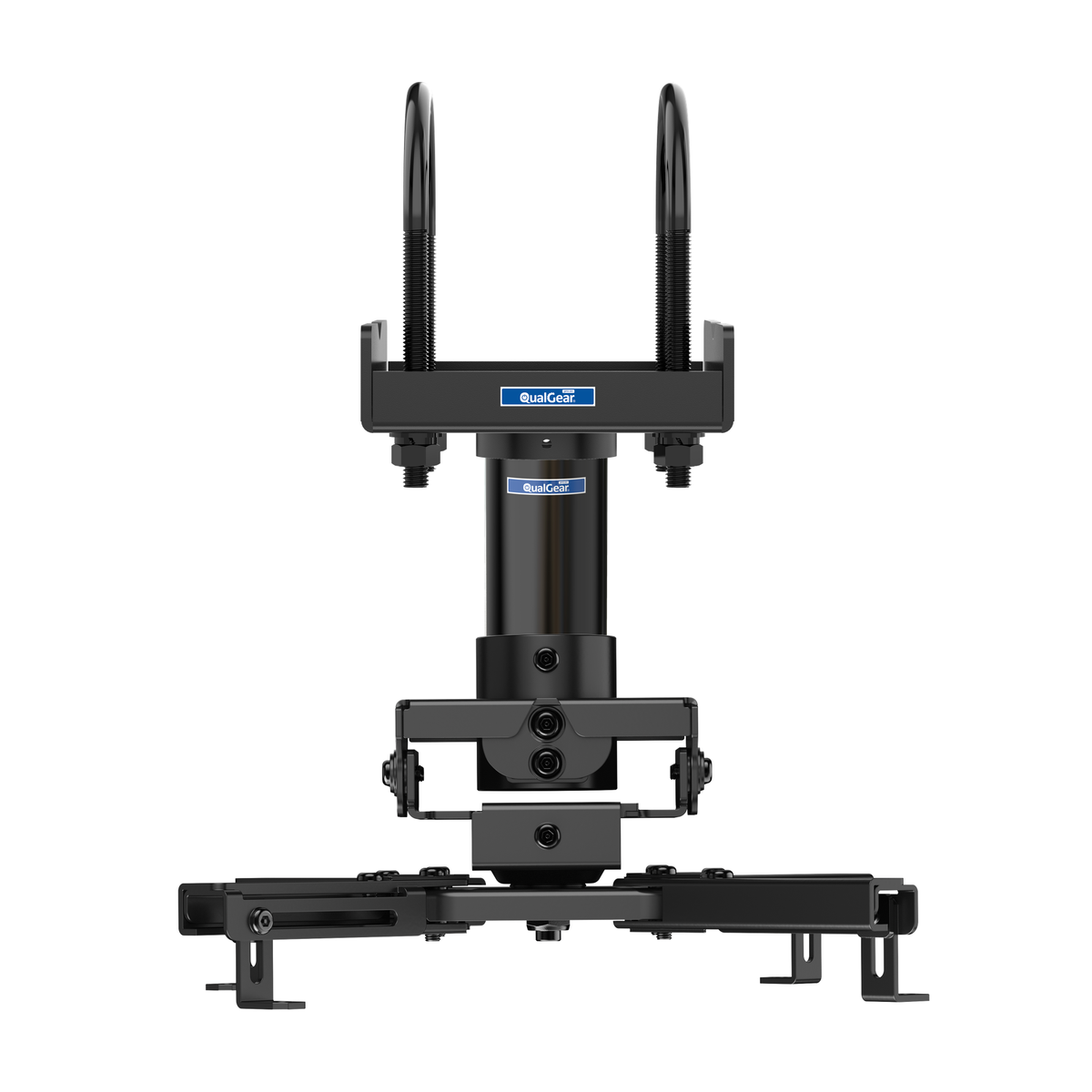

QualGear truss projector mount kit, black, assembled front view (QG-KIT-TA-3IN-B)

QualGear Truss Projector Mount Kit, Black, QG-KIT-TA-3IN-B

SKU QG-KIT-TA-3IN-B

$143.95
$143.95

Los pedidos realizados antes de 2:00 pm CT se envían el mismo día laborable.

Devoluciones de 30 días — devuélvelo en un plazo de 30 días desde la fecha de compra.
5-year limited manufacturer's warranty, parts only
QG-KIT-TA-3IN-B installation manual PDF ¿Es compatible con mi proyector? Compruébalo antes de comprar
QualGear Truss Projector Mount Kit, Black, QG-KIT-TA-3IN-B
$143.95
$143.95

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

Round, square, or rectangular trusses 3 in / 76 mm wide, 3.5 in / 89 mm high QG-PRO-PM-50-B QG-PRO-PM-TCA-B truss ceiling adapter
Especificaciones técnicas completas
Compatibility / Requirements
Truss typesRound, square, or rectangular trusses
Max truss size3 in / 76 mm wide, 3.5 in / 89 mm high
Included mountQG-PRO-PM-50-B
Included adapterQG-PRO-PM-TCA-B truss ceiling adapter
Included pipe3 in / 7.6 cm, 1.5 in NPT
Thread standard1.5 in NPT
Performance / Capacity
Load capacity50 lb / 22.7 kg
Pitch±20°
Roll±8°
Rotation±180°
Adjustment points12
Materials & Finish
ColorBlack
Care / Installation
In the boxProjector mount, truss ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, presorted hardware
Warranty & Support
Warranty5-year limited manufacturer's warranty, parts only
SupportUS-based phone support, +1-972-423-5015

Mounts a projector below round, square, or rectangular stage trusses

Put a projector on a truss without fabricating a bracket. This QualGear Pro-AV kit combines the QG-PRO-PM-50-B projector mount, the QG-PRO-PM-TCA-B truss ceiling adapter, and a 3 in / 7.6 cm, 1.5 in NPT threaded pipe, in black — a complete drop for round, square, or rectangular trusses up to 3 in / 76 mm wide and 3.5 in / 89 mm high, in entertainment venues and stage rigs.

The adapter fits the truss, the pipe threads in, and the mount carries projectors up to 50 lb / 22.7 kg — with Pitch, Roll, and Rotation across 12 adjustment points to square the image after installation. In the box: projector mount, truss ceiling adapter, 3 in / 7.6 cm NPT threaded pipe, and presorted hardware. The kit's combined manual is on this page; printed copies will be included in future production.

The 1.5 in NPT thread is the QualGear Pro-AV system standard — when the projector needs a lower drop below the truss, swap the included pipe for a longer QualGear extension pipe or join lengths with a QualGear NPT pipe connector. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.

Complete truss drop in one box

Projector mount, truss ceiling adapter, and 3 in / 7.6 cm NPT threaded pipe arrive together — nothing left to source before the install.

Fits round, square, and rectangular trusses

The QG-PRO-PM-TCA-B truss ceiling adapter fits trusses up to 3 in / 76 mm wide and 3.5 in / 89 mm high.

Holds projectors up to 50 lb

The QG-PRO-PM-50-B mount is rated for projectors up to 50 lb / 22.7 kg.

Aims the image after installation

Pitch ±20°, Roll ±8°, and Rotation ±180° across 12 adjustment points square the picture once the mount is up.

Extends to lower drops

The standard 1.5 in NPT thread accepts longer QualGear pipes when the projector needs to hang farther below the truss.

Presorted hardware, manuals on this page

Hardware arrives presorted, and the kit's combined manual is on this page; printed copies will be included in future production.
