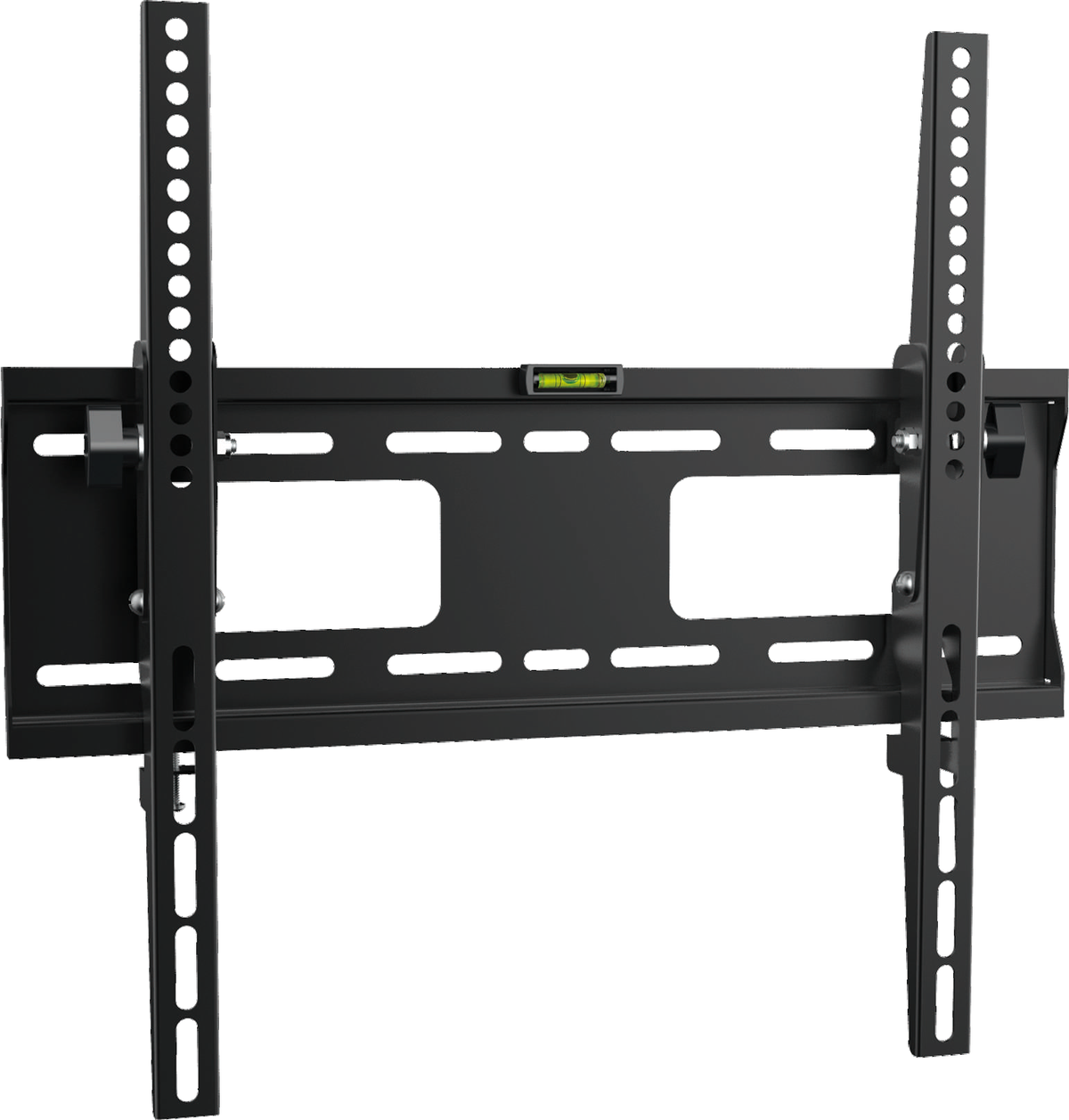

QualGear 23-47 in Tilting TV Wall Mount, Low Profile, Black, QG-TM-T-015
SKU: QG-TM-T-015
Orders placed by 2:00 pm CT ship the same business day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day shipping
In-stock orders placed by the cutoff ship the same business day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day dispatch on in-stock items
- Carrier transit time not guaranteed
Weekend and holiday orders ship the next business day; out-of-stock items are excluded.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
Open the full fit checkerCheck the Key Specifications above for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Check that your TV is wider than the mount's wall plate. If the plate is wider than the TV, it will show on either side. This is about appearance, not safety — fit is decided by VESA pattern and weight.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

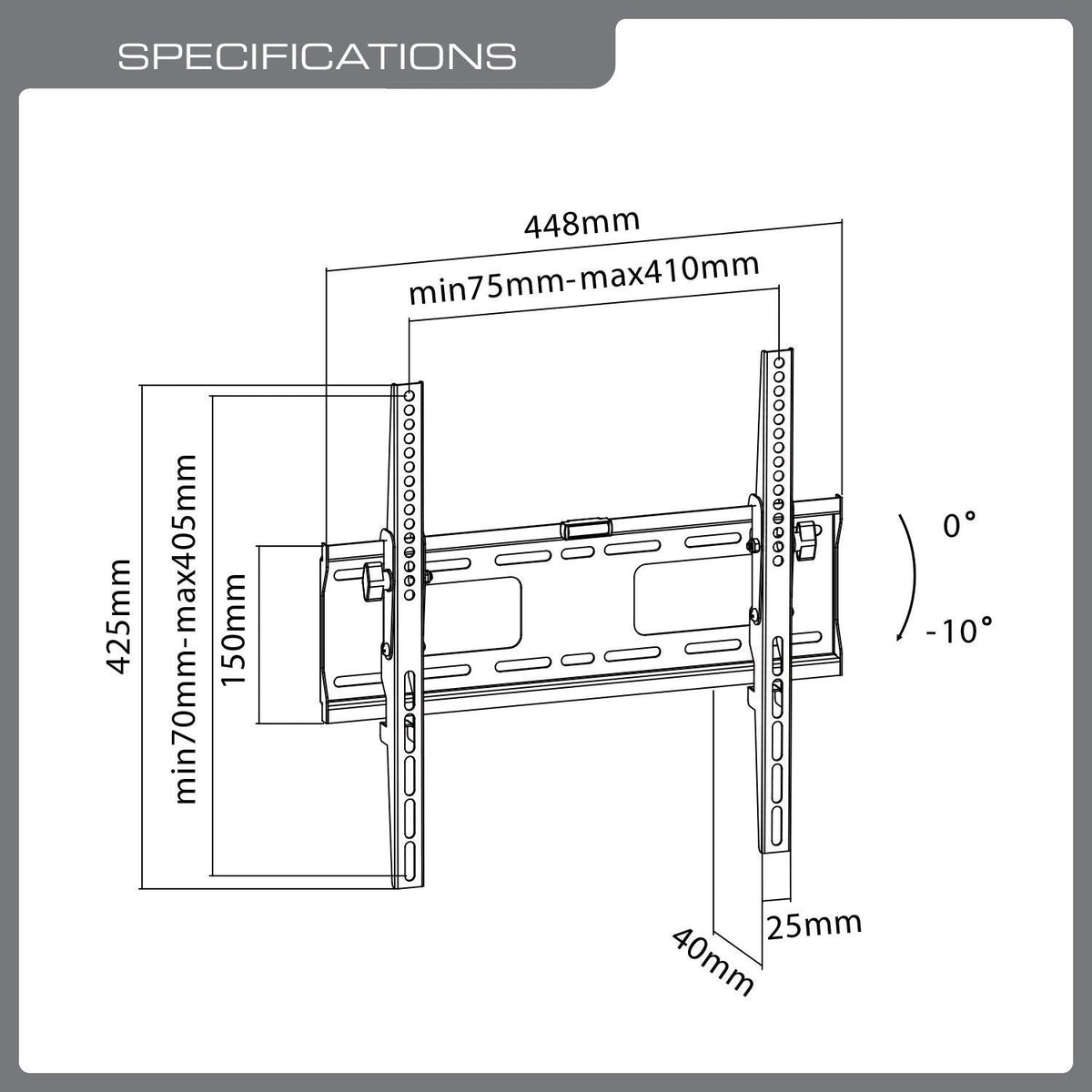

Key Specifications
What is VESA?
VESA is the standard spacing of the four threaded holes on the back of your TV or monitor — measured in millimeters, width × height. A mount "fits" your TV when it supports that hole pattern.
Measure center-to-center between holes: left-to-right is the width, top-to-bottom is the height.
This mount supports every pattern shown above, up to its ma×imum 400×400. Not sure of your TV's pattern? Check your TV's manual.
| Performance / Capacity | |
| Max load | 110 lb / 50 kg |
| TV size range | 23-47 in / 58-119 cm (some 55 in / 140 cm) |
| Tilt | Up to 10 degrees |
| Compatibility / Requirements | |
| Wall types | Wood studs, concrete, brick |
| Dimensions & Weight | |
| Profile (wall distance) | 1.6 in / 4.1 cm |
| Materials & Finish | |
| Color | Black |
| Care / Installation | |

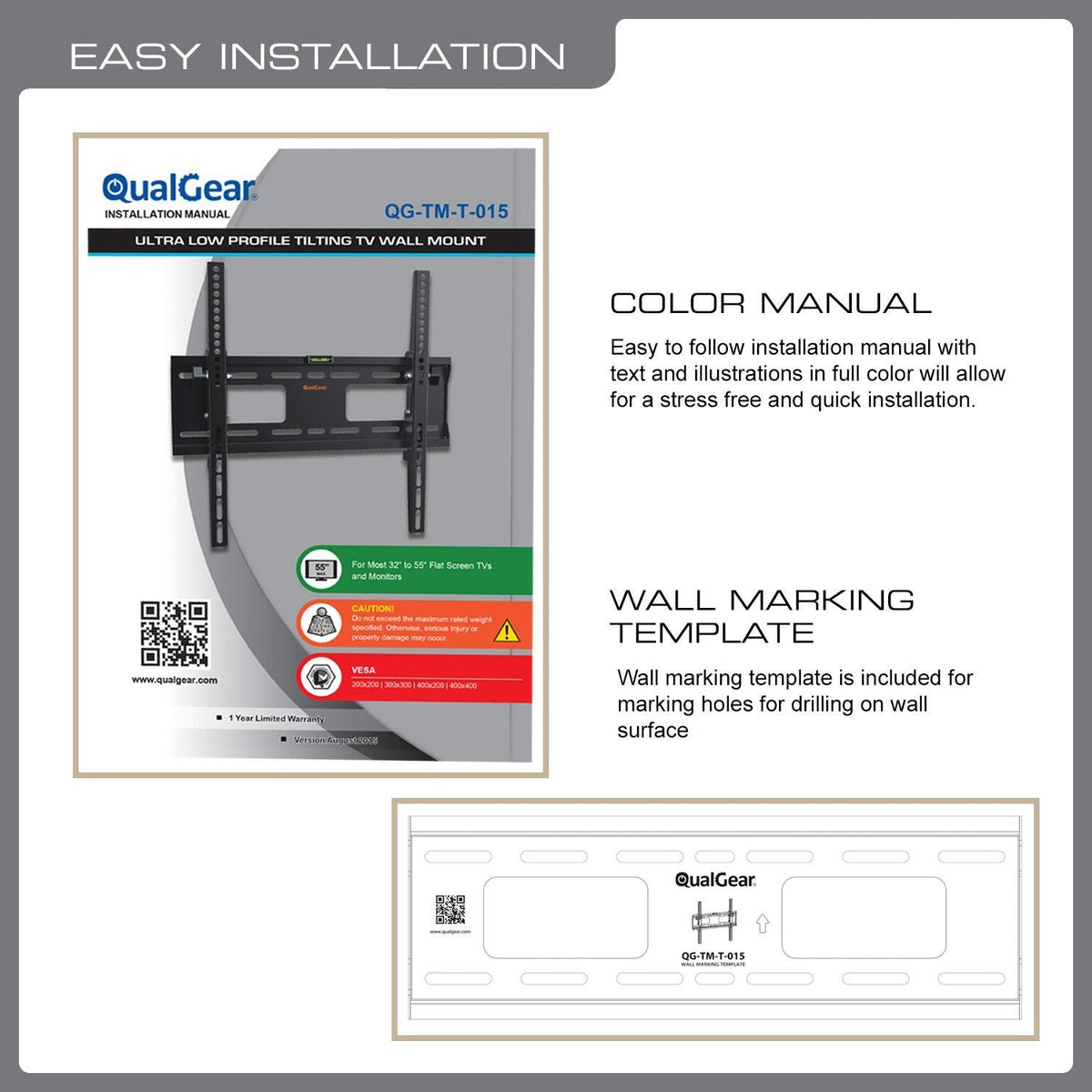

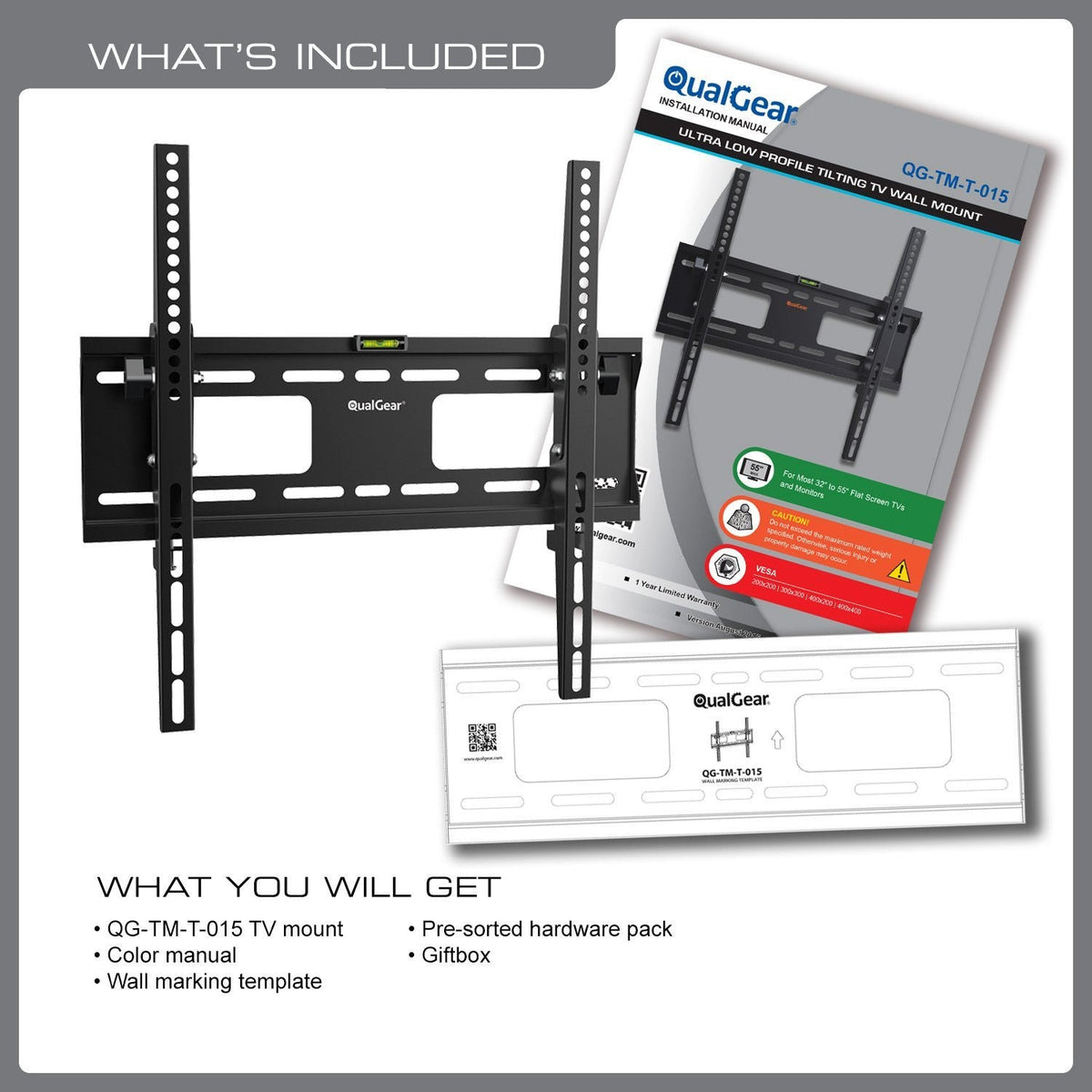

| In the box | Wall mount, add-on bubble level, pre-sorted mounting hardware, installation manual |
| Hardware | Pre-sorted for wood studs, concrete, and brick |
| Warranty & Support | |
| Warranty | 1-year limited manufacturer's warranty, parts only |
| Support | 30-day RMA; US-based phone support, +1-972-423-5015 |

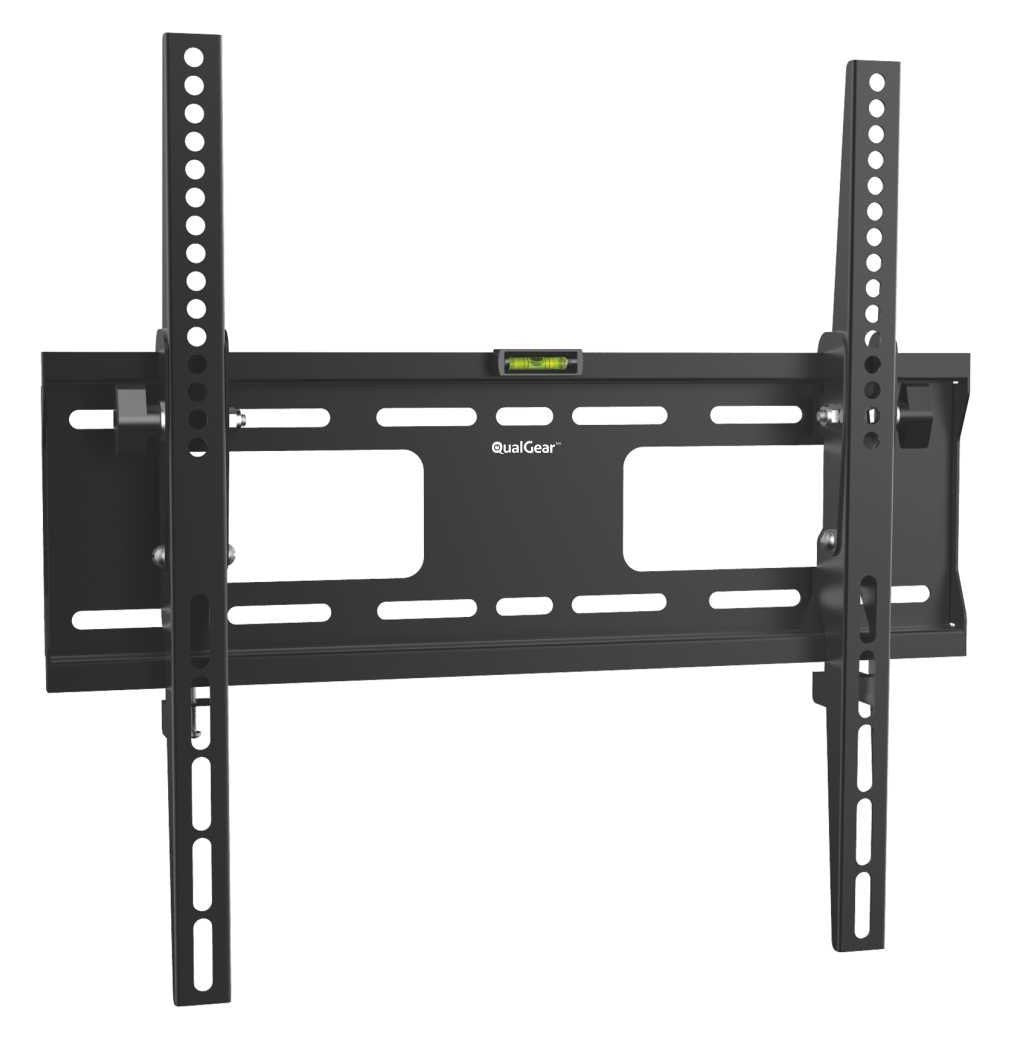

Tilts up to 10 degrees to cut glare, holding the screen 1.6 in / 4.1 cm out.
Hang a TV where windows or lighting wash out the picture, then angle it down toward the seats. This low profile tilting TV wall mount fits most 23-47 in / 58-119 cm TVs — and some 55 in / 140 cm models — up to 110 lb / 50 kg, tilting up to 10 degrees to cut glare and improve the viewing angle.
Match the fit by VESA pattern and TV weight first: the mount supports patterns from 200x200 to 400x400 mm. The slim design places the screen 1.6 in / 4.1 cm from the wall, and the included hardware covers wood studs, concrete, and brick. In the box: wall mount, add-on bubble level, pre-sorted mounting hardware, and the installation manual.
For larger screens, the QualGear QG-TM-031-BLK steps up to 37-70 in / 94-178 cm TVs in the UL Listed heavy duty tilting line. A QualGear HDMI cable and cable clip holders keep the hookup behind the TV clean. Backed by a 1-year limited warranty (parts only) and a 30-day RMA, with US-based phone support at +1-972-423-5015.

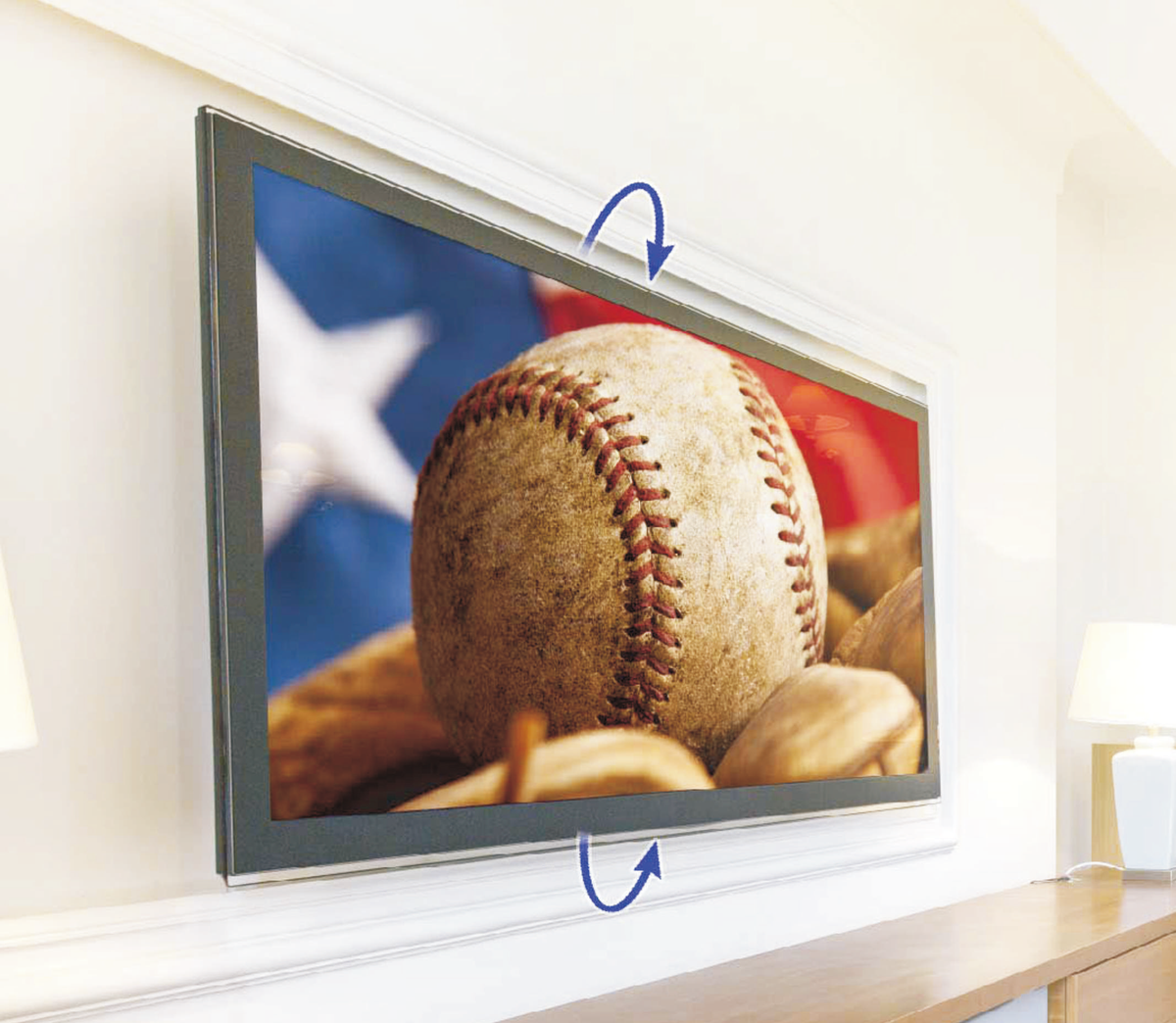

Tilts up to 10 degrees
Tilt the screen downward after installation to cut glare from windows and lighting and set the viewing angle for seating height.

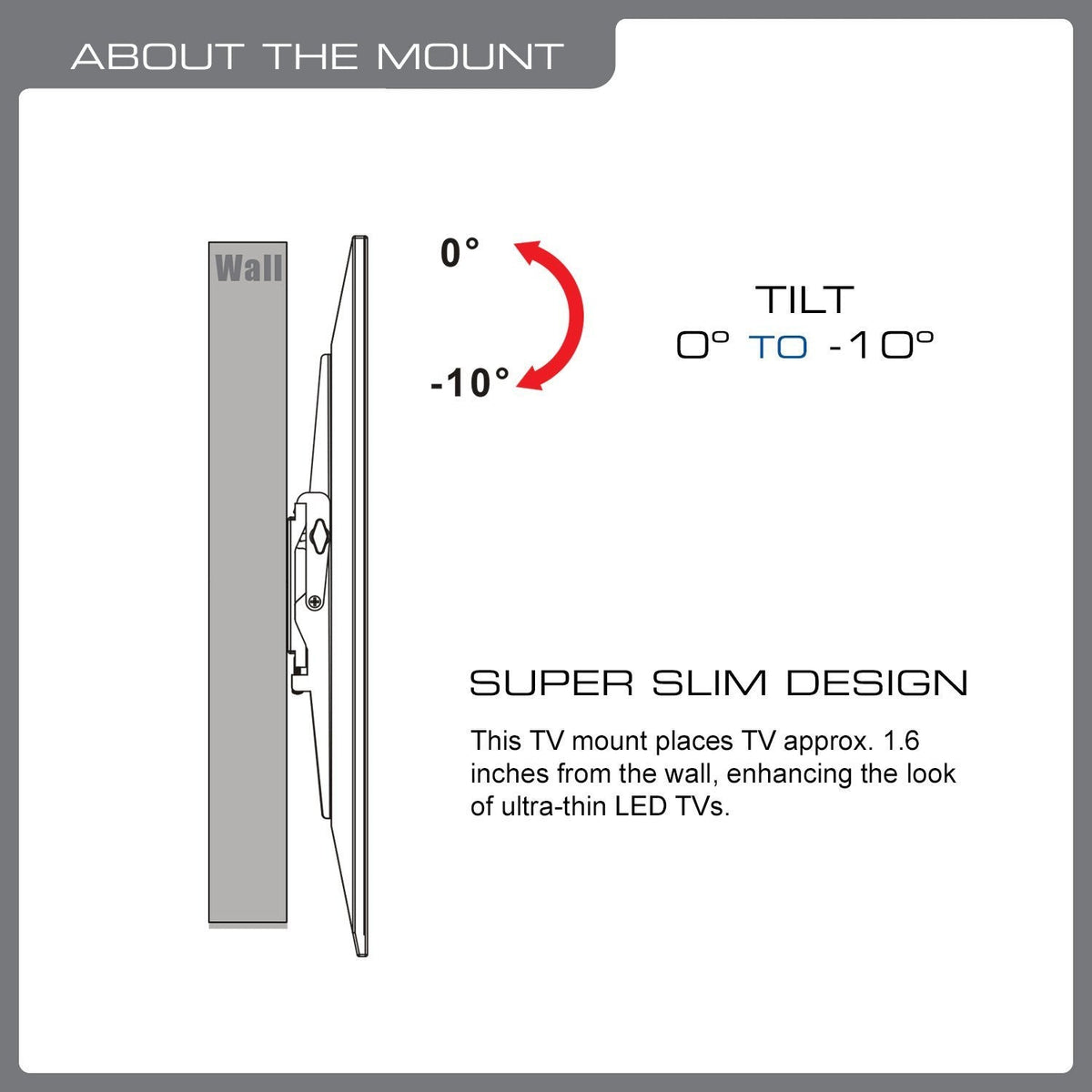

Low profile against the wall
Holds the TV 1.6 in / 4.1 cm from the wall, keeping the installation slim and close.
Fits 23-47 in / 58-119 cm TVs
Fits most 23-47 in / 58-119 cm TVs and some 55 in / 140 cm models up to 110 lb / 50 kg.
VESA 200x200 to 400x400 mm
Supports VESA mounting hole patterns from 200x200 to 400x400 mm — check your TV's pattern and weight before choosing a size.

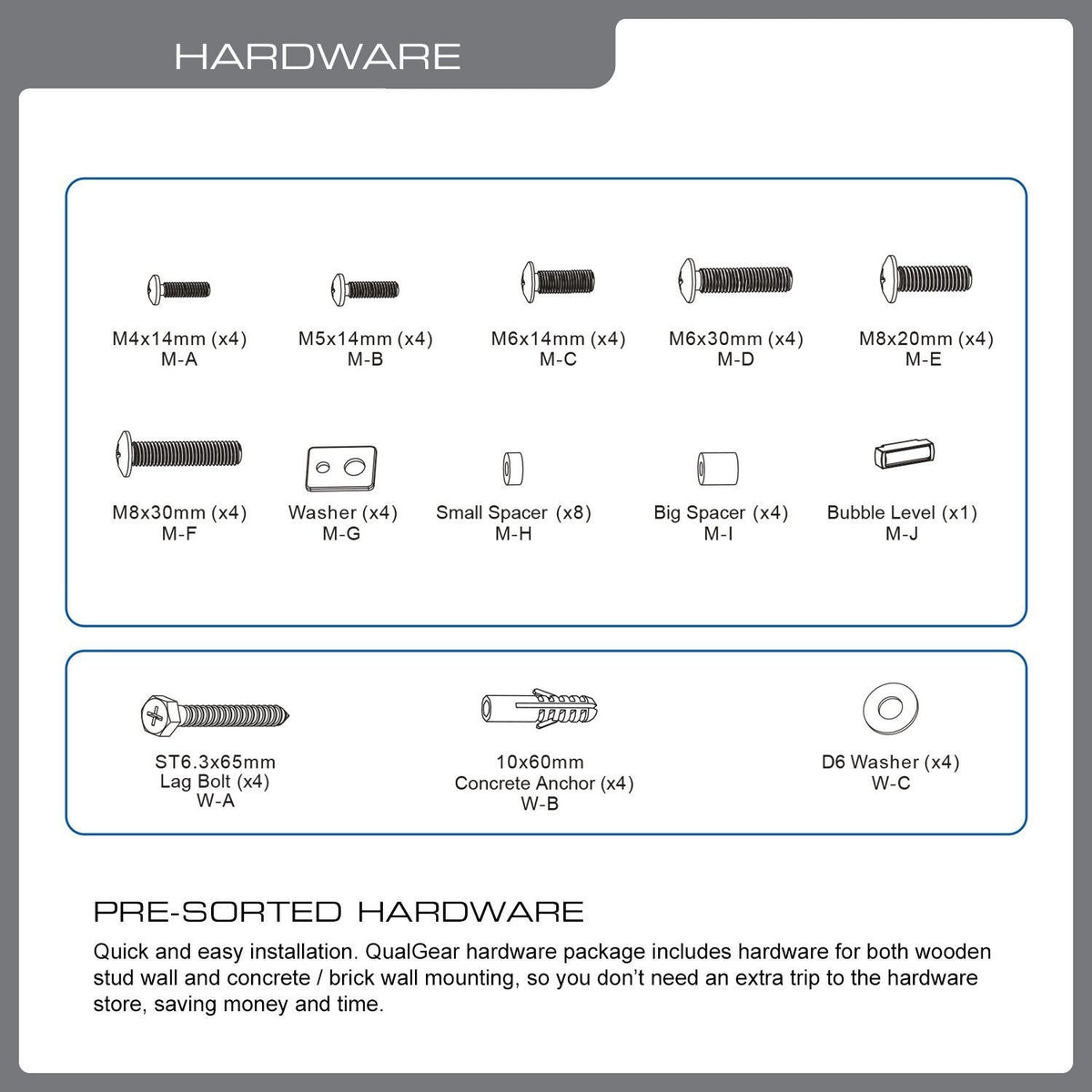

Bubble level and pre-sorted hardware
An add-on bubble level confirms alignment during installation, and pre-sorted hardware covers wood studs, concrete, and brick.
