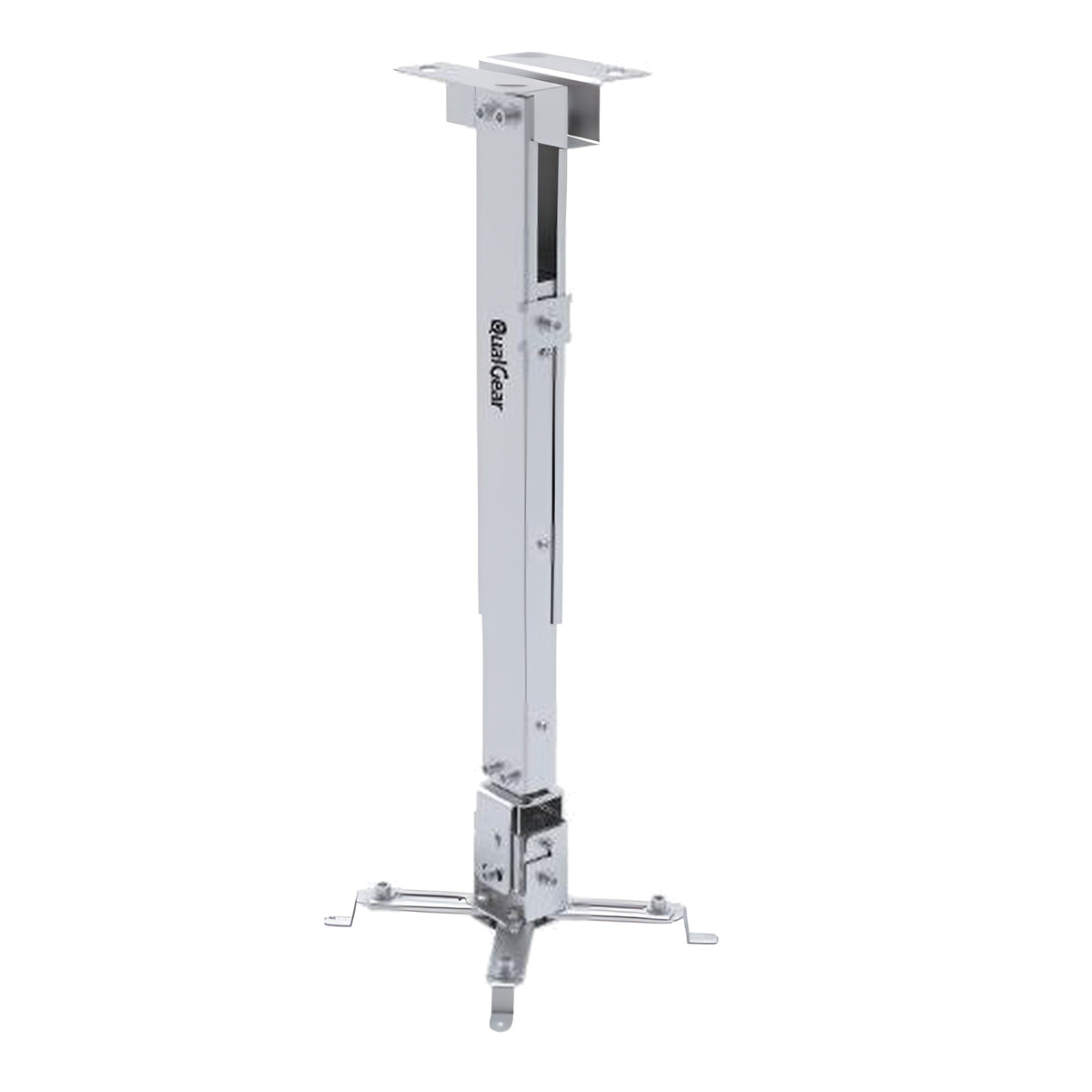

QualGear telescopic projector ceiling mount QG-PM-002-WHT in white, front view

QualGear Universal Telescopic Projector Ceiling Mount, White, QG-PM-002-WHT

SKU QG-PM-002-WHT

$49.95
$49.95
Devoluciones de 30 días — devuélvelo en un plazo de 30 días desde la fecha de compra.
1-year limited manufacturer's warranty, parts only
Installation manual PDF ¿Es compatible con mi proyector? Compruébalo antes de comprar

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

44 lb / 20 kg -15 to +15 degrees -8 to +8 degrees 4.7 in / 12 cm
Especificaciones técnicas completas
Performance / Capacity
Max projector weight44 lb / 20 kg
Tilt-15 to +15 degrees
Swivel-8 to +8 degrees
Dimensions & Weight
Flush mounting height4.7 in / 12 cm
Telescopic height range16.9-25.6 in / 43-65 cm
Compatibility / Requirements
Mounting hole range1-17.5 in / 2.5-44.5 cm
Ceilings supportedRegular ceilings (wood studs or beams, solid concrete, or brick); not vaulted ceilings or walls
Projector typesMost DLP and LCD projectors
Materials & Finish
MaterialCold-rolled steel
ColorWhite
Care / Installation
Projector releaseQuick connect/release, without tools
Cable managementBuilt-in, cables concealed inside the column
Warranty & Support
Warranty1-year limited manufacturer's warranty, parts only

Flush or telescopic install with quick release and built-in cable management.

One mount covers both the flush install and the long drop. The QualGear QG-PM-002-WHT universal projector ceiling mount installs flush at 4.7 in / 12 cm or telescopic from 16.9-25.6 in / 43-65 cm, and supports projectors up to 44 lb / 20 kg.

Installation runs in three steps — mount the ceiling plate, attach the projector bracket, hang the assembly — on regular ceilings of wood studs or beams, solid concrete, or brick. It does not support vaulted ceilings or walls, and the white finish suits home theaters.

Pairs with a QualGear HDMI cable and VT2-B-50-P reusable cable ties for a tidy ceiling run; for a complete installation package, step up to the QualGear Projector Mount Kit, White (QG-KIT-CA-3IN-W). Backed by a 1-year limited manufacturer's warranty, parts only, with a 30-day RMA and US-based phone support at +1-972-423-5015.

Two mounts in one design

Installs flush at 4.7 in / 12 cm or telescopic with height adjustment from 16.9-25.6 in / 43-65 cm.

Holds projectors up to 44 lb

Supports most DLP and LCD projectors up to 44 lb / 20 kg with mounting holes 1-17.5 in / 2.5-44.5 cm apart.

Quick connect and release

Quick connect and release drops the projector assembly off the bracket without tools.

Cables hide inside the column

Built-in cable management conceals HDMI, audio, and video cables inside the column for a clean ceiling drop.

Level the image precisely

Tilt adjusts -15 to +15 degrees and swivel -8 to +8 degrees to square the image on the screen.

Steel that damps vibration

Cold-rolled steel construction dampens vibration compared with aluminum mounts.

Documentation

Installation manual PDF
