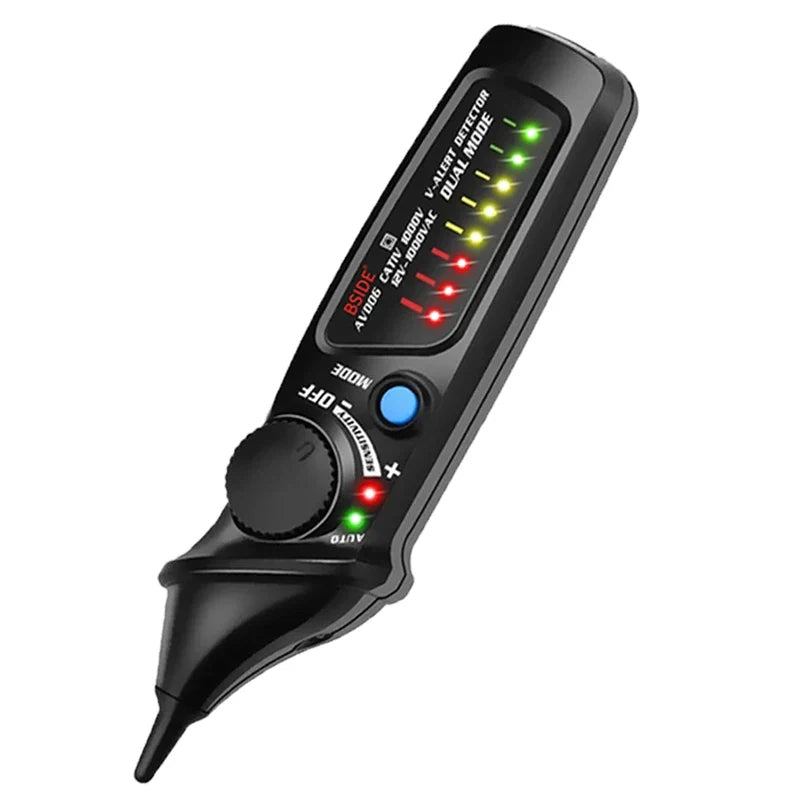

BSIDE AVD06 Smart Voltage Tester Pen with NCV & Breakpoint

Specifications
Hign-concerned Chemical:None
Certification:CE,FCC,RoHS
Model Number:AVD06
Brand Name:BSIDE
DIY Supplies:ELECTRICAL
Dimensions:174 x 47 x 35mm
Operating Temperature:0-40℃
Power Supply:Battery
Display Type:Analog Only
Detect Mode:Auto/Manual
Alarm type:Sound and LED light
Indicator Light:Green(Low), Yellow(Mid), Red(High)
Auto Power Off:Yes.
Flash light Color:White
Manual Mode Voltage Range:12V ~1000V
Sensitivity Adjustable:Yes.
Auto Mode Voltage Range:48V ~1000V
Flashlight:YES/ LED spotlight illumination
Item Weight:Approx. 68g
Package Weight:Approx. 100g(without battery)
Battery Type:9V 6F22 Battery (Not Included)
Delivery Method:Logistics traceable
BSIDE Non-Contact Voltage Detector Tester Indicator Profession Smart Test Pencil Live/phase Wire Breakpoint NCV Continuity Meter
Product Description :
447 Product Description
BSIDE AVD06 product is a multi-function Dual-mode voltage detector.
The original intention of AVD06 is to solve the problem of electricity safety in people's daily life and work; its wide range of applications has won praise from many buyers!
The unique advantage of this product: the sensitivity of the induced voltage can be adjusted freely.
The product has an automatic sensitivity adjustment mode and a manual sensitivity mode; the induced voltage range: 12V/48V ~ 1000V; 8 indicator lights in 3 colors, more intelligent and safe.
Test principle:
- Non-Contact Voltage Detector, Also called live voltage detector. Using the principle of inductive detection, No physical contact is required. Very Safe and convenient.
Main Features:
Non-contact and pen shaped desigh,convenient to operate and carry.

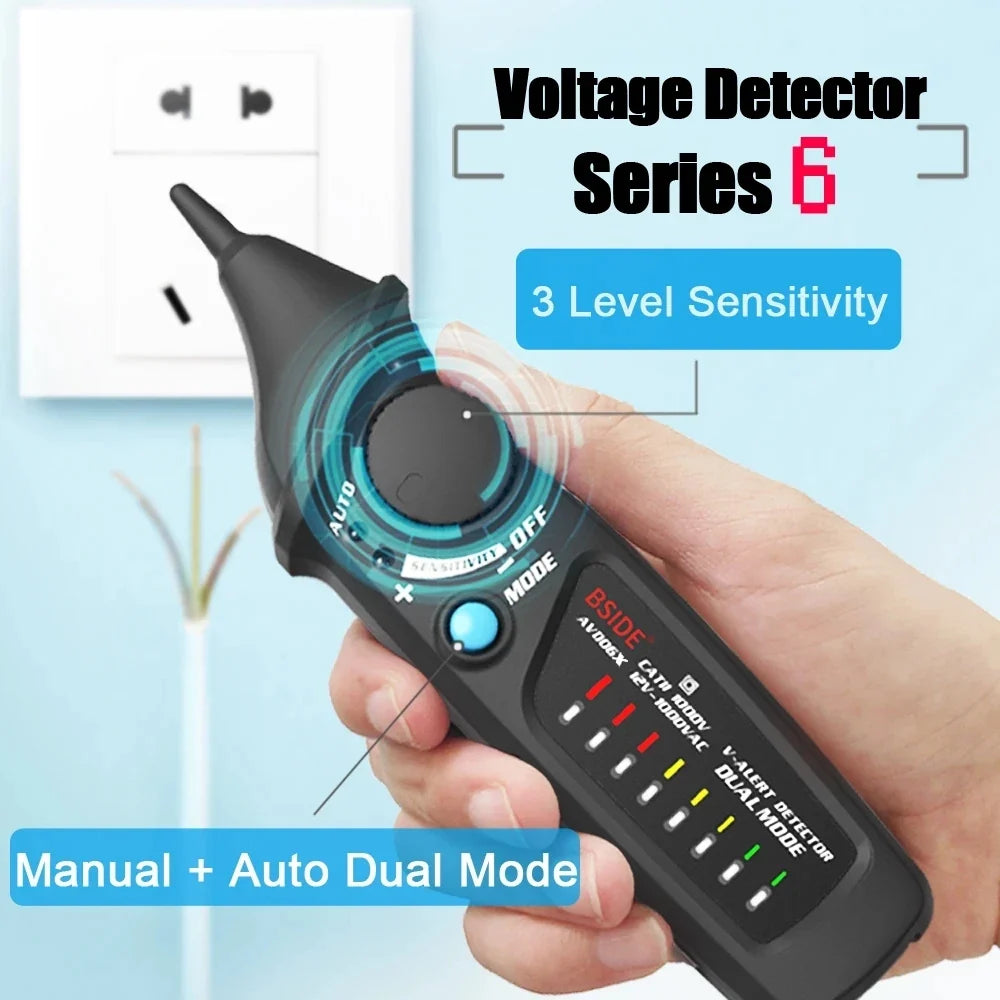

Dual mode operation.(Manual sensitivity adjustment and automatic)
The sensitivity of the product can be adjusted freely according to the actual scene used.

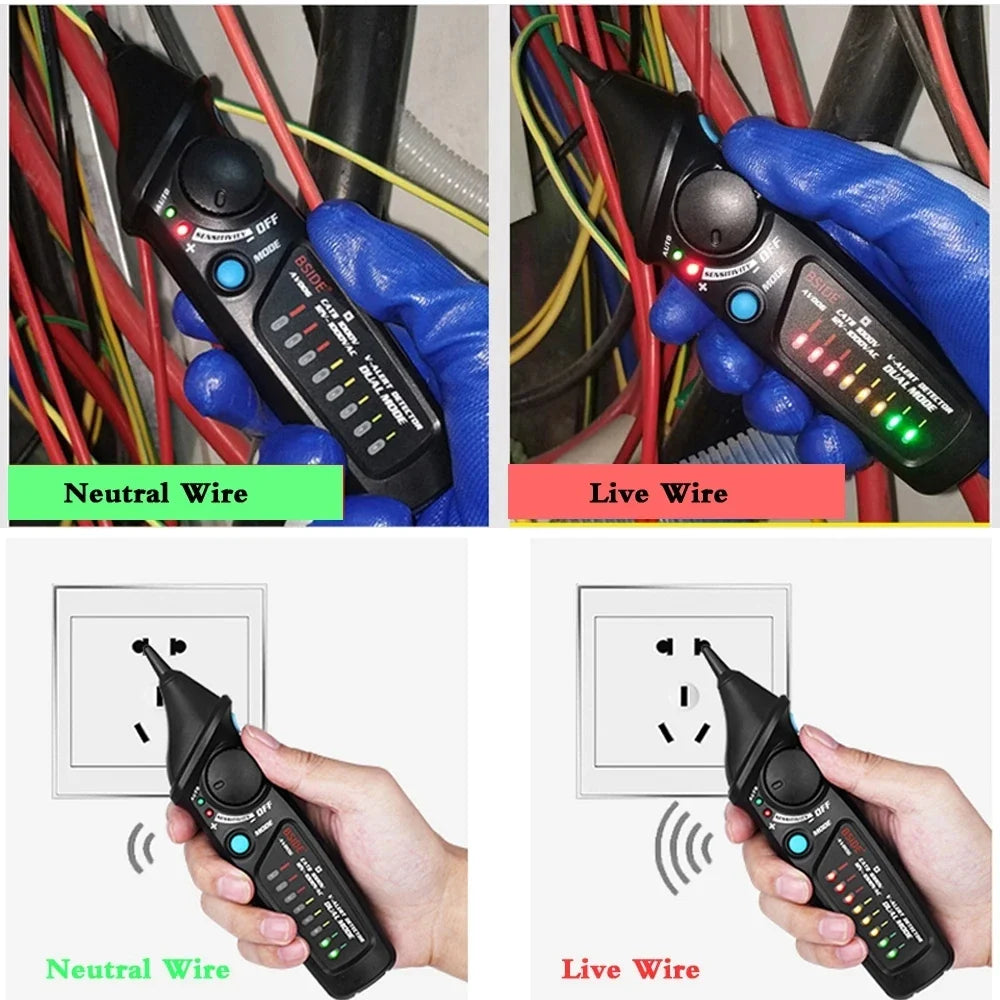

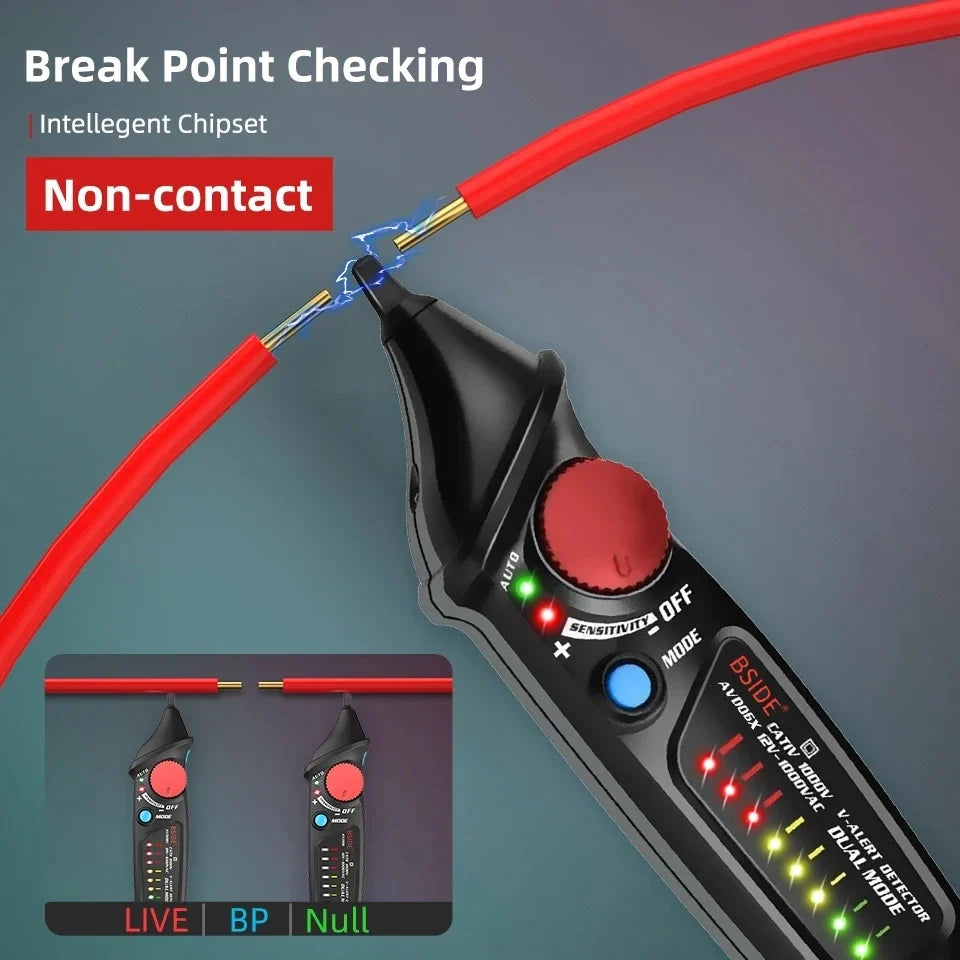

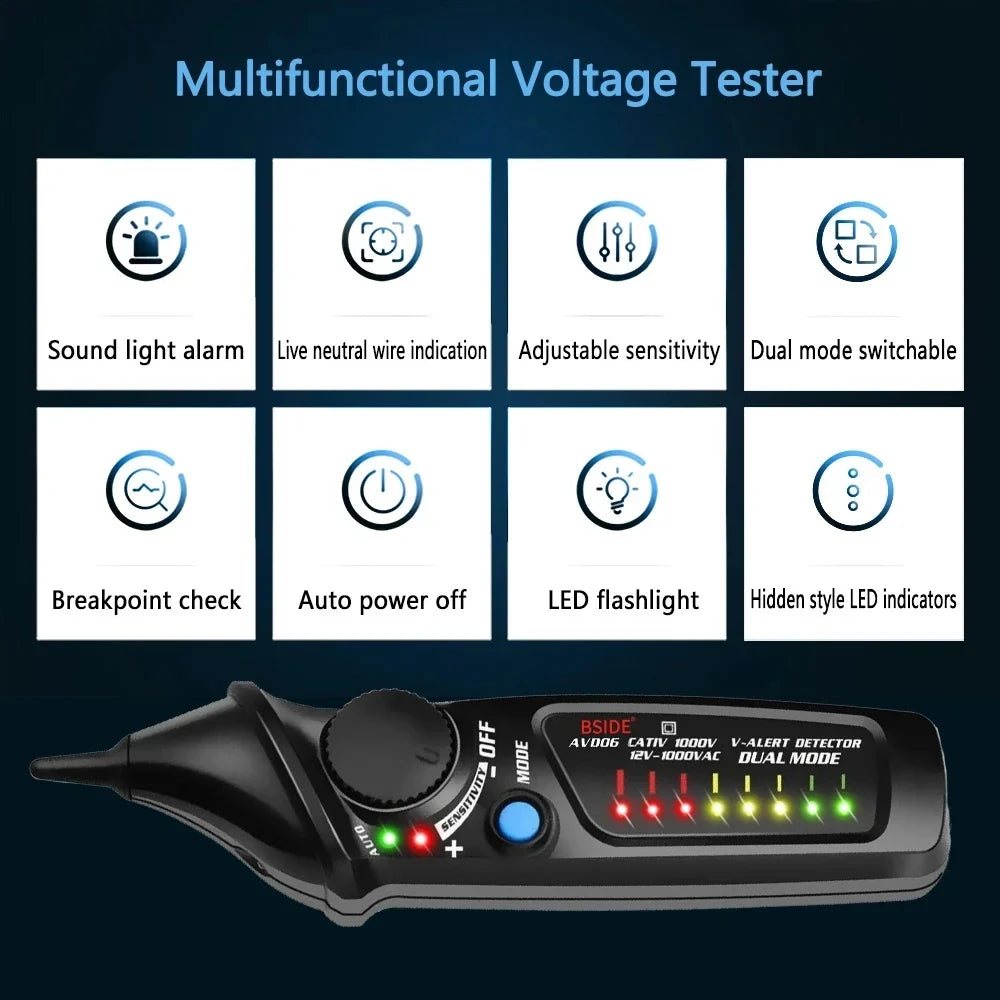

Has Induction dangerous voltage alarm, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, flashlight features etc.
This product has a Self-test function at boot time. It can effectively detect whether the product can work normally and avoid wrong judgment. More Safety!

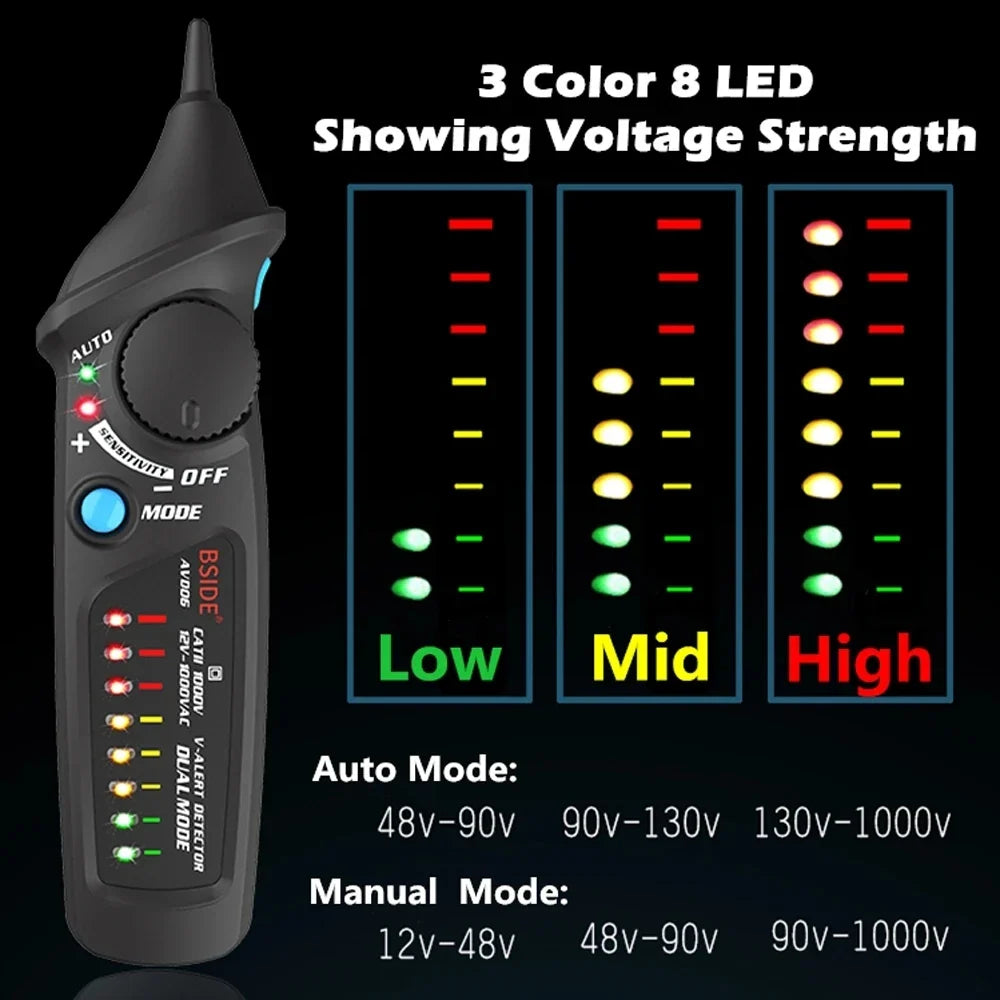

Has 8 LED indicators in 3 colors (Red/Yellow/Green):Automatic identification of high/medium/low voltage.
Alarm mode:Sound and light (Red/Yellow/Green).
LED spotlight, Battery low voltage reminder, Auto power off features.
Safety level: CAT II 1000V.
Compliance with international safety standards.
Order Notice : The performance of AVD06 and AVD06X are exactly the same..

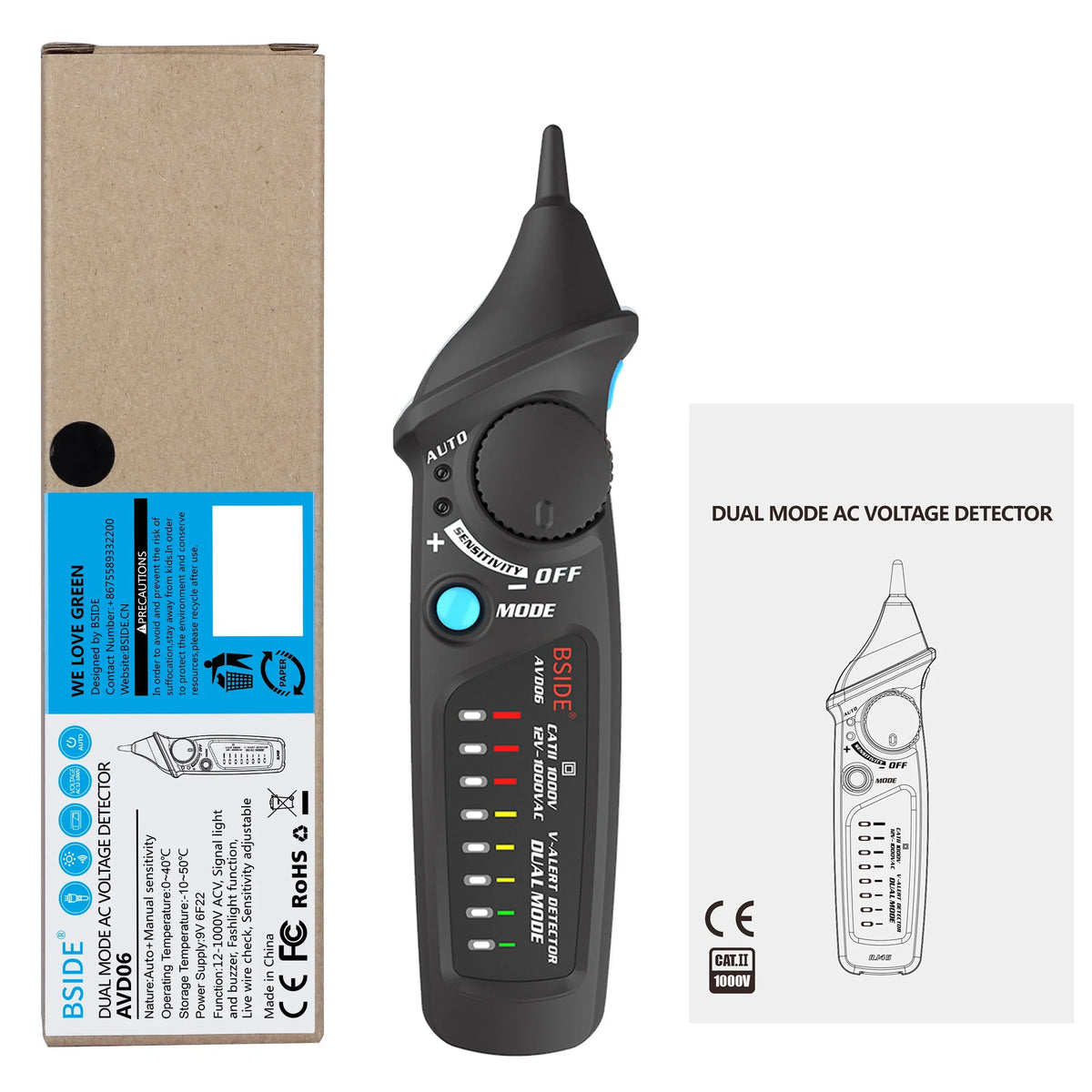

The package includes:
1 * AVD06 Non-contact voltage tester. 1 * User manual. 1 * Box.
