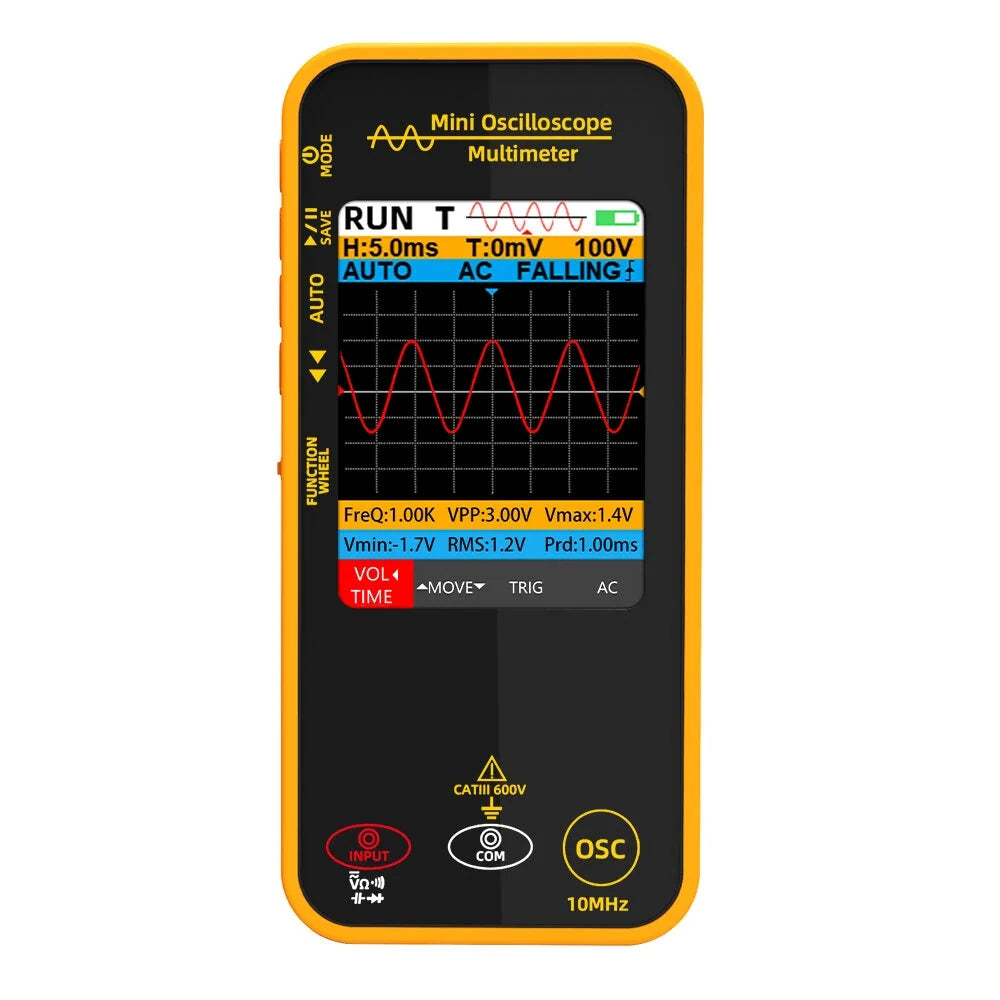

BSIDE OS1 Mini Handheld Oscilloscope Multimeter

Specifications:
Display: 3.2" TFT color screen, resolution 320 x 240 pixels, adjustable backlight brightness
Size: 143.02 x 66.62 x 21.16mm
Weight: 160.7g (including 1200mAh lithium battery)
Environmental Conditions: Operating temperature 0°C to 40°C, storage temperature -20°C to 60°C; Humidity: <75% working, <80% storage
Multimeter Parameters:
DC Voltage: 6.000V to 1000V (resolution: 0.001V to 0.1V)
AC Voltage: 6.000V to 750V (resolution: 0.001V to 1V)
Resistance: 600Ω to 60MΩ
Capacitance: 999.9nF to 99.99mF
Frequency Response: AC voltage 40Hz–1kHz
Other functions: Diode test, connectivity check
Oscilloscope Parameters:
Bandwidth: 10MHz (sine wave); 100kHz (square wav and others)
Sampling Rate: 48MSa/s
Input Coupling: DC + AC
Impedance: 1MΩ
Maximum Input Voltage: <300V (DC + AC peak)
Scanning Speed: 50ns/div to 20s/div
Storage Depth: 64Kbyte
Trigger Modes: Automatic, Normal, Single time
Trigger Edge: Rising, Falling


Features:

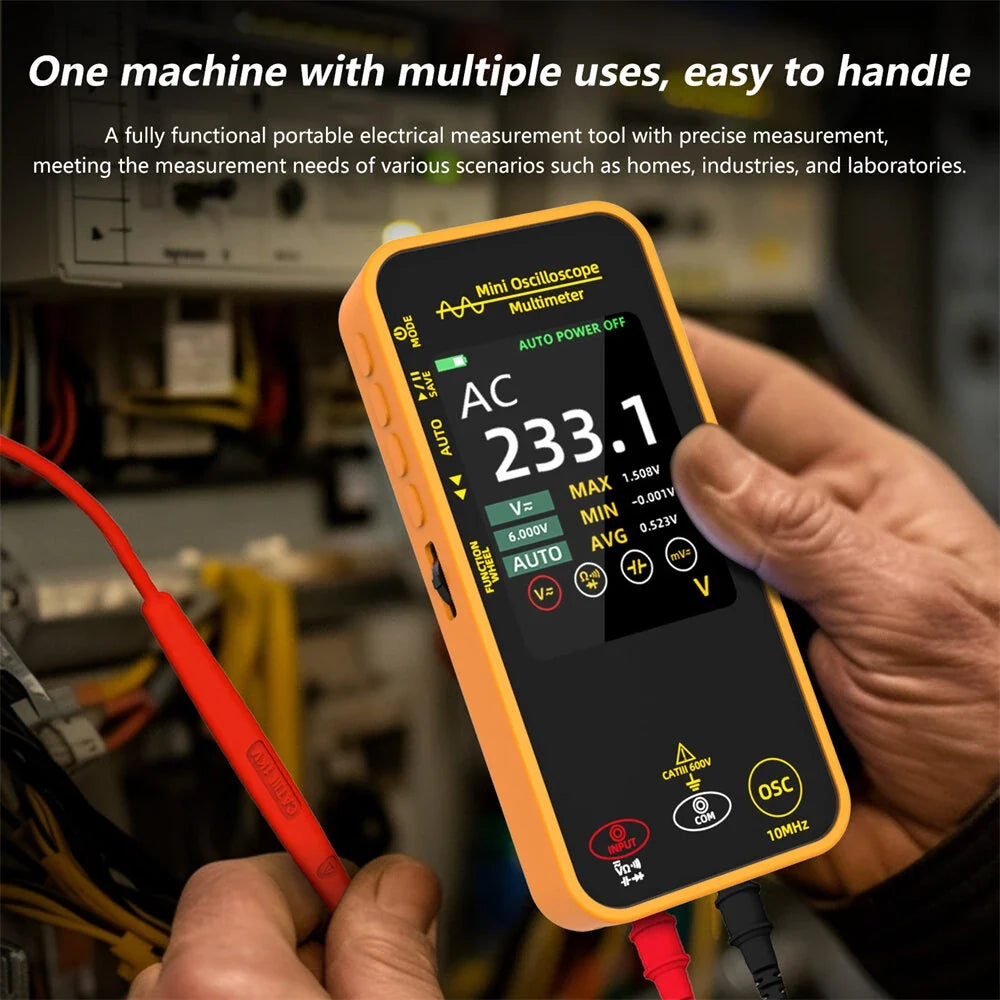

1.Multifunctional Design: Combines an oscilloscope and multimeter, offering multiple measurement modes in a single compact device that is versatile for professional and personal use.

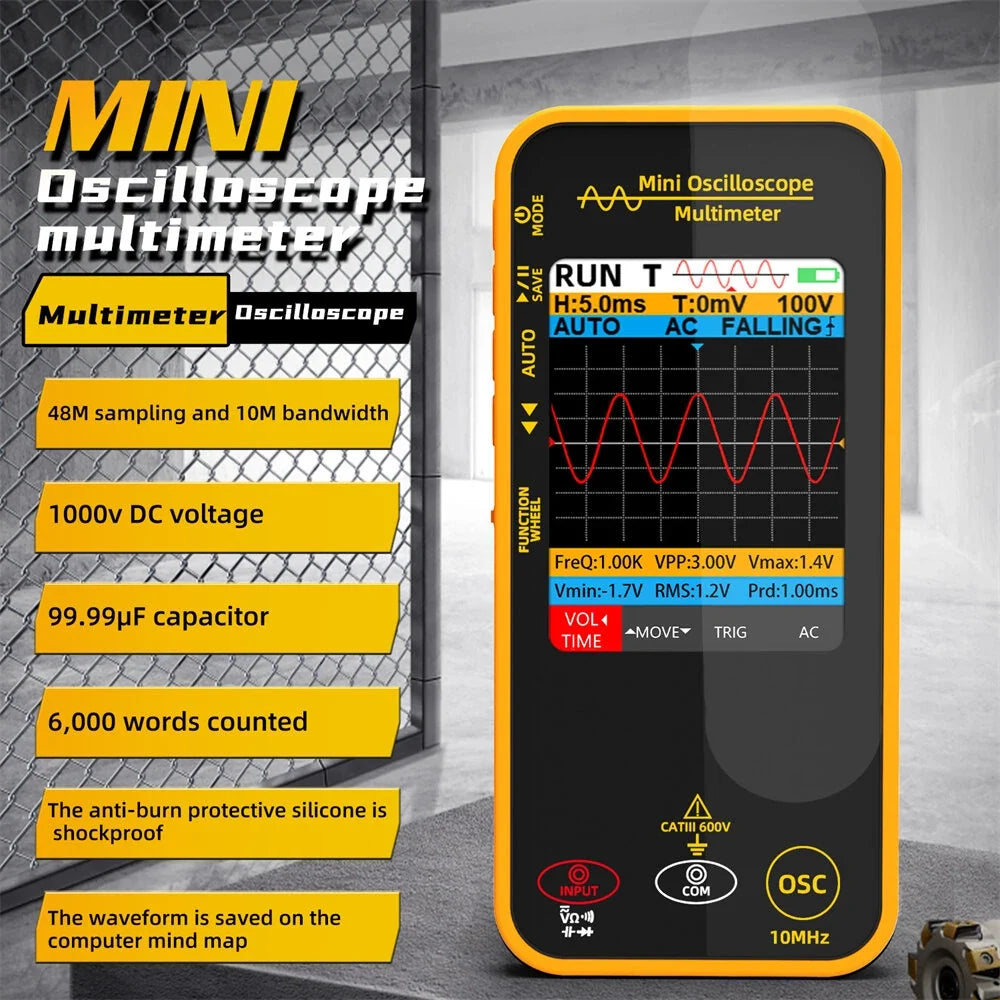

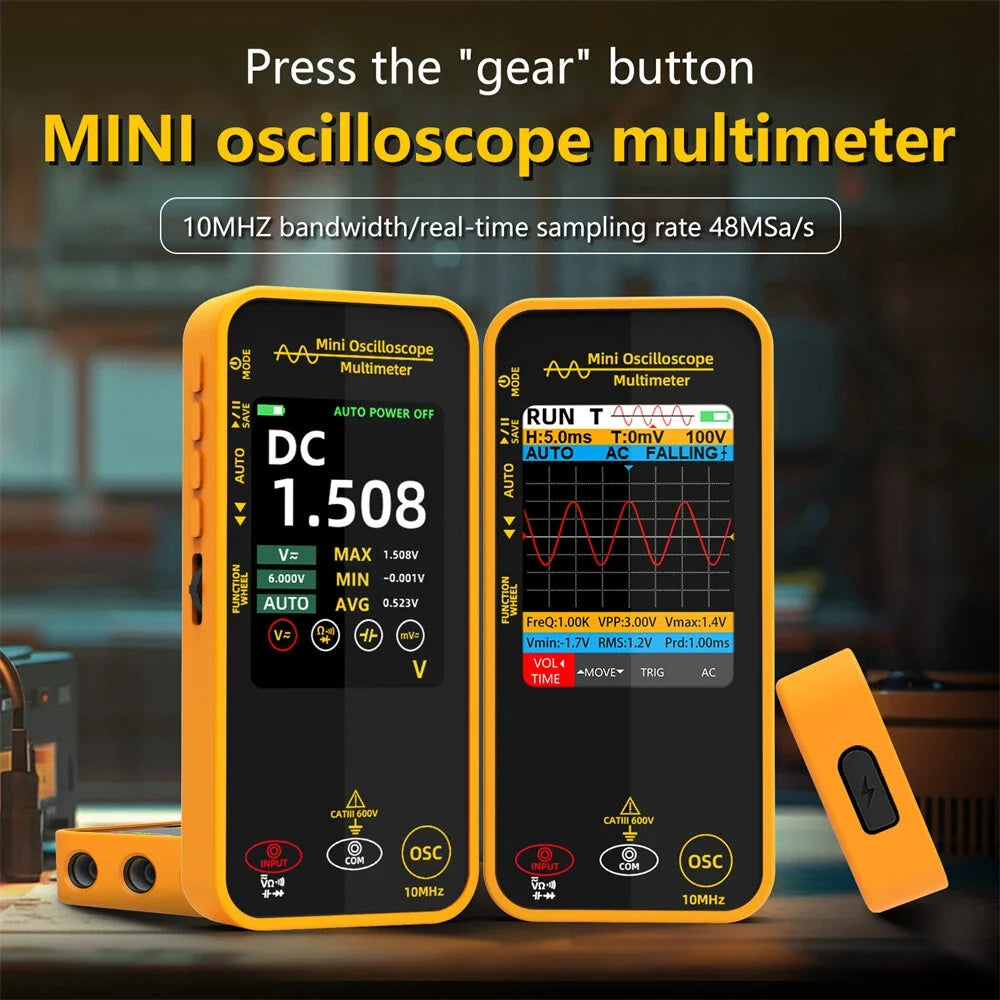

2.Enhanced Sampling Capability: With a high sampling rate of 48MSa/s and a 10MHz bandwidth, it captures fast-changing signals with precision, making it ideal for analyzing both analog and digital circuits.
3.High Voltage Range: Supports up to 1000V for DC voltage measurements and 750V for AC voltage, allowing users to measure a broader range of systems with confidence and accuracy.

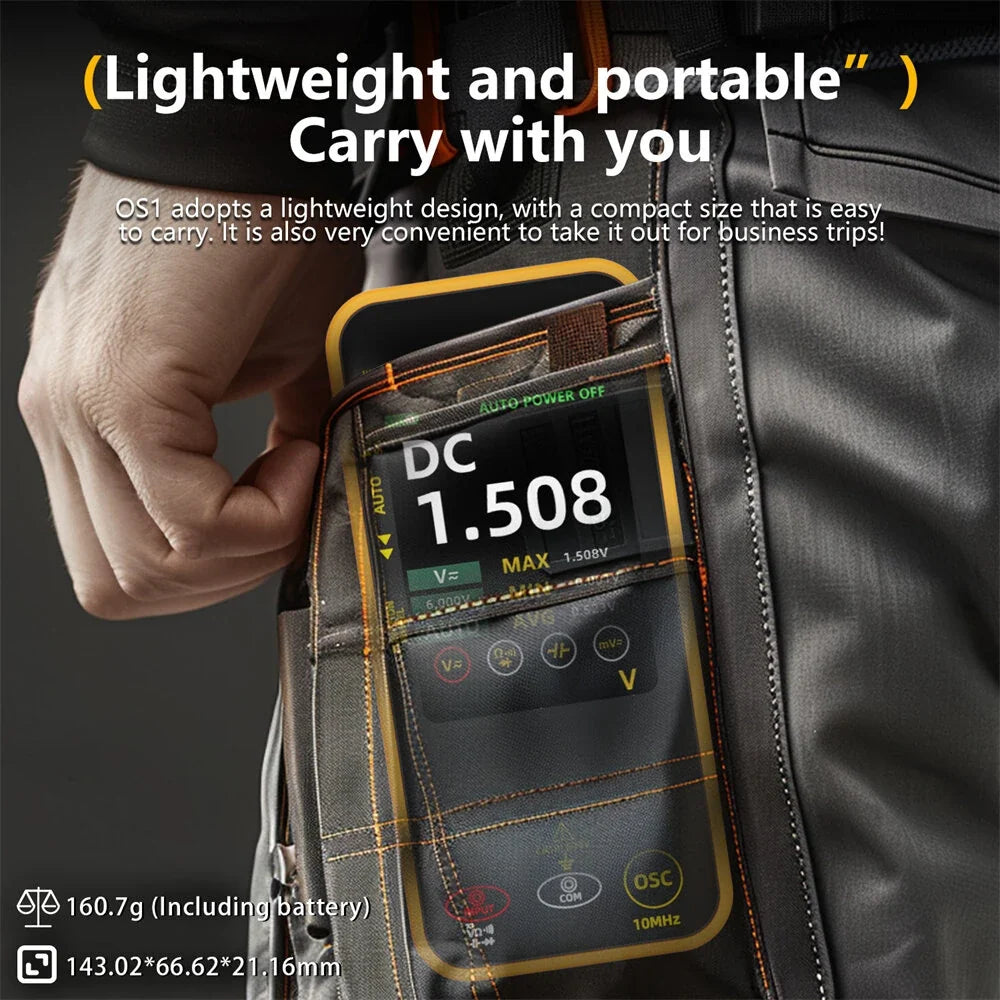

4.Portable and Lightweight: Weighing only 160.7g and designed with compact dimensions, it’s easy to carry and store, ideal for on-the-go engineers and technicians.
5.User-Friendly Interface: Features a 3.2" TFT color screen with adjustable backlight for clear visuals, intuitive controls for easy navigation, and auto power-off for energy efficiency.


Package Included:
1 x OS1 Mini Oscilloscope Multimeter
1 x USB Data Cable
1 x Instruction Manual
1 x Packaging Box
1 x Storage Bag
1 x Pair of Extra-sharp Test Leads
