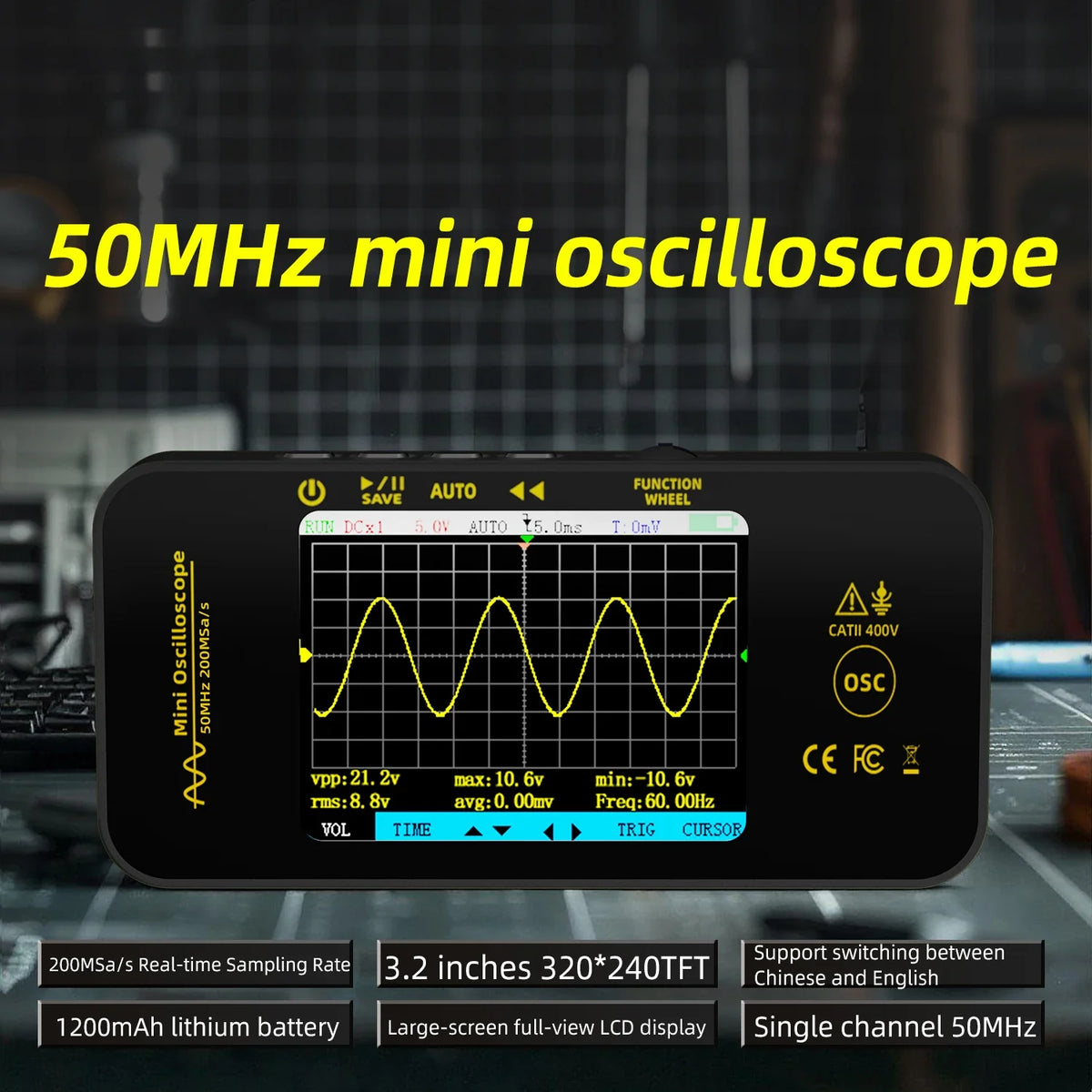

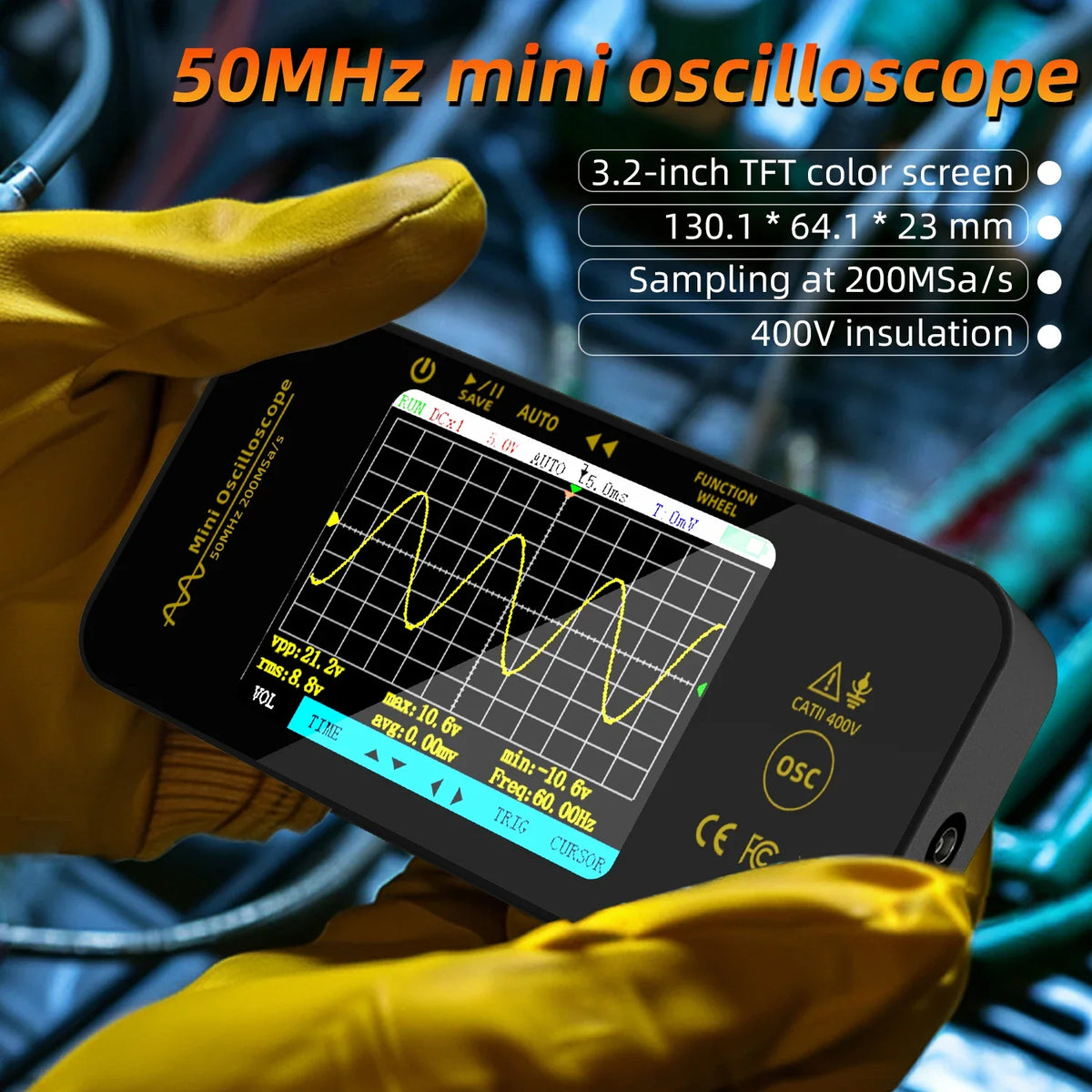

BSIDE OT5 50Mhz Handheld Digital AUTO Oscilloscope
SKU: sku-48431130607859
Orders placed by 2:00 pm CT ship the same business day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day shipping
In-stock orders placed by the cutoff ship the same business day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day dispatch on in-stock items
- Carrier transit time not guaranteed
Weekend and holiday orders ship the next business day; out-of-stock items are excluded.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Features:
Handheld oscilloscope
Portable graph scope tester
Rechargeable color display oscilloscope
Tested data can be saved and exported to your computer
Full-viewing oscilloscope with low battery indication
Specifications:
Display: 3.2 inch TFT
Bandwidth: 50MHz
Real-time sample rate:200MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: X1: 40V; X10: 400V (DC+AC peak)
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div

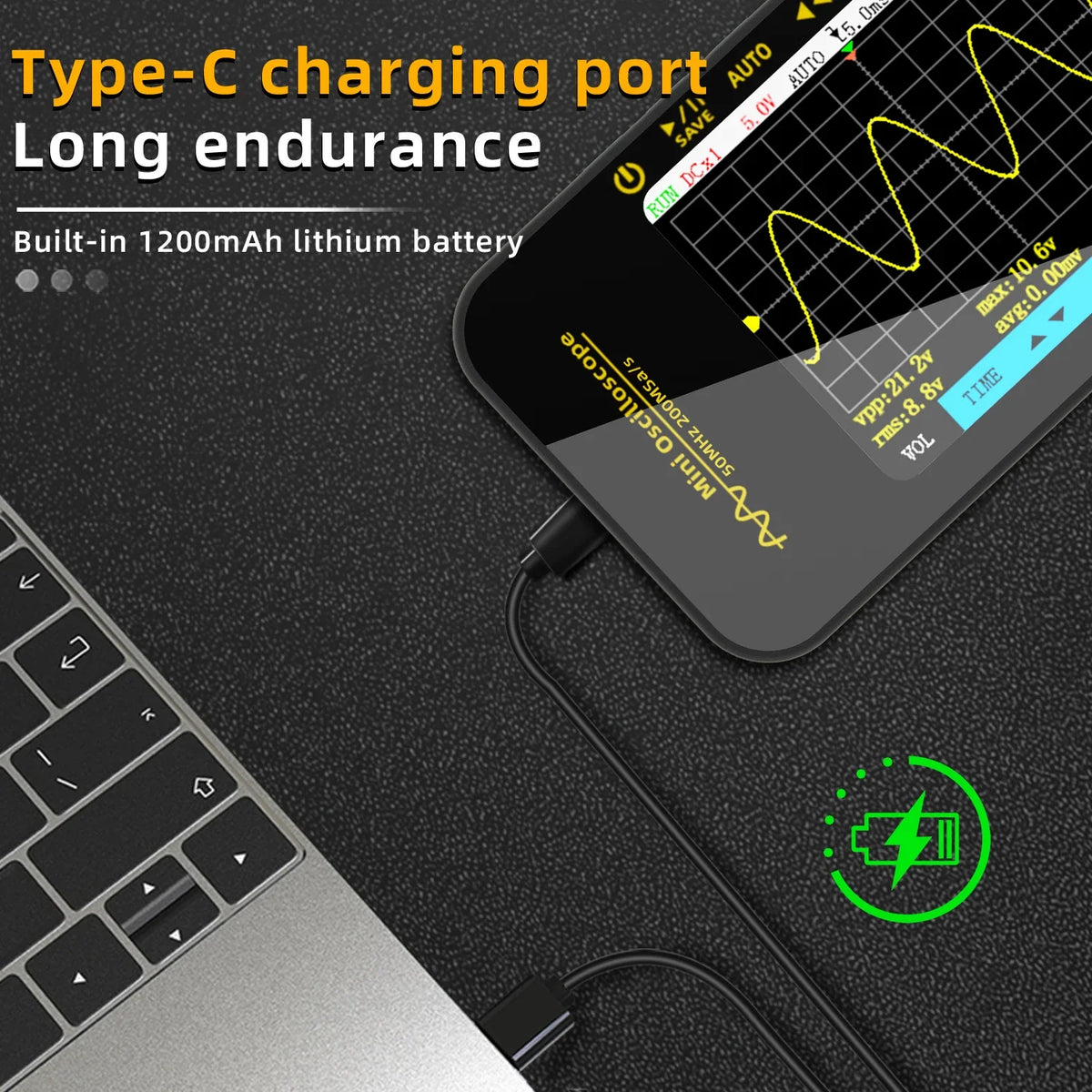

Power: 1200mAh Rechargeable Li-ion battery

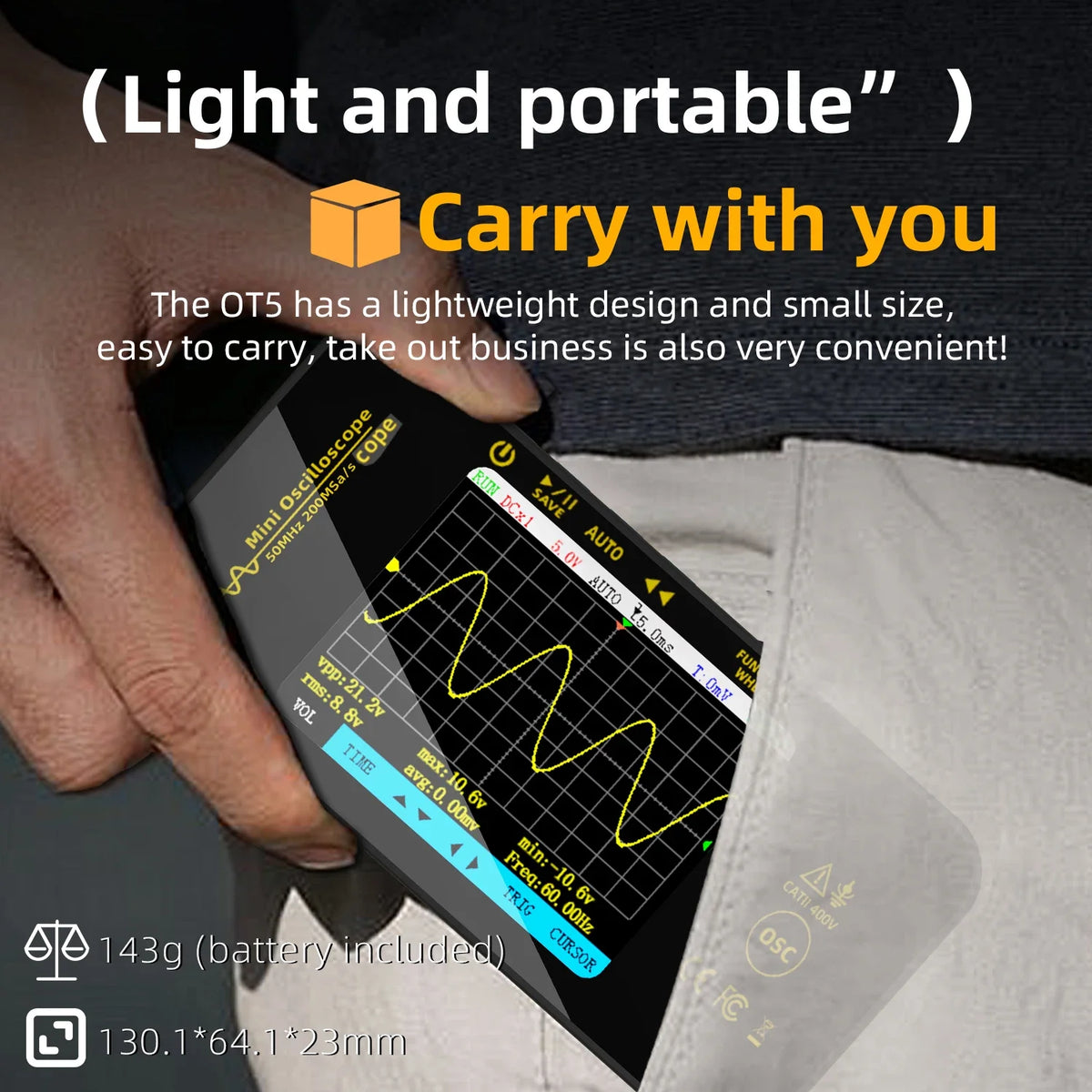

Size: 129.2 x 63 x 22.3 mm
Weight: 138g
Package Includes:
1 x Handheld Oscilloscope
1 x Oscilloscope Probe
1 x BNC to Double-Headed Alligator Clip Test Leads
1 x Carrying Case
1 x Charging Cable
4 x Marker Rings
1 x Adjustment Tool
1 x User Manual
