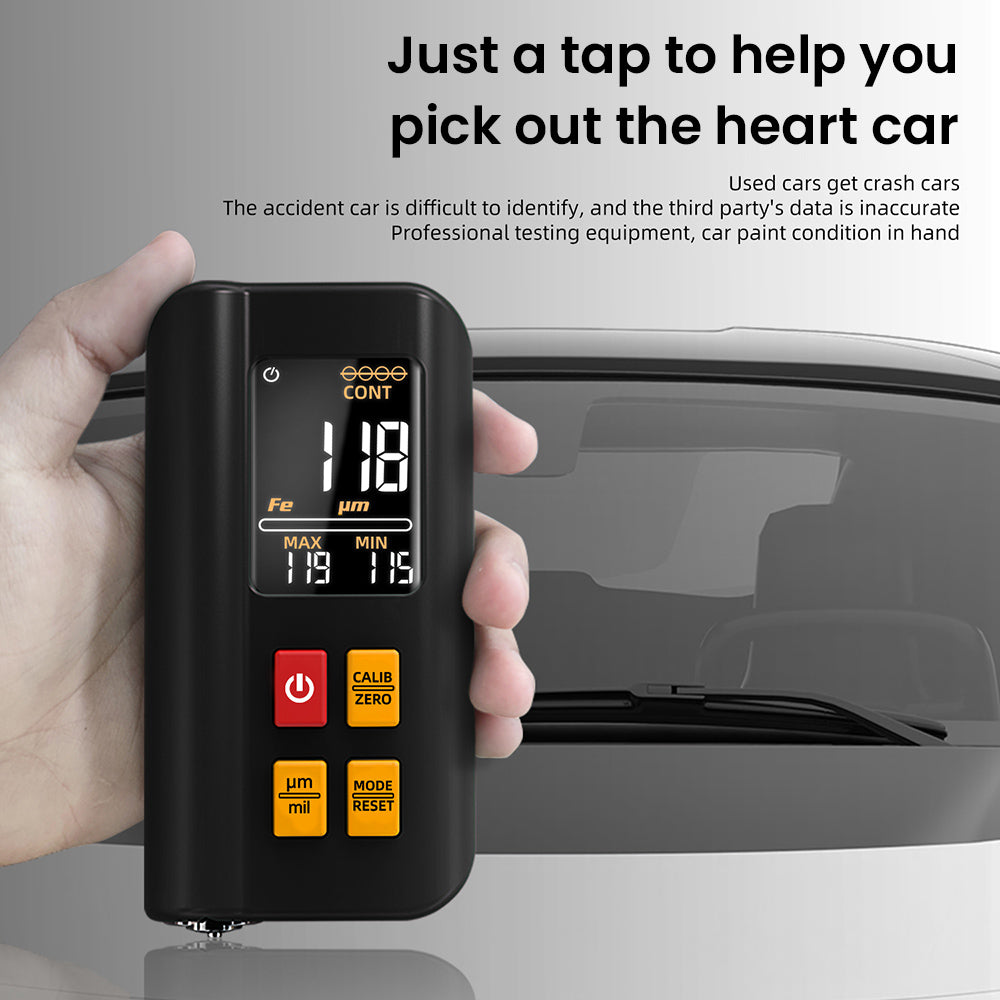

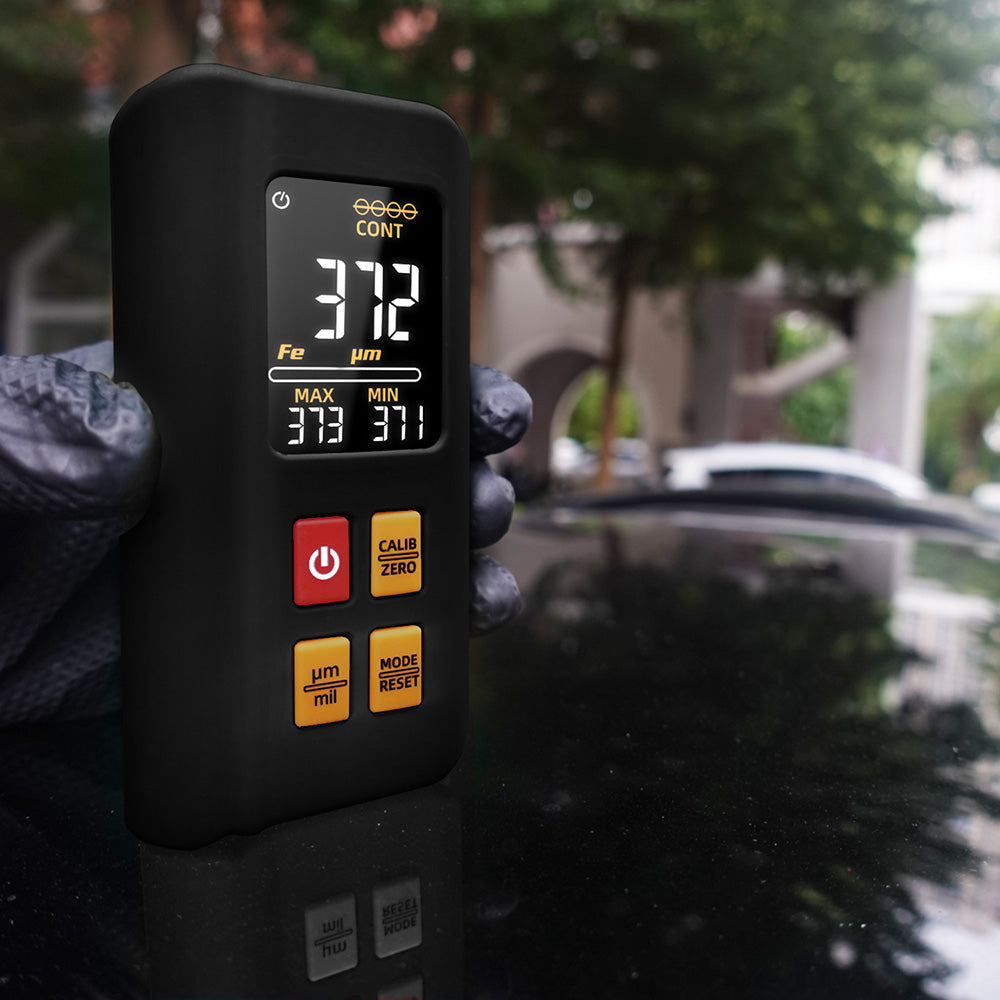

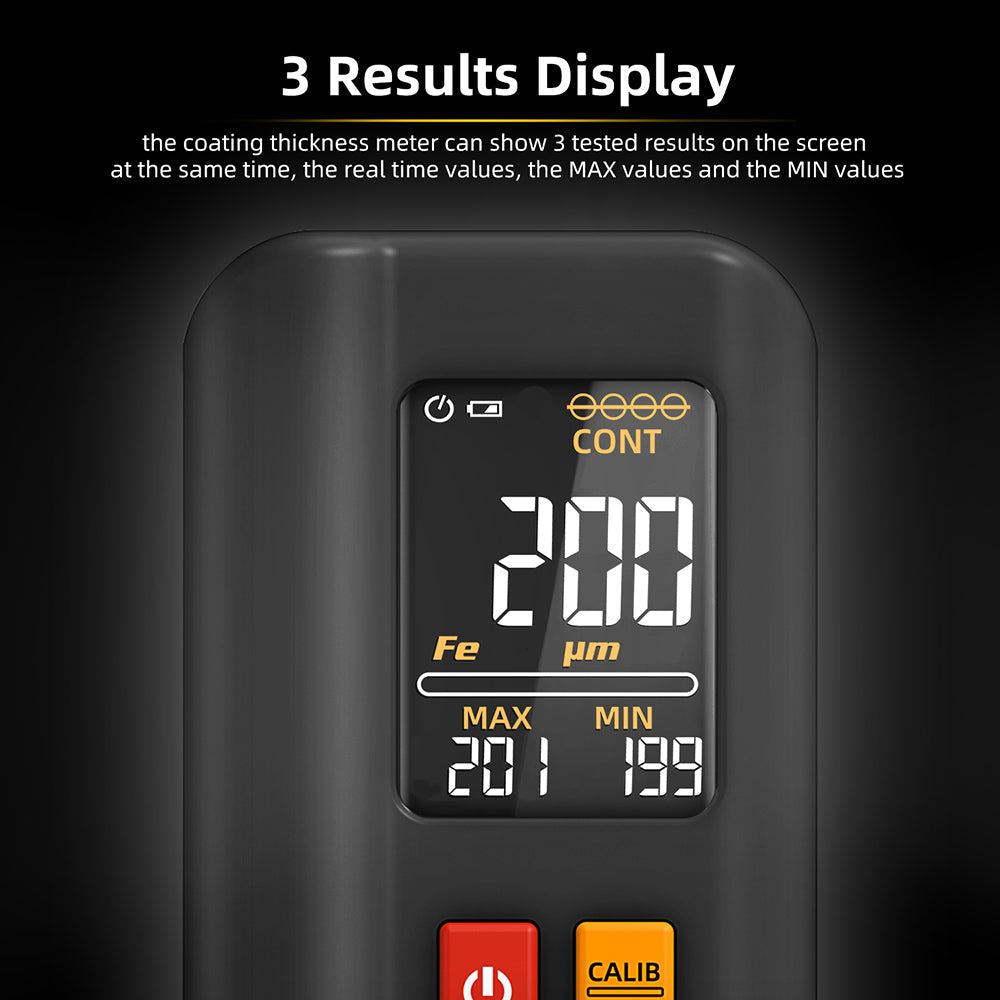

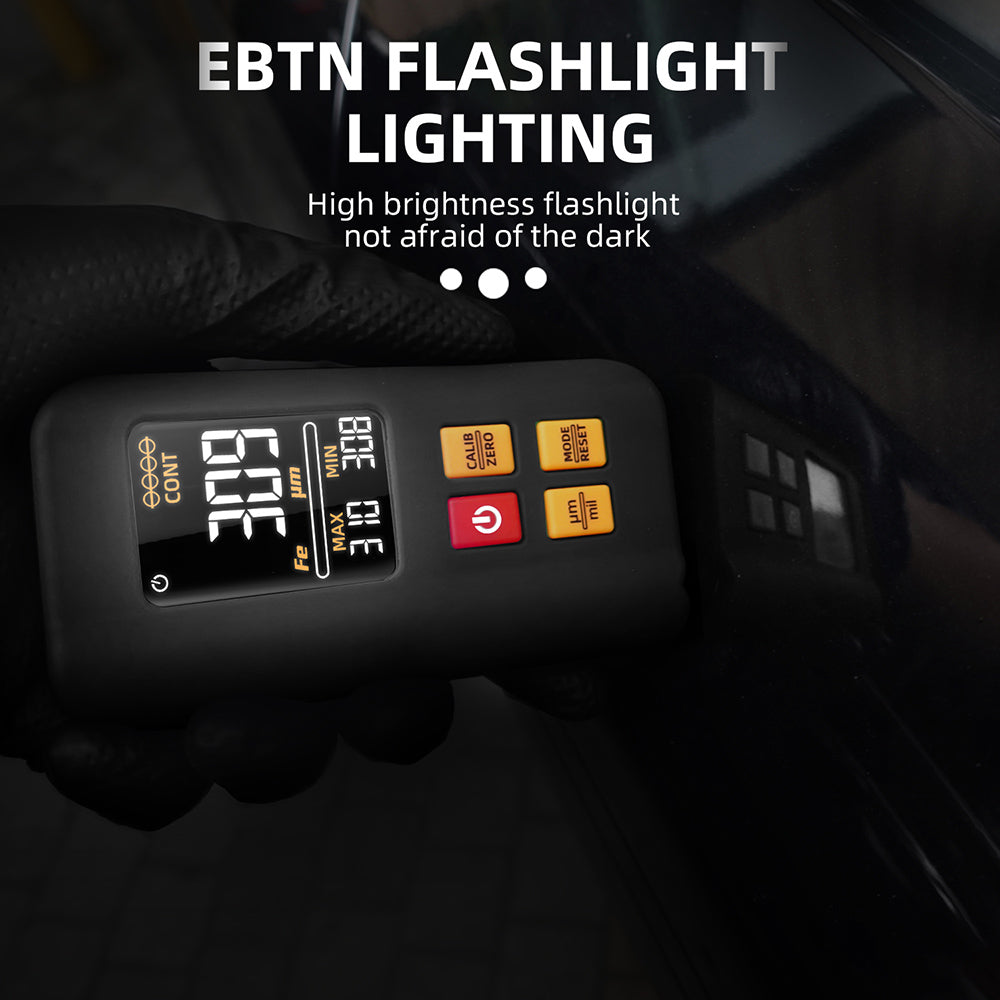

BSIDE T2X Coating Thickness Gauge – Color LCD, Rechargeable Paint Film Tester (0-1500μm)
SKU: sku-47642797736179
Orders placed by 2:00 pm CT ship the same business day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day shipping
In-stock orders placed by the cutoff ship the same business day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day dispatch on in-stock items
- Carrier transit time not guaranteed
Weekend and holiday orders ship the next business day; out-of-stock items are excluded.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers

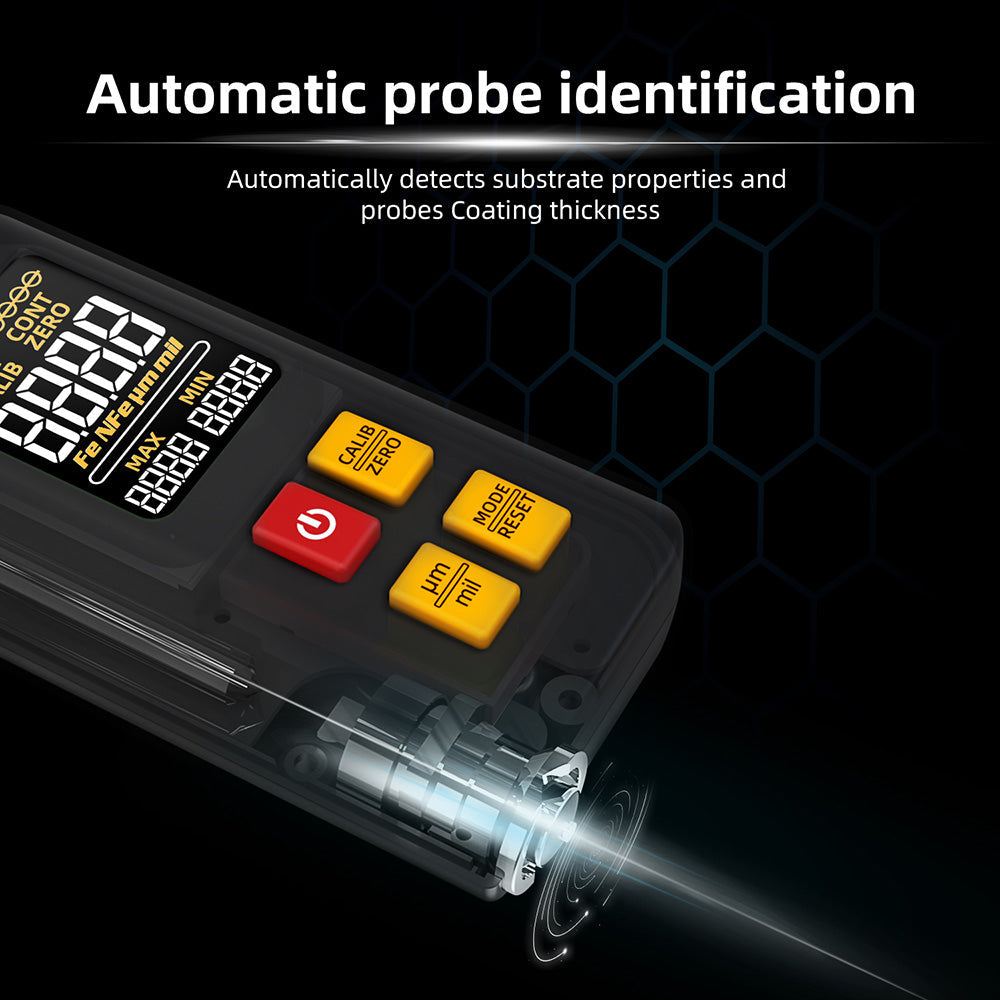

NFe-Probe/Eddy Current
The paint depth tester can measure the thickness of nonconductive coating layers covering the nonferrous substrate, such as enamel, rubber, paint, varnish, and plastic anodic-oxide layer covered on the nonferrous substrates (aluminum, brass, zinc, tin, and nonmagnetic stainless steel).
Fe-Probe/Magnetic Induction
The car paint mill thickness gauge can measure the thickness of non-magnetic coating layers on magnetic substrates, such as aluminum, chrome, copper, enamel, rubber, and paint on magnetic substrates (steel, iron, alloy, and magnetic stainless steel).
High Precision
Mearsuring range: 0-1500µm (0-59.1mils); Resolution: 0.1µm/0.01mils; Accuracy: Fe-probe ±(3%+2µm), NFe-probe ±(3%+2µm). µm and mil units are switchable.
Wide Application
The digital coating thickness meter is widely used in manufacturing companies, shipbuilding, aircraft industries, metal machinery industries, chemical industry, and especially in automobile/car trading.

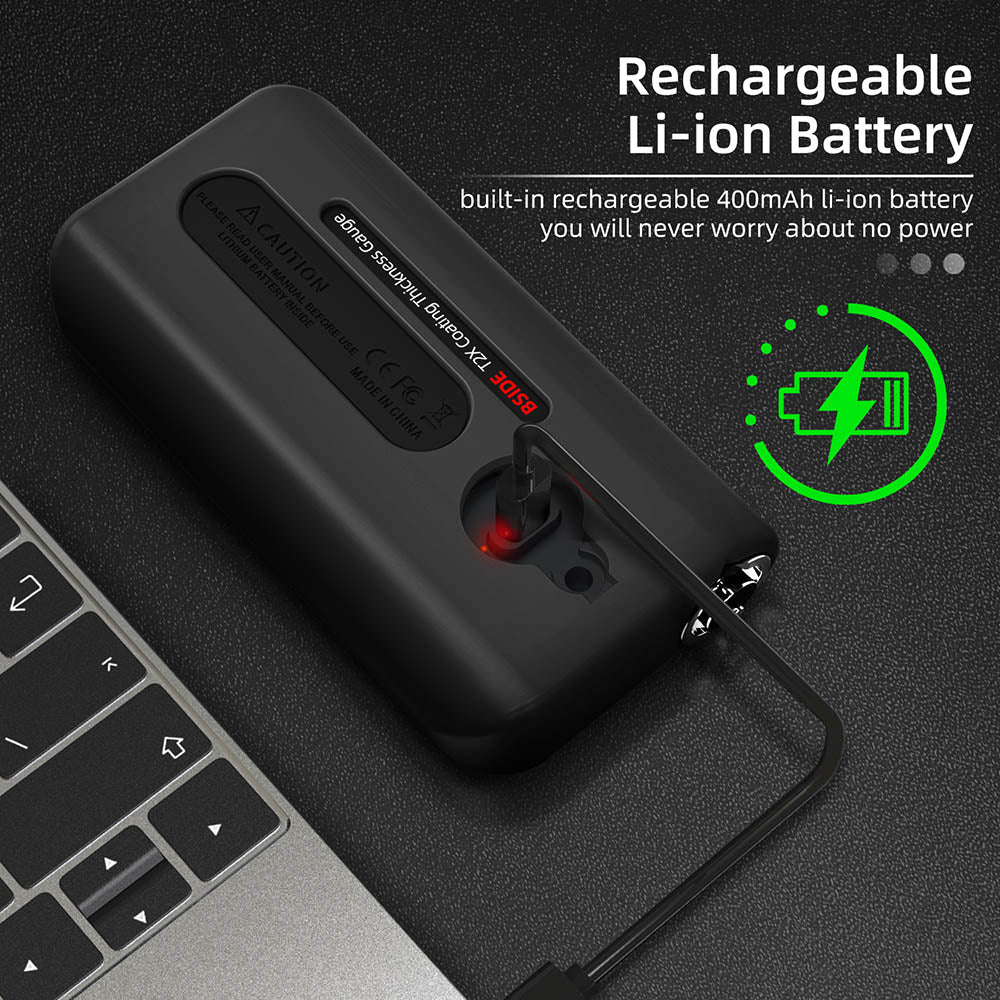

Rechargeable and Convenient
The BSIDE rechargeable coating thickness gauge comes with a rechargeable battery and a charging cable, ensuring that you never have to worry about running out of power during your measurements.
Specification
| General | Brand: BSIDE Type: Coating Thickness Gauge Model: T2X Color: Black |
| Specification | Display: LCD screen Battery pressure indication: LCD screen Power supply: built-in 3.7V 400mA battery Working altitude: maximum 2000 meters Fe probe (iron base): electromagnetic induction NFe probe (aluminum/copper and other non-magnetic substrates): eddy current effect Test range: 0 to +(3%+2μm) Accuracy: +(3%+2μm) Resolution: 0.1μm Minimum substrate thickness: 0.5mm Calibration: Zero calibration, multi-point calibration Units: μm microns, mil mils Minimum convex radius of curvature: 1.5mm Minimum concave radius of curvature: 25mm Minimum measurement area diameter: 6mm Temperature: 0-40°C(32-104°F) Humidity: 20%~90%RH; No strong magnetic field |
| Weight & Size | Product Weight: 109.3g Package Weight: 241g Package Size(L x W x H): 135*87*45mm |

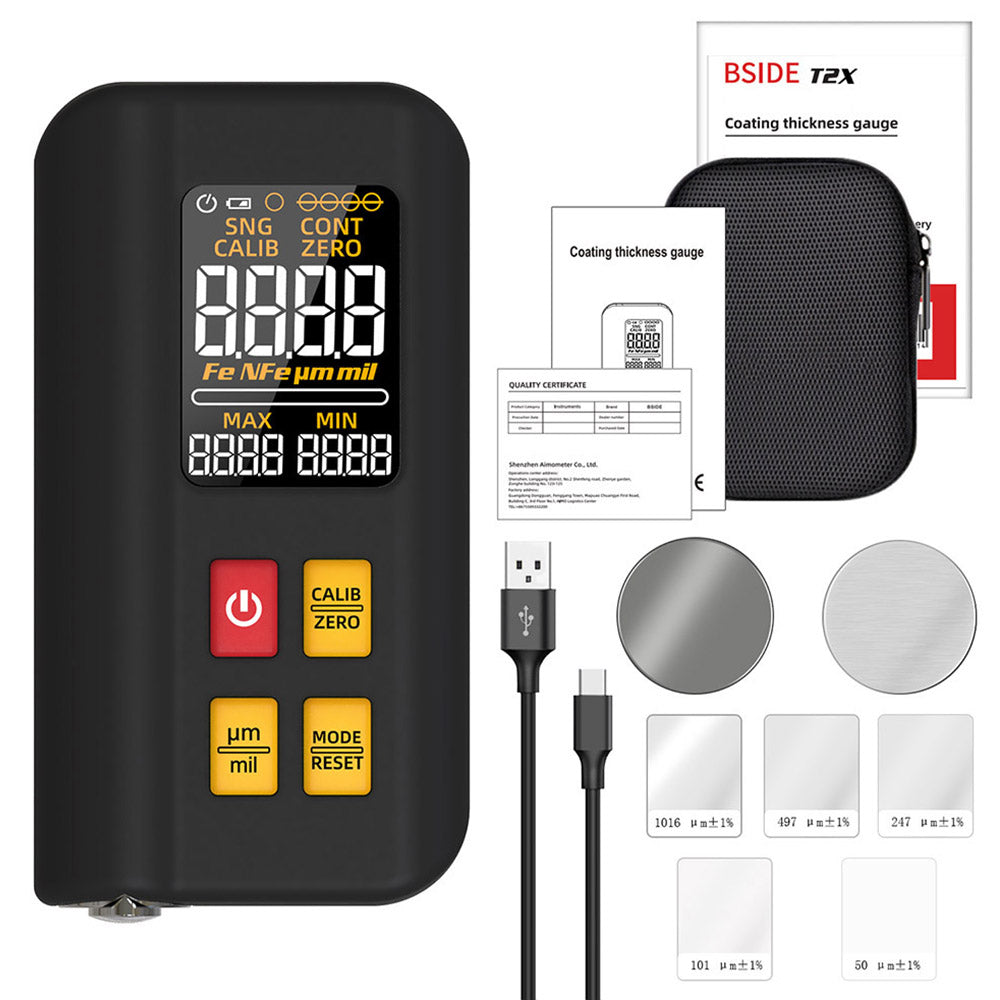

| Package Contents | 1 x Coating Thickness Gauge 1 x EVA Bag 1 x User Manual |
