BSIDE U6 Fork Digital Clamp Meter 600A with T-RMS & OpenJaw Multimeter

Specifications

Dimensions:21*6.3 * 3.3cm
Operating Temperature:0~40 ℃
Measuring Inductance Range:N/A
Measuring Capacitance Range:10mF
Measuring Resistance Range:10Mohm
Measuring Voltage Range:620V
Measuring Current Range:1 ~ 600A
Display Type:Analog and Digital
Model Number:BSIDE U6 Fork Digital Clamp Meter
DIY Supplies:ELECTRICAL
Brand Name:BSIDE
Certification:CE,FCC,RoHS
BSIDE U6 Digital Clamp Meter Fork Professional 600A Ammeter Pliers T-RMS DC AC Current OpenJaw Electrical Tester Auto Multimeter

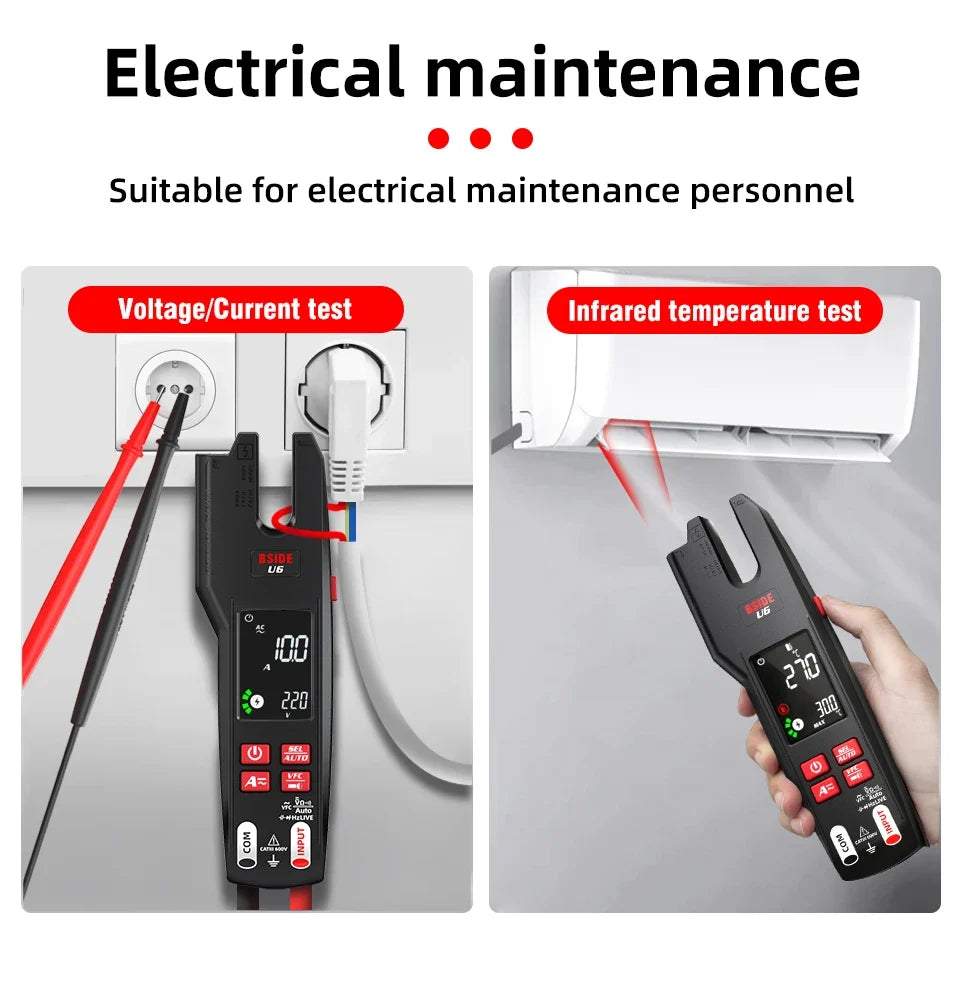

New generation of Smart True RMS DC/AC 600A Fork Open-Jaw digital clamp meter. OpenJaw design is convenient for current testing and maintenance. Innovative dual power supply mode for longer power supply. It have intelligent and professional measurement functions, and Infrared temperature est. Full function with gear display, analog bar multiple displayIt is the best choice for professional electrician, engineer, electronic enthusiast or family use.

Ordering instructions:
The difference between U6 and U6X is the object distance ratio of infrared temperature measurement, U6 is 4:1 and U6X is 12:1

Specification:
Display: 9999PCs
DC Current: 1-600A 0.1A ± (2.5%+5 Count)
AC current: 1-600A (AC mode, 40-200Hz) 0.1A± (2.5%+5 times); 1-600A (VFC mode, 40-200 Hz) 0.1A ± (4.0%+5 cycles)
DC voltage: 0-620V (DC mode) 0.001V± (0.8%+3 times); 0.5-620V (Auto mode) 0.001 V ± (0.8%+3 times)
AC voltage: 0-620 V (AC mode) 0.001 V ± (1.2% + 5 times); 0.8-620V (Auto mode): 0.001 V ± (1.2% + 5 count); 0-620 V (VFC mode) 0.1V ± (4.0% + 3 times) VFC/VFD voltage: Yes. Resistance: 0-10MΩ 0.1Ω ± (1.2% + 3 times)

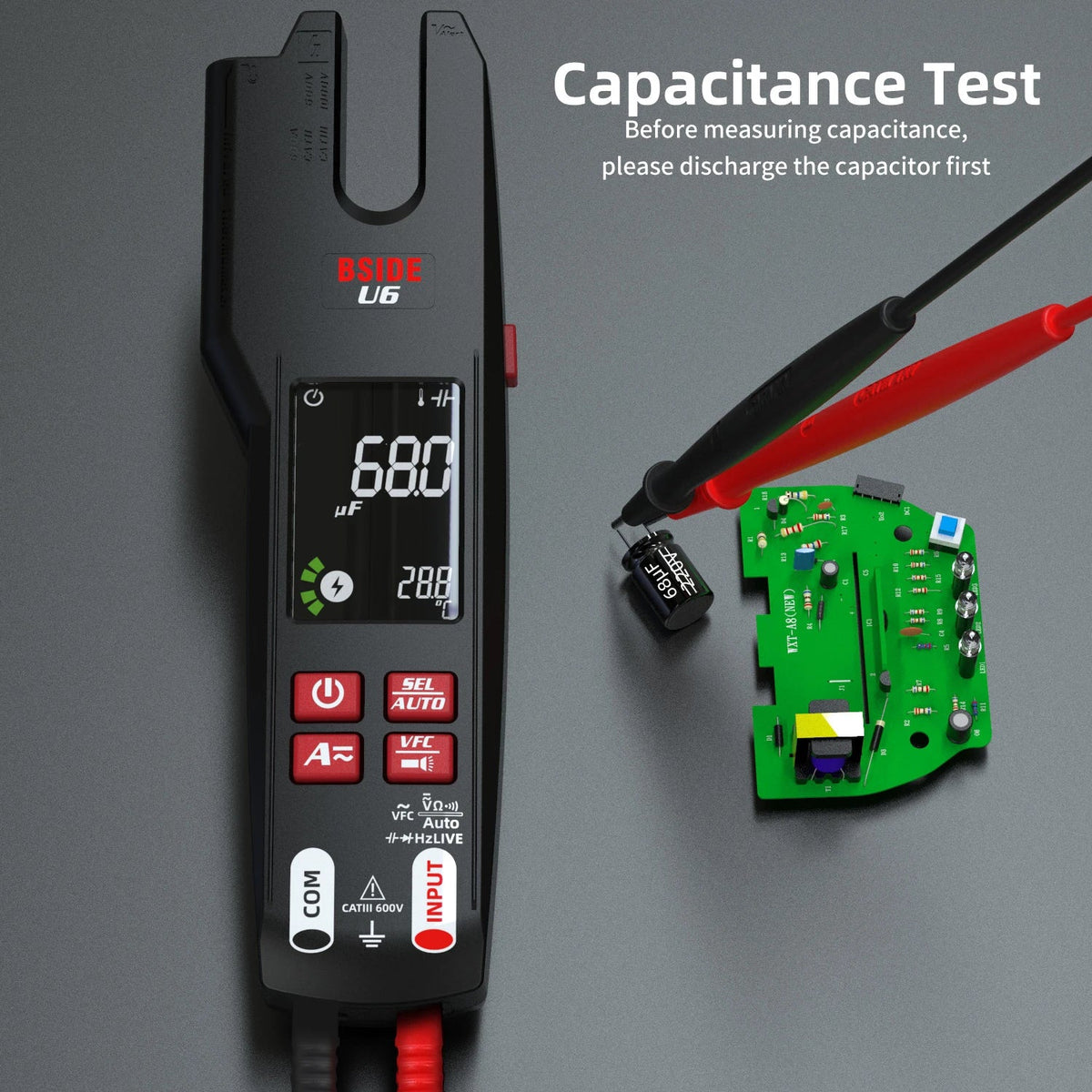

Capacitance: 0.5μF-1000μF 0.1μF± (3.5% + 8 counts); 1000μF-10mF 0.1μF ± (4.5%+10 count)
Frequency: 10-1000Hz 1Hz ± (2.0%+10 count)

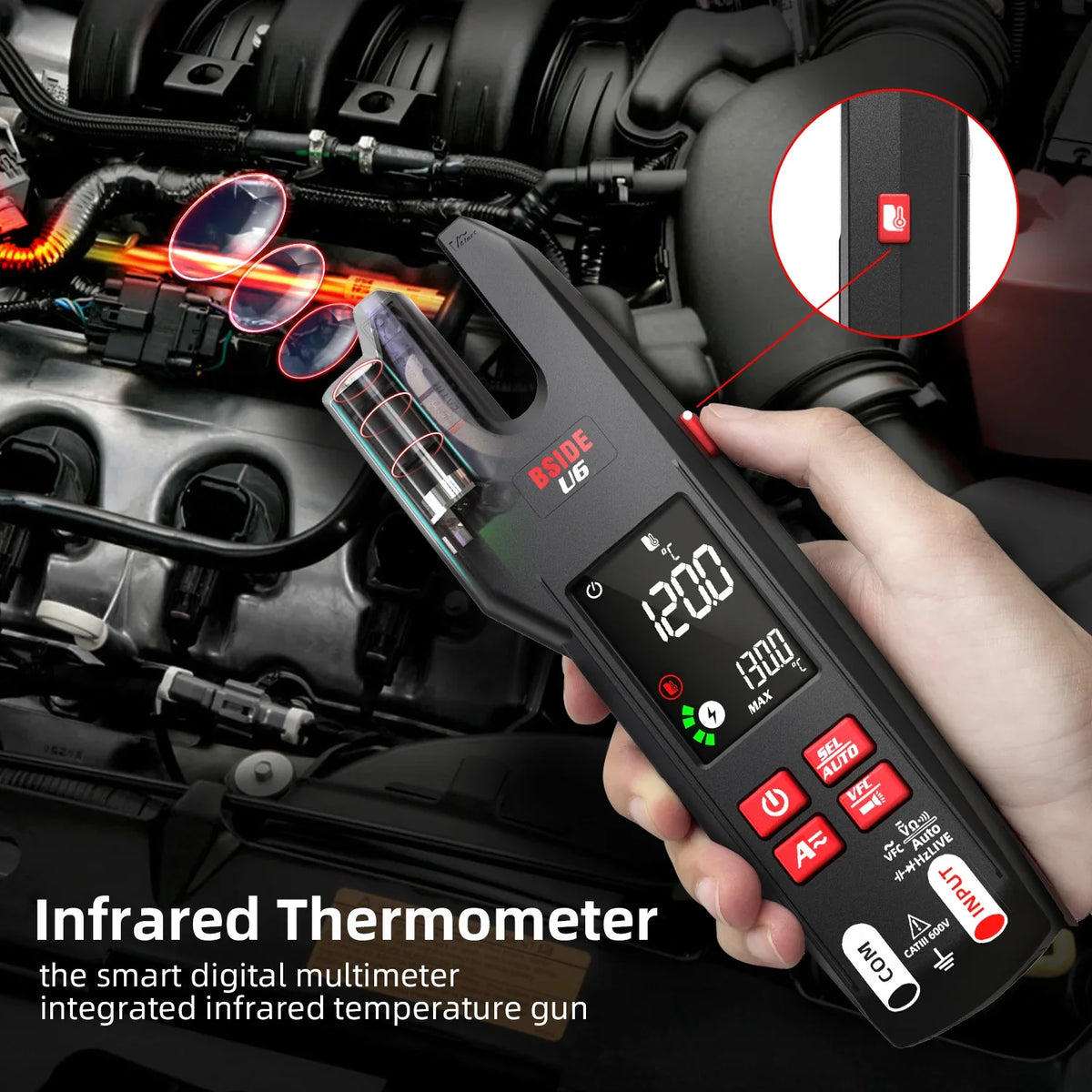

Infrared temperature: -20°C~0°C/-4°F-32°F 0.1°C/0.1°F ±(3.0%+2°C/°F); 0°C~400°C/32°F-752°F 0.1°C/0.1°F ±（2.5%+3°C/°F）
Diode: A diode that measures up to 2.0V
Continuity: If the resistance is less than 30Ω, the continuity buzzer sounds
Temperature: 0-50°C/32°F-122°F ±2°C/°F
V-Alert (Non-Contact Voltage Detection): Yes

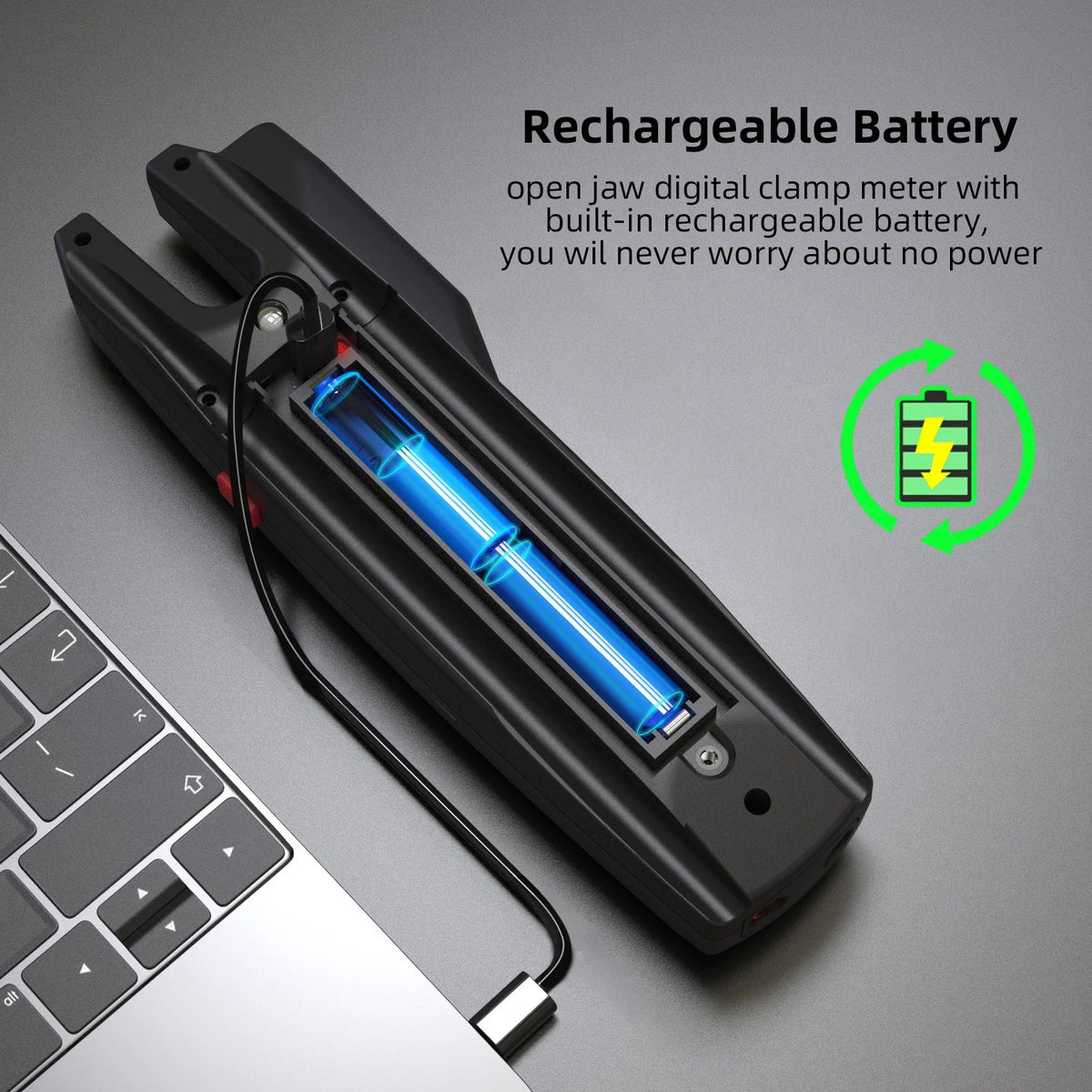

Live wire inspection: Yes power: 1. USB charging (built-in rechargeable battery) 2.1.5V AA battery*2 (not included)
Dimensions: 210x63.7x33mm
Weight: 216 g

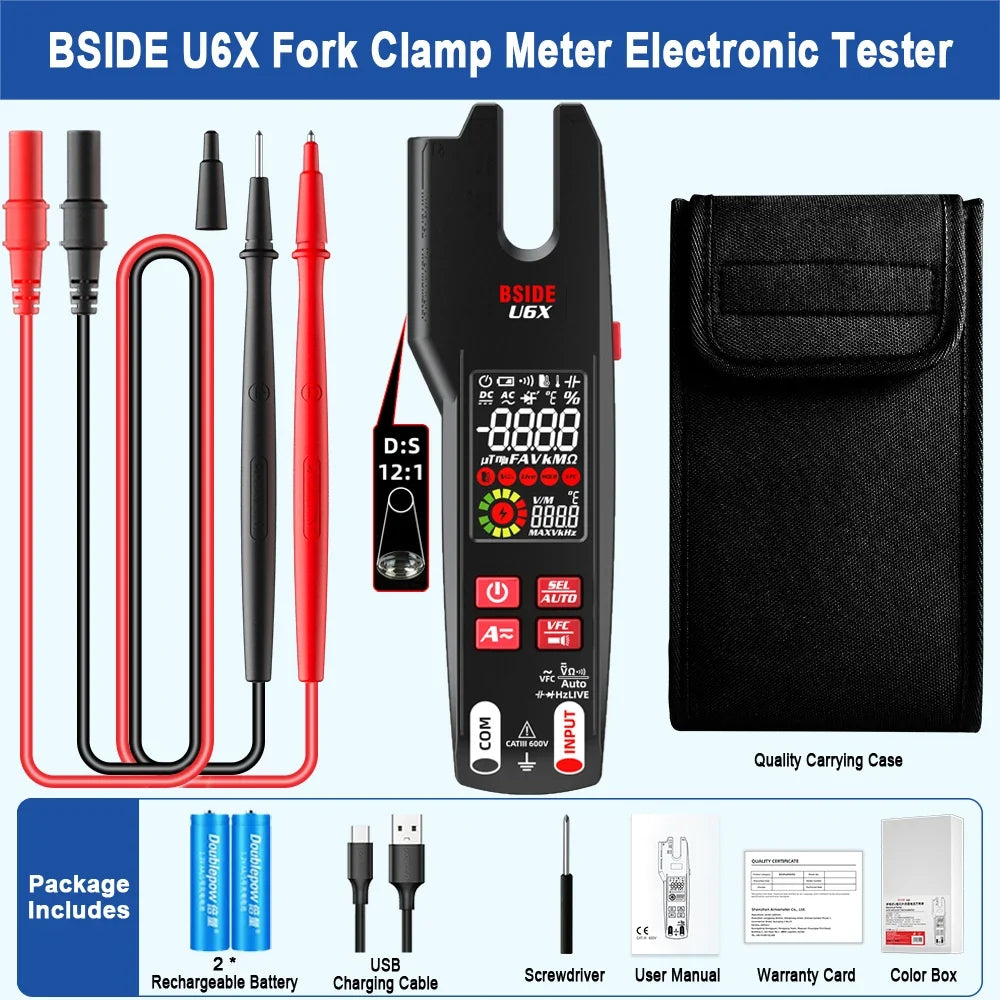

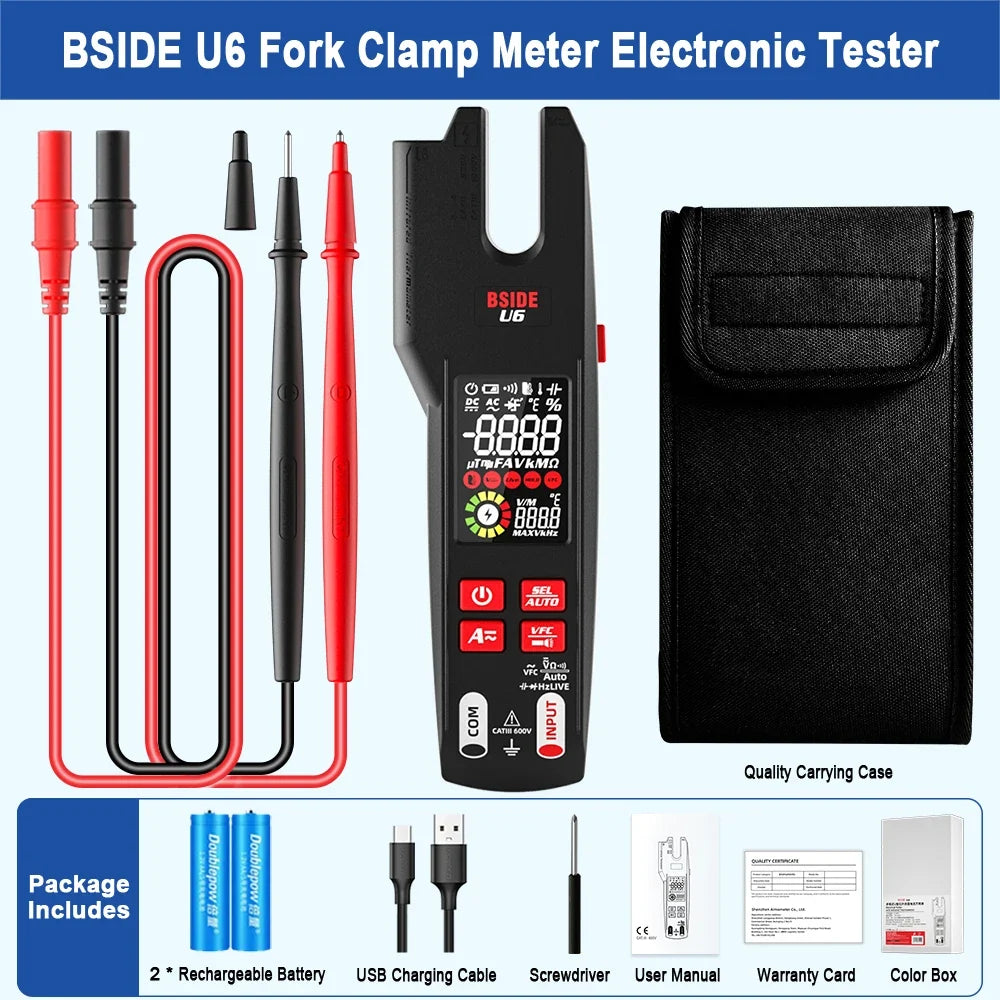

Package Includes:
1 x BSIDE U6/U6X Electronic tester Clamp meter
1 x Upgrade Test Leads；2 x Lithium Battery
1 x USB Charging Cable;1 x Carrying Case
1 x Screwdriver；1 x User Manual；1 x Color Box
