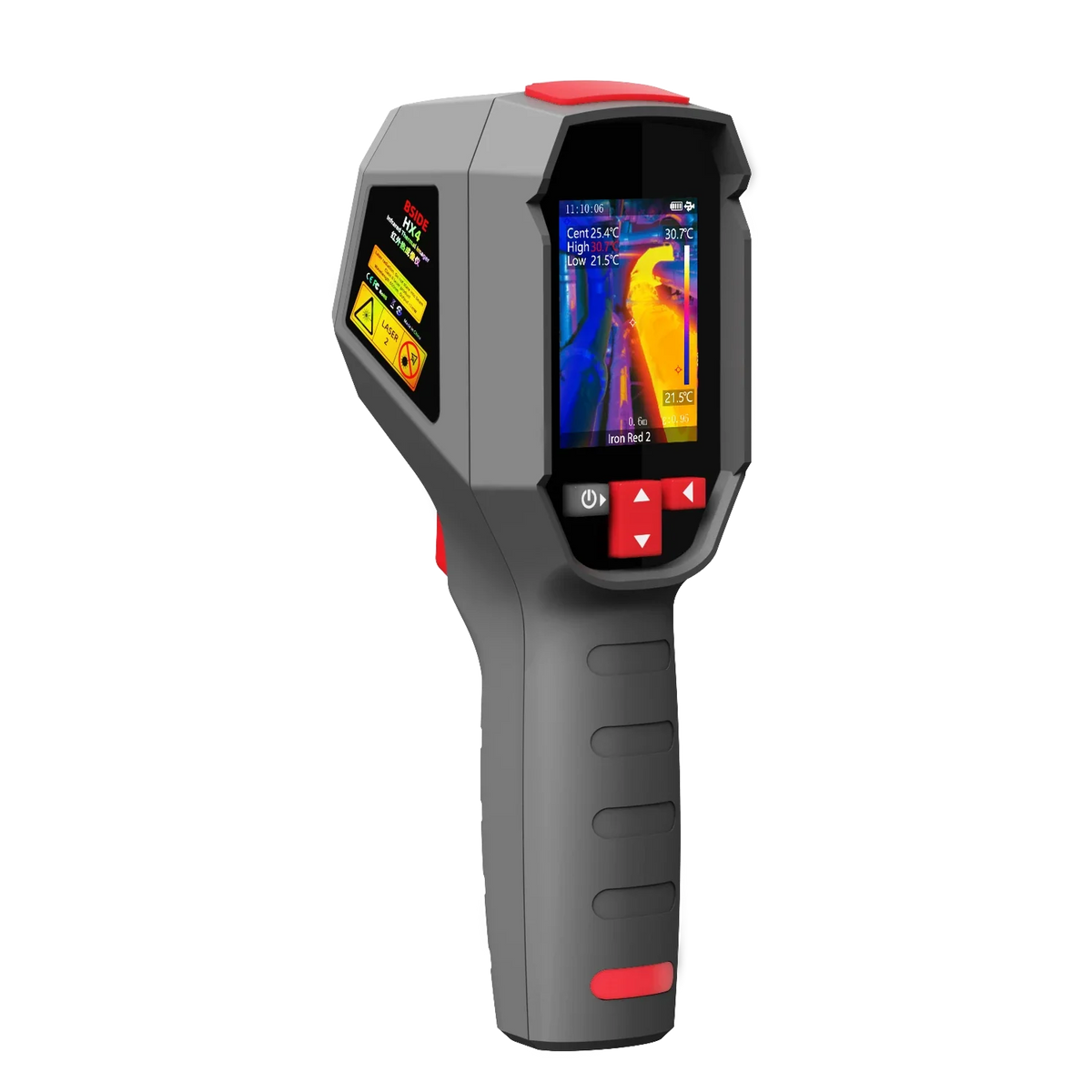

BSIDE HX4 Handheld Infrared Thermal Imager with Dual-Light Fusion for Floor Heating Inspection
SKU: sku-47799888871667
Orders placed by 2:00 pm CT ship the same business day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day shipping
In-stock orders placed by the cutoff ship the same business day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day dispatch on in-stock items
- Carrier transit time not guaranteed
Weekend and holiday orders ship the next business day; out-of-stock items are excluded.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers

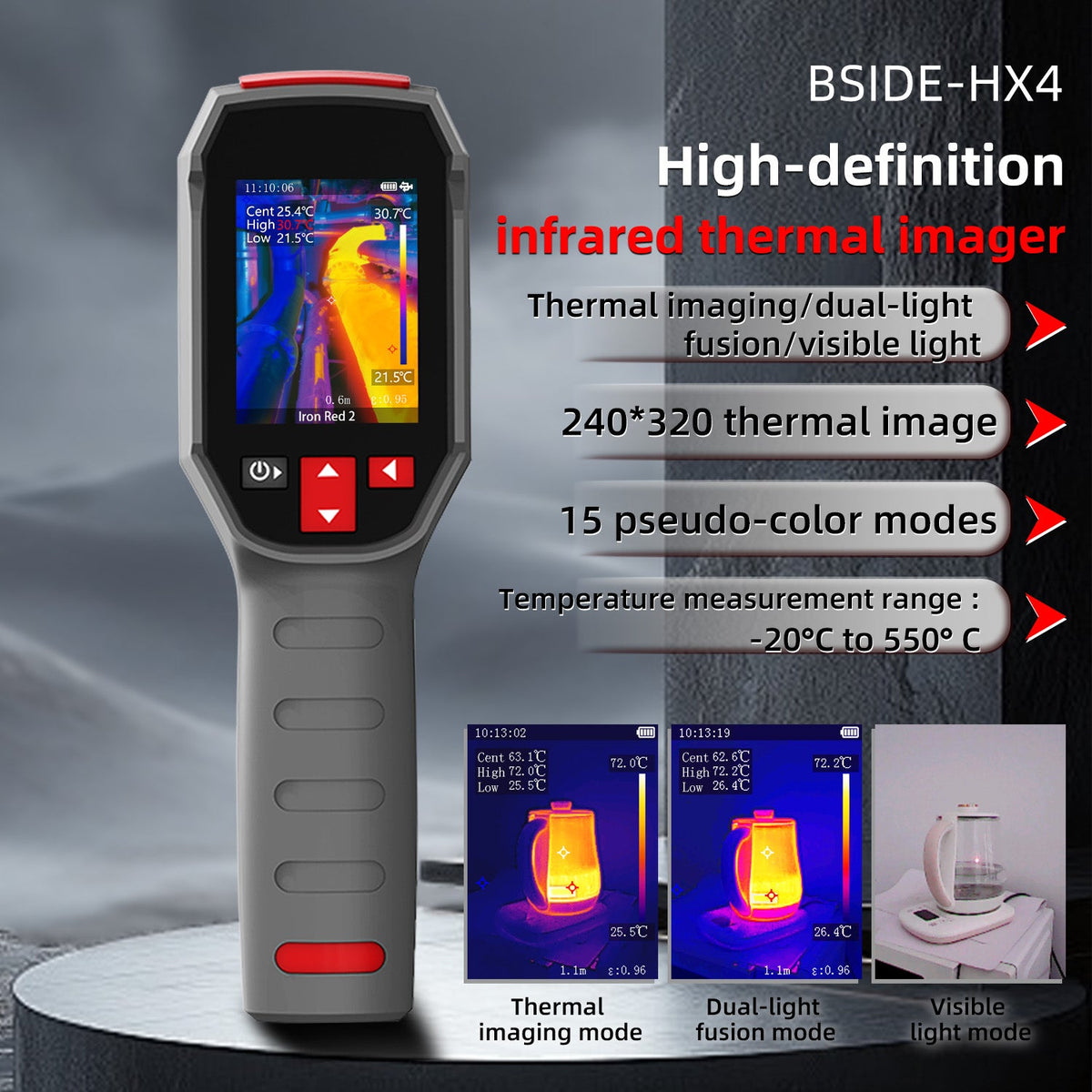

Main features of HX4
IR resolution: 240 x320
Screen: 2.4 inch LCD screen
Frame rate: 25Hz
15 pseudo color modes with
Temperature measurement range:-20°C~550°C

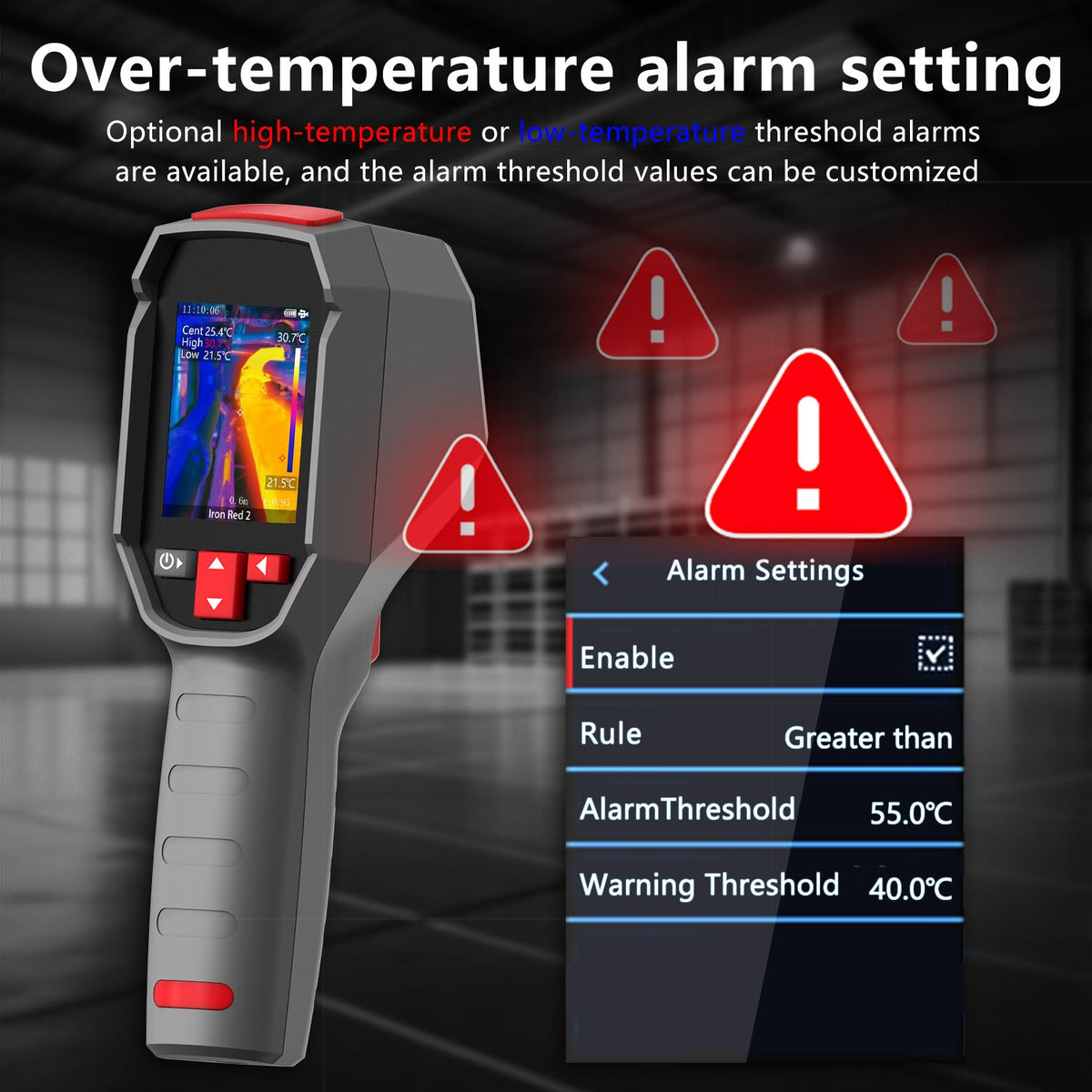

High and low temperature alarms: image, buzz, LED flashing
Laser Indicator/LED llumination Laser Indicator/LED lumination
Emissivity: 0.01~1
Storage: 4GB built-in TF card
Adjustable emissivity
Power supply: 2500mA lithium battery
Three-proof design: lP54/1.5m anti-drop
The bottom design has screw holes for use with a tripod.
Product model:
Product Model: BSIDE HX4
Sensor type: Vanadium oxide microbolometer
IR resolution: 240 x 320
Response band: 8-14 μ m
Frame rate: 25Hz
NETD：< 60mK @ 25 °C

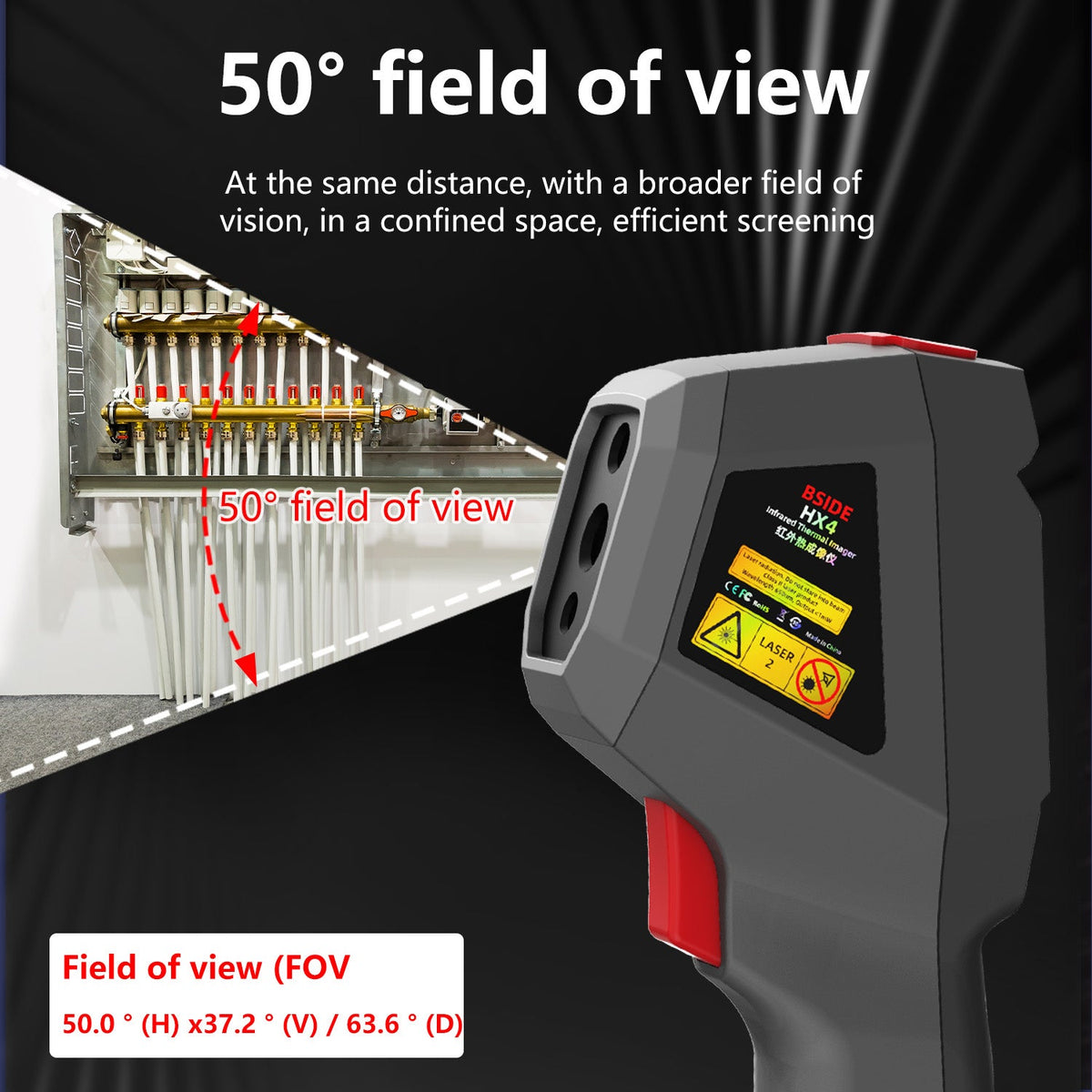

Field of view (FOV): 50°H×50°V/72.1°D
Spatial resolution (IFOV): 8.89mrad
Focal length of imaging lens: 1.35mm
Temperature measurement focal length: 0.3m~3m adjustable

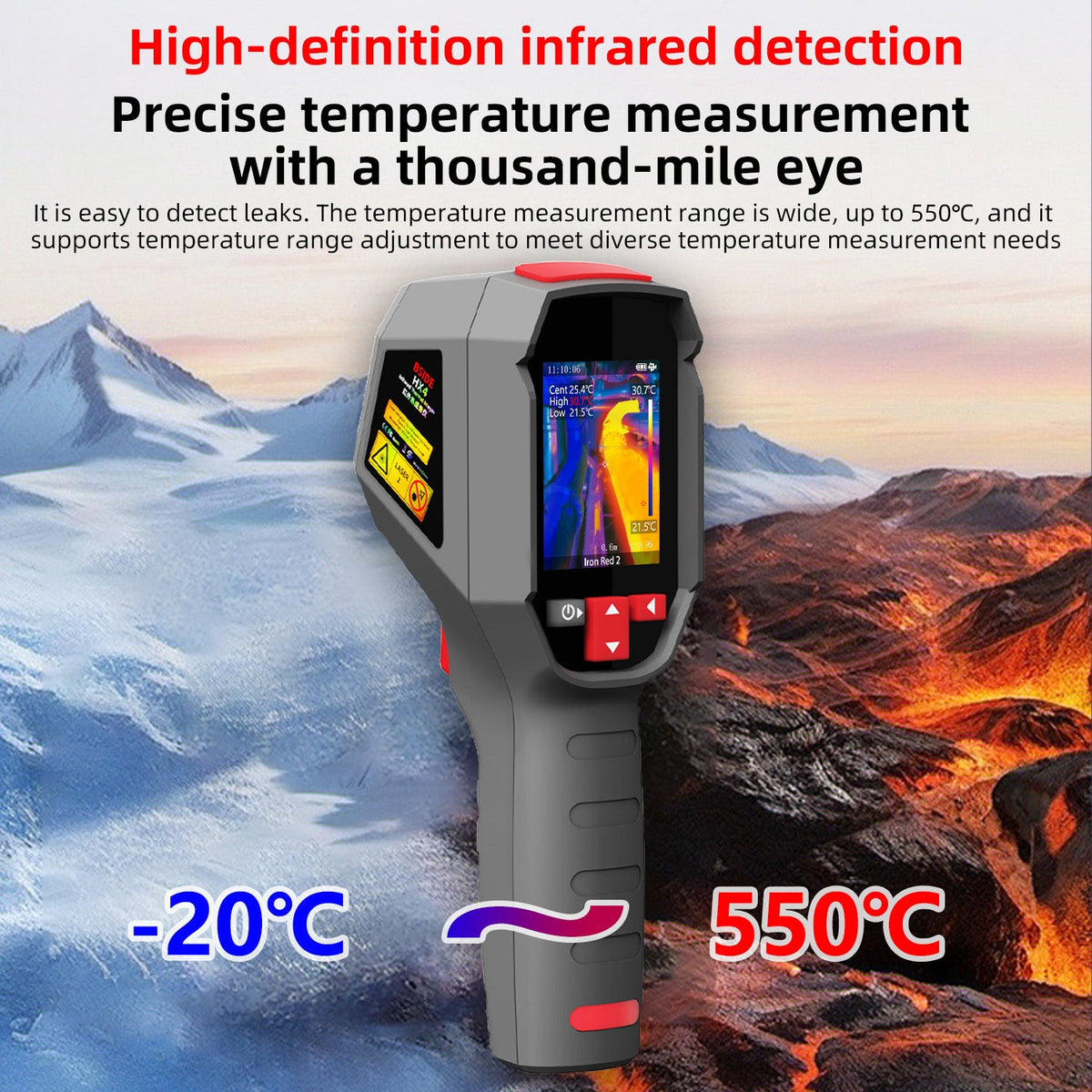

Temperature measurement range: -20 °C to 550 °C
Temperature accuracy: ± 2 °C/± 2% (maximum reading)
Temperature measurement unit: °C/°F/Kelvin
Temperature measurement resolution: 0.1°C
Emissivity: 0.01~1.0 adjustable
Temperature measurement display: central point temperature measurement, high and low temperature tracking

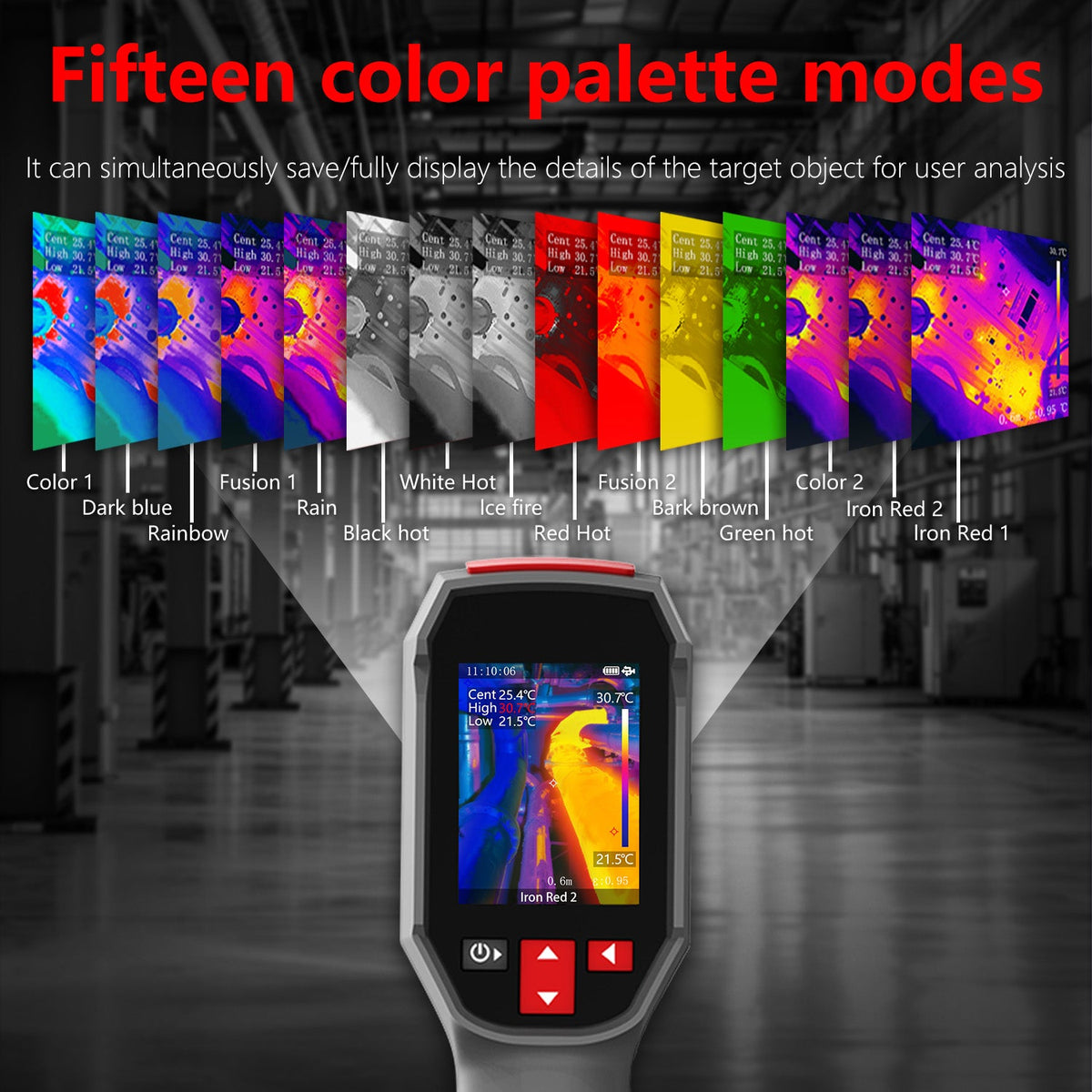

Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue
Display: 2.4 inch TFT LCD screen
Display resolution: 320 x 240px
Buttons: Power button, Up button, Down button, Back button, Trigger button

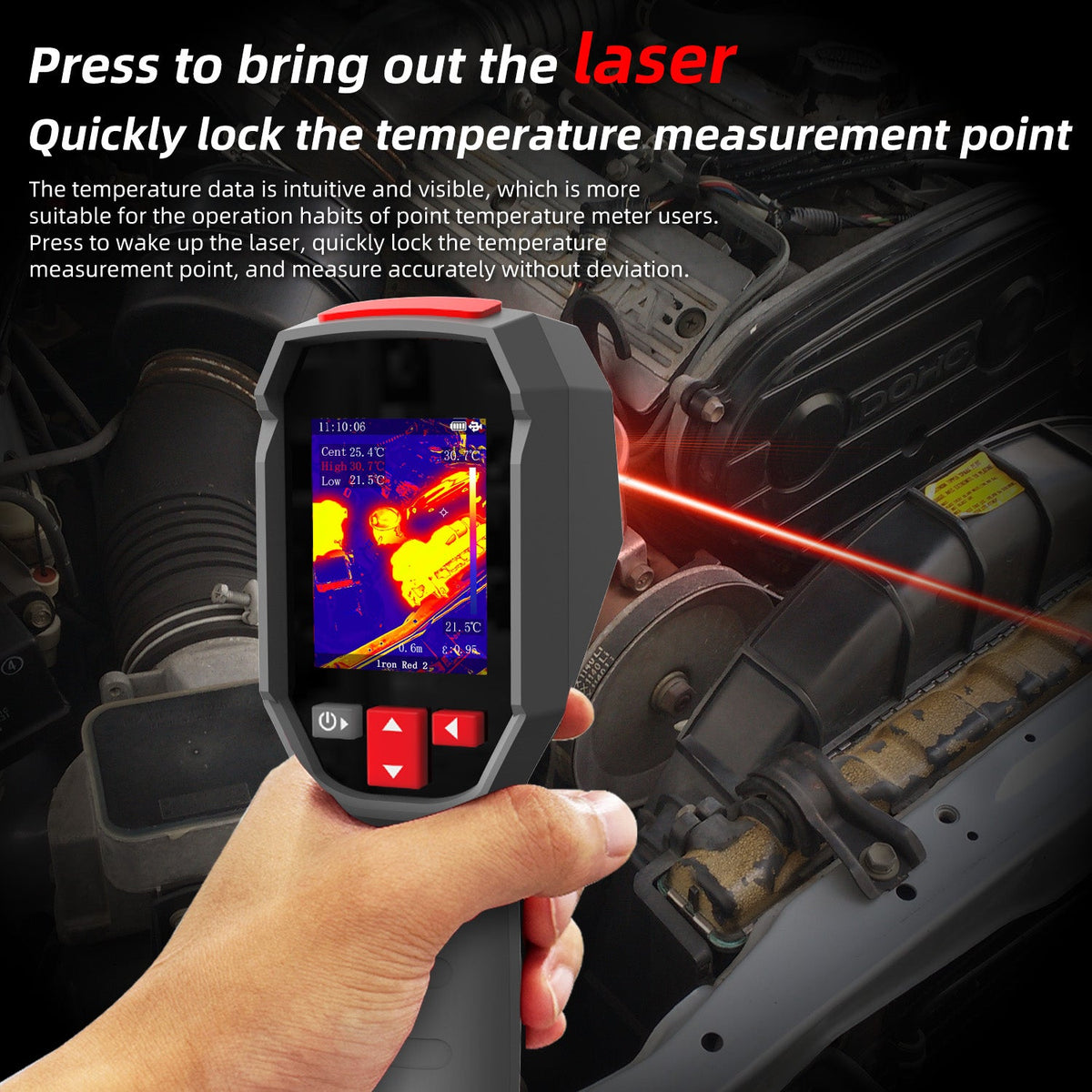

Laser indication: Yes
Storage: Built-in memory card
Number of image files: 26,000
Image format: BPM
Focusing method: Autofocus
High and low temperature tracking: √
Temperature alarm: Screen font color alarm
Battery type: Rechargeable lithium battery (3.7V/2500mAh)

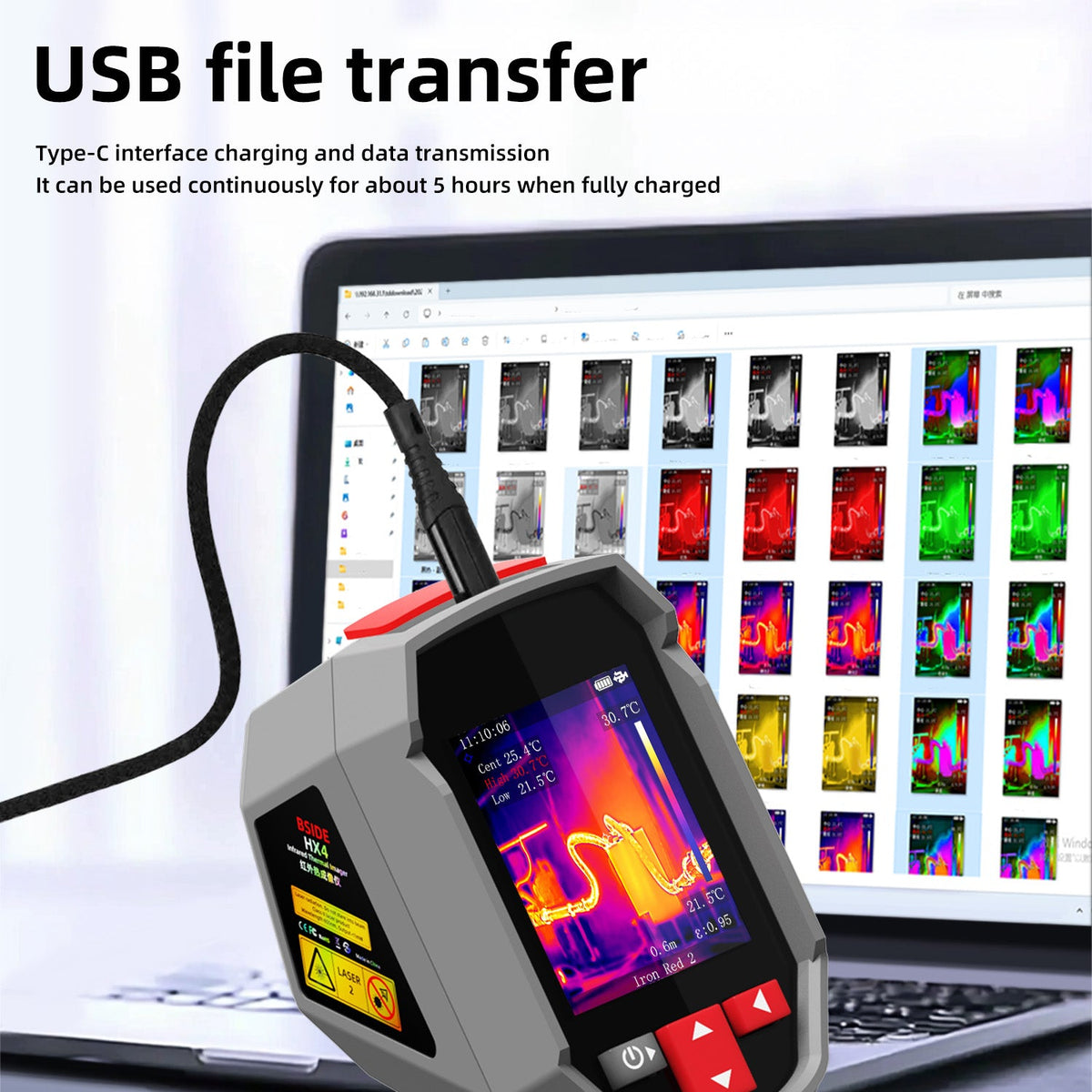

Charging system: Type-C direct charging
Data interface: Type-C USB
Illumination/Laser Instruction: √
Protection Rating/Fall Protection Rating: IP54/1.5m
Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm

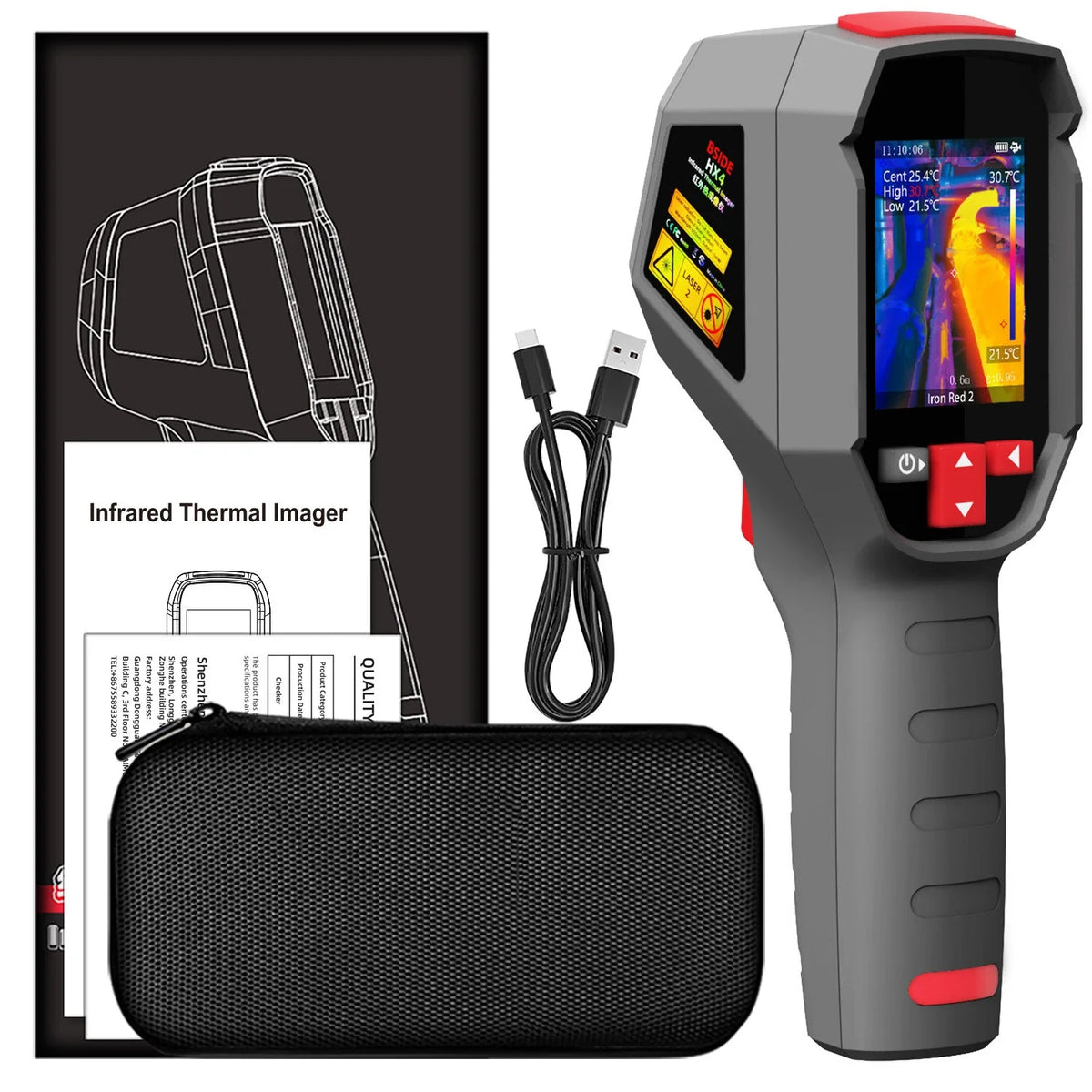

Package Includes:
1 x HX4 Thermal Imaging Camera
1 x Instruction Manual
1 x User Manual
1 x Color Box
1 x Warranty card (12 months)
