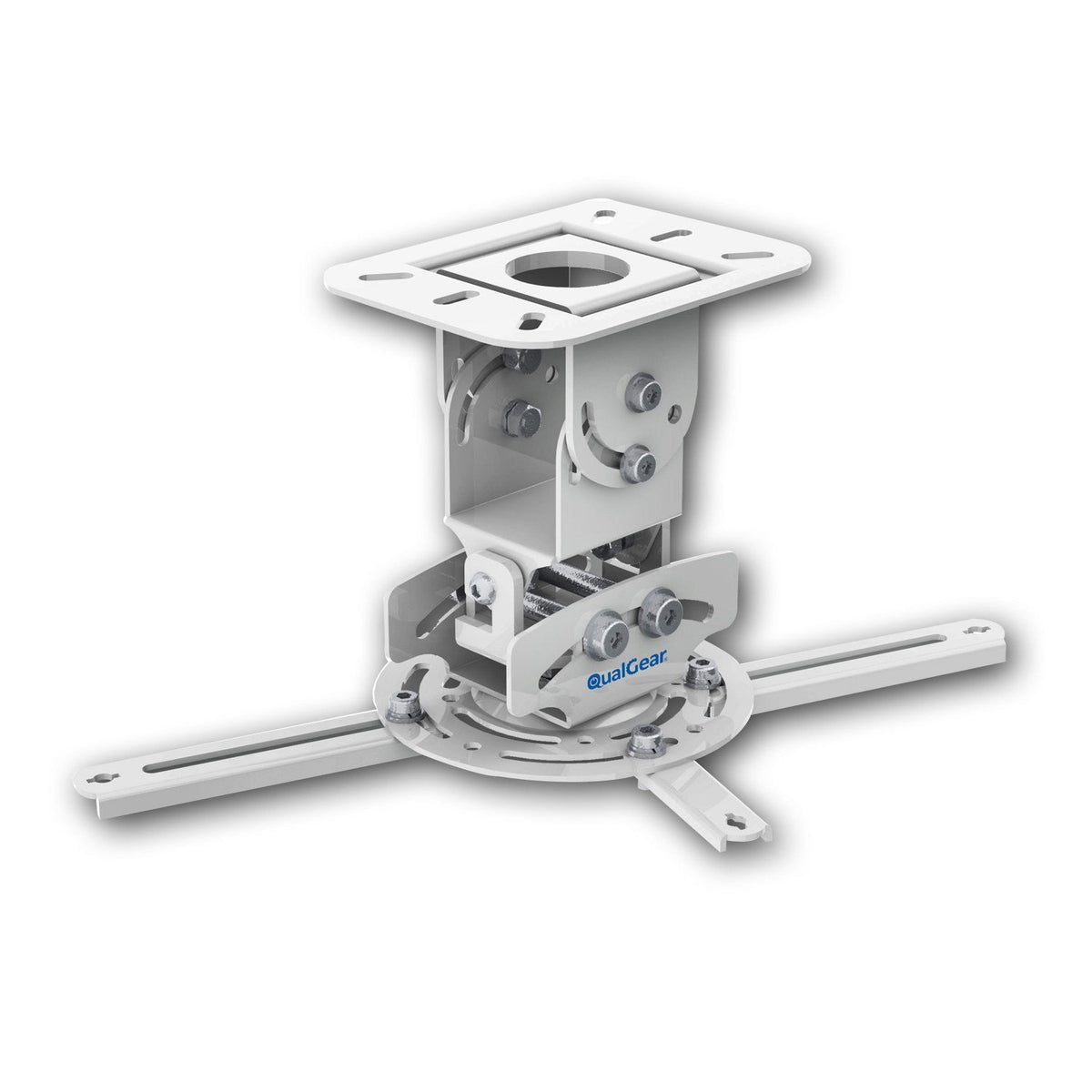

QualGear Low Profile Universal Projector Ceiling Mount, White, PRB-717-WHT
SKU: PRB-717-WHT
Orders placed by 2:00 pm CT ship the same business day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day shipping
In-stock orders placed by the cutoff ship the same business day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day dispatch on in-stock items
- Carrier transit time not guaranteed
Weekend and holiday orders ship the next business day; out-of-stock items are excluded.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
Open the full fit checkerCheck the Key Specifications above for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

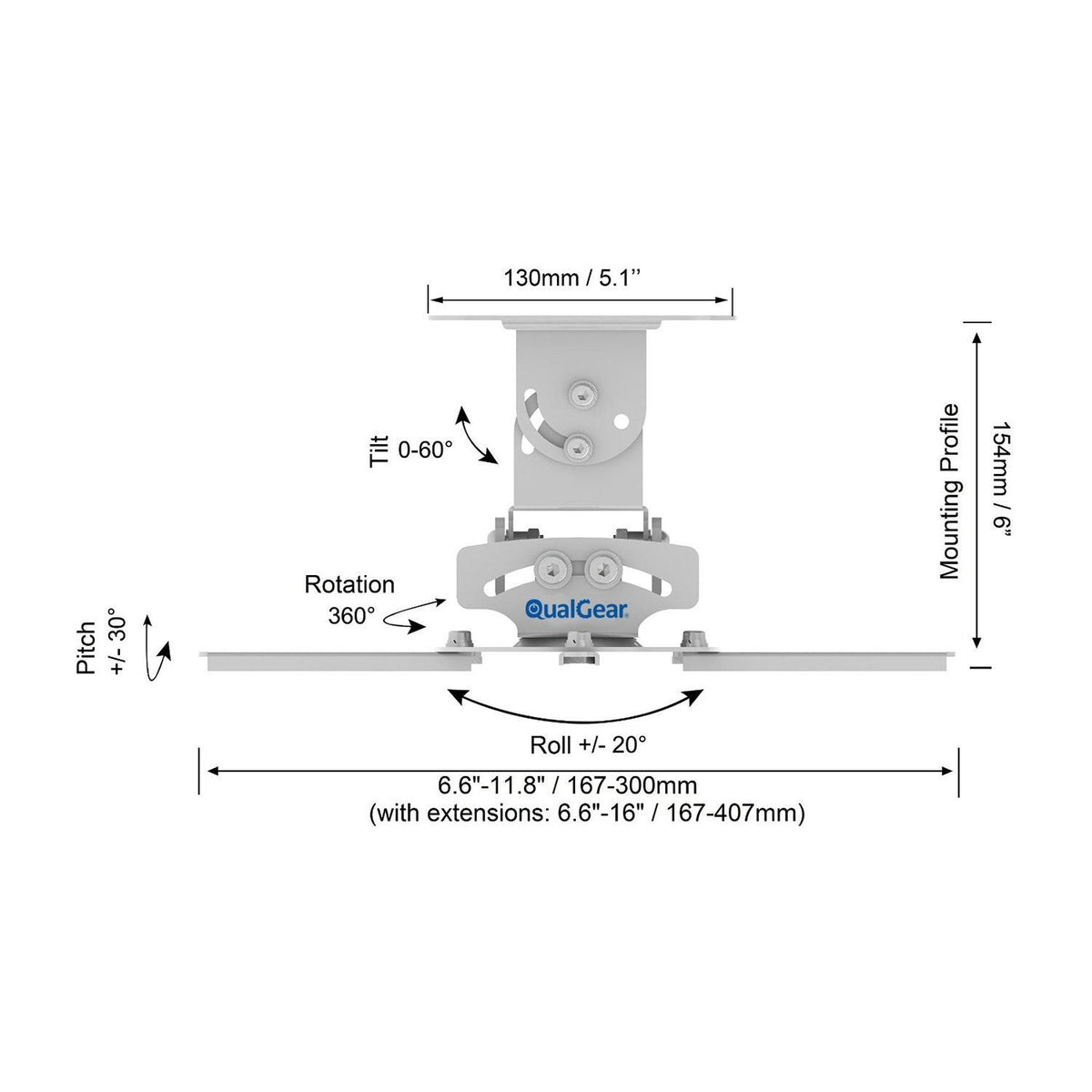

Key Specifications
| Performance / Capacity | |
| Max projector weight | 30 lb / 13.6 kg |
| Tilt | 0-60 degrees |
| Swivel | 360 degrees |
| Pitch | +/-30 degrees |
| Roll | +/-20 degrees |
| Horizontal shift | 1 in / 2.5 cm |
| Dimensions & Weight | |
| Profile (ceiling distance) | 6 in / 15.2 cm |
| Compatibility / Requirements | |
| Mounting hole range | 6.6-16 in / 16.8-40.6 cm |
| Projector types | Most DLP and LCD projectors |
| Materials & Finish | |
| Material | Cold-rolled steel |
| Color | White |
| Care / Installation | |
| Projector release | Snap-on / snap-off quick release |
| Warranty & Support | |
| Warranty | 1-year limited manufacturer's warranty, parts only |
Snap-on quick release holds 30 lb / 13.6 kg at 6 in / 15.2 cm from the ceiling.
Keep the projector tight to a white ceiling and out of the room's sightline. The QualGear PRB-717-WHT low profile universal projector ceiling mount holds projectors up to 30 lb / 13.6 kg just 6 in / 15.2 cm from the ceiling and fits units with mounting holes spaced 6.6-16 in / 16.8-40.6 cm apart.

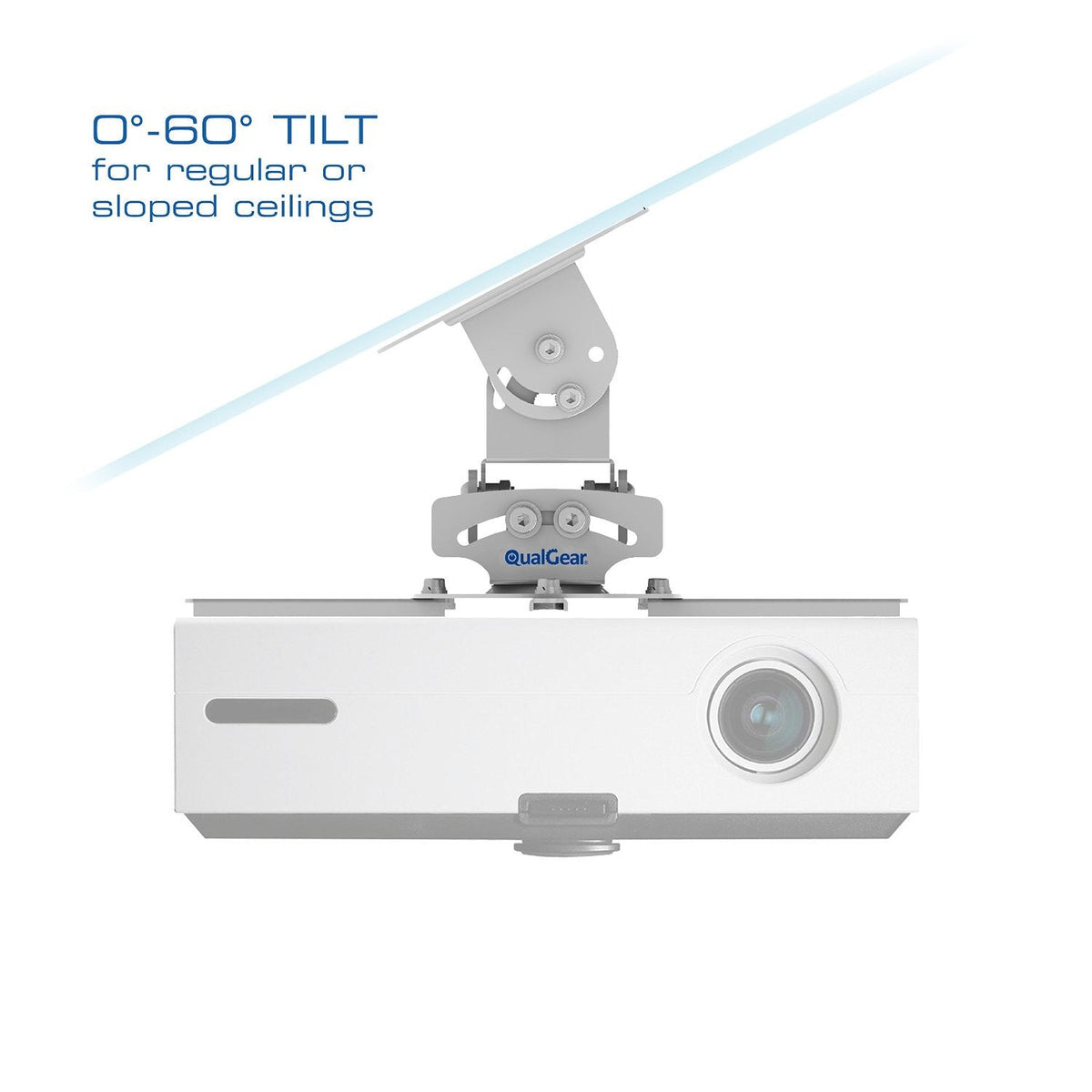

Aim the image with 0-60 degree tilt and 360 degree swivel, level it with +/-30 degree pitch and +/-20 degree roll, and finish alignment with 1 in / 2.5 cm of horizontal shift. The snap-on, snap-off design releases the projector from the mount for quick access.

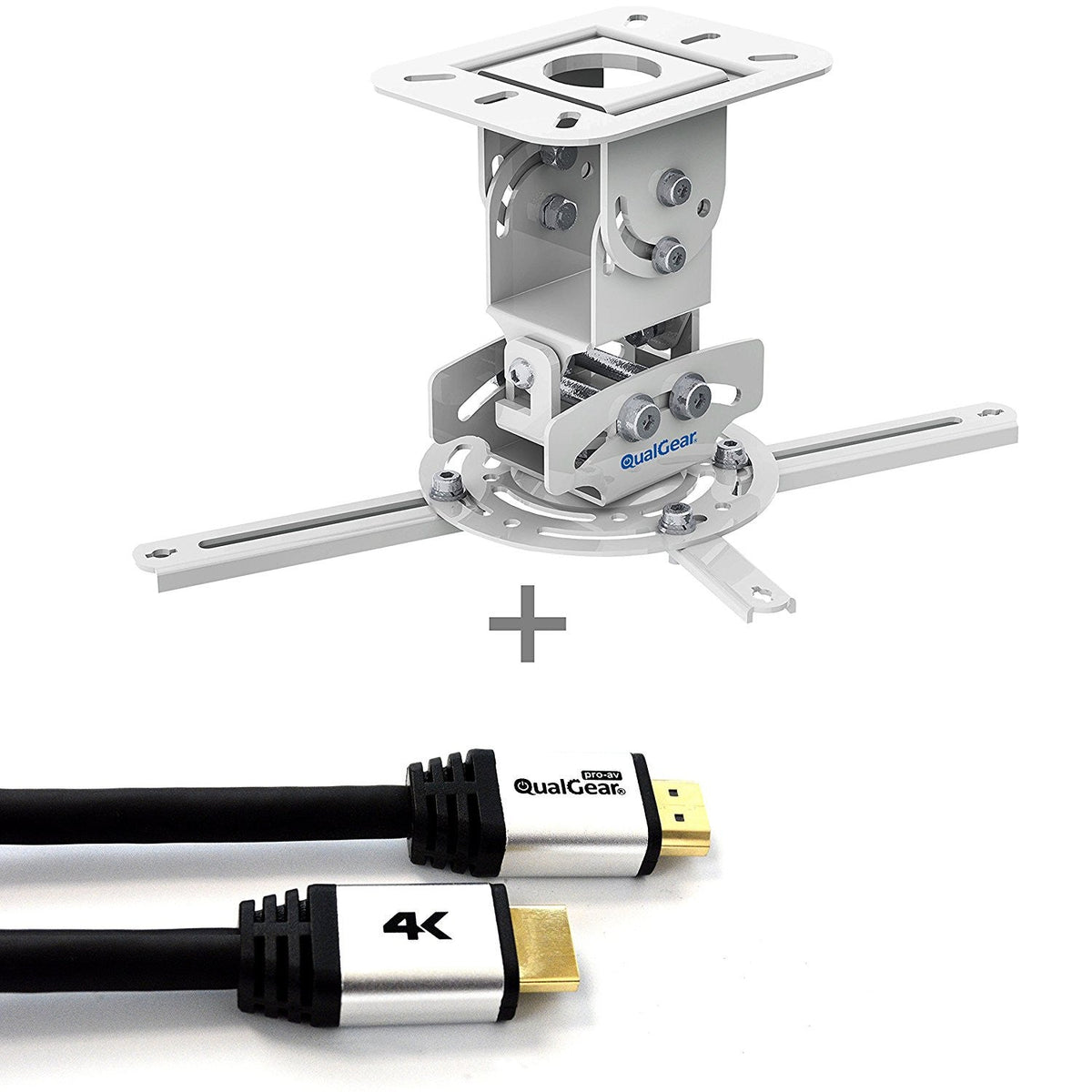

Cold-rolled steel construction in white sits quietly against a white ceiling. Pairs with a QualGear HDMI cable and VT2-B-50-P reusable cable ties for a clean ceiling run; when the install calls for a telescopic column, step up to the QualGear Universal Telescopic Projector Ceiling Mount, White (QG-PM-002-WHT). Backed by a 1-year limited manufacturer's warranty, parts only, with a 30-day RMA and US-based phone support at +1-972-423-5015.
Low profile keeps the ceiling clean
Holds the projector just 6 in / 15.2 cm from the ceiling, so the install stays tight and unobtrusive.

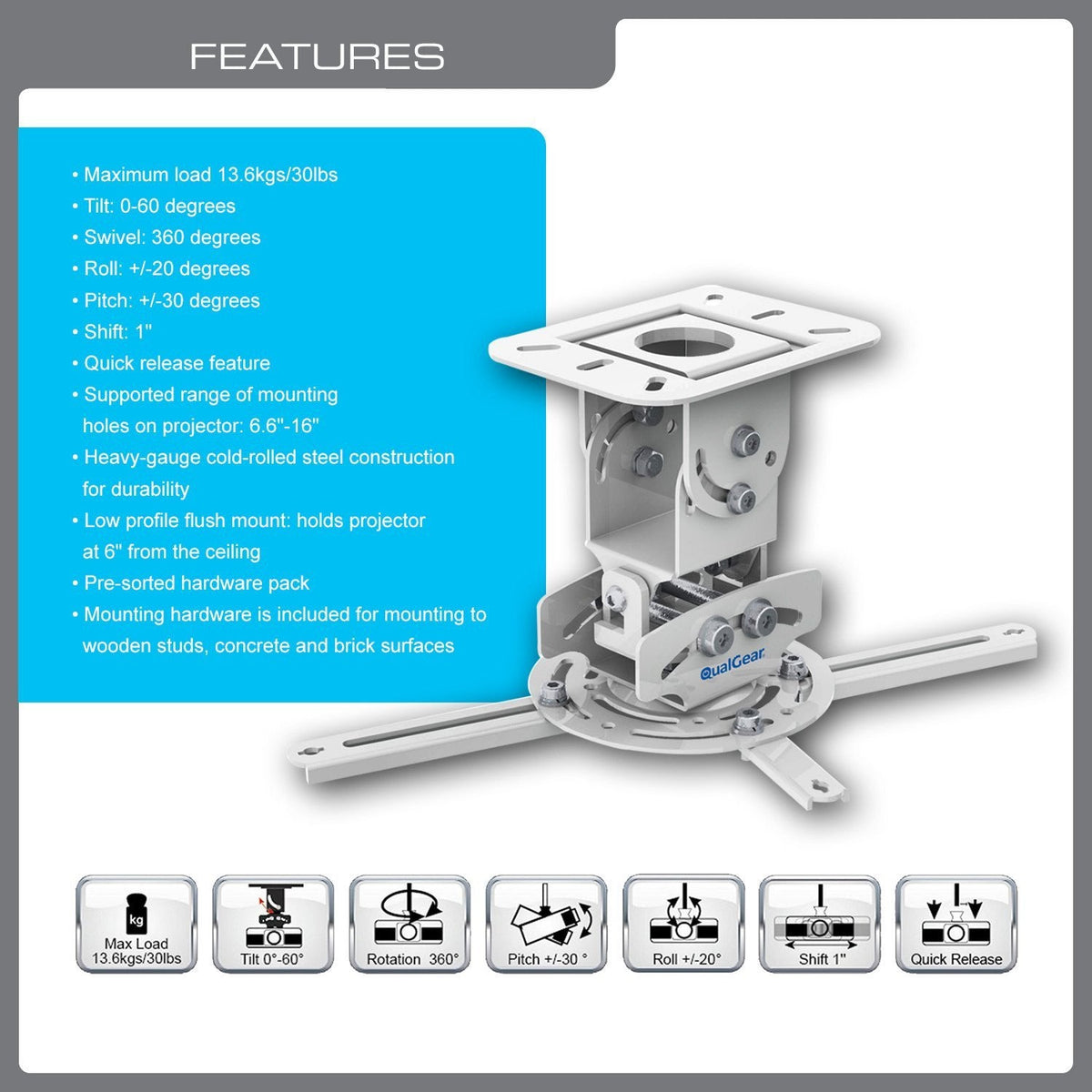

Fits most projectors up to 30 lb

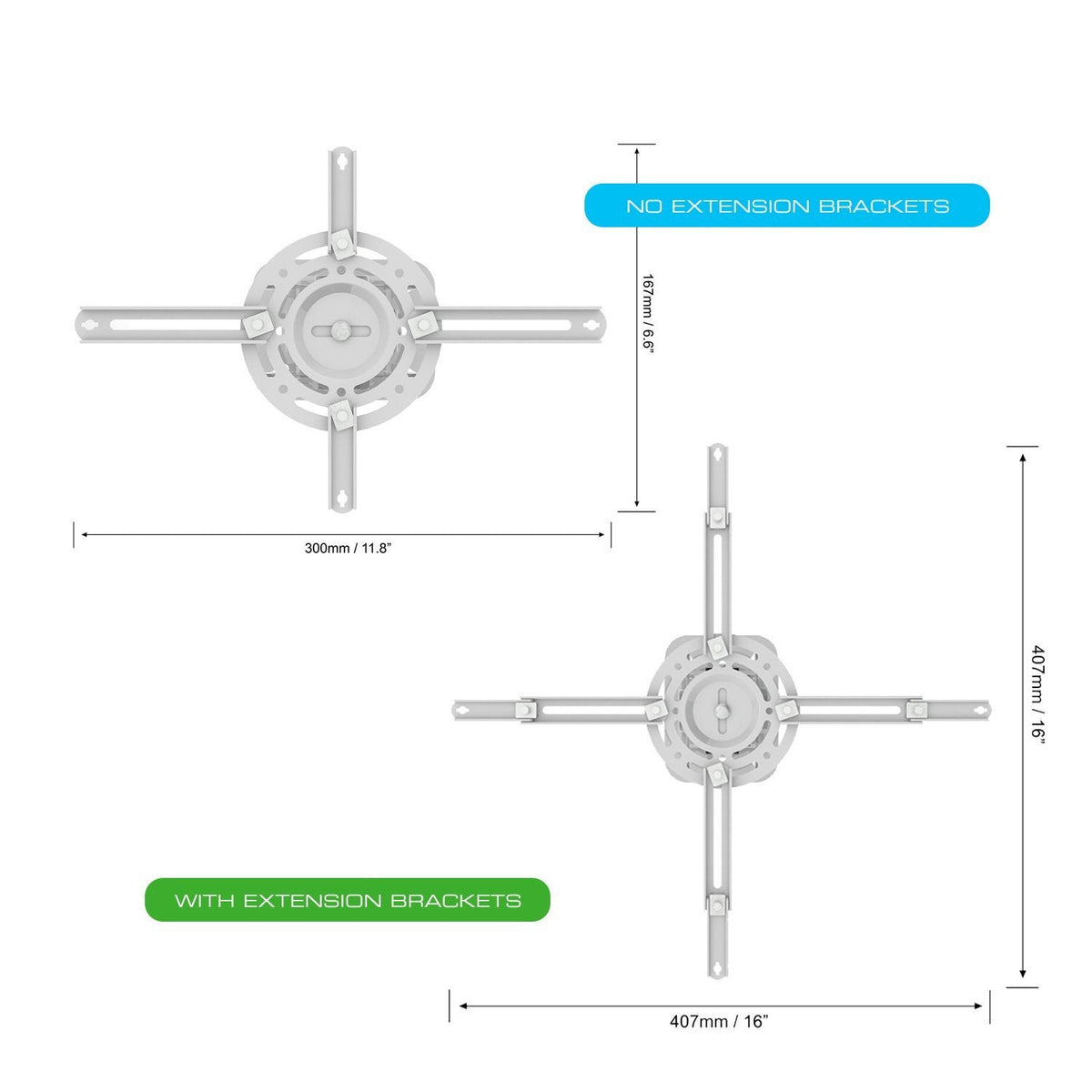

Universal design fits most DLP and LCD projectors up to 30 lb / 13.6 kg with mounting holes 6.6-16 in / 16.8-40.6 cm apart.

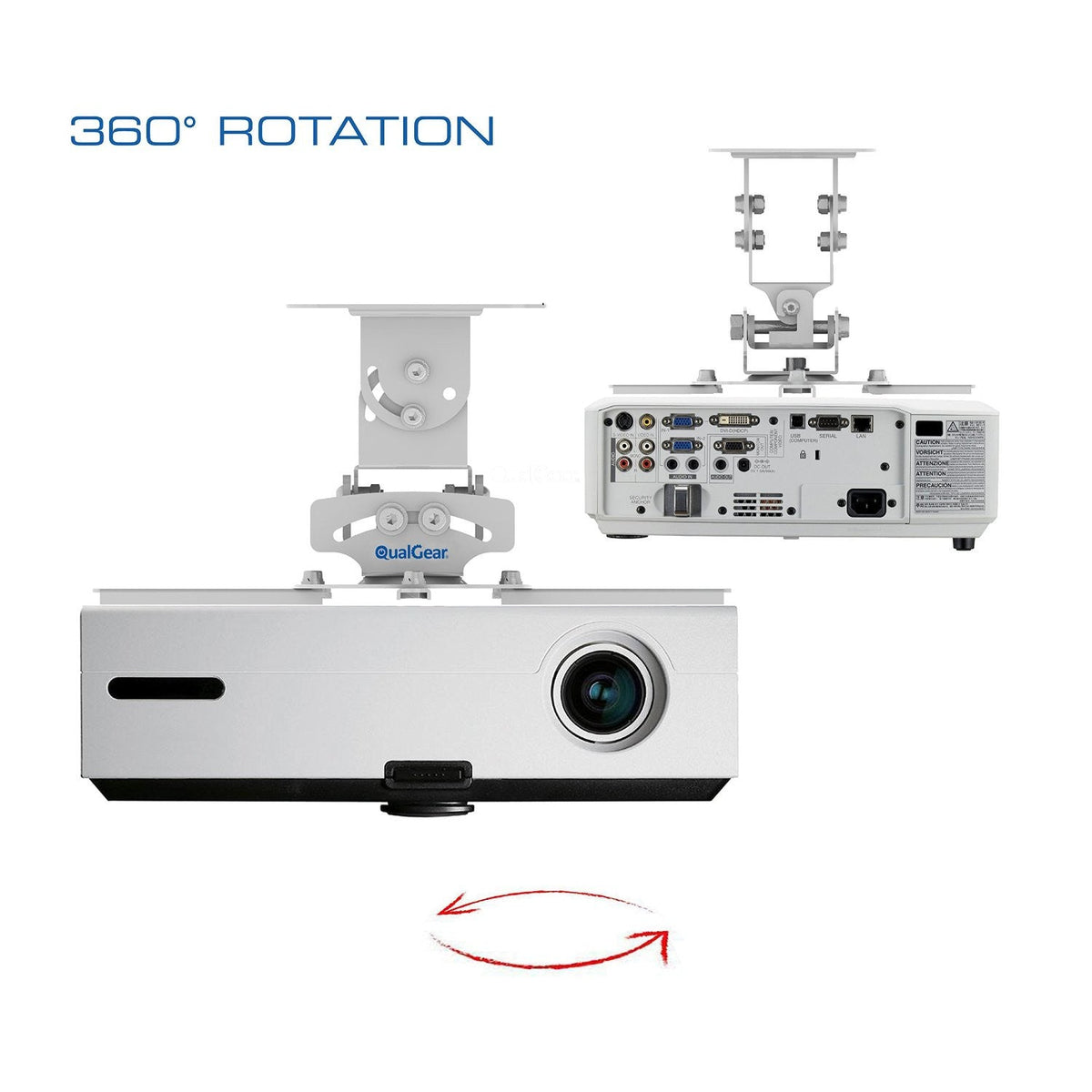

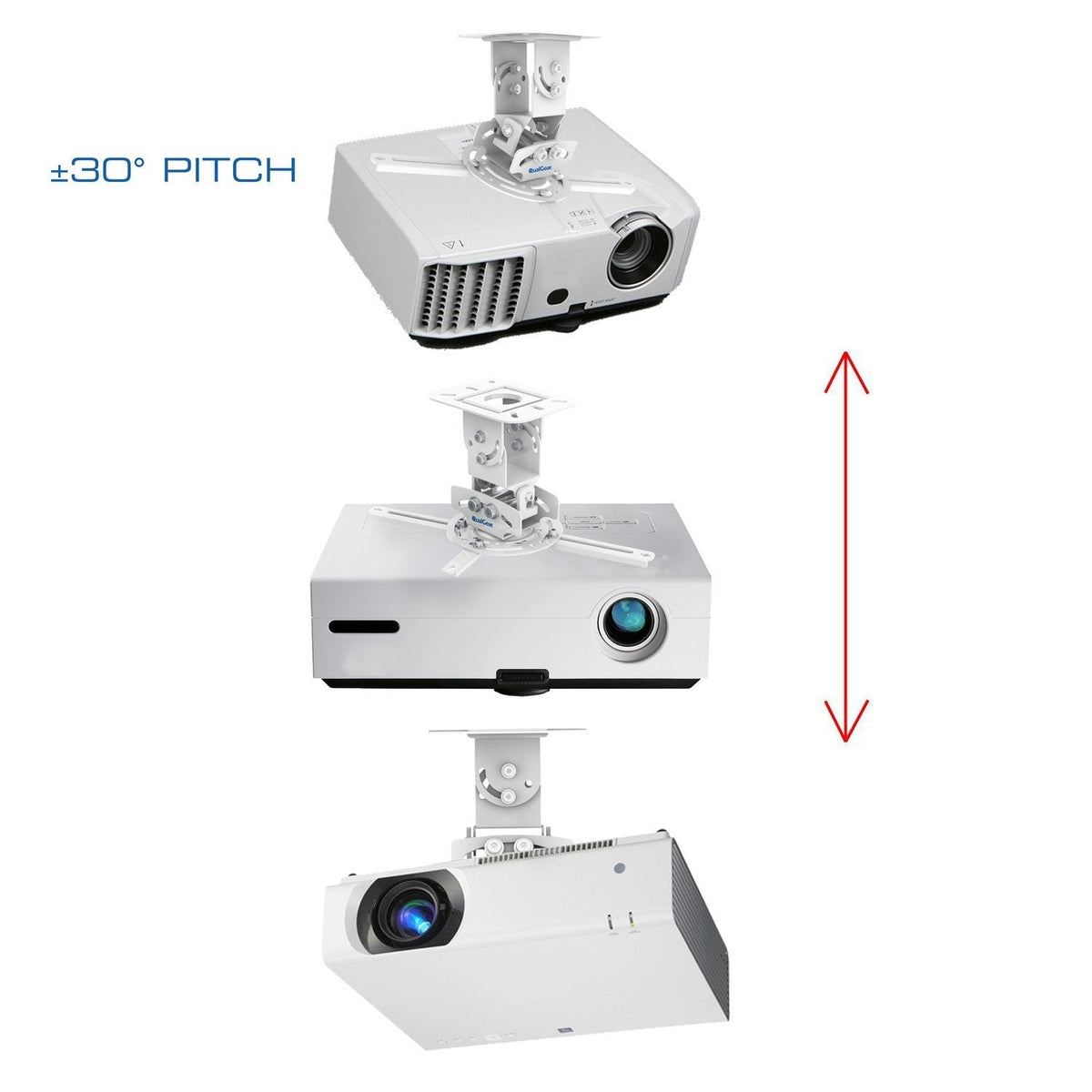

Aims the image on four axes
Tilt 0-60 degrees, swivel 360 degrees, pitch +/-30 degrees, and roll +/-20 degrees line the image up with the screen.

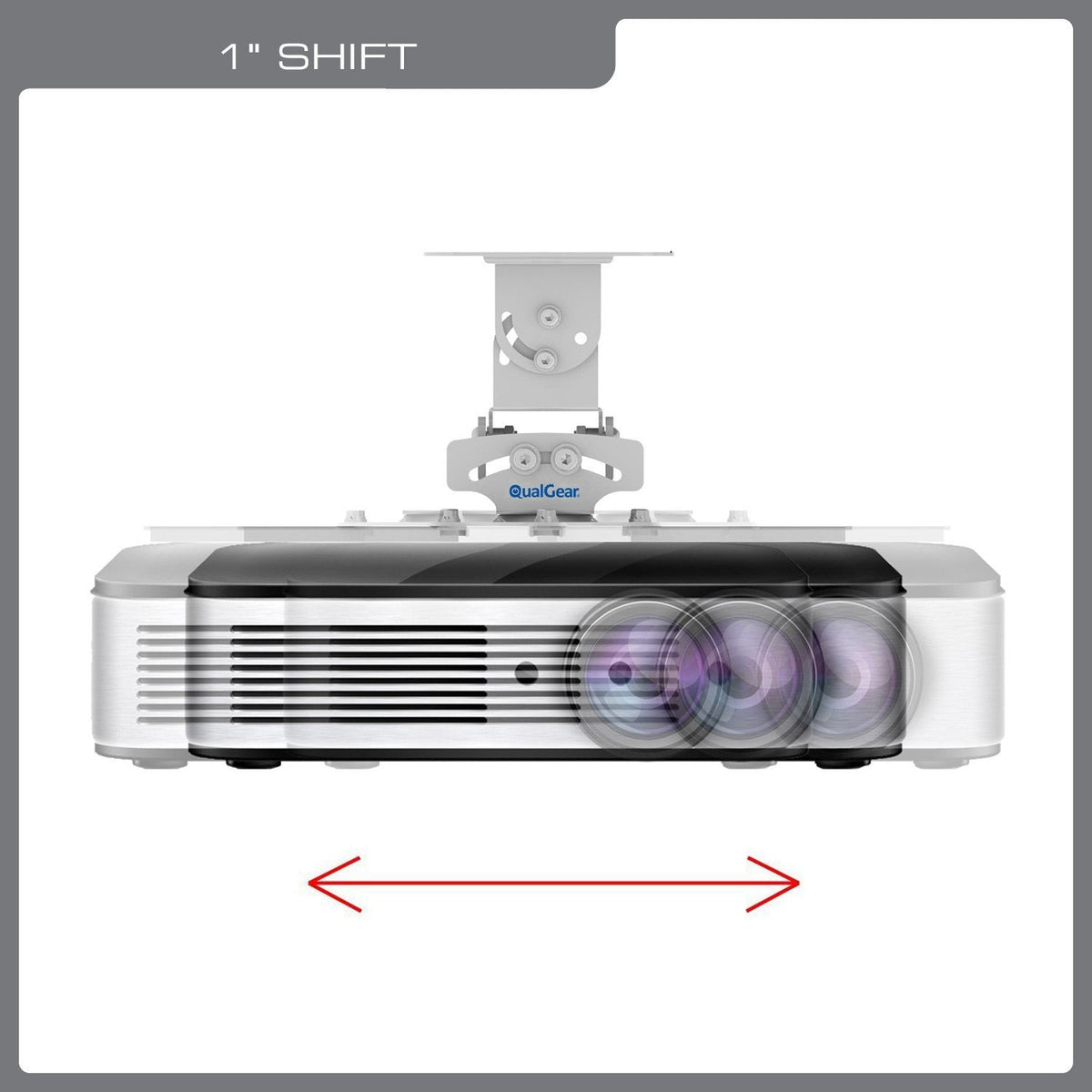

Horizontal shift for final alignment
1 in / 2.5 cm of horizontal shift fine-tunes lens position for final image alignment on the bracket.

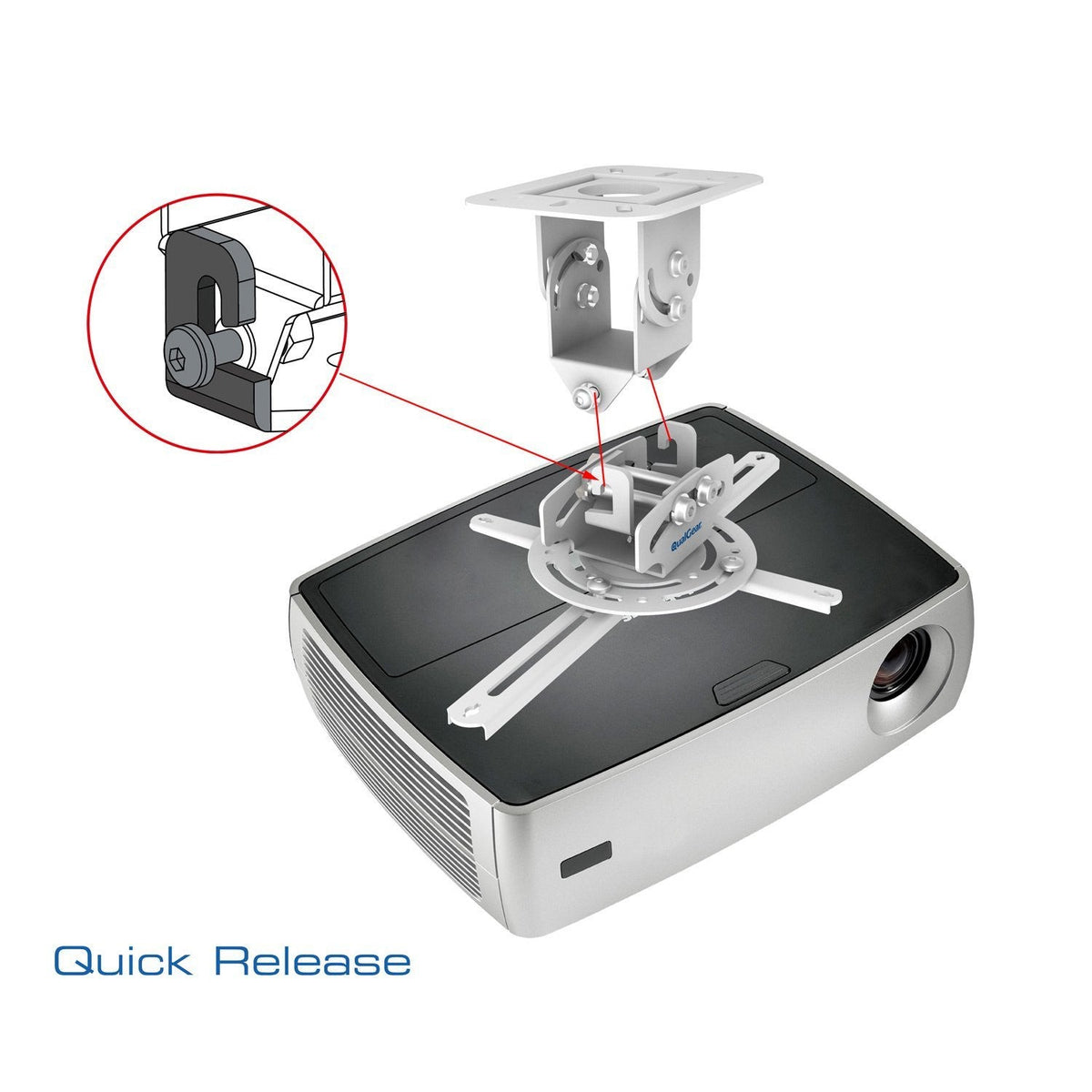

Quick release for easy access
Snap-on, snap-off design releases the projector from the mount whenever you need quick access.
Cold-rolled steel in white
Cold-rolled steel construction carries the load, and the white finish blends into a white ceiling.
