QualGear 1.5 in NPT TV Ceiling Mount, 32-55 in, VESA 400x400, QG-PRO-TVCM
SKU: QG-PRO-TVCM
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day processing
Most in-stock orders placed by the cutoff on business days are processed the same day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day processing on most in-stock orders
- Transit set by the carrier
Weekend and holiday orders are processed the next business day. Need it urgently? Call 972-423-5015 before you order so we can confirm stock and same-day shipping.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Check that your TV is wider than the mount's wall plate. If the plate is wider than the TV, it will show on either side. This is about appearance, not safety — fit is decided by VESA pattern and weight.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

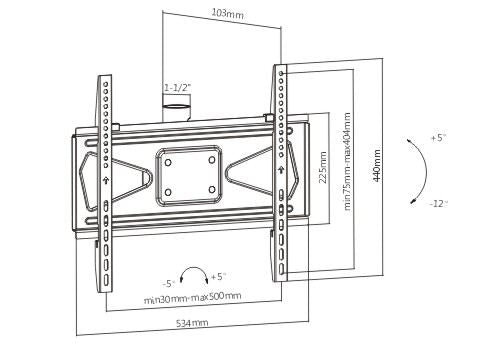

Key Specifications
What is VESA?
VESA is the standard spacing of the four threaded holes on the back of your TV or monitor — measured in millimeters, width × height. A mount "fits" your TV when it supports that hole pattern.
Measure center-to-center between holes: left-to-right is the width, top-to-bottom is the height.
This mount supports every pattern shown above, up to its maximum 400×400. Not sure of your TV's pattern? Check your TV's manual.
| Performance / Capacity | |
| Recommended screen size | 32-55 in / 81.3-139.7 cm |
| Rated load | 110 lb / 50 kg |
| Mount type | Ceiling |
| Tilt | +5 to -12 degrees |
| Rotation | 360 degrees around the pipe |
| Screen leveling | +/-5 degrees |
| Compatibility / Requirements | |
| Pipe fitting | 1.5 in NPT (ceiling adapter and pipe sold separately) |
| Cable management | Integrated, with ceiling mount covers; cables can run inside the Pro-AV pipe |
| Dimensions & Weight | |
| Profile | 4.1 in / 103 mm |
| Open-position size | 4.1 x 21 x 17.3 in / 103 x 534 x 440 mm |
| Materials & Finish | |
| Material | Aluminum, steel, powder coated |
| Care / Installation | |
| What's included | Ceiling mount head, ceiling mount covers, installation hardware |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
| Support | 30-day RMA; US-based phone support, +1-972-423-5015 |

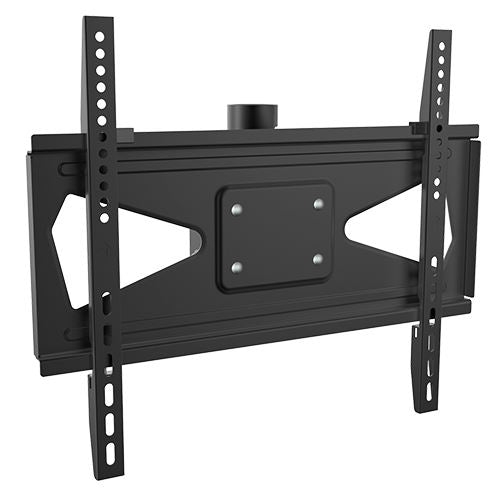

Threads onto a 1.5 in NPT pipe drop to hang a display up to 110 lb / 50 kg.
Hang a 32-55 in / 81.3-139.7 cm display from the ceiling on a 1.5 in NPT pipe drop. This QualGear Pro-AV TV ceiling mount head threads onto any 1.5 in NPT pipe, ceiling adapter, or extension pipe and carries displays up to 110 lb / 50 kg on six VESA patterns from 200x200 to 400x400 mm.
Once the display hangs, the head does the aiming: tilt runs +5 to -12 degrees, the head rotates 360 degrees around the pipe, and a +/-5 degree screen-leveling adjustment squares the picture after installation. Integrated cable management and ceiling mount covers keep the drop tidy at a 4.1 in / 103 mm profile, and cables can also run inside the Pro-AV pipe. In the box: ceiling mount head, ceiling mount covers, and installation hardware. The 1.5 in NPT ceiling adapter and pipe are sold separately.
The head completes the QualGear Pro-AV 1.5 in NPT system: pair it with the flat (QG-PRO-PM-CA-B), sloped (QG-PRO-PM-VCA-B), or truss (QG-PRO-PM-TCA-B) ceiling adapter, the 1.5 in NPT extension pipe, and the pipe connector for longer drops. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Threads onto standard 1.5 in NPT pipe
Standard 1.5 in NPT threading fits any QualGear Pro-AV ceiling adapter, pipe, or extension pipe, so the drop length is set by the pipe, not the mount.
Holds 110 lb / 50 kg displays
Carries displays up to 110 lb / 50 kg on powder-coated aluminum and steel construction; recommended for 32-55 in / 81.3-139.7 cm screens.
Aims after installation
Tilt +5 to -12 degrees, 360-degree rotation around the pipe, and +/-5 degrees of screen leveling square the display without re-drilling.
Six VESA patterns to 400x400 mm
Accepts 200x200, 300x200, 300x300, 400x200, 400x300, and 400x400 mm patterns — match your display by VESA pattern and weight first.
Cable management inside the drop
Integrated cable management and ceiling mount covers route cabling within a 4.1 in / 103 mm profile, and cables can run inside the Pro-AV pipe.
