QualGear Sloped Ceiling Adapter, White, QG-PRO-PM-VCA-W
SKU: QG-PRO-PM-VCA-W
Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.
Couldn't load pickup availability
US-based support
Real people in Anna, Texas — not an overseas call center. We own the problem until it's fixed.
- Email: support@qualgear.com
- Hours: Mon–Fri, 9am–5pm CT
- Phone: +1-972-423-5015
Same-day processing
Most in-stock orders placed by the cutoff on business days are processed the same day.
- Cutoff: 2:00 pm CT, Mon–Fri
- Same-day processing on most in-stock orders
- Transit set by the carrier
Weekend and holiday orders are processed the next business day. Need it urgently? Call 972-423-5015 before you order so we can confirm stock and same-day shipping.
Shipping informationSecure checkout
Payment is encrypted end to end. We never see or store your full card number.
- TLS-encrypted connection
- PCI-DSS processing
- Card data tokenized, never on our servers
Will it fit?
Check the fit before you buy.
-
Find your equipment's numbers
For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.
-
Compare against this mount's Key Specifications
View key specifications Open the full fit checkerCheck this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when its mounting pattern and weight are within the published specifications. A screen-size range is a recommendation, not a limit.
Build your fit checklist
Enter the numbers from your equipment's manual. We restate them as the checks to run — nothing is looked up or stored.
Can't find these numbers, or your model isn't listed? Send us the model number and we'll confirm which mounts fit before you buy.
Ask tech supportAlways confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.
Key Specifications
| Compatibility / Requirements | |
| Interface | 1.5 in NPT threaded pipe |
| Mounting surface | Cathedral and vaulted ceilings |
| Performance / Capacity | |
| Load rating | Up to 300 lb / 136 kg |
| Angle adjustment | 0–90 degrees |
| Dimensions & Weight | |
| Product dimensions | 7.4 x 4.7 x 3.8 in / 18.8 x 11.9 x 9.7 cm |
| Materials & Finish | |
| Material | High-grade cold rolled steel, scratch-resistant epoxy powder coat |
| Color | White |
| Care / Installation | |
| In the box | Ceiling adapter |
| Warranty & Support | |
| Warranty | 5-year limited manufacturer's warranty, parts only |
Keeps the projector drop plumb on a sloped ceiling — 0–90 degree adjustment.
Cathedral and vaulted ceilings put every mounting point on an angle; this sloped ceiling adapter absorbs it. Mounted to the slope, it adjusts from 0 to 90 degrees to align a 1.5 in NPT projector drop, and is rated for installations up to 300 lb / 136 kg.
Set the angle to the ceiling pitch and run the drop — any standard 1.5 in NPT threaded pipe threads in. Cold rolled steel with a scratch-resistant epoxy powder coat, in white, 7.4 x 4.7 x 3.8 in / 18.8 x 11.9 x 9.7 cm. In the box: the ceiling adapter.

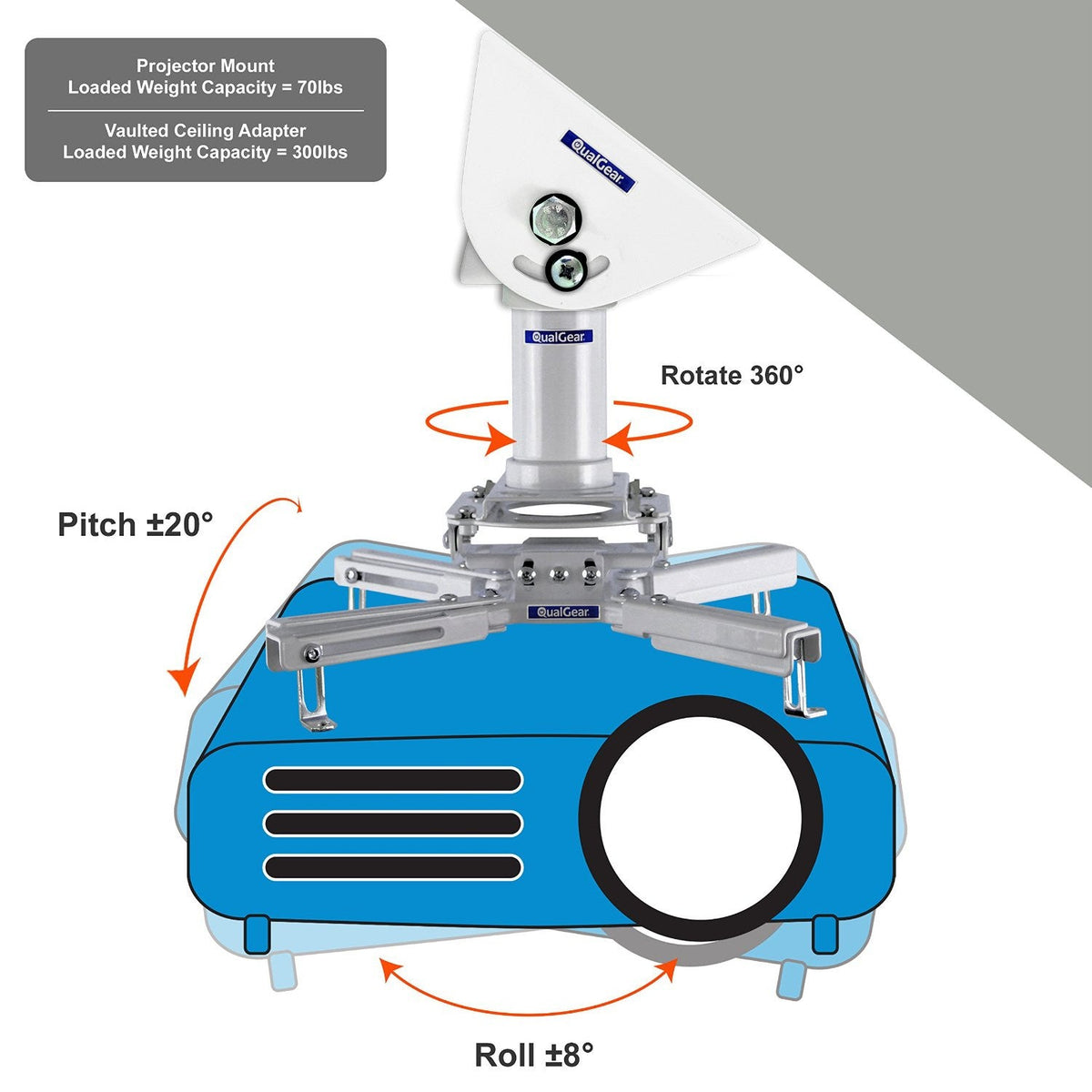

The white finish matches QualGear Pro-AV pipes, connectors, and mounts, so the whole drop reads as one system. Pair it with the QG-PRO-PM-50-W projector bracket, an NPT extension pipe, and a pipe connector, or take the QG-KIT-VA-3IN-W sloped ceiling mount kit. Backed by a 5-year limited manufacturer's warranty, parts only, a 30-day RMA, and US-based phone support at +1-972-423-5015.
Made for cathedral and vaulted ceilings
Mounts on cathedral and vaulted ceilings, carrying the projector drop from the slope itself.
Adjusts from 0 to 90 degrees
Angle adjustment from 0 to 90 degrees aligns the 1.5 in NPT drop to the ceiling pitch.
Rated to 300 lb / 136 kg
Rated for installations up to 300 lb / 136 kg, stated as the maximum load for the drop.
Accepts standard 1.5 in NPT pipe
Accepts any standard 1.5 in NPT threaded pipe — the interface shared across QualGear Pro-AV pipes, connectors, and mounts.
Finish matches the Pro-AV line
Scratch-resistant epoxy powder coat over cold rolled steel, in white to match QualGear Pro-AV pipes, connectors, and mounts.
Reviews
Ratings from where we sell
These ratings were collected directly from the marketplaces linked below, not from QualGear's own review pipeline.
4.5 out of 5 across 8 marketplace ratings
-
Amazon.com8 ratingsLast checked 2026-10-06View listing on Amazon.com (opens in a new tab)
Write a review
Reviews are open to verified purchasers. We match your email or order number to a past order before publishing.
Complete your setup
QualGear Pro-AV Projector Bracket, White, QG-PRO-PM-50-W
- Max load 50 lb / 22.7 kg
- Pitch +/-20 degrees (6 adjustment points)
- Roll +/-8 degrees (6 adjustment points)

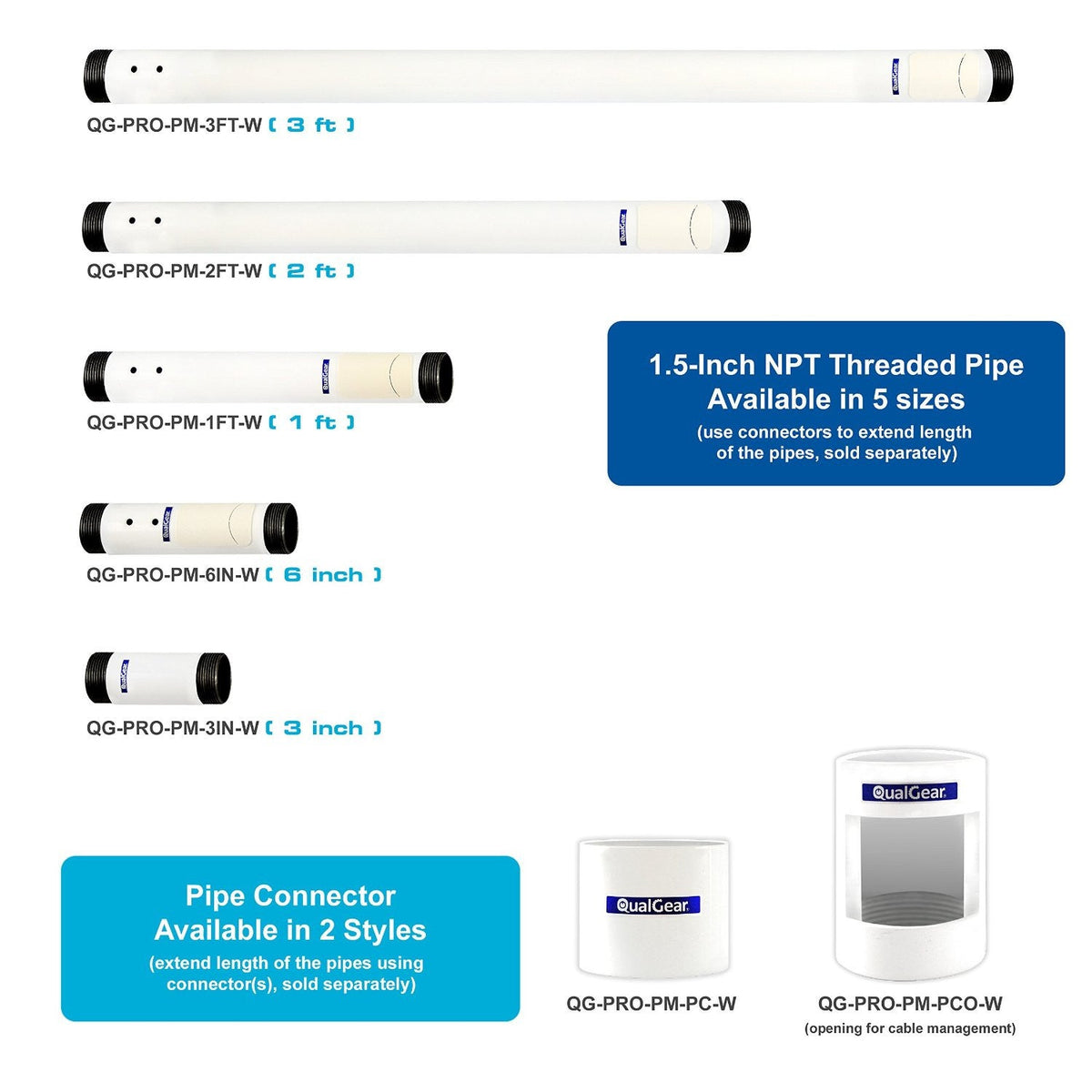

QualGear Pro-AV 1.5 in NPT Projector Mount Extension Pipe, QG-PRO-PM
- Length options 1.5 in / 3.8 cm, 3 in / 7.6 cm, 6 in / 15.2 cm, 12 in / 30.5 cm, 24 in / 61 cm, 36 in / 91.4 cm
- Max weight capacity 800 lb / 363 kg
- Thread standard 1.5-in NPT
QualGear Pro-AV 1.5 in NPT Pipe Connector, With or Without Cable Opening, QG-PRO-PM
- Function Joins two or more pipes to extend drop length
- Max weight capacity 300 lb / 136 kg
- Styles With cable opening (PCO), without opening (PC)
Compare other options
QualGear Sloped Ceiling Projector Mount Kit, White, QG-KIT-VA-3IN-W
- Ceiling types Cathedral or vaulted ceilings
- Included mount QG-PRO-PM-50-W
- Included adapter QG-PRO-PM-VCA-W vaulted ceiling adapter
